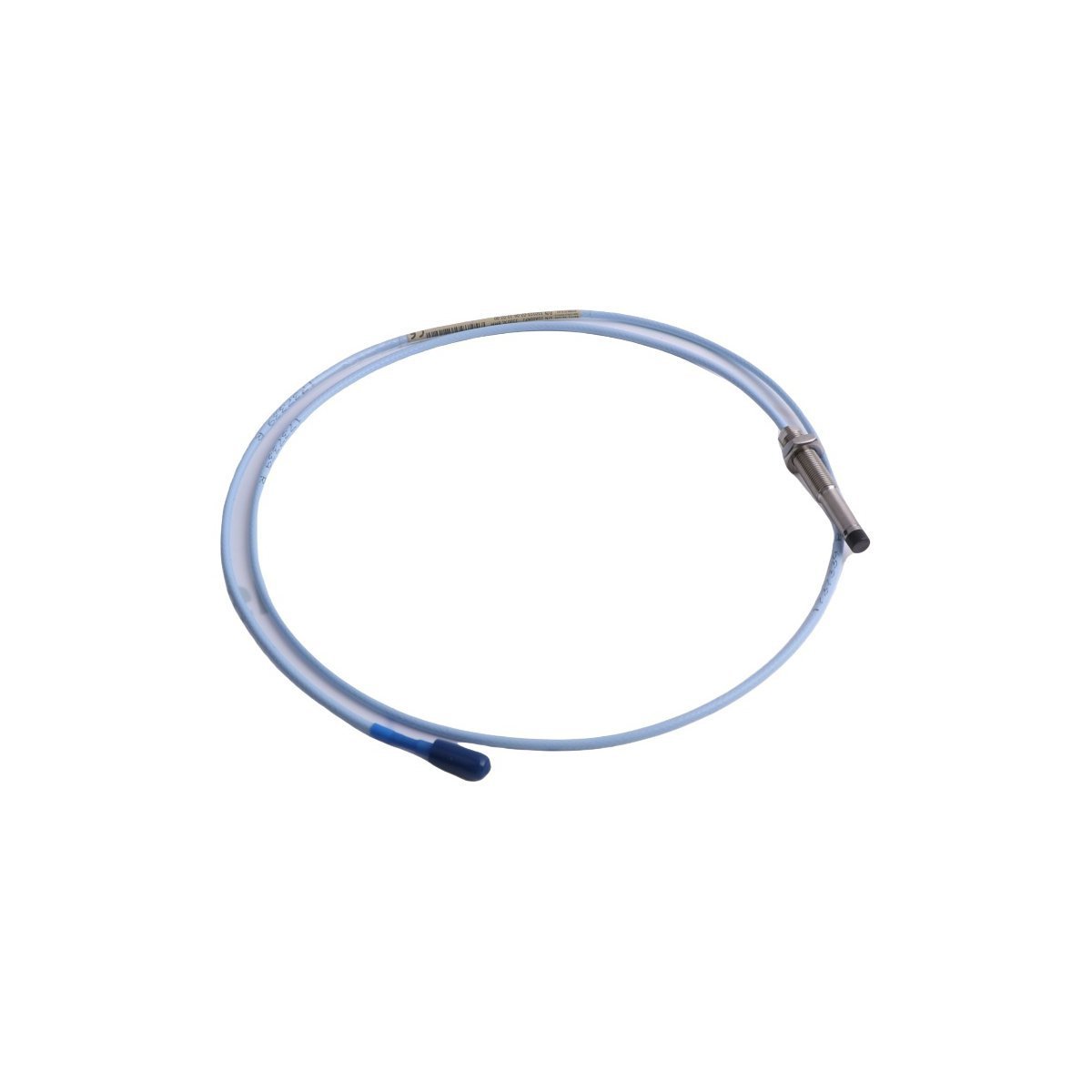

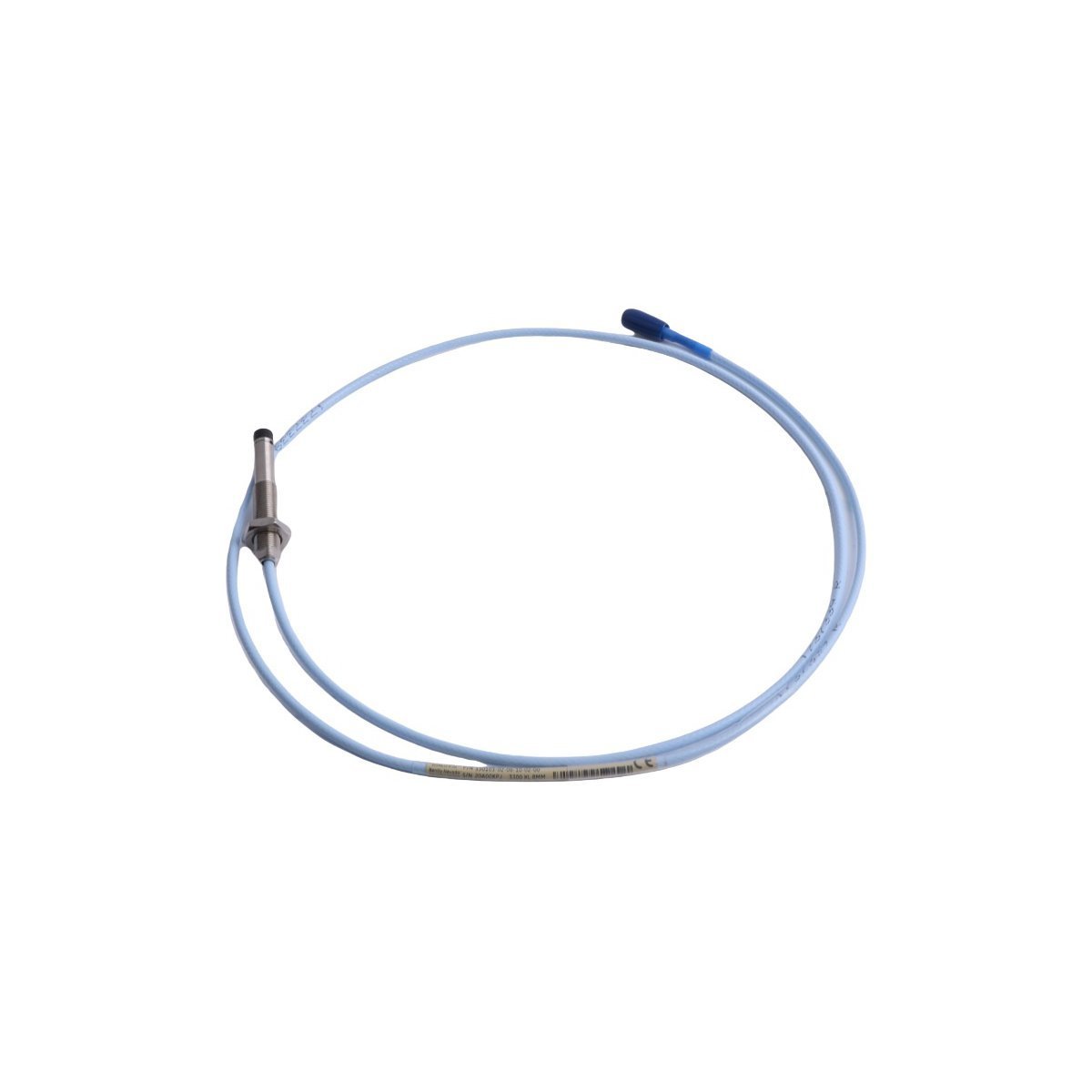

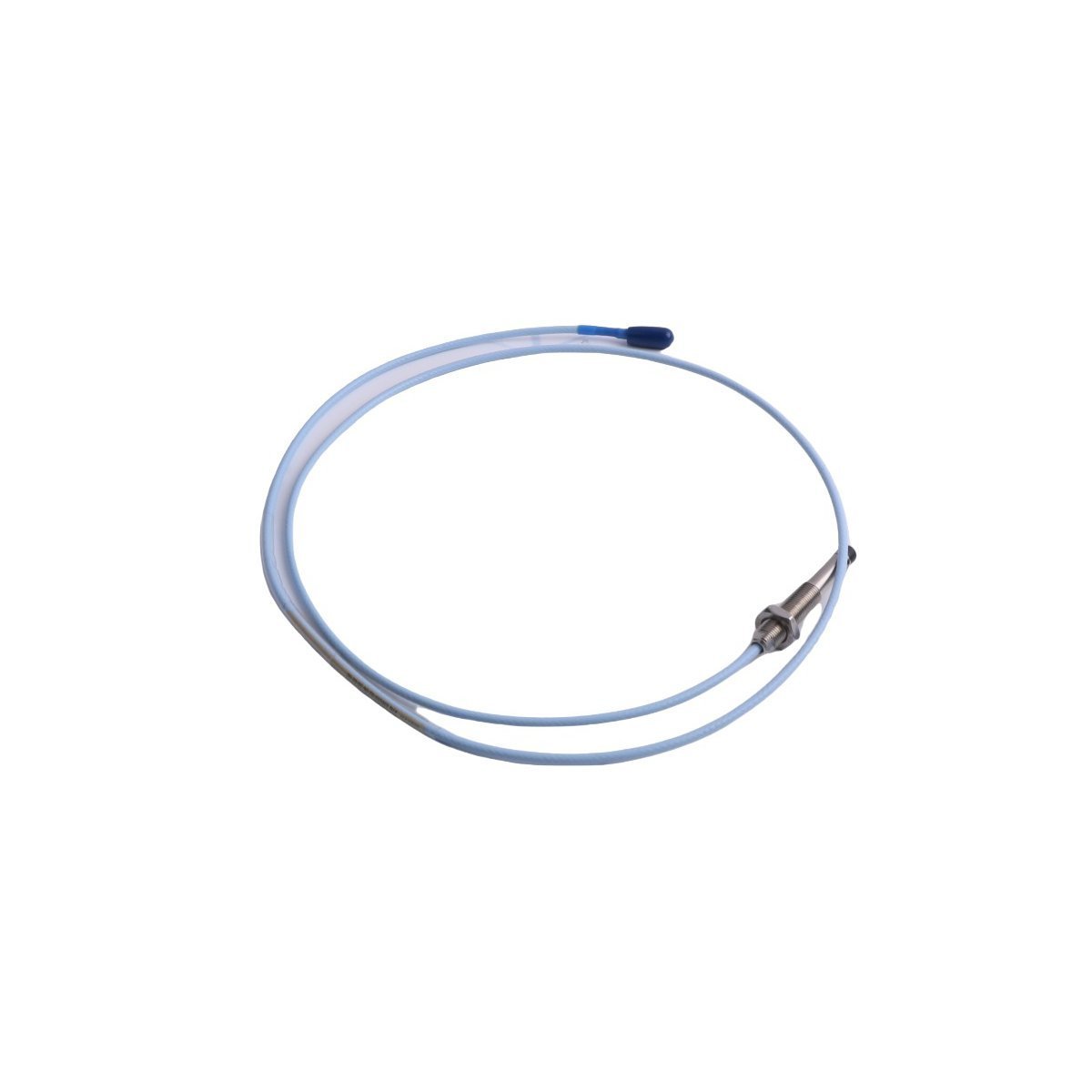

330103-02-04-10-02-05 Bently Nevada 3300 XL Series Proximity Sensor

330103-02-04-10-02-05 Bently Nevada 8 mm Proximity Sensor

The 330103-02-04-10-02-05 sensor by Bently Nevada serves as a high-precision proximity probe within the 3300 XL transducer ecosystem. Engineers utilize this device for non-contact monitoring of shaft vibration and axial position, which are critical for the health of rotating machinery. This probe excels in demanding industrial settings, providing reliable data for predictive maintenance programs.

Technical Characteristics and Performance Specifications

The following table summarizes the core technical parameters for this transducer. Please verify these specifications against your specific machine requirements to ensure optimal system integration.

Functional Theory and System Integration

The proximity probe functions by generating a high-frequency magnetic field at the sensor tip. As the target shaft rotates, it disturbs this field, creating eddy currents that are directly proportional to the gap distance. This process yields a precise voltage signal for vibration analysis.

For seamless installation, the 330103-02-04-10-02-05 probe offers full physical and electrical interchangeability with legacy 3300-series components. You can mount it within existing 4-hole configurations easily. However, for maximum signal integrity, we recommend replacing all legacy components with the full 3300 XL system, as mixing hardware generations can degrade overall system performance.

If you are currently setting up your monitoring framework, consider reviewing our comprehensive vibration monitoring system documentation to ensure your field wiring meets OEM standards. Proper sensor calibration remains the most effective method for extending the service life of your rotating equipment. Explore our full catalog of industrial sensors to find the best components for your unique application.
