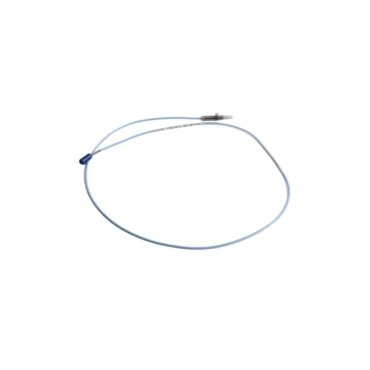

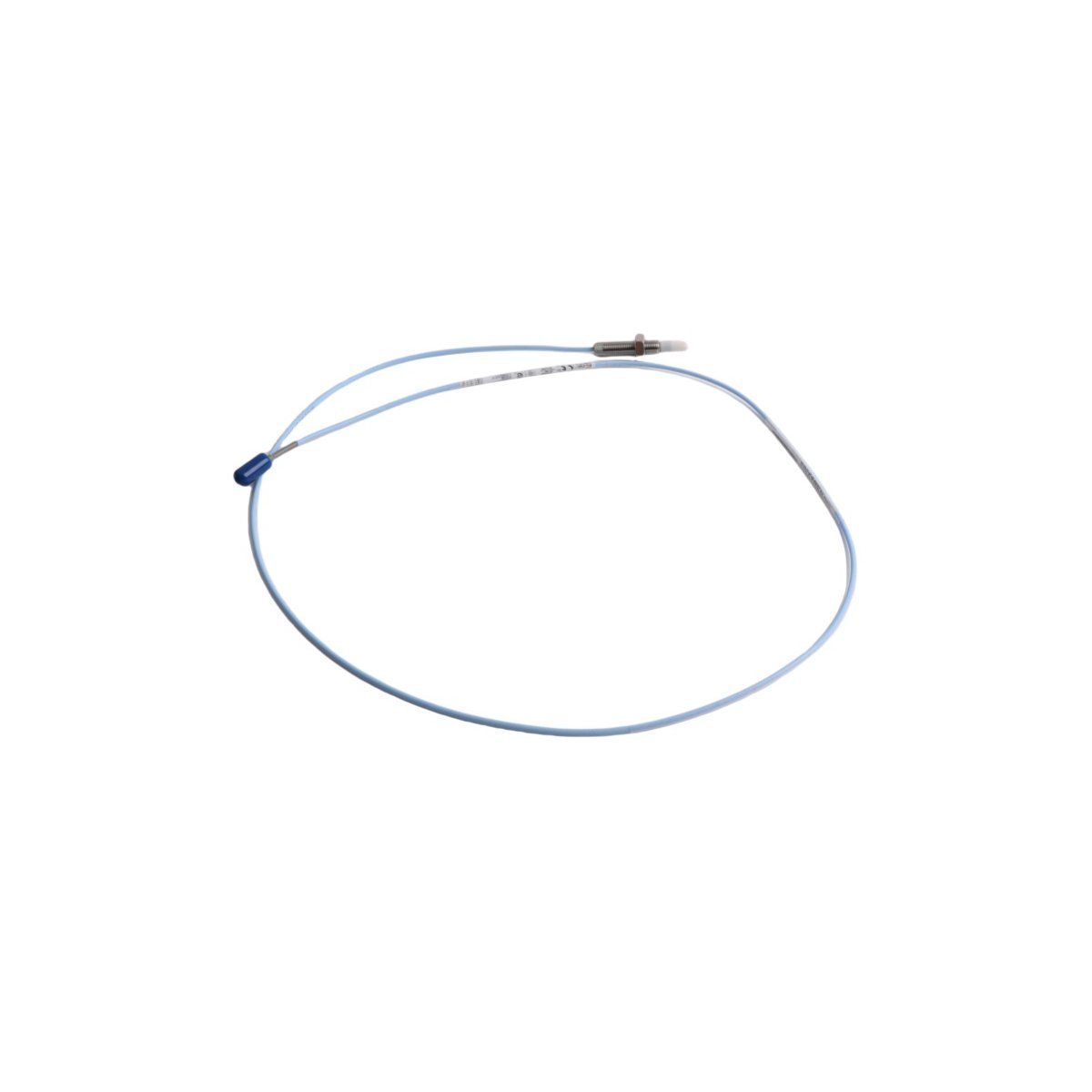

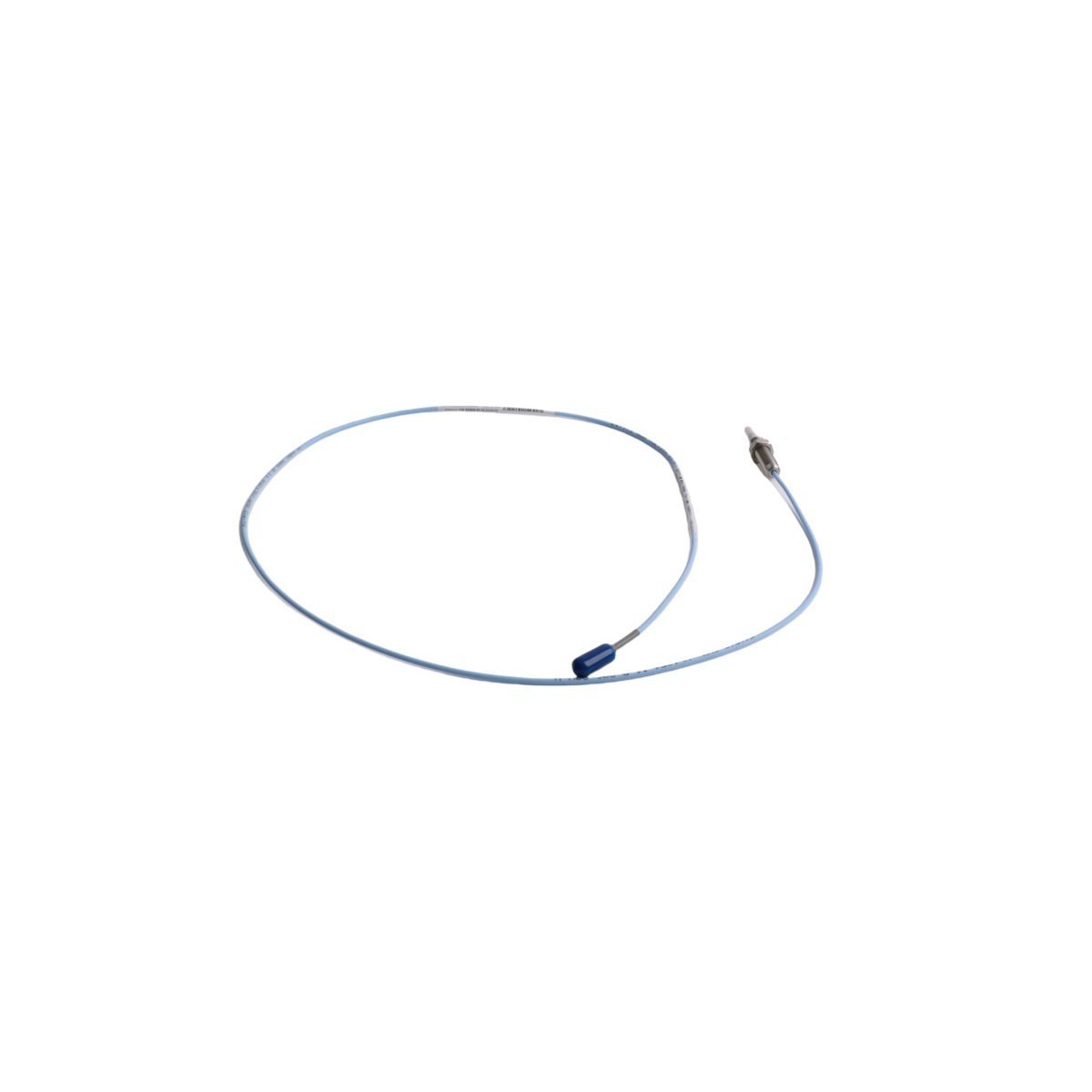

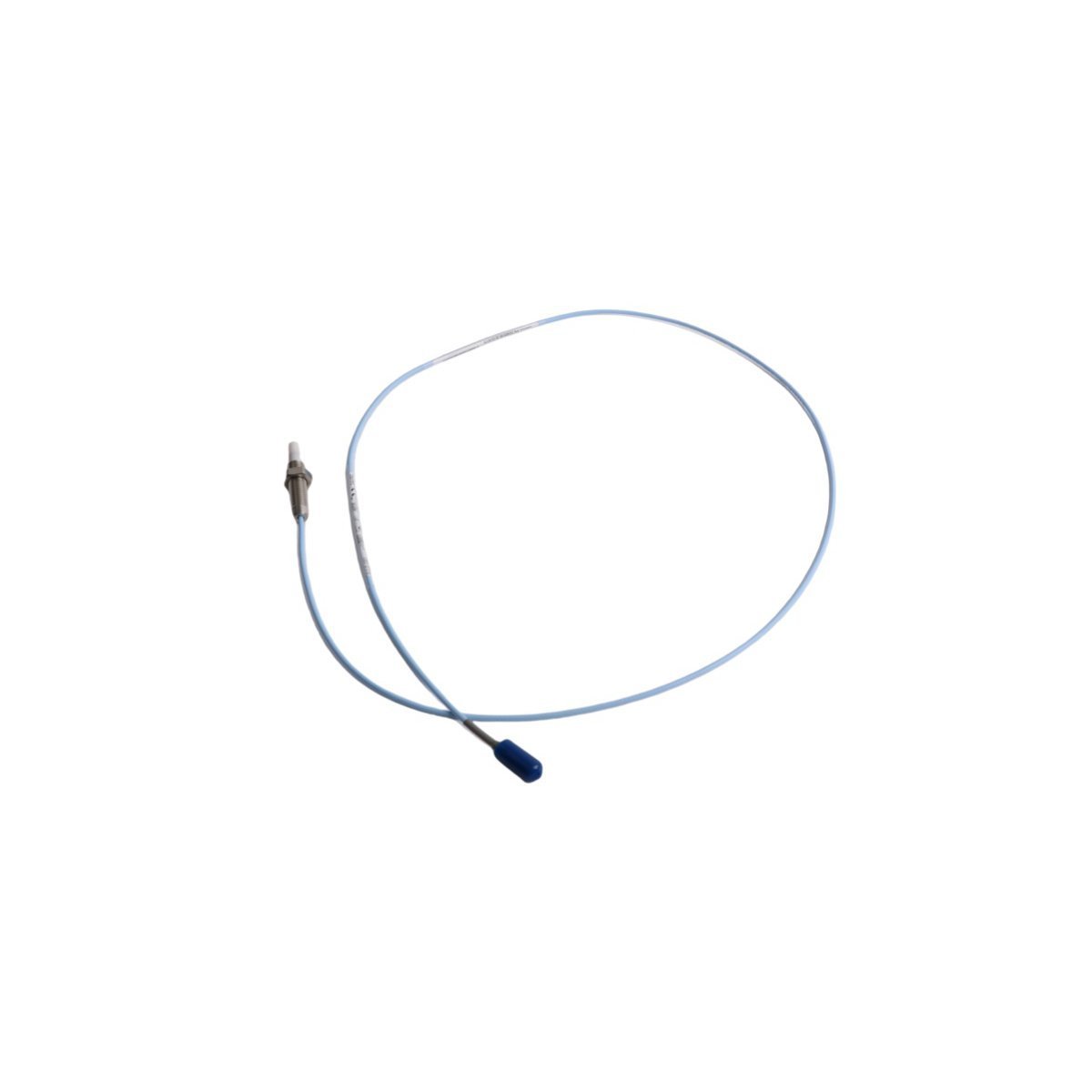

3300 NSv Series Proximity Probe 330908-00-16-10-02-05 by Bently Nevada

Brief Product Summary

This Bently Nevada 3300 NSv proximity probe utilizes eddy current technology to provide non-contacting displacement measurements for rotating machinery. It specifically targets applications with restricted installation space or small target areas where standard probes cannot operate effectively.

Technical Overview and Functional Description

The Bently Nevada 330908-00-16-10-02-05 serves as a core component of the 3300 NSv (Narrow Side View) proximity transducer system. Unlike standard proximity probes, the NSv line features a specialized design that minimizes the “side view” effect. This characteristic allows the sensor to provide accurate readings even when mounted in close proximity to adjacent metal surfaces or on shafts with small diameters. Consequently, it excels in monitoring centrifugal compressors, pumps, and small turbines where internal clearances are exceptionally tight.

Operating on the principle of eddy current technology, the probe generates a high-frequency magnetic field to detect the distance between the probe tip and the observed conductive target. The system converts this physical gap into a proportional voltage signal, enabling real-time monitoring of radial vibration and axial position. Because the 330908-00-16-10-02-05 is built with high-quality fluoropolymer-insulated cabling and ruggedized materials, it maintains signal stability despite thermal fluctuations and exposure to industrial lubricants.

Furthermore, this probe integrates seamlessly with Bently Nevada’s 3500 and 2300 monitoring systems. It facilitates advanced diagnostics by delivering high-resolution data to the Proximitor Sensor, which then processes the signal for machinery protection and condition-based maintenance. Its robust construction ensures long-term reliability in Turbine Supervisory Instrumentation (TSI) setups across the oil, gas, and power generation sectors.

Key Technical Characteristics

• Narrow Side View (NSv) Geometry: Optimized for small target areas and restricted mounting spaces to prevent interference from surrounding metal.
• Non-Contacting Measurement: Utilizes advanced eddy current sensing to monitor shaft dynamics without physical wear or mechanical friction.
• Broad Temperature Range: Engineered to operate reliably across a wide thermal spectrum, supporting both cryogenic and high-heat environments.
• Enhanced Signal Integrity: Features high-grade cable insulation to protect against electromagnetic interference and chemical degradation.
• Global Compliance: Meets stringent hazardous area standards, including ATEX and IECEx certifications, for use in explosive atmospheres.

Specifications Table

Application Guidelines

Maintenance engineers primarily specify the 330908-00-16-10-02-05 for machinery where space constraints prohibit the use of standard 3300 XL probes. The NSv series is particularly effective for monitoring shafts smaller than 76 mm (3 inches) in diameter. When installing this probe, ensure the target material is AISI 4140 steel to maintain factory calibration accuracy. If users require monitoring for different alloys, specialized calibration may be necessary. For optimal performance, always pair the probe with the appropriate NSv Proximitor Sensor and extension cable to ensure the total electrical length remains within system tolerances.
