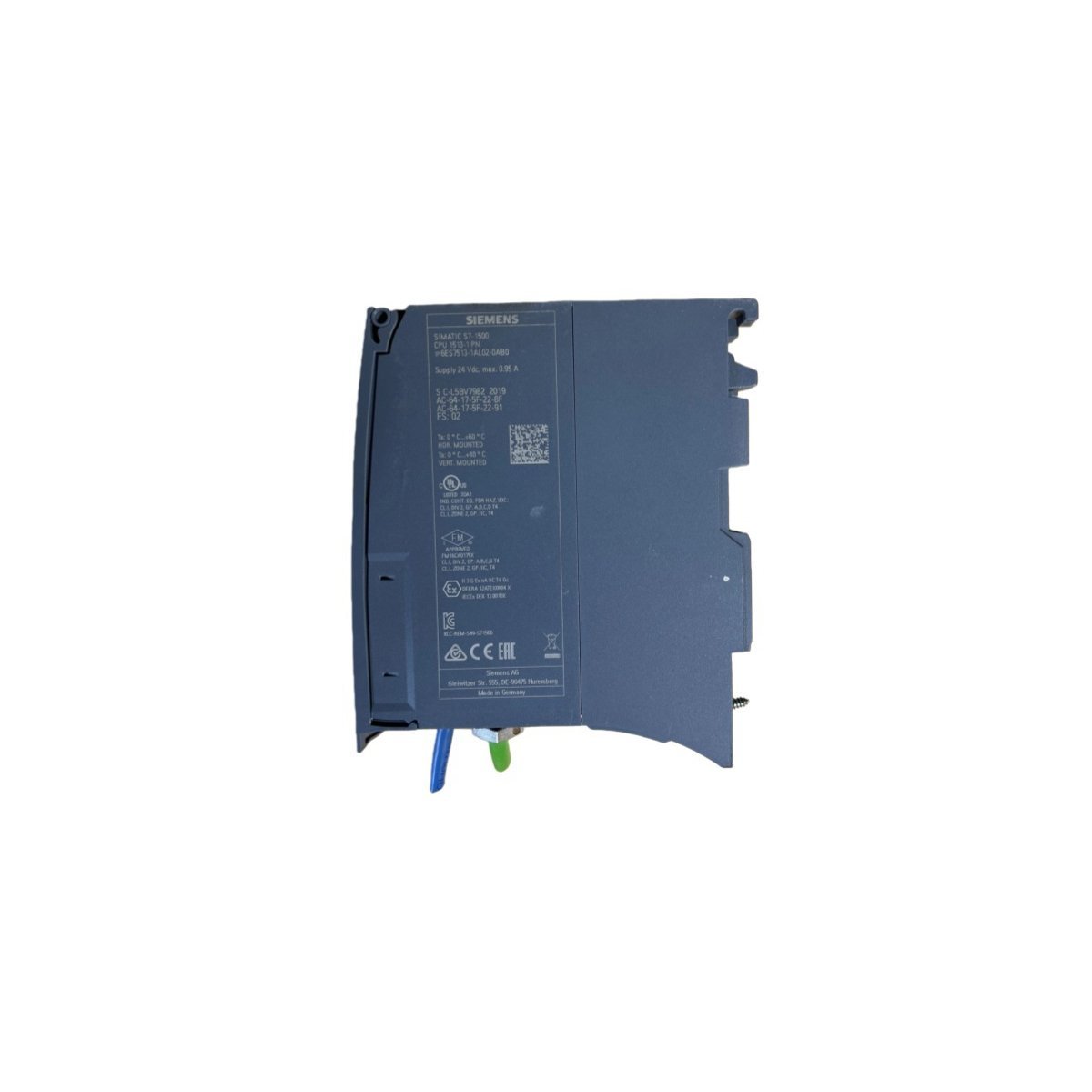

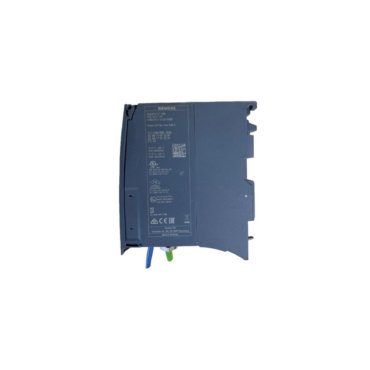

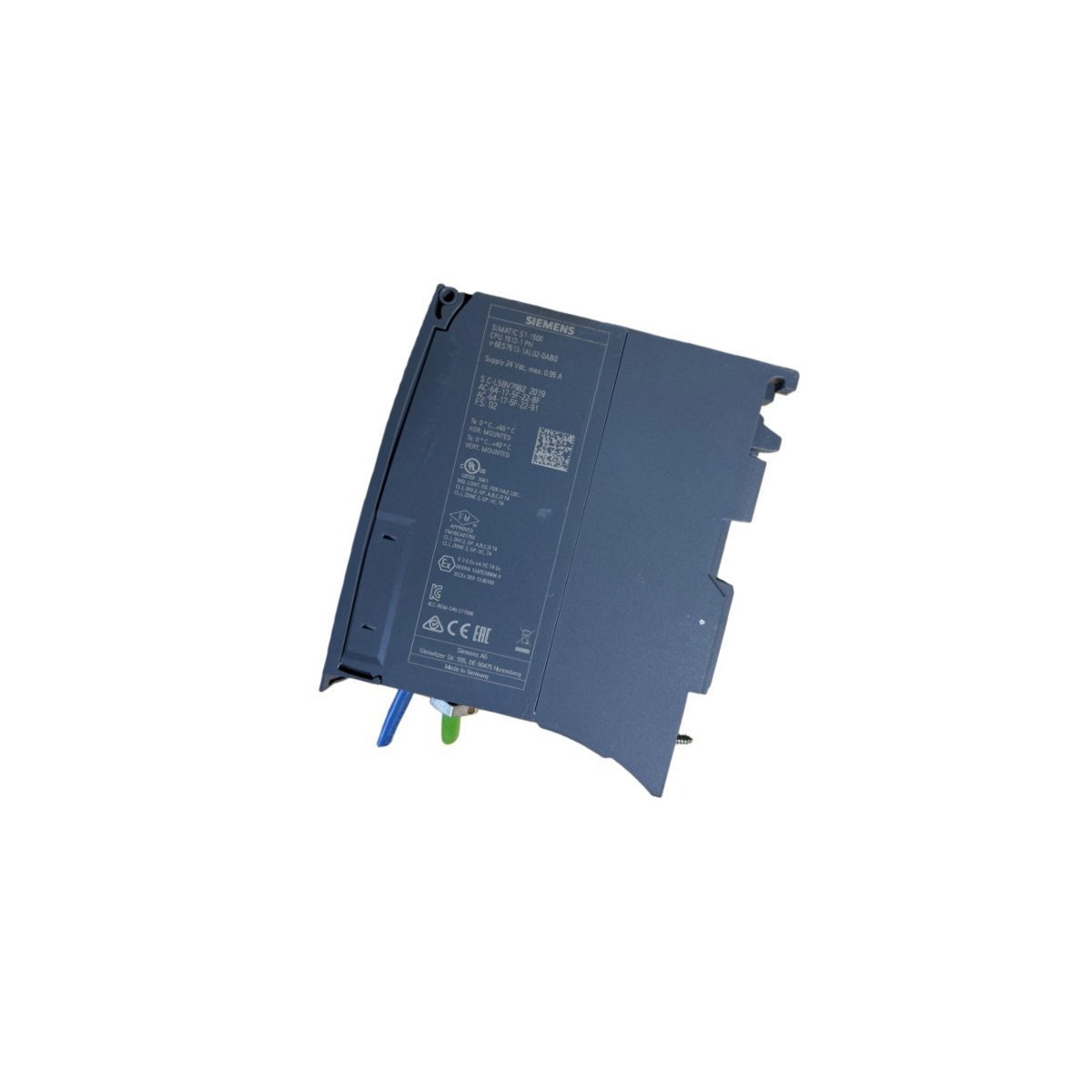

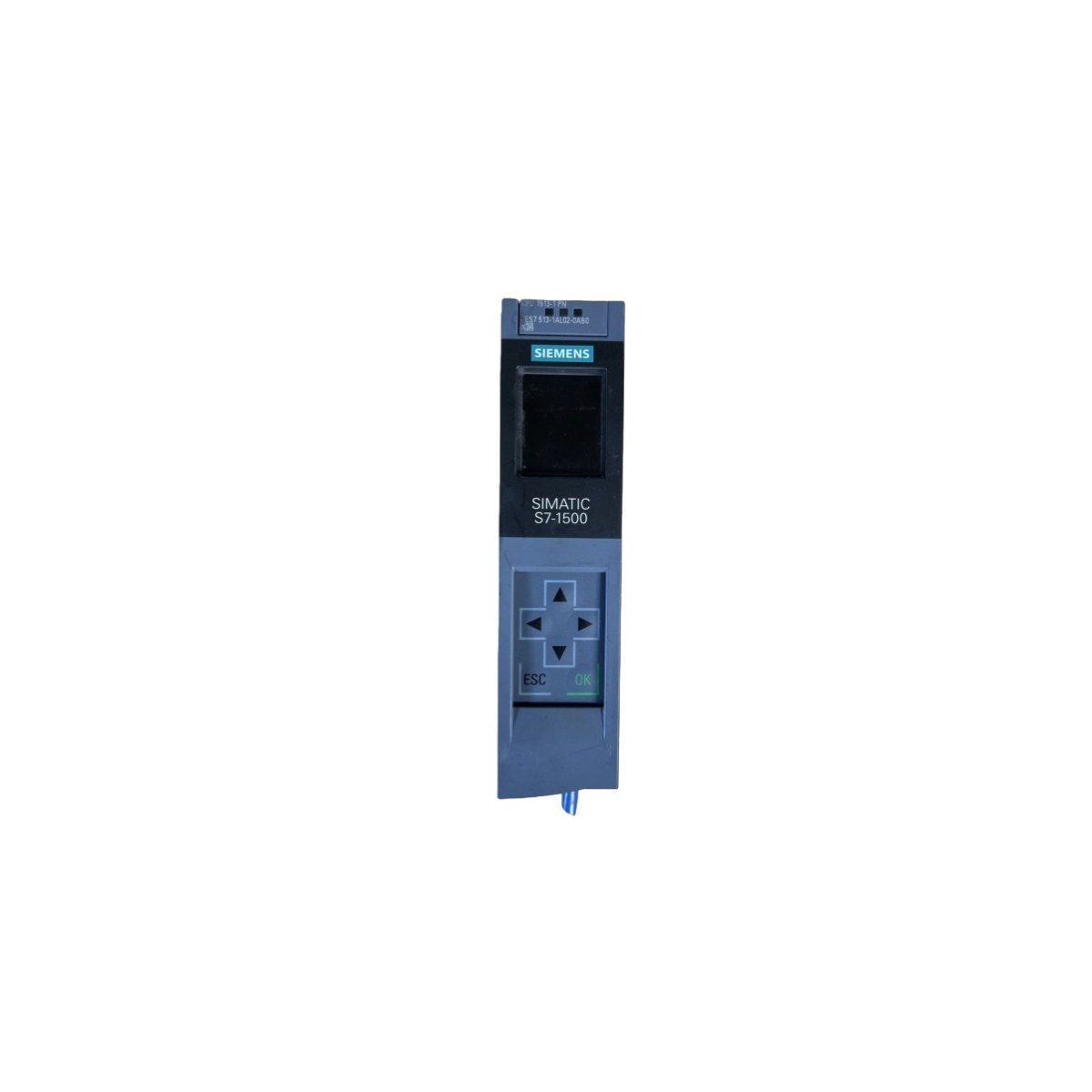

Siemens 6ES7513-1AL02-0AB0 CPU Unit

The Siemens 6ES7513-1AL02-0AB0 serves as a high-performance central processor for the SIMATIC S7-1500 automation platform. It manages complex control tasks within medium-sized industrial manufacturing environments. The module delivers rapid instruction execution to ensure precise system timing. Furthermore, it integrates seamlessly with modular I/O setups to streamline factory operations. Engineers utilize this CPU to maintain stable, real-time control over automated machinery. Consequently, it provides the reliability needed for high-availability production lines.

Technical Performance and Connectivity

• Processing Speed: Achieves bit-level performance in 40 nanoseconds.
• Memory Resources: Offers 300 KB for program logic and 1.5 MB for data.
• Communication Interface: Features dual-port PROFINET for high-speed industrial networking.
• Isochronous Capability: Supports cycle times as low as 500 microseconds for precise synchronization.
• Engineering Software: Requires TIA Portal V17 or higher for system configuration.
• Thermal Resilience: Operates reliably in temperature extremes from -40°C to +70°C.

Industrial Applications

Modern industrial processes demand robust computing power and flexible configuration options. This CPU unit supports comprehensive configuration control through dataset management. Additionally, it offers full identification and maintenance (I&M) support for easier lifecycle tracking. The module excels in power generation, automotive assembly, and chemical processing tasks. Its advanced firmware V2.9 ensures compatibility with the latest Siemens automation standards. By choosing this unit, facilities improve their overall process efficiency and system diagnostic transparency.

Technical Specification Overview
