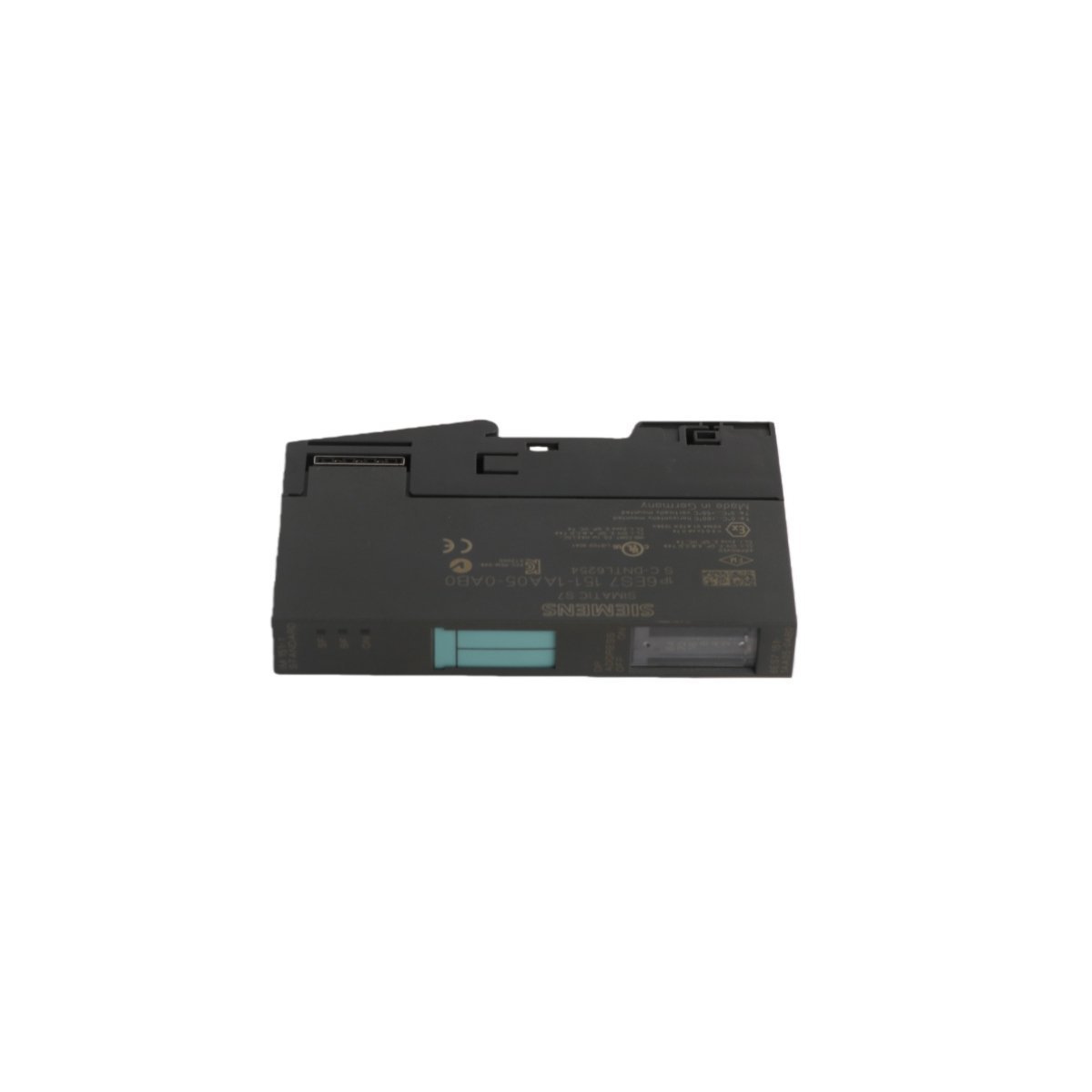

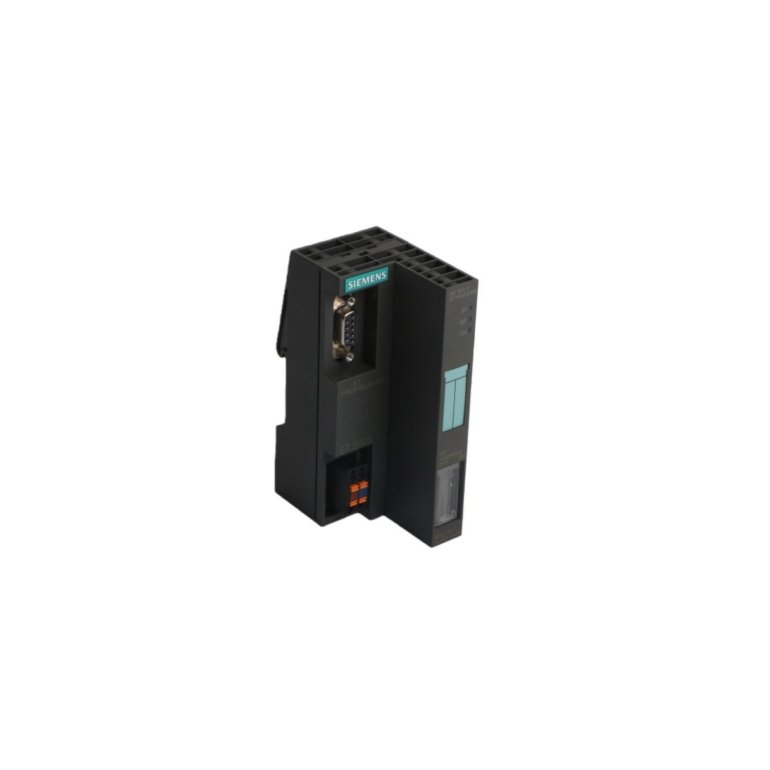

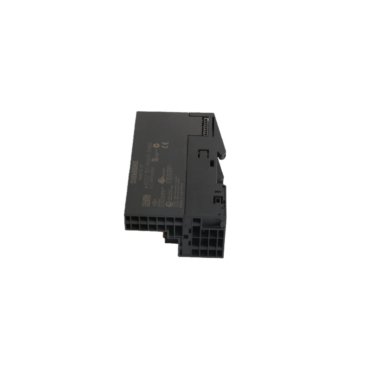

The Siemens 6ES7151-1AA05-0AB0 functions as the primary interface module for the SIMATIC ET 200S distributed I/O system. This unit acts as the communication head that links modular I/O stations to a central SIMATIC controller via PROFIBUS DP. Engineers deploy this device to decentralize automation tasks and place intelligence directly near field devices. The module supports extensive data exchange capabilities and manages complex configurations with high efficiency. Although newer successors exist, this model remains a critical component in many established industrial architectures. Users install this interface to reduce wiring costs and simplify system maintenance procedures significantly.
Technical Specifications and Capabilities
This interface module enables robust communication between the master controller and up to 63 peripheral I/O modules. The device handles substantial data volumes with 244 bytes allocated for input data and 244 bytes for output data. Such capacity allows operators to connect numerous sensors and actuators within a single station configuration effectively. The physical design incorporates a standard 9-pin D-sub connector for reliable bus connectivity. Space efficiency characterizes the ET 200S system, allowing dense installation in compact control cabinets easily. Operators benefit from modular scalability that adapts to specific machine requirements without excessive hardware changes.
| Feature | Specification |
|---|
| Model Number | 6ES7151-1AA05-0AB0 |
| Manufacturer | Siemens |
| Product Family | SIMATIC ET 200S |
| Communication Protocol | PROFIBUS DP |
| Max Input Data | 244 Bytes |
| Max Output Data | 244 Bytes |
| Max Expandable Modules | 63 Units |
| Connector Type | 9-pin D-Sub |
| Mounting Type | DIN Rail |
| Origin | Germany |
| Status | Active (Legacy Support) |
Application and Integration Benefits
Industrial facilities integrate this module to create flexible and decentralized control structures successfully. The system eliminates long cable runs by processing signals locally at the machine level efficiently. This architecture improves response times and enhances overall process reliability significantly for operators. Maintenance teams find troubleshooting easier since the modular design isolates faults effectively during operation. The interface ensures seamless data transmission even in electrically noisy industrial environments consistently. Companies continue to rely on this proven technology for consistent performance in manufacturing applications globally.
