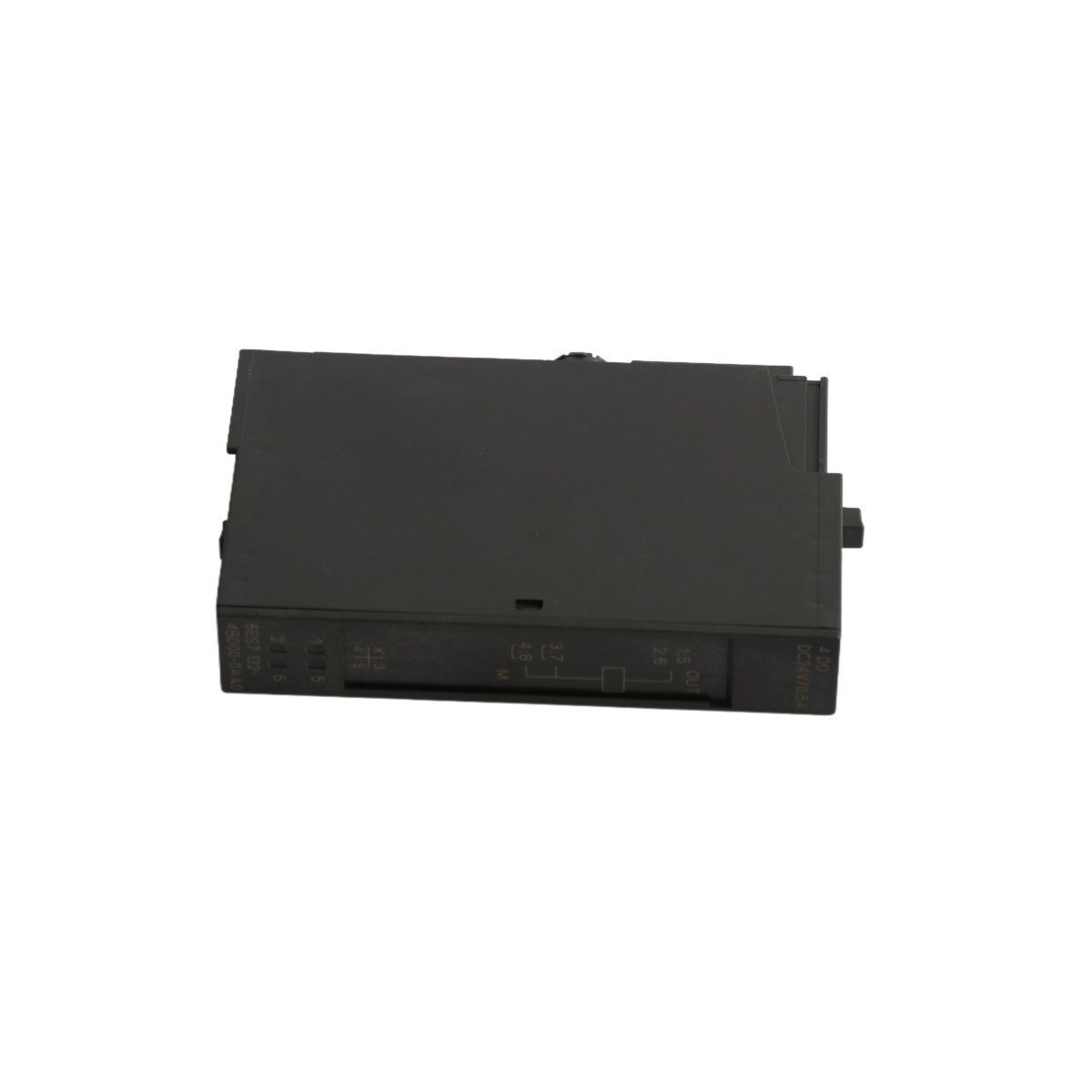

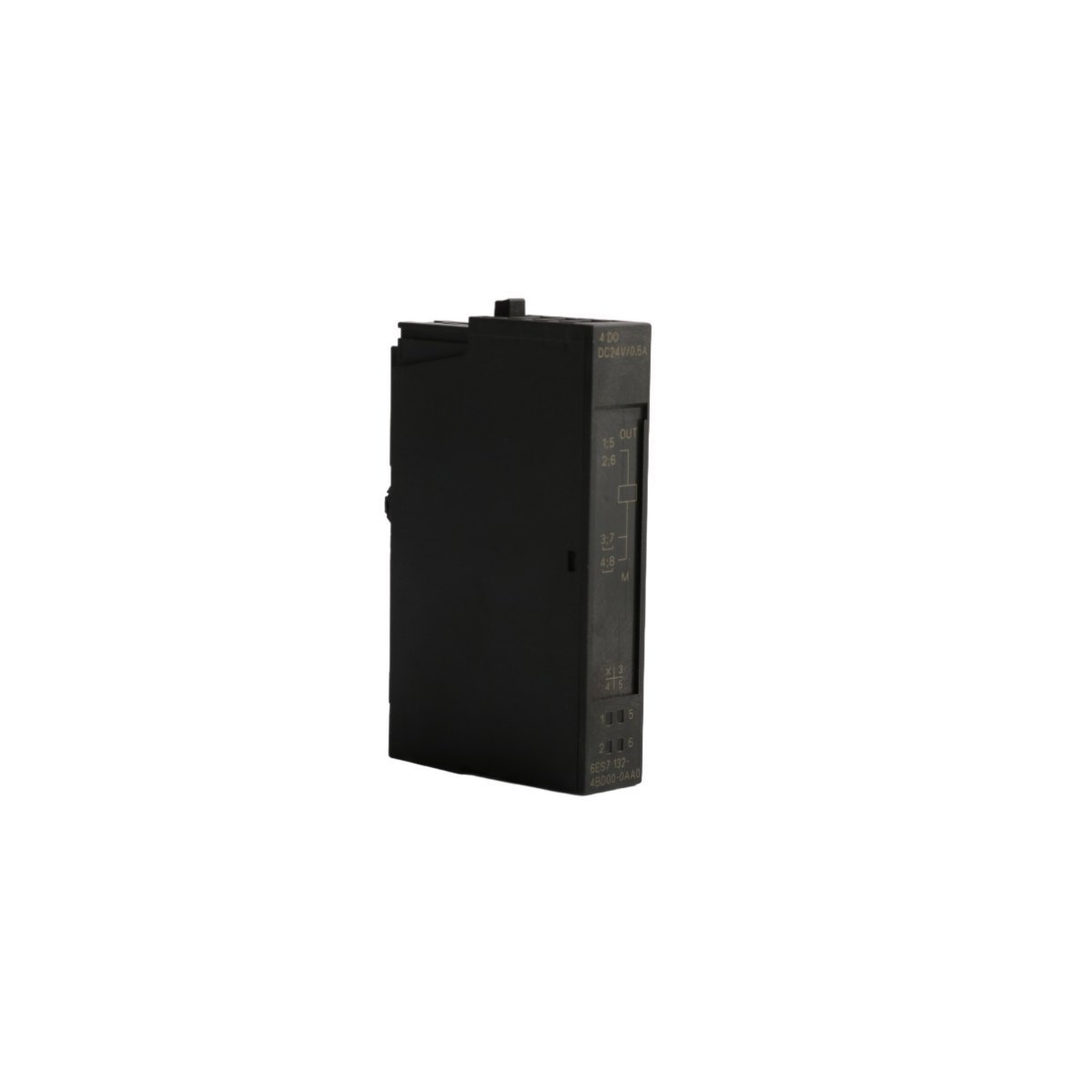

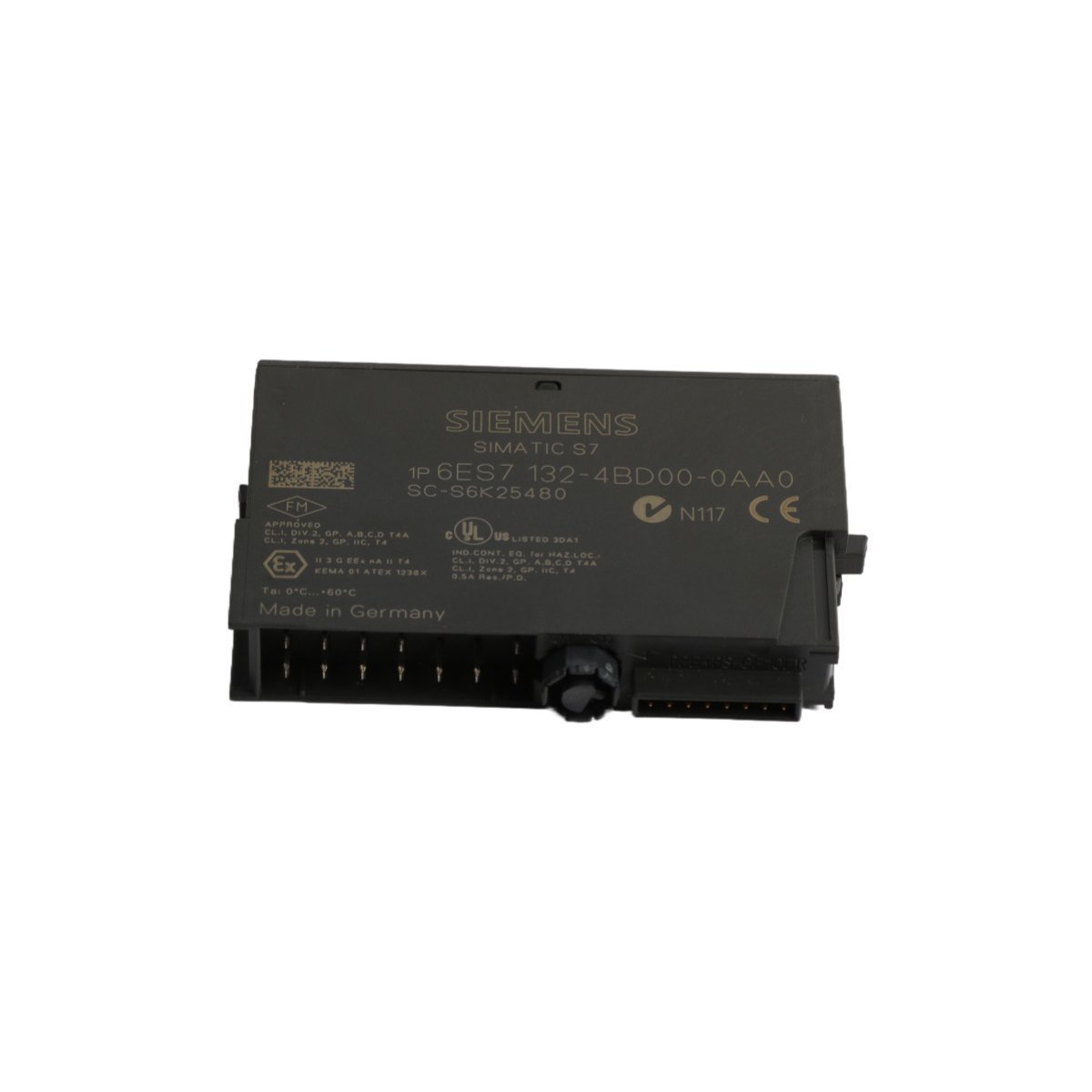

Siemens 6ES7132-4BD00-0AA0 Digital Output Module

The Siemens 6ES7132-4BD00-0AA0 functions as a discrete output interface for the SIMATIC ET 200S distributed I/O system. This electronic module provides four distinct channels for controlling 24V DC loads. Each output delivers a maximum current of 0.5A, which suits small solenoids, relays, and pilot lights. Its compact 15mm width facilitates high-density mounting within standard control cabinets. System integrators utilize this module to bridge the controller logic with physical field devices. Furthermore, it operates effectively within PROFIBUS or PROFINET-based automation architectures. This module ensures precise switching for repetitive manufacturing tasks.

Key Technical Characteristics

• Output Capacity: Four independent 24V DC channels.
• Load Current: Supports up to 0.5A per channel.
• Compact Design: Slim 15mm form factor optimizes panel space.
• Safety Features: Integrated short-circuit protection and electrical isolation.
• System Integration: Compatible with standard ET 200S terminal modules.
• Switching Speed: Solid-state transistor design enables high-speed operations.

Operational Efficiency and Maintenance

Reliable automation requires robust hardware that simplifies the troubleshooting process. This module includes clear status LEDs for each output channel. Consequently, maintenance technicians identify faults quickly and reduce operational downtime. Furthermore, the design supports hot-swapping capabilities on supported terminal bases. This allows for component replacement without interrupting the entire communication network. The unit remains a preferred choice for legacy ET 200S system maintenance. It combines proven field reliability with straightforward installation procedures for machine builders.

Technical Specification Overview
