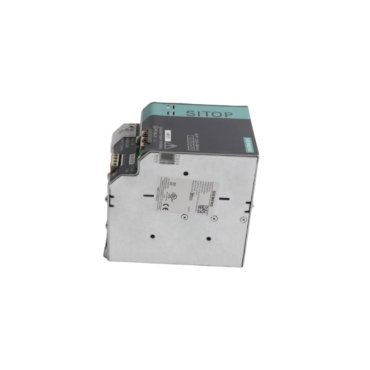

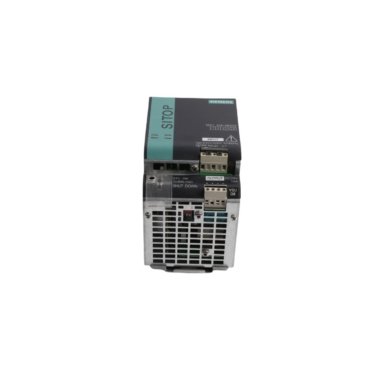

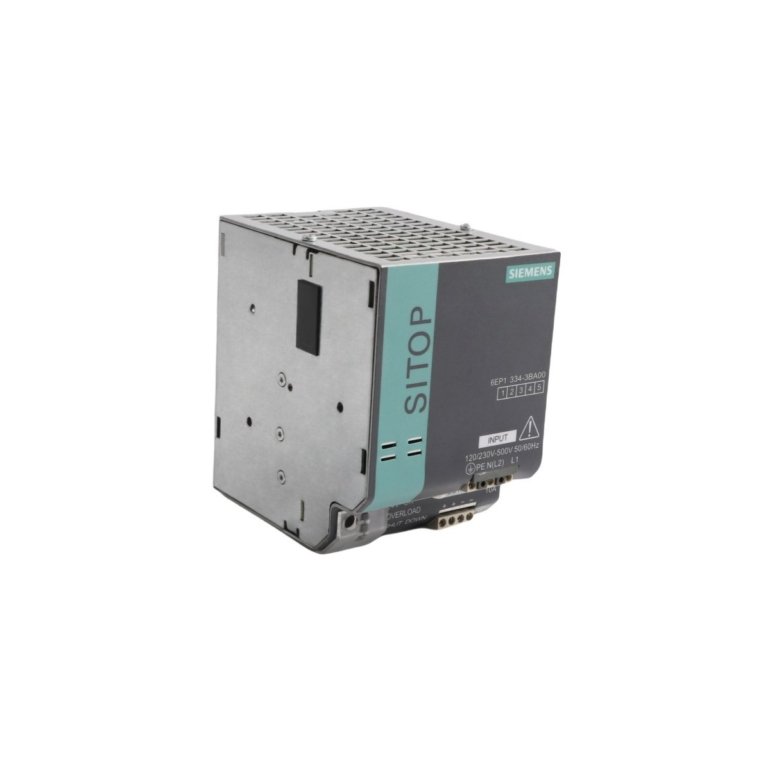

The Siemens 6EP1334-3BA00 is a high-performance stabilized power supply within the SITOP PSU200M modular series. This unit converts fluctuating input voltages into a precise 24V DC output. It delivers a constant 10A current to support demanding industrial automation components. Consequently, it protects sensitive PLC systems and field devices from electrical instability. The rugged design ensures maximum uptime for manufacturing lines and critical infrastructure. This power supply serves as a cornerstone for reliable electrical cabinet configurations.
Technical Performance Specifications
| Attribute | Detailed Specification |
| Brand | Siemens |
| Model Reference | SITOP PSU200M |
| Order Number | 6EP1334-3BA00 |
| Output Voltage | 24V DC (Adjustable) |
| Rated Output Current | 10 A |
| Input Voltage Range | 120 / 230–500V AC (Automatic Range) |
| Frequency Range | 50 / 60 Hz |
| Efficiency | Approximately 91% |
| Housing Material | Rugged Metal Case |
| Dimensions | 70 mm x 125 mm x 121 mm |
| Weight | 0.8 kg |
Advanced Technical Features
- Flexible Input Capabilities
The PSU200M features an ultra-wide input range. It accepts single-phase AC voltages from 85V to 264V. Furthermore, it supports two-phase connection between 176V and 550V. This adaptability simplifies global deployment across different power grids. It effectively manages significant voltage fluctuations without interrupting the output.
- Enhanced System Protection
Safety remains a priority with integrated short-circuit and overload protection. The module offers an extra-power feature for high inrush current loads. Therefore, it starts heavy motors or capacitive loads without tripping. The electrical isolation between input and output enhances overall system safety.
- Efficient Thermal Management
This Siemens SITOP unit operates with high energy efficiency. Lower heat dissipation reduces the cooling requirements within the control cabinet. As a result, users can achieve higher packing density on the DIN rail. The robust metal housing facilitates natural convection cooling.
Versatile Automation Applications
The 6EP1334-3BA00 excels in complex machine building and automotive production. It provides the steady energy required for distributed I/O and HMI panels. Additionally, its German engineering meets the strict standards of the oil and gas industry. The unit integrates perfectly with SIMATIC S7 controllers and other DCS components. Its long service life reduces maintenance costs in continuous 24/7 operations.
