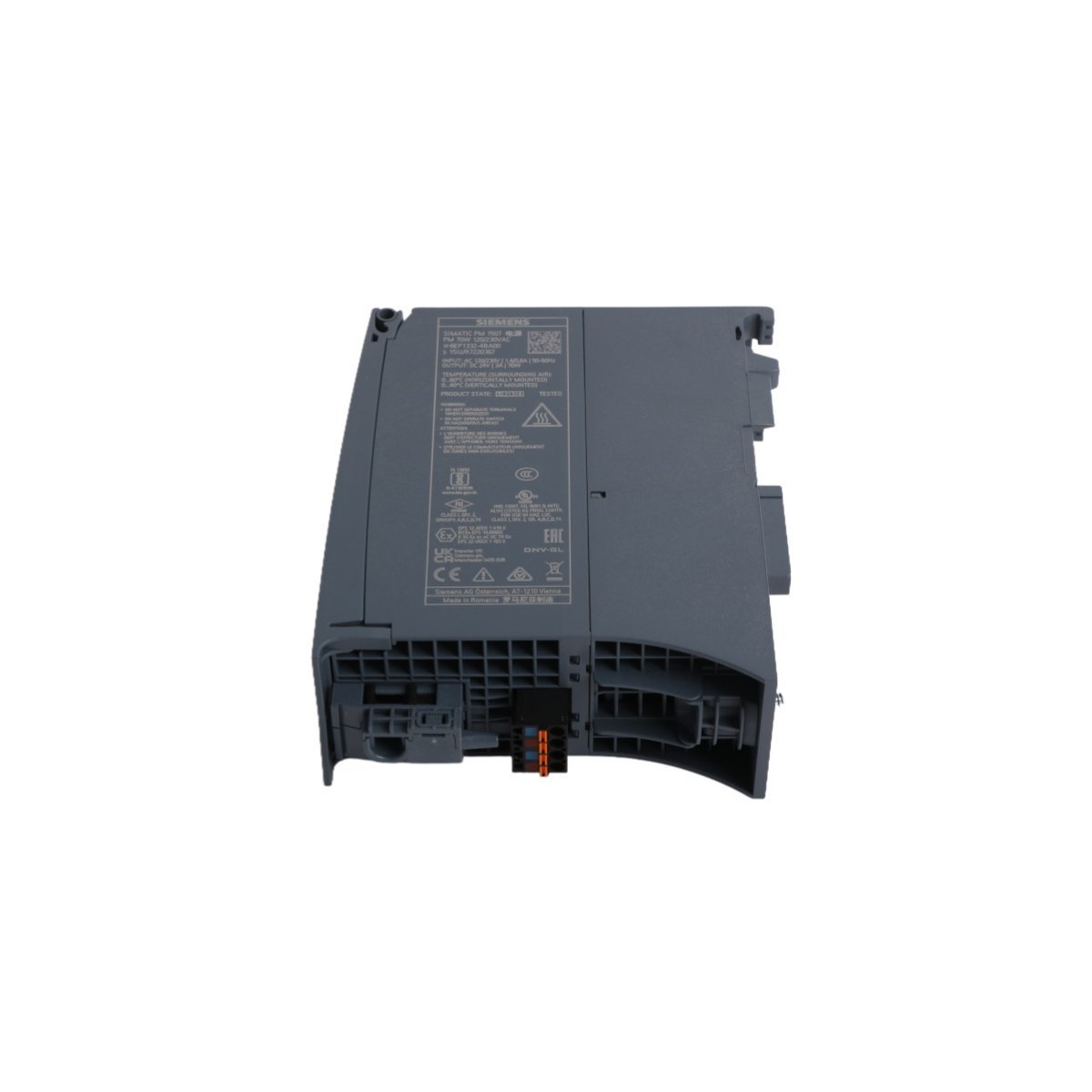

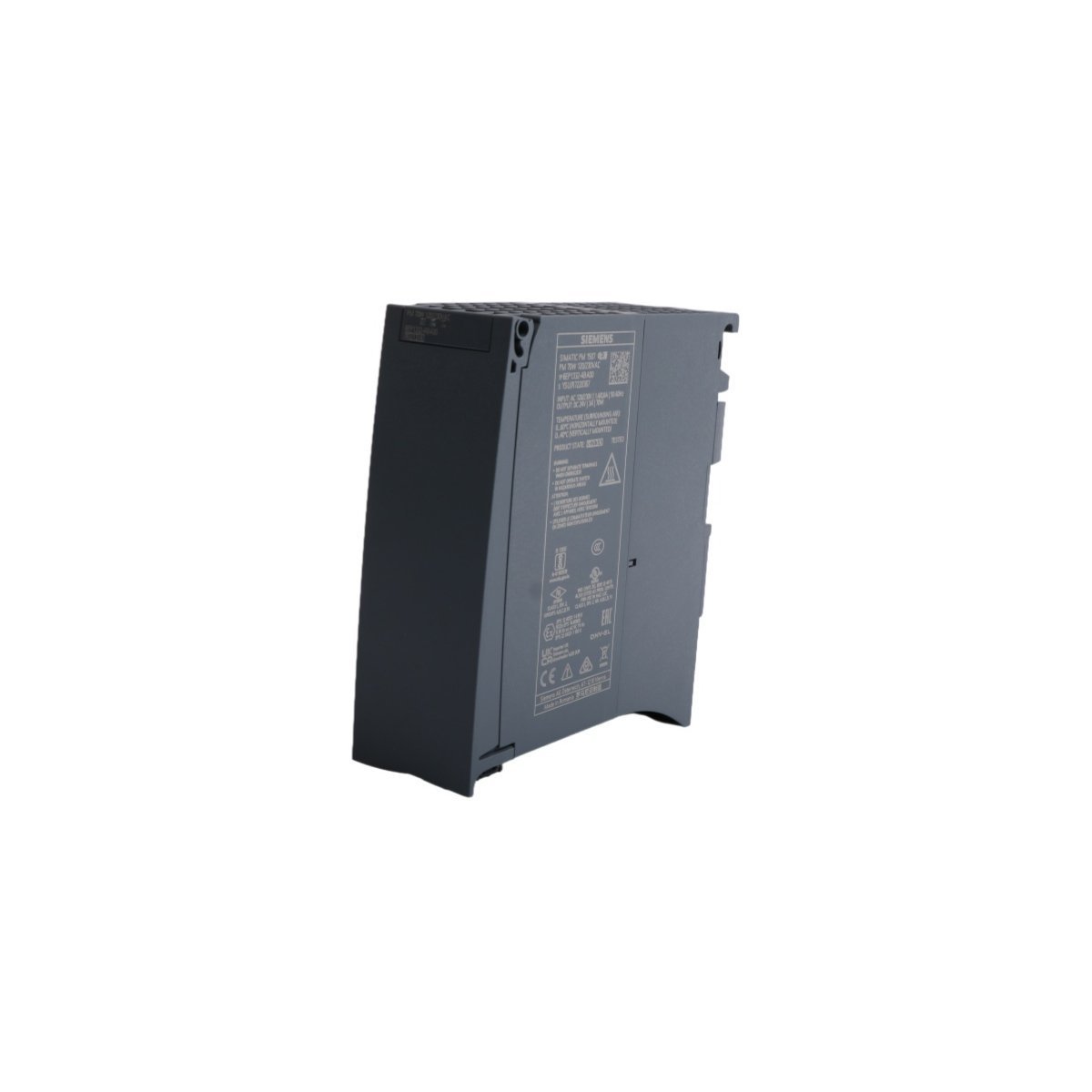

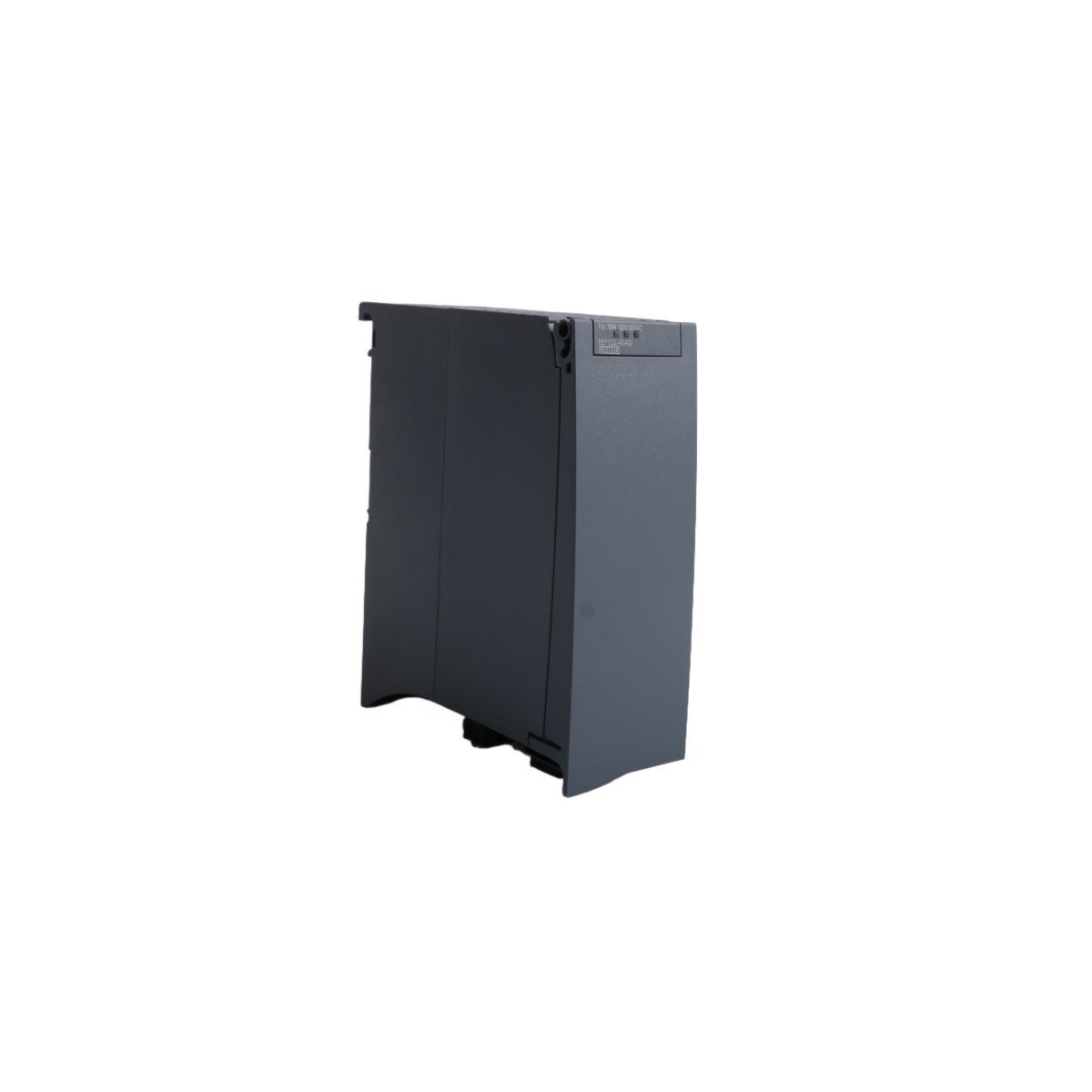

The Siemens 6EP1332-4BA00 functions as the primary power source for SIMATIC S7-1500 PLC systems. This PM1507 load power supply converts standard AC voltages into a regulated 24V DC output. It effectively handles both 120V and 230V AC inputs via an automatic range switching feature. Consequently, the module provides a reliable energy foundation for processors, I/O modules, and field sensors.
This unit delivers a continuous current of 3A, totaling a 72W power capacity. It maintains precise voltage stability even during significant load changes or input fluctuations. Furthermore, the compact 40mm width allows for high-density mounting on S7-1500 system rails. This space-saving design helps engineers reduce the overall footprint of control cabinets.
Technical Specifications and Operating Data
- Brand: Siemens
- Model Number: 6EP1332-4BA00
- Product Type: PM1507 Load Power Supply
- Input Voltage: 120 / 230 V AC (Auto-range)
- Output Voltage: 24 V DC
- Output Current: 3 A
- Rated Power: 72 W
- Dimensions: 40 x 125 x 105 mm
- Weight: 0.24 kg
- Mounting: S7-1500 Rail System
- Country of Origin: Germany
Industrial Integration and Versatility
The 6EP1332-4BA00 excels in diverse sectors ranging from automotive manufacturing to water treatment plants. It provides the necessary power quality for sensitive digital and analog signal processing. Furthermore, the module adheres to international standards for electromagnetic compatibility and electrical safety. This compliance ensures trouble-free operation in electrically noisy industrial environments.
By utilizing this original PM1507 module, operators ensure perfect compatibility with their Siemens hardware. The rugged housing resists vibrations and shock common in factory settings. This durability makes it a preferred choice for high-availability production lines globally.
