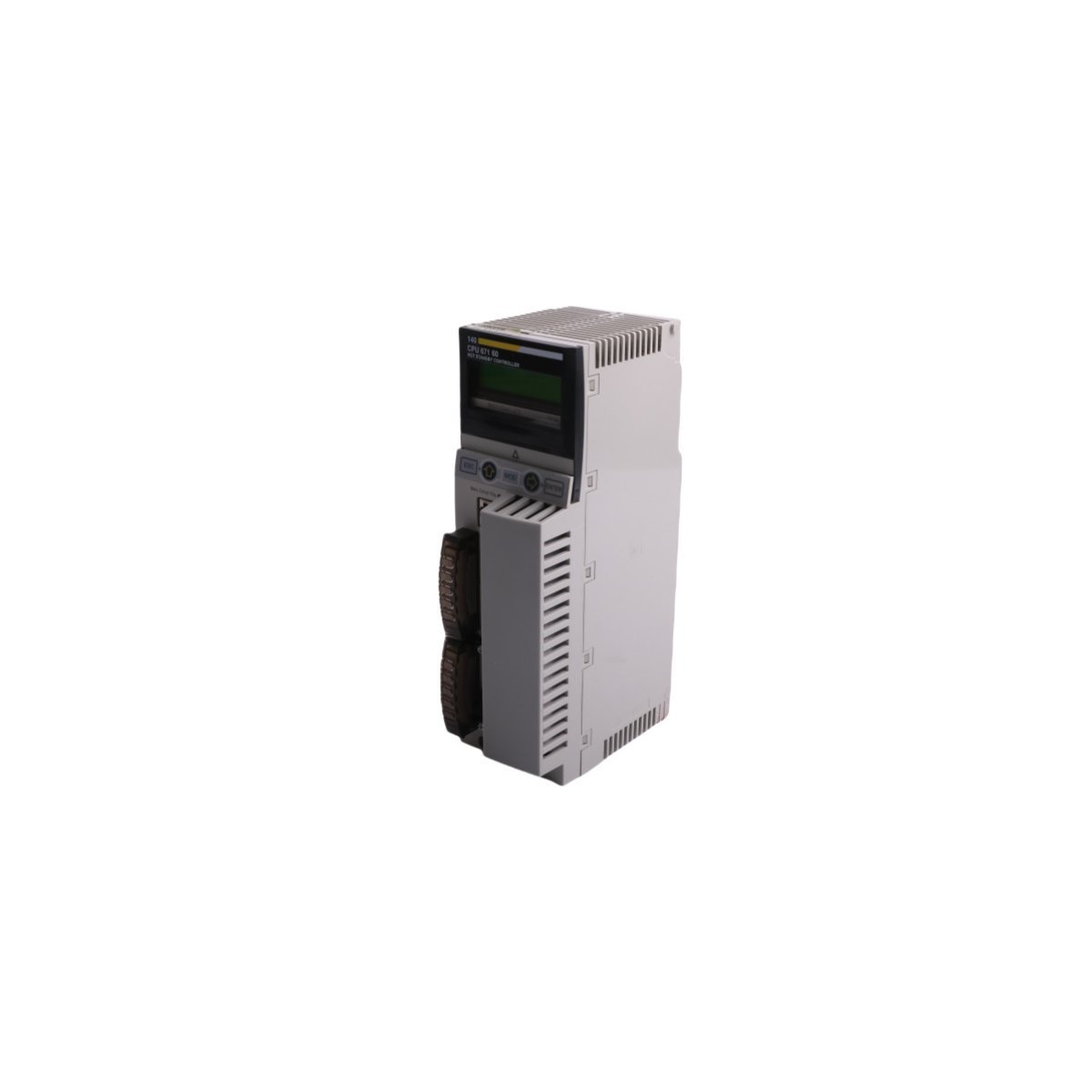

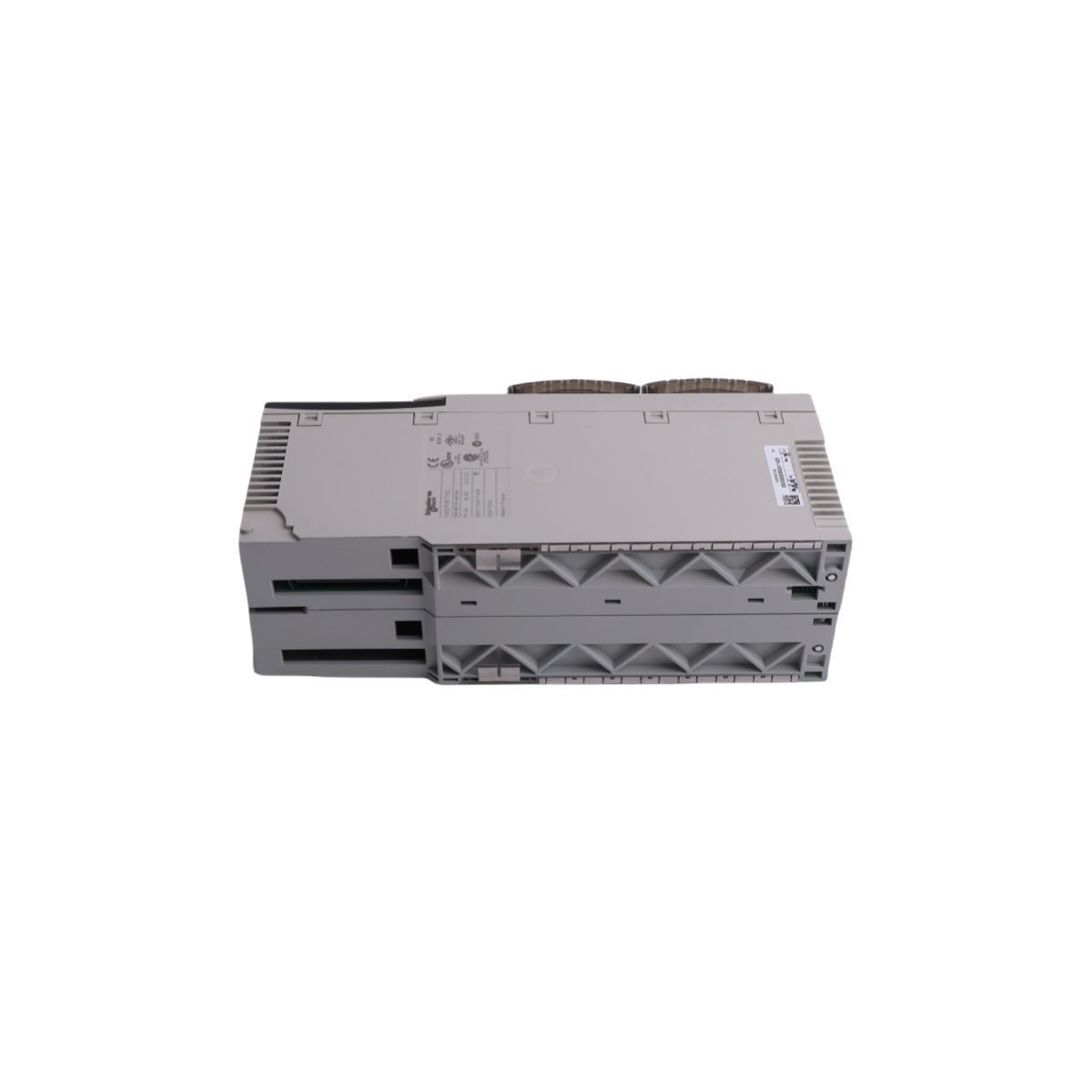

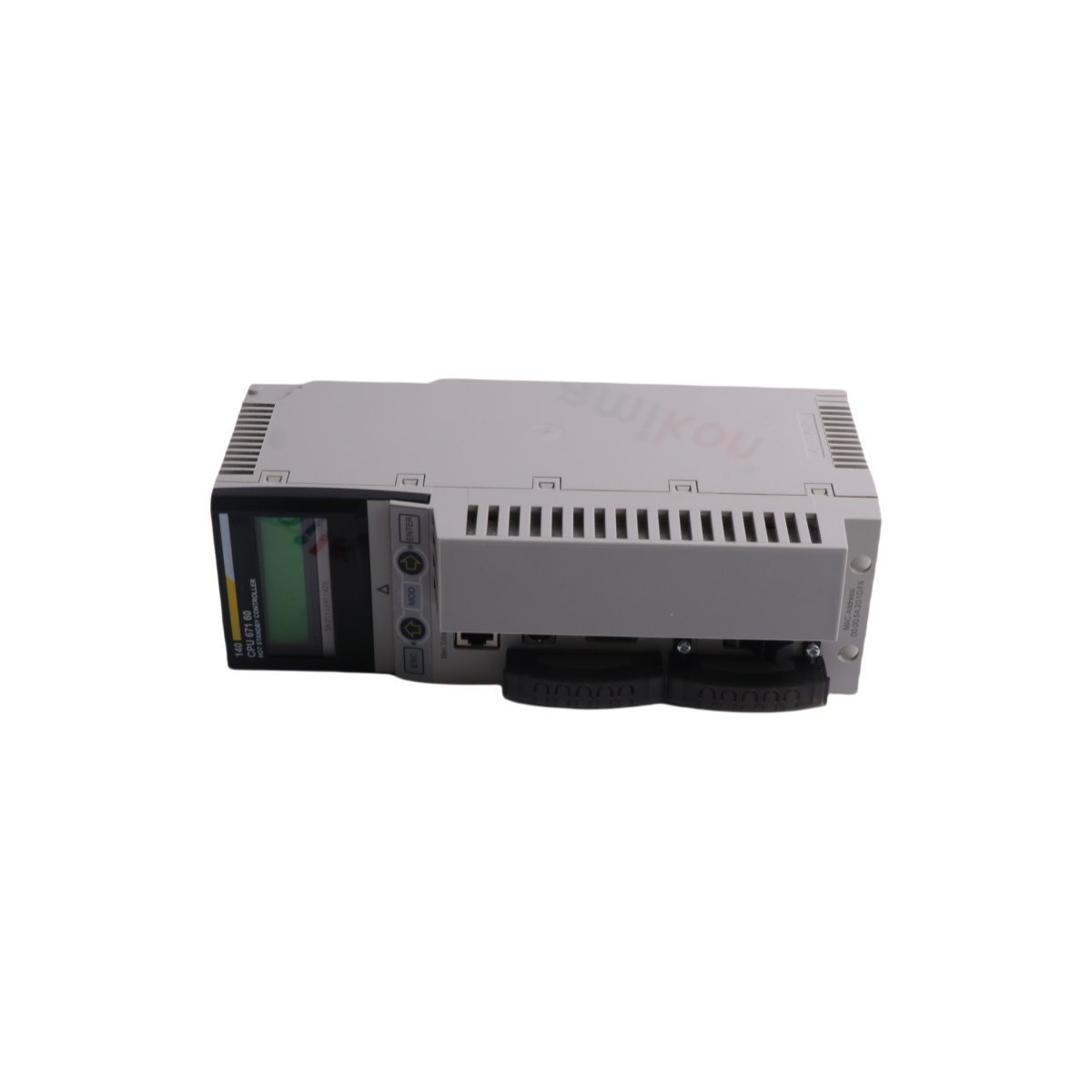

Schneider Electric 140CPU67160S Unity Security Processor

The Schneider Electric 140CPU67160S serves as a core processing unit for the Modicon Quantum safety platform. This advanced Unity Security Processor executes critical safety logic for high-risk industrial environments. It operates at a clock speed of 266 MHz to ensure rapid response times. Furthermore, the hardware facilitates the development of complex failsafe architectures. It integrates seamlessly with Unity Pro XL safety software for comprehensive system programming. Consequently, this processor maintains maximum protection for both personnel and industrial assets.

System Expandability and Architecture

This module supports large-scale automation layouts by managing up to 31 remote I/O stations. Each remote station allows for a single-rack configuration to simplify network topology. Additionally, the processor requires a 2500 mA current from the backplane bus for stable operation. It features a robust memory management system to handle intensive safety instructions. Engineers can deploy this unit in distributed control systems requiring high availability. This flexibility makes it an ideal choice for complex plant infrastructures.

Data Integrity and Backup Systems

Safety system continuity depends on reliable power management and data protection. The 140CPU67160S utilizes a high-capacity lithium battery to prevent program loss during power failures. Specifically, the 1200 Ah backup battery ensures safety parameters remain intact during long-term shutdowns. This failsafe mechanism supports rigorous compliance with international industrial safety standards. Moreover, the processor performs continuous self-diagnostics to detect internal hardware faults immediately. Such features minimize the risk of unmonitored safety failures in the field.

Specialized Industrial Applications

The Modicon Quantum safety series excels in heavy industrial sectors. It provides essential control for oil and gas refineries and power generation plants. Furthermore, chemical processing facilities rely on this processor for hazardous material management. The unit withstands the demanding conditions typical of these critical infrastructure environments. Because it combines high-speed processing with redundant safety features, it prevents costly operational interruptions. It remains a benchmark for reliability in the global automation market.

Key Technical Parameters

• Brand: Schneider Electric
• Model Number: 140CPU67160S
• Processor Speed: 266 MHz
• Bus Current Requirement: 2500 mA
• Remote I/O Capacity: Up to 31 stations
• Battery Type: 3V DC Lithium (990XCP98000)
• Battery Capacity: 1200 Ah for long-term data retention
• Weight: 1.18 kg
• Housing Dimensions: 8cm x 13cm x 25cm
• Origin: France
