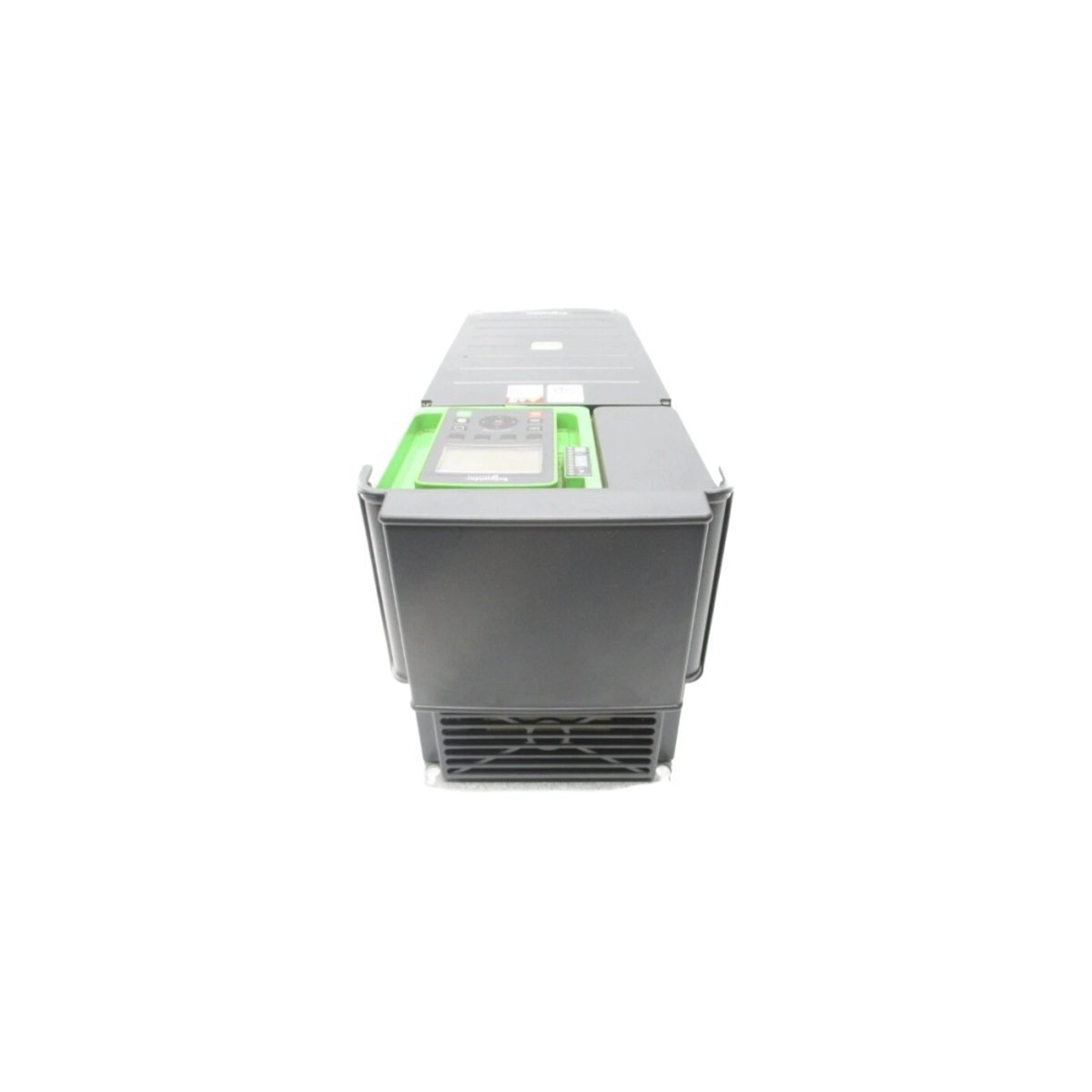

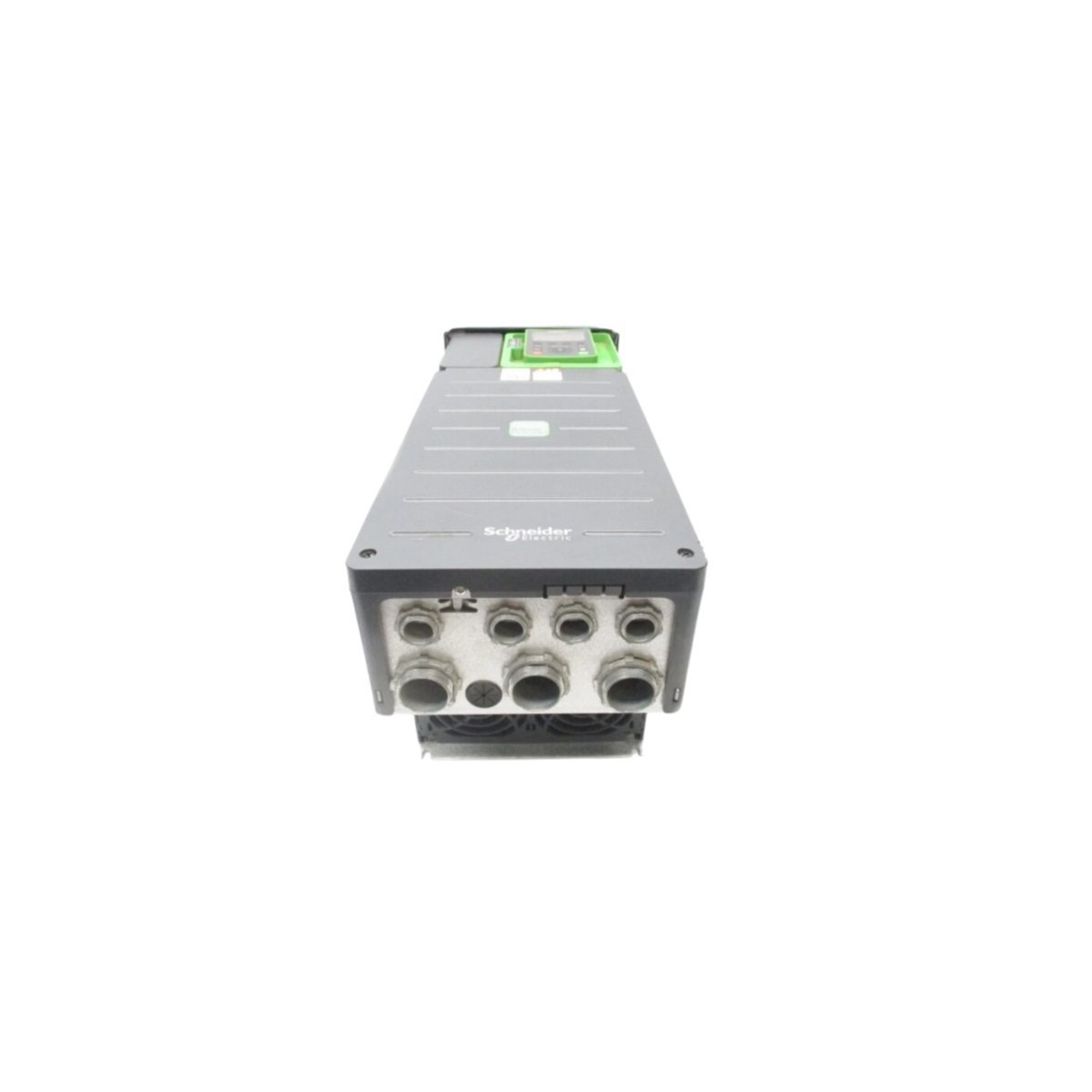

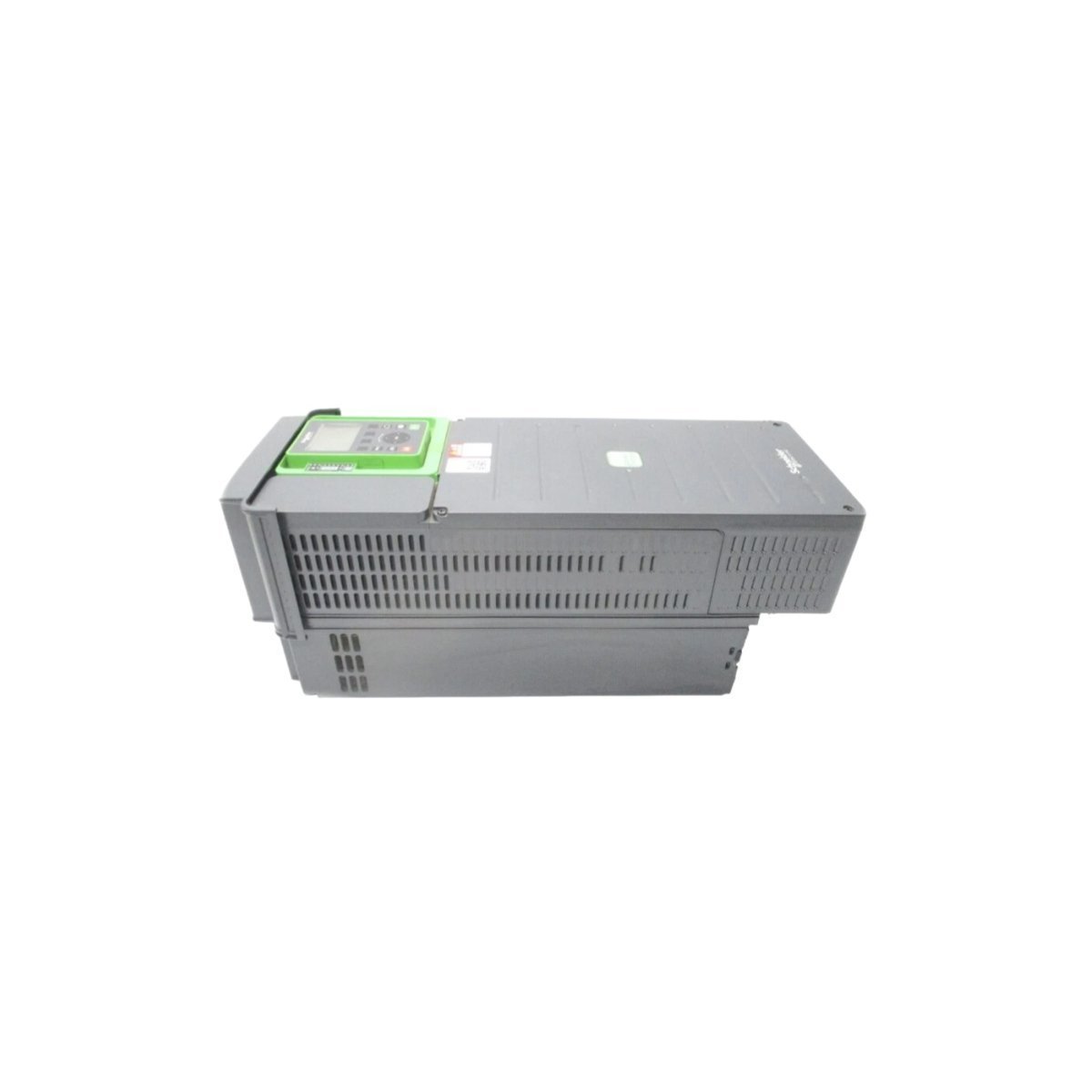

Schneider ATV930D15N4 Variable Speed Drive

The Schneider Electric ATV930D15N4 provides high-performance motor regulation for demanding industrial environments. This 15 kW (20 hp) drive belongs to the Altivar Process 900 series. It excels in managing three-phase synchronous and asynchronous motors with extreme precision. Furthermore, the unit features an integrated braking transistor for rapid deceleration tasks. The IP21-rated enclosure ensures protection against solid particles and vertical water droplets. Consequently, this drive delivers reliable service in oil, gas, and mining sectors.

Dynamic Load Management and Performance

This variable speed drive offers dual rating capabilities to suit various application needs. It supports 15 kW motors for normal duty cycles with 120% overload capacity. Alternatively, it manages 11 kW motors for heavy-duty tasks requiring 150% overload resilience. The drive maintains consistent torque even under fluctuating power conditions. Moreover, its sophisticated control algorithms optimize energy consumption across all speed ranges. This flexibility makes the unit ideal for water treatment and material processing plants.

Intelligent Connectivity and Diagnostics

The ATV930D15N4 incorporates modern communication tools to enhance system visibility. Embedded EtherNet/IP and Modbus TCP protocols allow for seamless PLC integration. Additionally, an integrated web server provides real-time access to operational data and logs. This feature simplifies troubleshooting and enables proactive maintenance strategies. The drive also supports master/slave coupling for synchronized multi-motor systems. Therefore, operators can maintain total control over complex mechanical sequences with ease.

Technical Specifications

Robust Installation and Reliability

The Altivar Process series simplifies the design of modern automation architectures. This model supports vertical wall mounting with flexible installation angles. Furthermore, the integrated EMC filter ensures stable operation in noisy electrical environments. The drive effectively handles prospective short-circuit currents up to 22 kA. Its durable construction withstands the rigors of continuous factory operation. Choosing the ATV930D15N4 guarantees a sophisticated and long-lasting solution for critical process control.
