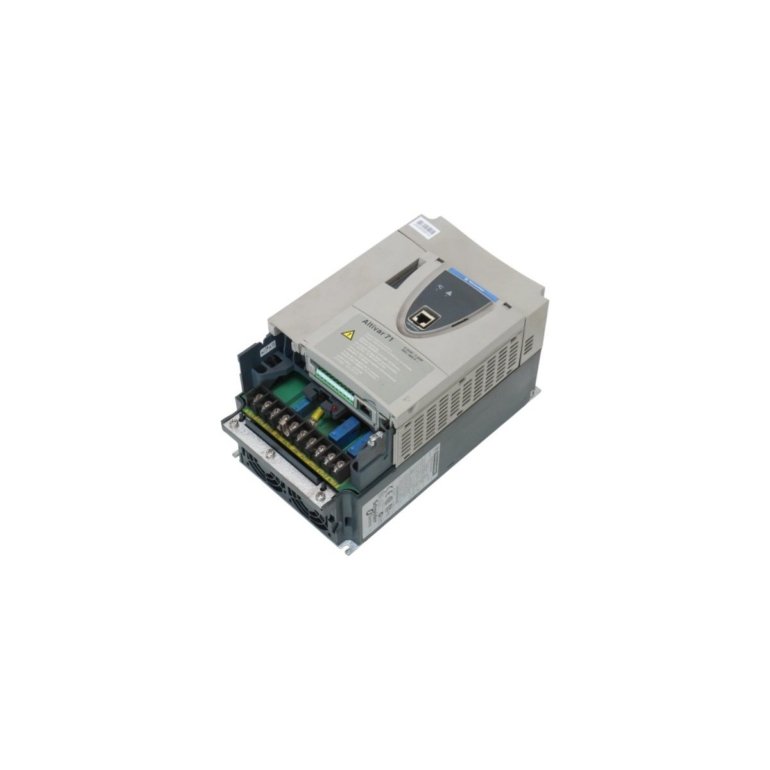

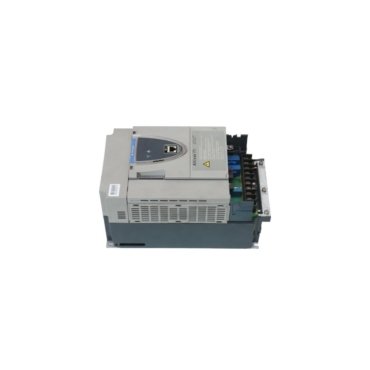

Schneider ATV71HU55N4 Variable Speed Drive

The Schneider Electric ATV71HU55N4 provides high-end frequency conversion for complex industrial machinery. This 5.5 kW (7.5 hp) drive belongs to the renowned Altivar 71 performance range. It excels in applications requiring high torque and extreme precision at low speeds. Furthermore, the unit manages three-phase asynchronous and synchronous motors with equal efficiency. It operates on a standard 380V to 480V AC supply voltage. Consequently, this drive serves as a critical component for heavy-duty material handling and hoisting systems.

Intelligent Thermal and Fault Protection

This variable speed drive features a sophisticated protection suite to ensure equipment longevity. It actively monitors for electrical faults such as phase imbalances and short circuits. Moreover, an advanced thermal management system prevents internal components from overheating during intense cycles. The drive also includes integrated monitoring for real-time diagnostic feedback. These proactive safety measures significantly reduce the risk of unexpected mechanical failure. Therefore, facility managers can maintain high productivity levels with minimal maintenance interruptions.

Seamless Automation Architecture Integration

The ATV71HU55N4 supports multiple communication protocols for easy integration into modern PLC networks. Modbus and CANopen come standard to facilitate rapid system commissioning. Additionally, the drive accommodates various expansion cards for specialized industrial bus systems. Its flexible I/O configuration allows for precise adjustment of acceleration and deceleration ramps. This adaptability makes the unit suitable for diverse processing machinery and specialized manufacturing equipment. The compact design ensures easy installation within standard electrical control cabinets.

Technical Specifications

Superior Operational Efficiency

Choosing the Altivar 71 series helps operators achieve significant energy savings in industrial environments. The drive uses intelligent power electronics to optimize motor performance under fluctuating loads. Furthermore, its robust hardware withstands the rigors of harsh manufacturing sites. The user-friendly interface simplifies the programming of complex motion sequences. System integrators benefit from the drive’s compatibility with a wide array of motor types. Ultimately, the ATV71HU55N4 delivers a perfect balance of power handling and refined control.
