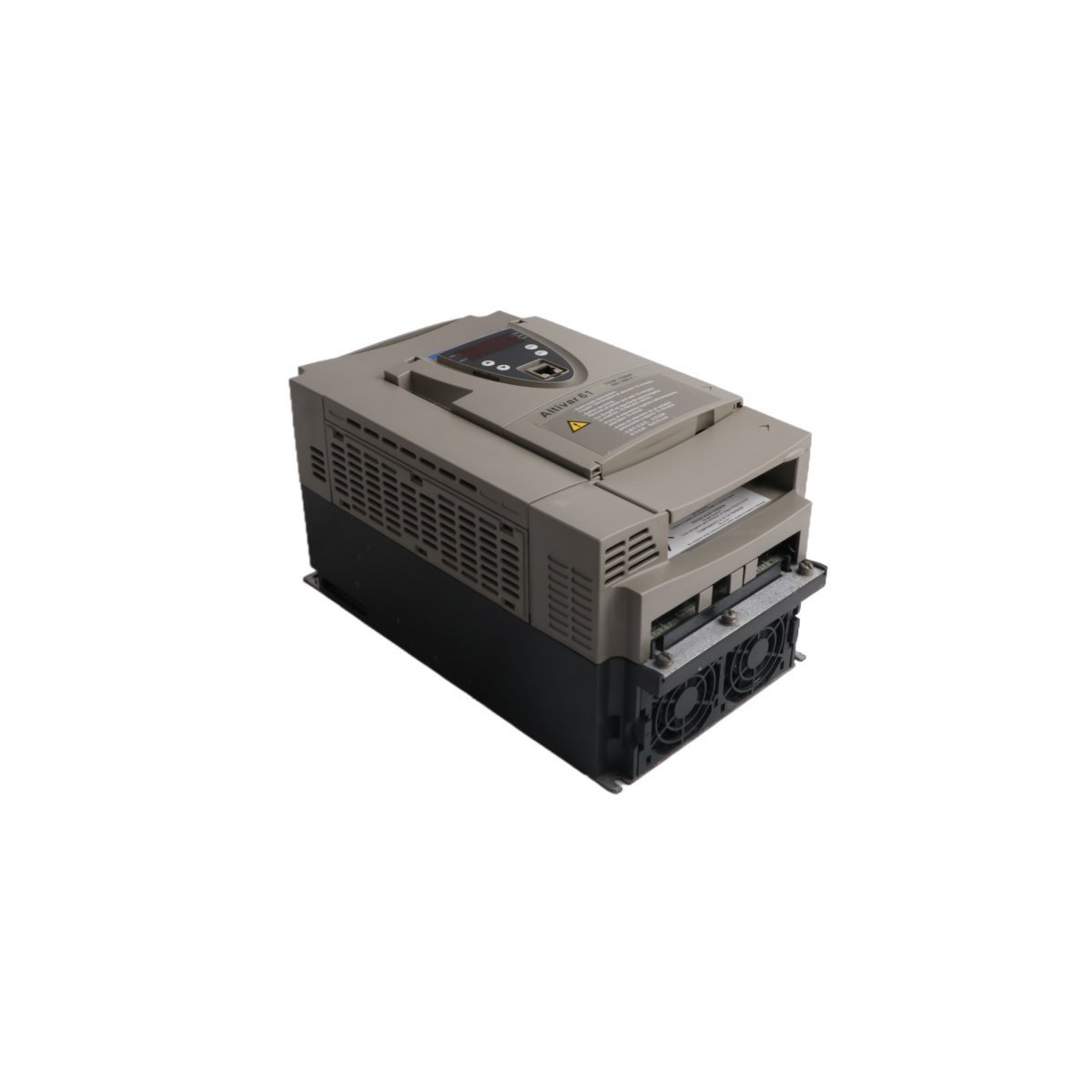

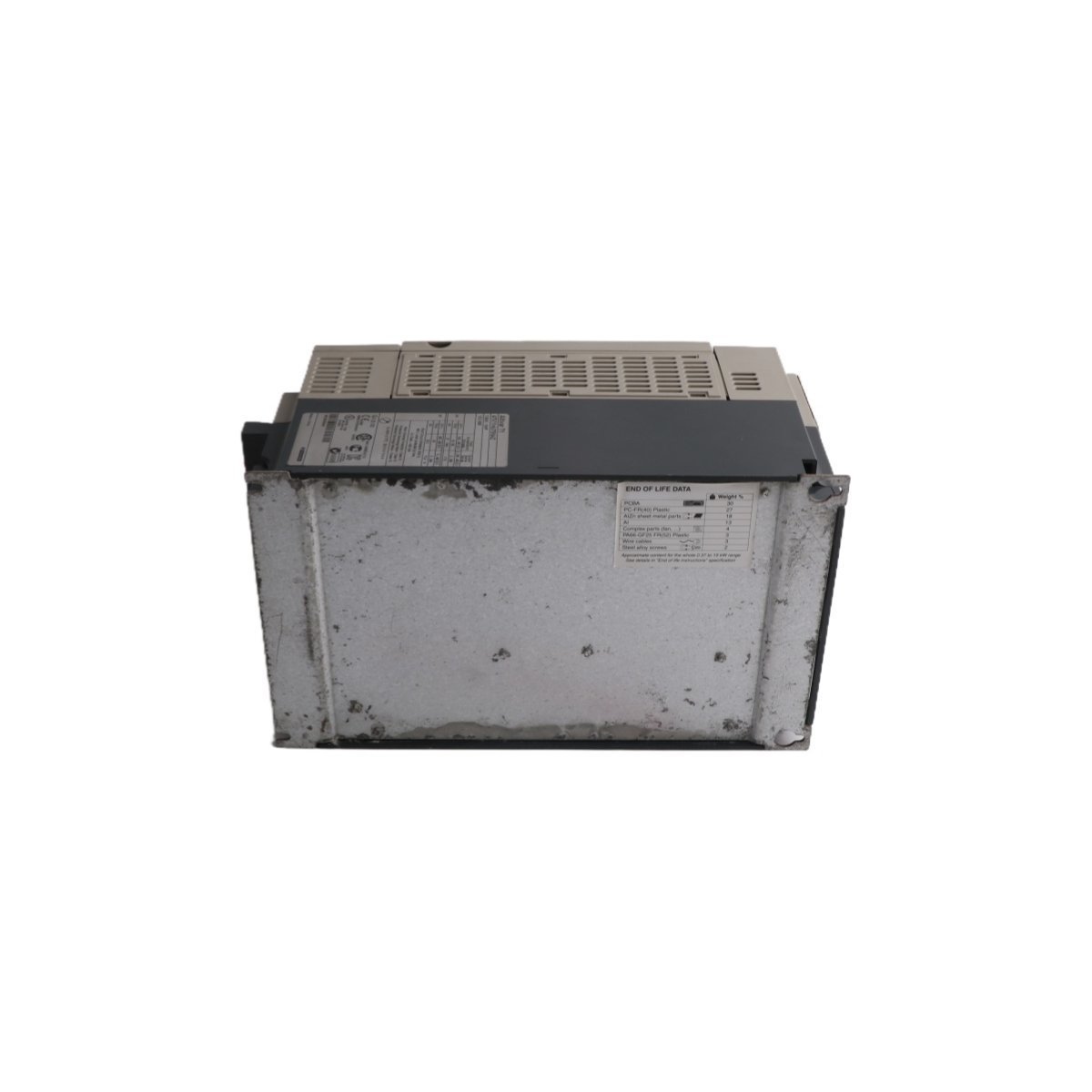

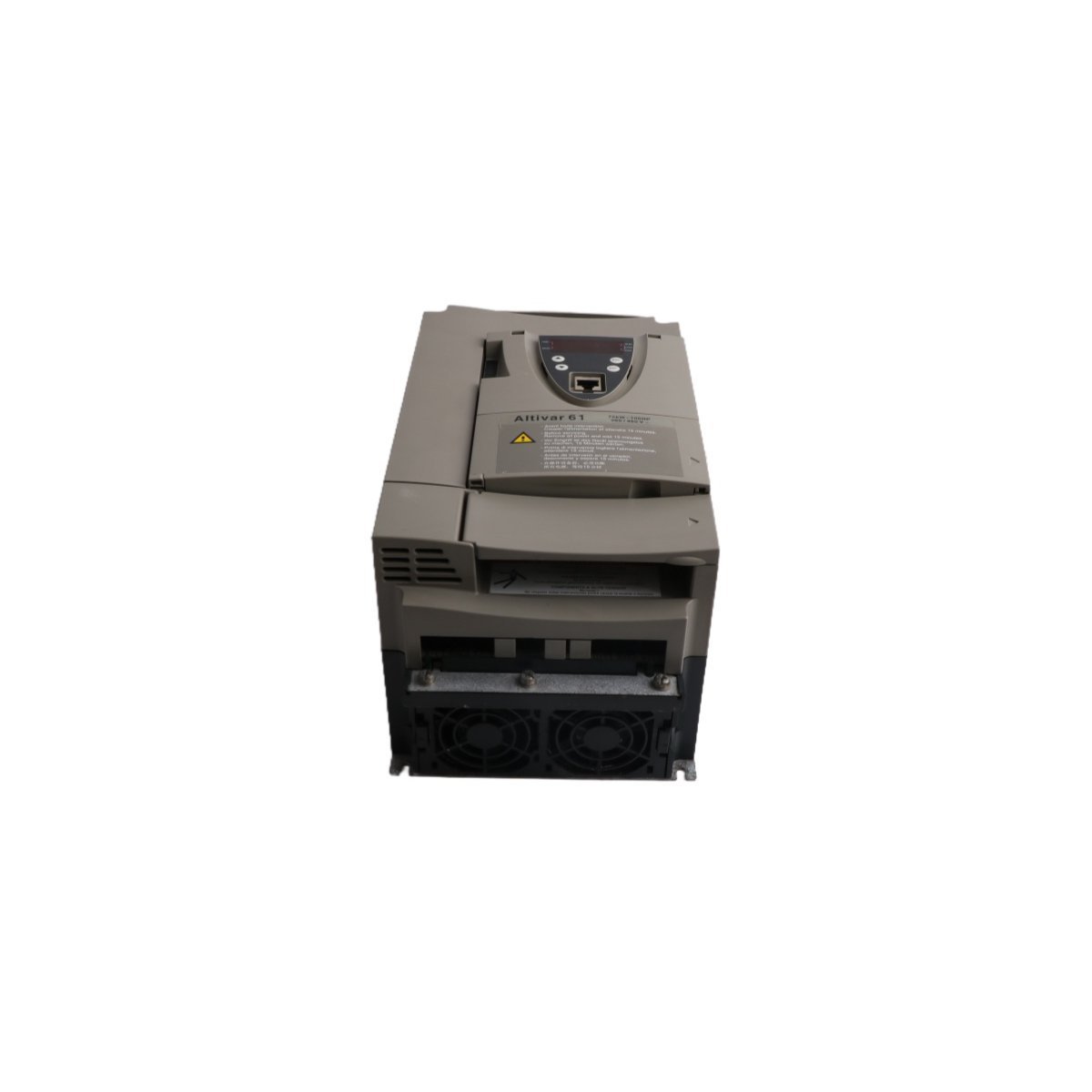

Schneider ATV71HD55N4 Variable Speed Drive

The Schneider Electric ATV71HD55N4 is a sophisticated frequency inverter designed for complex, high-torque industrial machinery. This unit provides a substantial 55 kW (75 HP) power output, specifically engineered to regulate three-phase asynchronous and synchronous motors. As a core component of the Altivar 71 series, the drive excels in constant torque applications where precision speed control and high starting power are essential. By utilizing advanced motor control algorithms, this drive ensures smooth mechanical operation while significantly decreasing electrical stress on the power grid.

Advanced Torque Management and Technical Reliability

This variable speed drive features a robust power stage capable of managing significant overloads, specifically providing up to 150% of rated current for 60 seconds. Such capacity makes it an ideal choice for heavy-duty startup sequences and sudden load variations. Furthermore, the inclusion of a factory-integrated EMC filter ensures that the device maintains electromagnetic compatibility within sensitive industrial environments. To maximize service life, the hardware utilizes a high-efficiency cooling system, allowing the drive to operate reliably in demanding ambient conditions without frequent maintenance interventions.

Technical Specification Overview

Industrial Sector Compatibility

The ATV71HD55N4 effectively addresses the needs of heavy industry, including mining, material handling, and complex HVAC systems. Because the drive manages precise acceleration and deceleration ramps, it prevents mechanical shocks in conveyor systems and ensures stability in hoisting operations. In addition to its mechanical benefits, the drive’s digital interface allows for rapid parameter duplication and diagnostic monitoring via graphic display terminals. This combination of heavy-duty power and intelligent control ensures the Altivar 71 remains a dependable choice for modernizing industrial motor control infrastructures.
