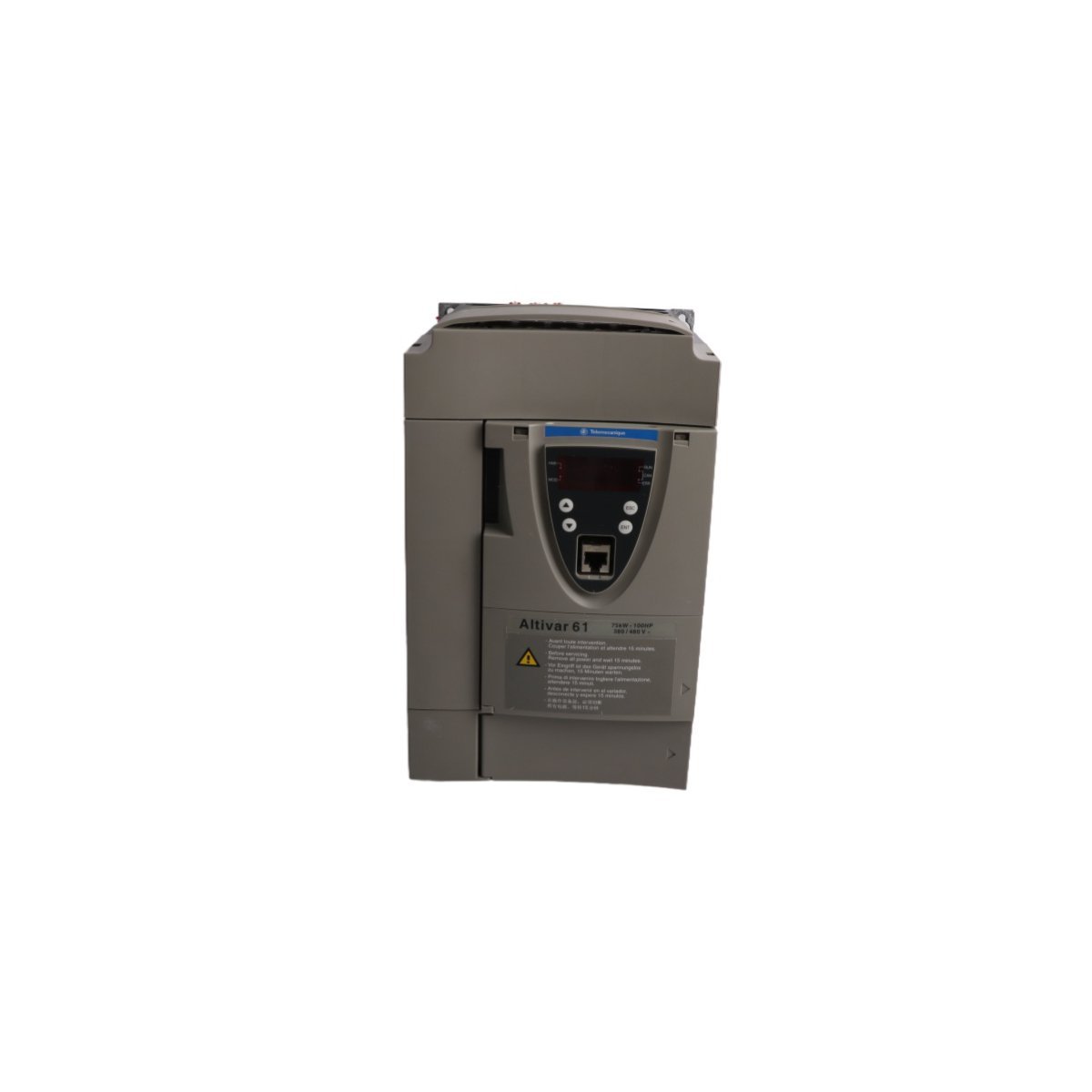

Schneider ATV71HD11N4 Variable Speed Drive

High-Performance Motor Control Solution

The Schneider Electric ATV71HD11N4 belongs to the premium Altivar 71 series. This drive provides superior control for both synchronous and asynchronous three-phase motors. It delivers 11 kW of power within a wide voltage range of 323V to 528V. Consequently, the unit maintains stable operation despite significant grid fluctuations. This drive excels in high-torque industrial environments and complex automated processes. It serves as a reliable core for modern power management and machine automation.

Technical Performance Data

Advanced Vector Control and Stability

Precision remains the primary advantage of this Altivar 71 frequency inverter. The drive utilizes Sensorless Flux Vector Control for high dynamic performance. For closed-loop tasks, it integrates seamlessly with encoder feedback for maximum accuracy. Additionally, the Energy Adaptation system compensates for unbalanced motor loads automatically. This feature enhances overall motor stability and reduces heat generation. Operators can choose from multiple control profiles to match specific application needs. These tools ensure the drive adapts to various mechanical load profiles efficiently.

System Connectivity and Communication

The ATV71HD11N4 integrates easily into industrial communication networks through Modbus. It supports various fieldbus options to facilitate real-time monitoring and remote diagnostics. Moreover, the hardware design allows for clean installation within PLC-controlled cabinets. The drive includes built-in protection against short circuits and overcurrent events. This ensures the safety of both the drive and the connected motor. Furthermore, the intuitive interface simplifies initial commissioning and troubleshooting during maintenance.
