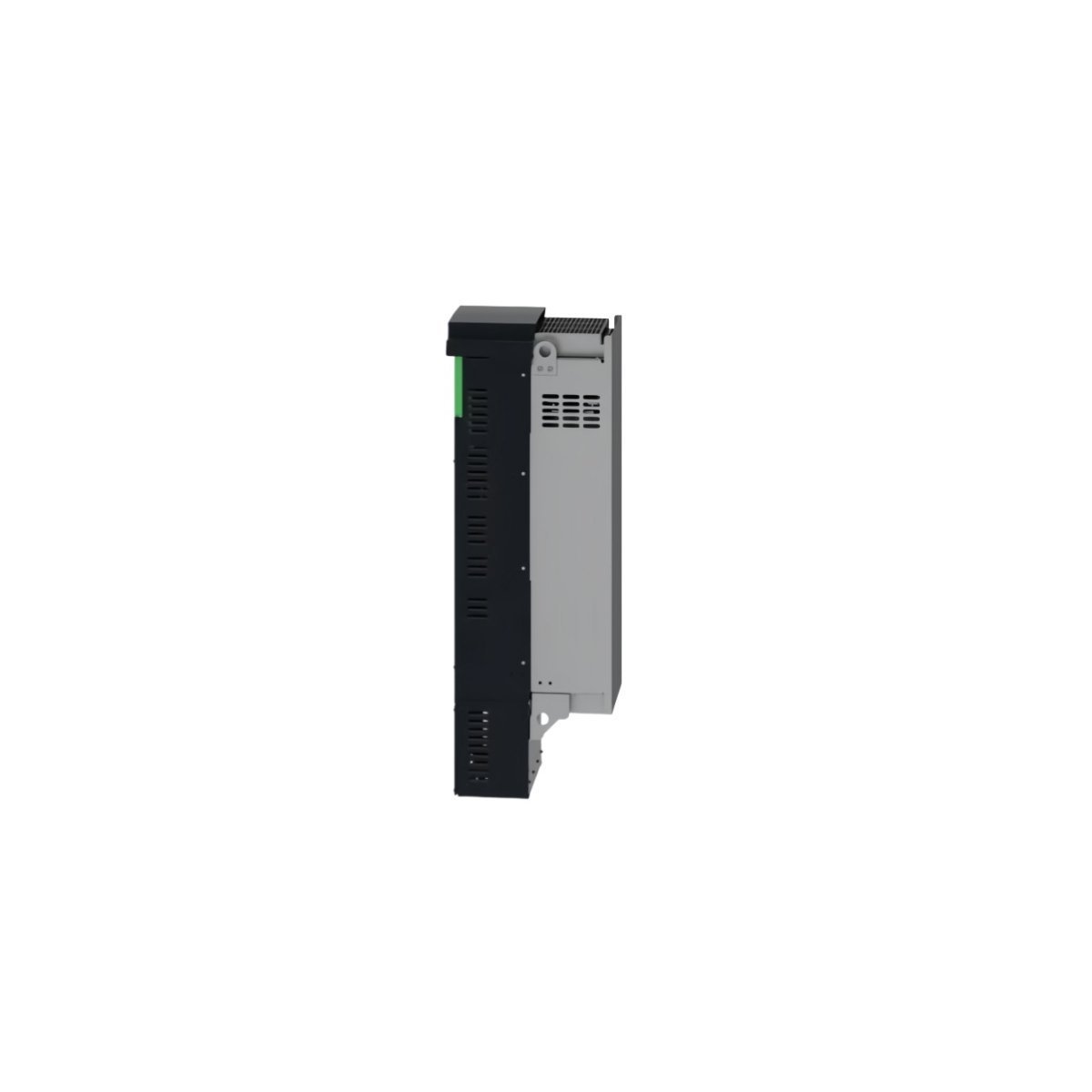

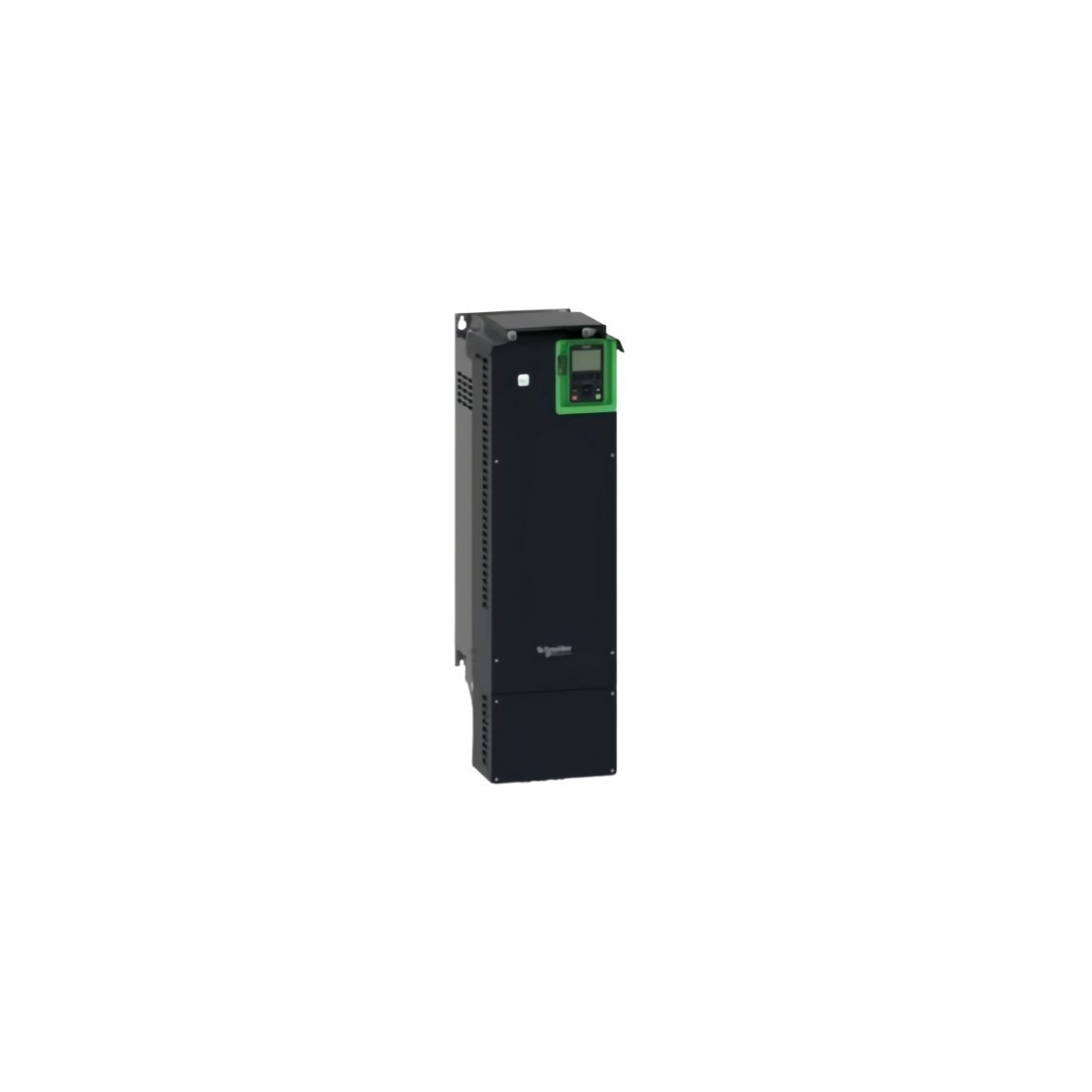

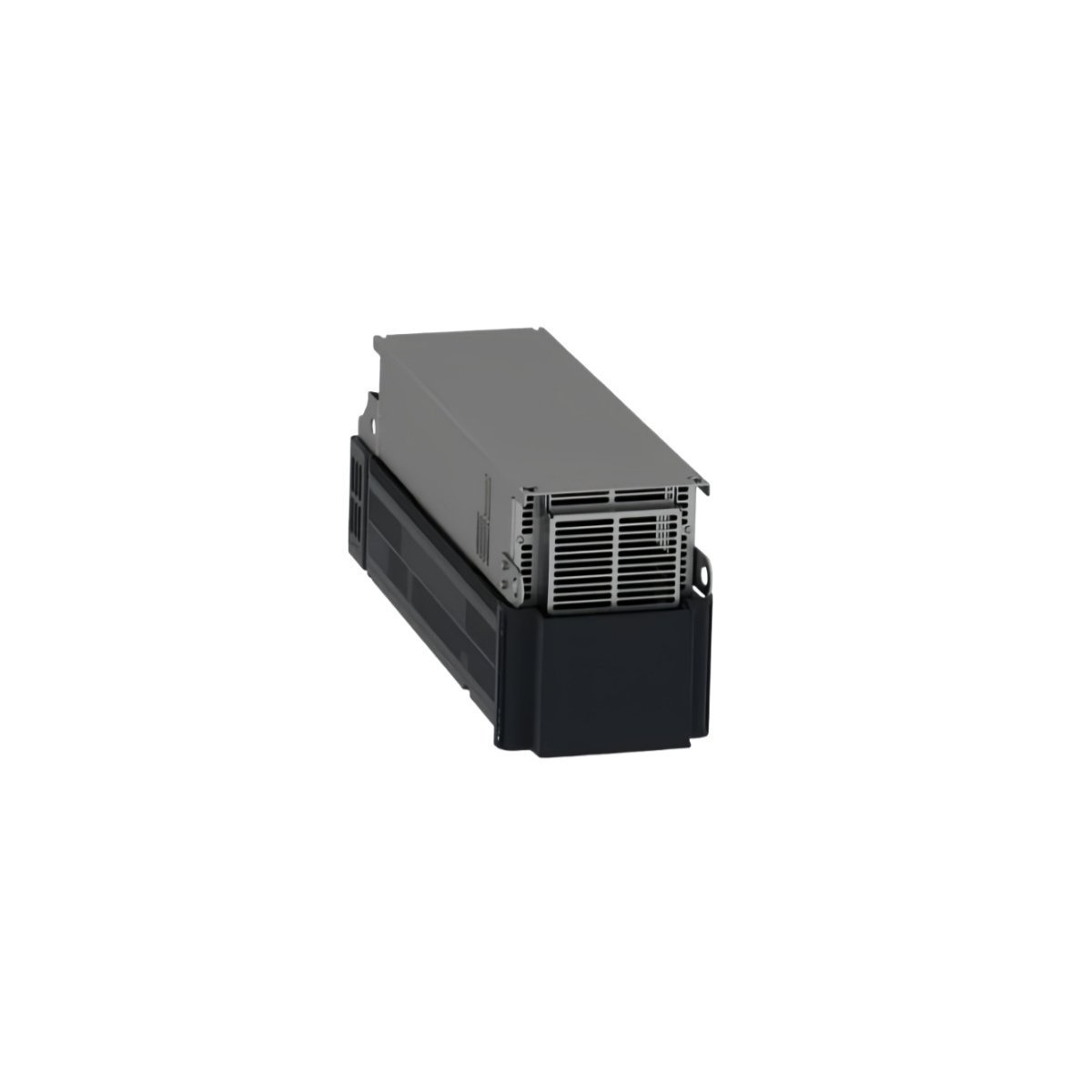

The Schneider Electric ATV630D75N4 stands as a primary component in the Altivar Process ATV600 series, specifically optimized for fluid management and high-demand process control. This variable speed drive manages both asynchronous and synchronous three-phase motors with a rated power of 75 kW (100 hp). By integrating advanced energy-monitoring capabilities, the unit allows operators to optimize power consumption across complex industrial networks. Its robust physical architecture supports heavy-duty operations while maintaining precise speed and torque regulation for critical infrastructure applications.
Energy Efficiency and Intelligent Process Control
This drive features “Stop and Go” technology, which reduces standby energy consumption by up to 30%, directly lowering the total cost of ownership. Beyond simple motor regulation, the ATV630D75N4 provides specialized functions for pump and fan management, such as pressure control and flow compensation. The drive maintains high performance in varying environments by supporting a dual-rating system: it handles a 120% overload for 75 kW normal duty applications and a 150% overload for 55 kW heavy-duty tasks. Furthermore, the integrated web server provides real-time access to process data, facilitating predictive maintenance and rapid system diagnostics.
Key Technical Characteristics
- High-Power Capacity: Delivers 75 kW of output power with a voltage input range of 380 V to 480 V AC.
- Integrated Protection: Features an IP21 rating and UL Type 1 enclosure to protect internal electronics against dust and vertical water drops.
- Extensive Connectivity: Includes dual Ethernet ports and a Modbus serial interface as standard for high-speed industrial communication.
- Fluid Management Macros: Pre-loaded software functions specifically designed for water treatment, irrigation, and wastewater processing.
- Dynamic Overload Support: Manages torque spikes effectively during startup or sudden load changes in process cycles.
- Thermal Reliability: Optimized for vertical installation with advanced cooling systems to ensure stable operation in high-ambient temperatures.
