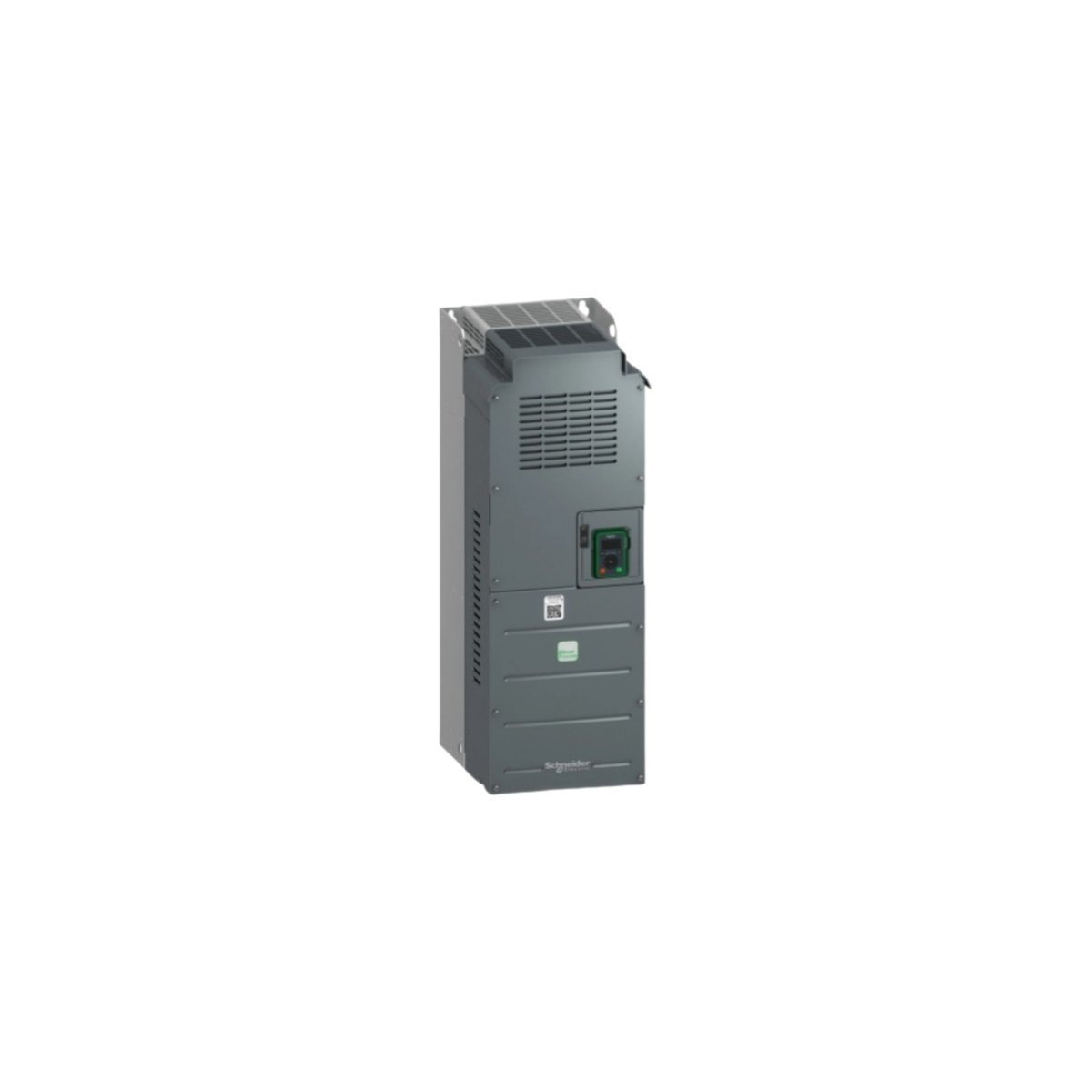

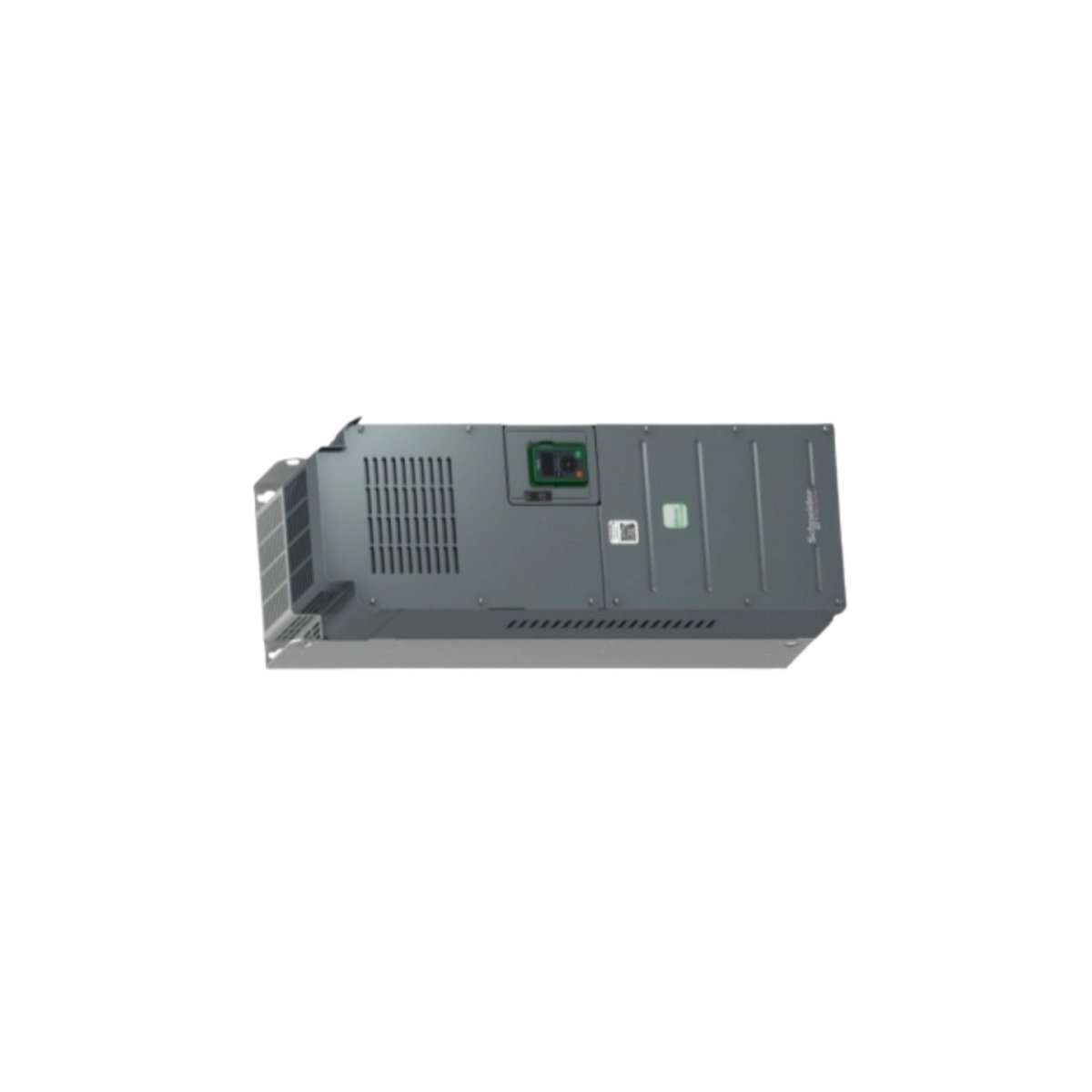

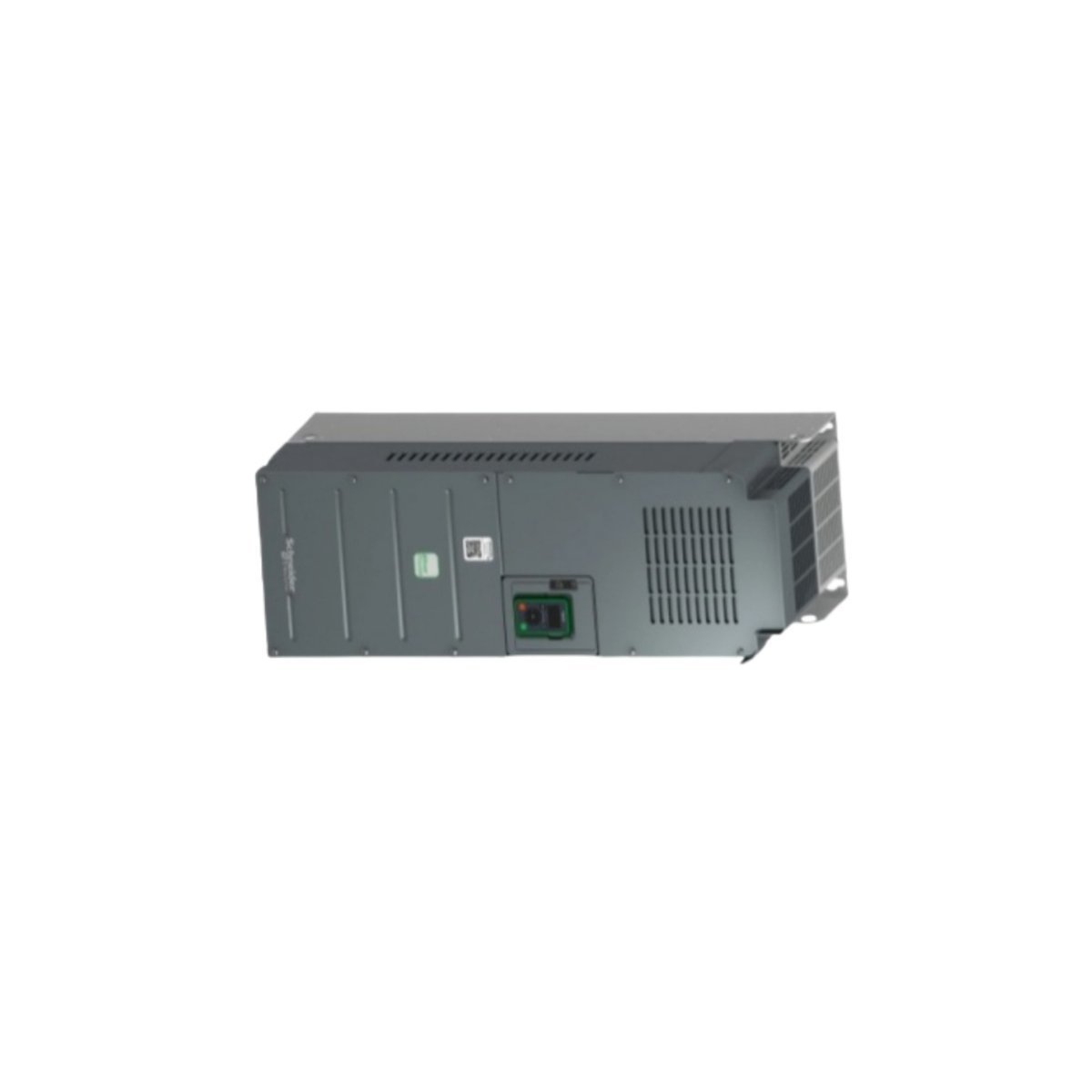

Schneider ATV610C16N4 Variable Speed Drive

The Schneider Electric ATV610C16N4 belongs to the Easy Altivar 610 series. This frequency inverter manages three-phase asynchronous motors effectively. It supports a power rating of 160 kW for normal duty operations. The drive operates within a voltage range of 380V to 460V AC. It delivers a continuous output current of 302 A. This model provides precise speed regulation from 0.1 Hz to 500 Hz.

Engineers designed this unit for high-power industrial applications. The drive uses forced convection cooling for thermal stability. It includes an integrated EMC filter for C3 category compliance. This ensures reliable operation in complex electrical environments. The hardware features an IP20 protection rating for cabinet installation.

Core Functions and Integration

The Altivar 610 series prioritizes ease of use. It offers a plug-and-play experience through factory-preset parameters. Users can implement multiple control profiles for different motor types. The drive supports variable torque and constant torque applications. It features 16 preset speeds to simplify process automation.

Integration remains straightforward due to standard Modbus serial communication. The drive also includes an expansion slot for additional protocols. This allows compatibility with Profibus DP V1 and other networks. Modular I/O extensions further increase the system’s flexibility.

Primary Industrial Applications

This variable speed drive excels in process and utility management. It serves water treatment facilities and oil refineries. The unit optimizes performance for centrifugal pumps and industrial fans. It also manages air compressors and heavy-duty conveyors. The robust design handles the rigors of the power and chemical industries.
