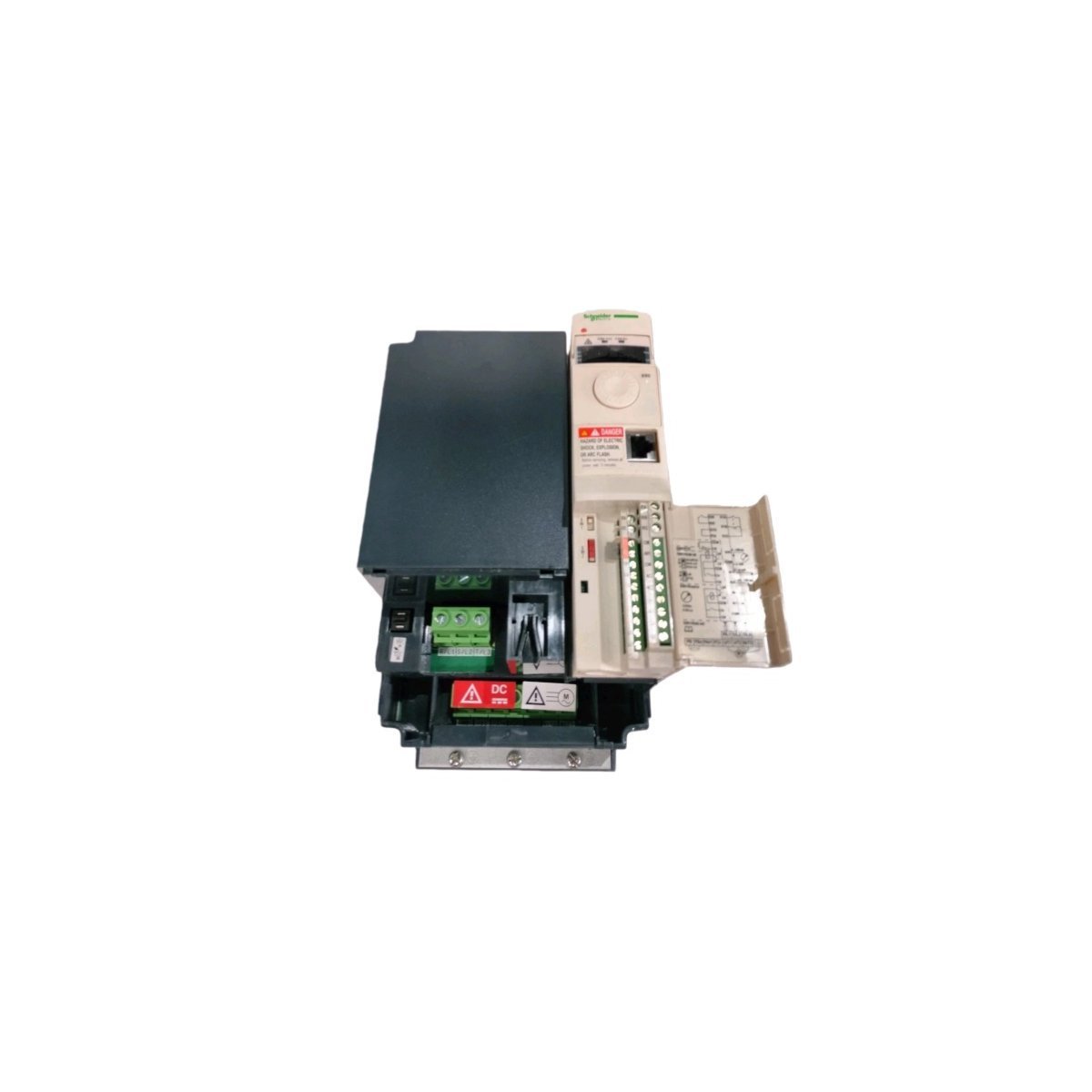

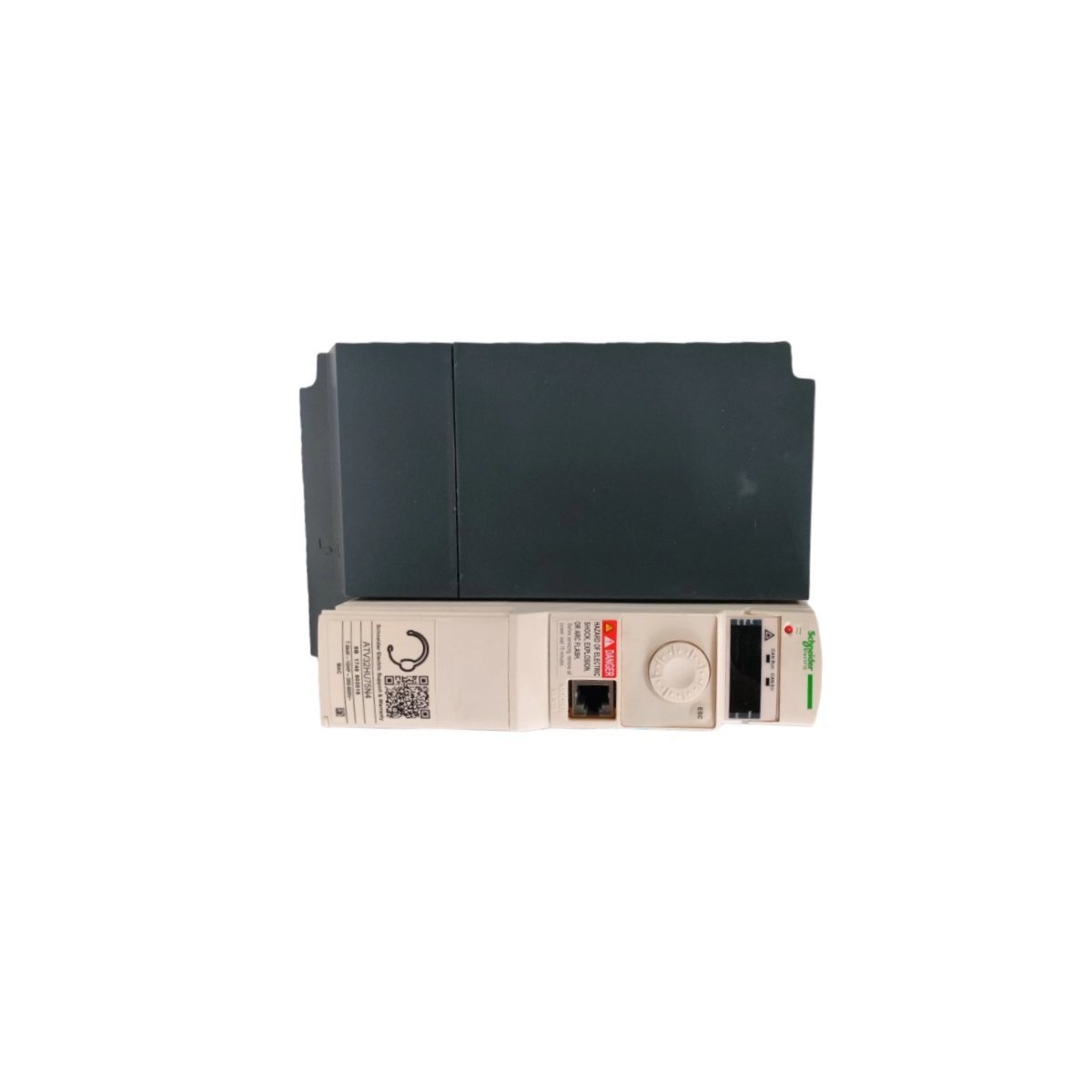

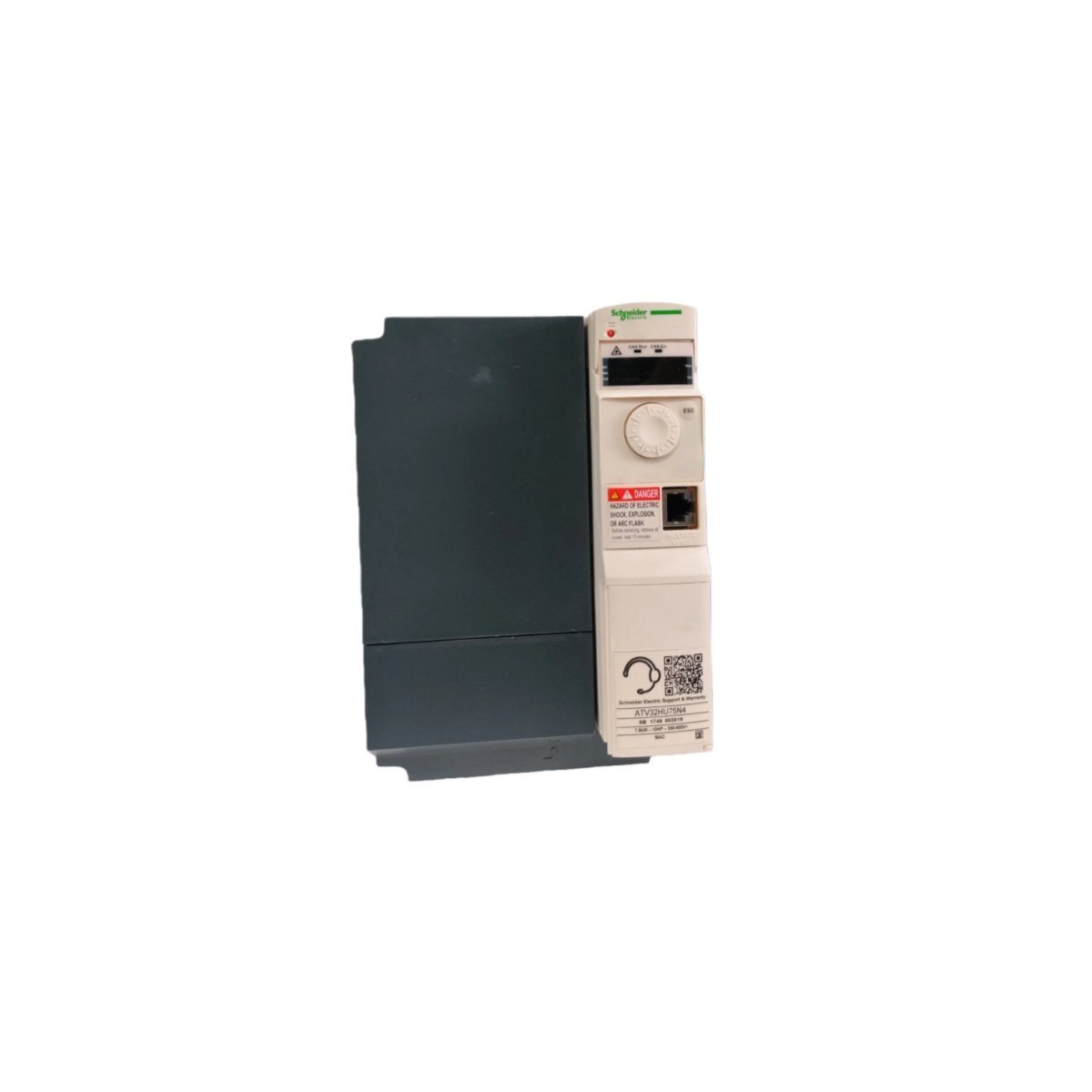

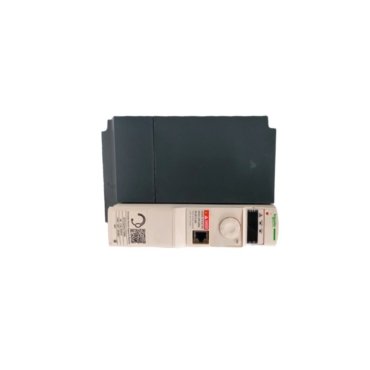

Schneider ATV32HU75N4 Variable Speed Drive

The Schneider Electric ATV32HU75N4 serves as a compact 7.5 kW (10 hp) solution for motor speed regulation. This Altivar 32 series drive efficiently manages three-phase asynchronous and synchronous motors. It features a slim “book” format to maximize cabinet space. Furthermore, the unit supports IE2, IE3, and permanent magnet motor types. This versatility allows engineers to implement the drive across various automation architectures. It operates reliably within a wide supply voltage range of 380V to 500V AC.

Optimized Energy Efficiency and Performance

This variable speed drive incorporates advanced algorithms specifically for fans and pumps. These specialized control profiles can reduce energy consumption by up to 30%. Moreover, the adjustable switching frequency minimizes motor noise and thermal losses. The integrated Class C2 EMC filter ensures stable operation in electrically sensitive environments. High dynamic response allows the unit to handle transient currents up to 25.5 A. Consequently, the drive maintains consistent performance during heavy-duty industrial cycles.

Advanced Safety and System Integration

The ATV32HU75N4 includes several embedded safety functions to protect personnel and machinery. Specifically, it offers Safe Torque Off (STO) and Safe Stop 1 (SS1) capabilities. These integrated features reduce the need for external safety components. Additionally, the drive supports multiple communication protocols for seamless PLC connectivity. This includes Modbus and CANopen as standard features. Therefore, the unit simplifies system integration while lowering the total cost of installation.

Technical Specifications

Versatile Application Range

Industrial facilities use the Altivar 32 series for diverse automation tasks. It excels in material handling, packaging, and textile machinery control. Furthermore, the robust heat sink design allows for operation in demanding thermal conditions. The drive complies with international standards for short-circuit resilience up to 22 kA. Its modular architecture supports rapid maintenance and diagnostic procedures. Choosing this Schneider unit ensures high operational reliability for critical manufacturing processes.
