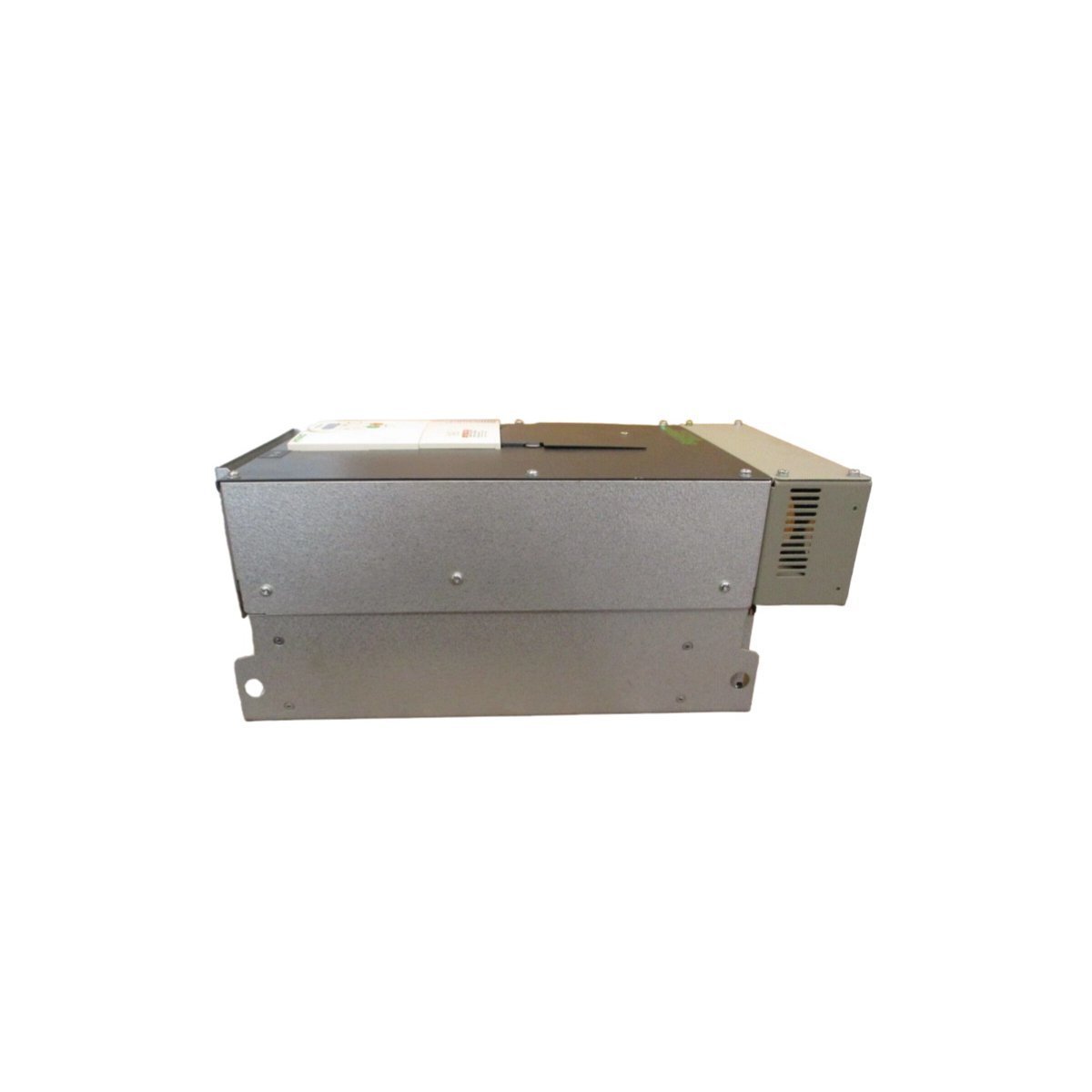

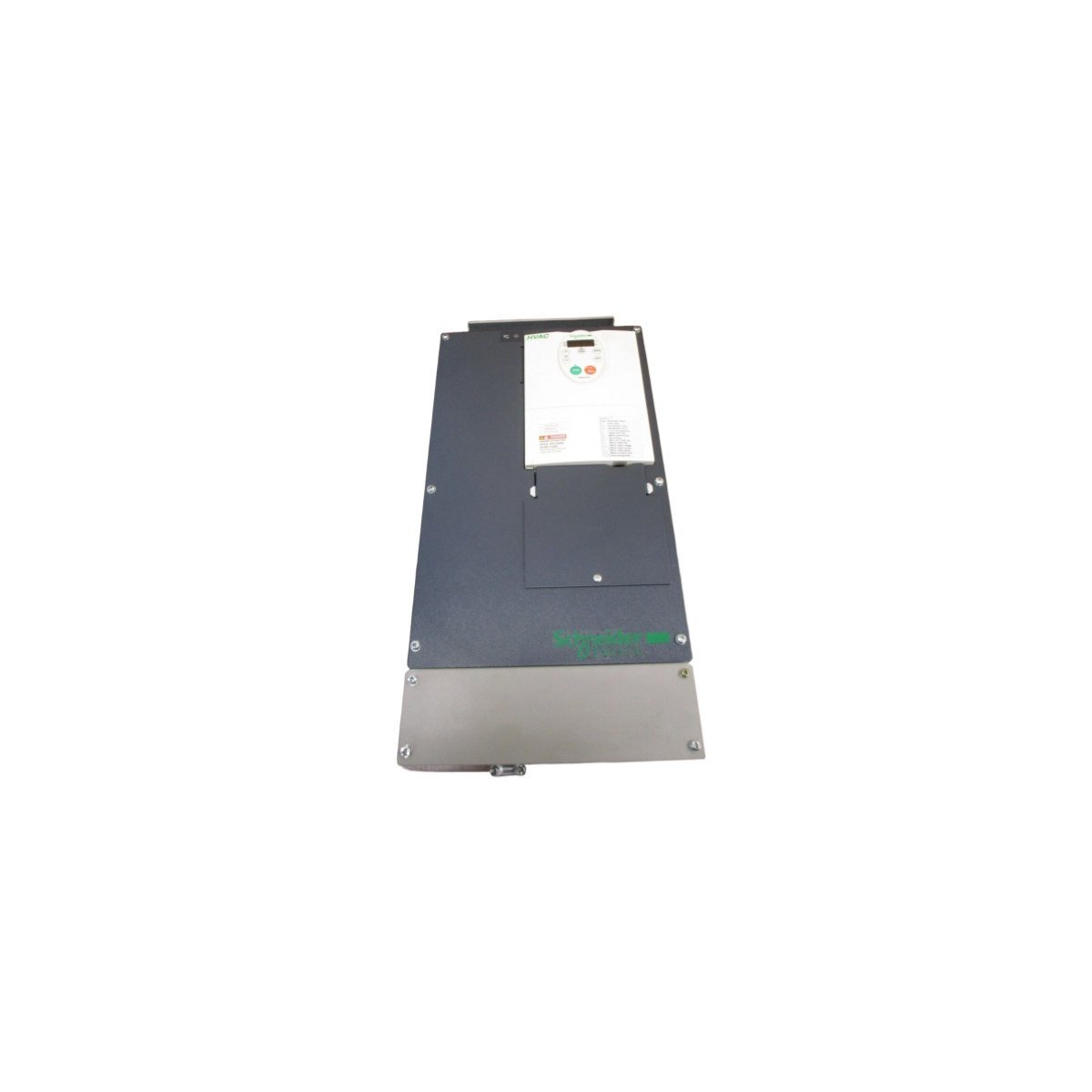

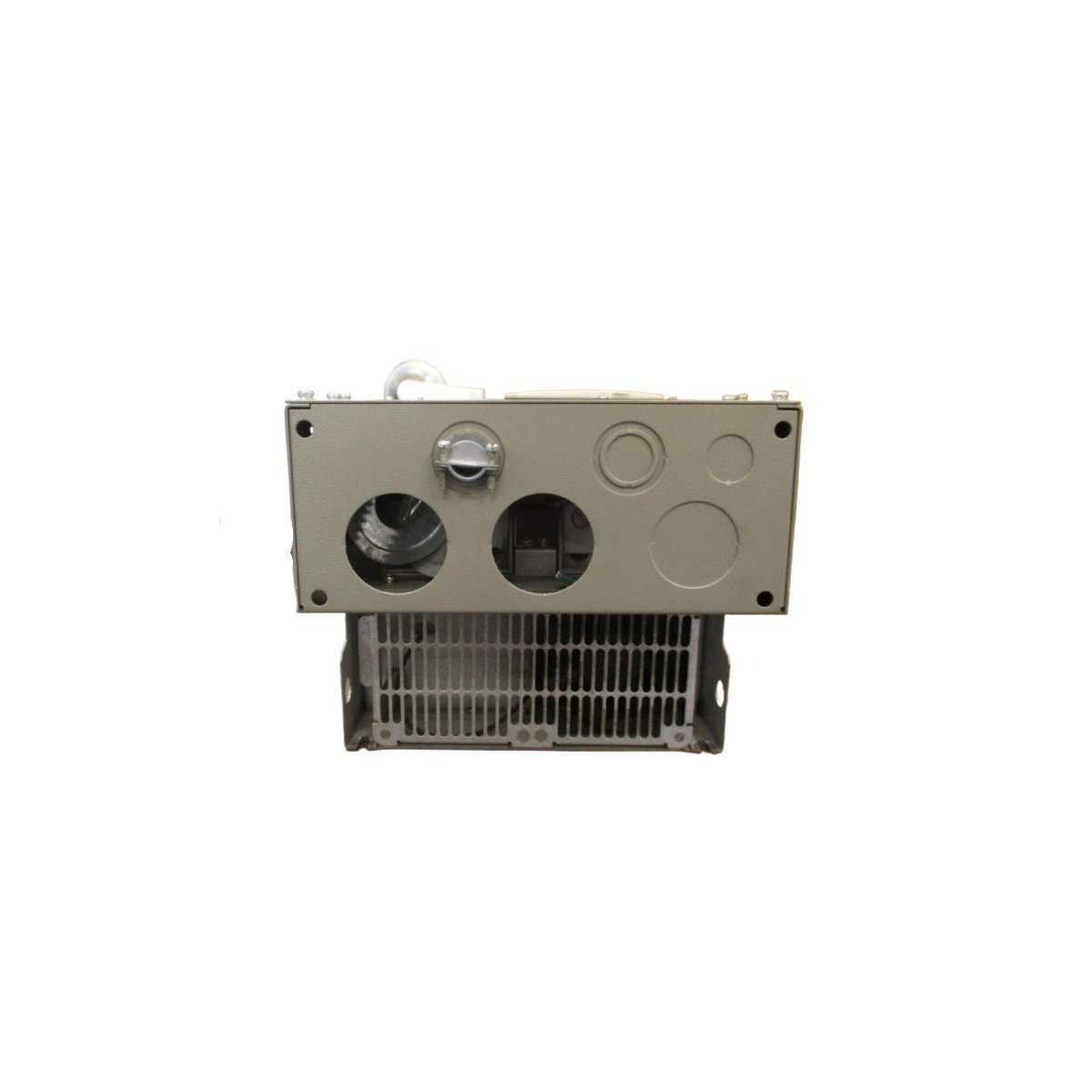

Schneider ATV212HD22N4 Variable Speed Drive

The Schneider Electric ATV212HD22N4 represents a high-efficiency solution within the Altivar 212 product family. This frequency inverter specifically targets the needs of commercial building automation and fluid management. It provides sophisticated speed regulation for three-phase asynchronous motors. Furthermore, the drive handles a nominal power of 22 kW (30 hp) at 380V to 480V AC. Its design focuses on reducing the total cost of ownership through energy optimization. This unit ensures stable operation across diverse load profiles in industrial environments.

Core Technical Specifications

Networking and System Compatibility

Integration becomes effortless with the multiple communication protocols available in this drive. It supports standard Modbus and BACnet interfaces for seamless building management connectivity. Users can also utilize APOGEE FLN P1 and METASYS N2 protocols for specialized networks. Additionally, the unit features internal harmonic mitigation technology without requiring external line chokes. This capability reduces electrical noise and protects sensitive electronics nearby. The drive effectively manages data traffic to ensure real-time process monitoring.

Energy Savings and Thermal Performance

The ATV212HD22N4 incorporates eco-friendly algorithms to minimize power consumption in fans and pumps. It can achieve significant energy reductions compared to traditional mechanical control methods. Moreover, the drive features a robust thermal management system for continuous heavy-duty use. The integrated fan provides cooling even during high-torque operations at low speeds. These mechanical improvements help extend the service life of the motor and the drive. Consequently, maintenance intervals increase, which lowers overall facility operational costs.
