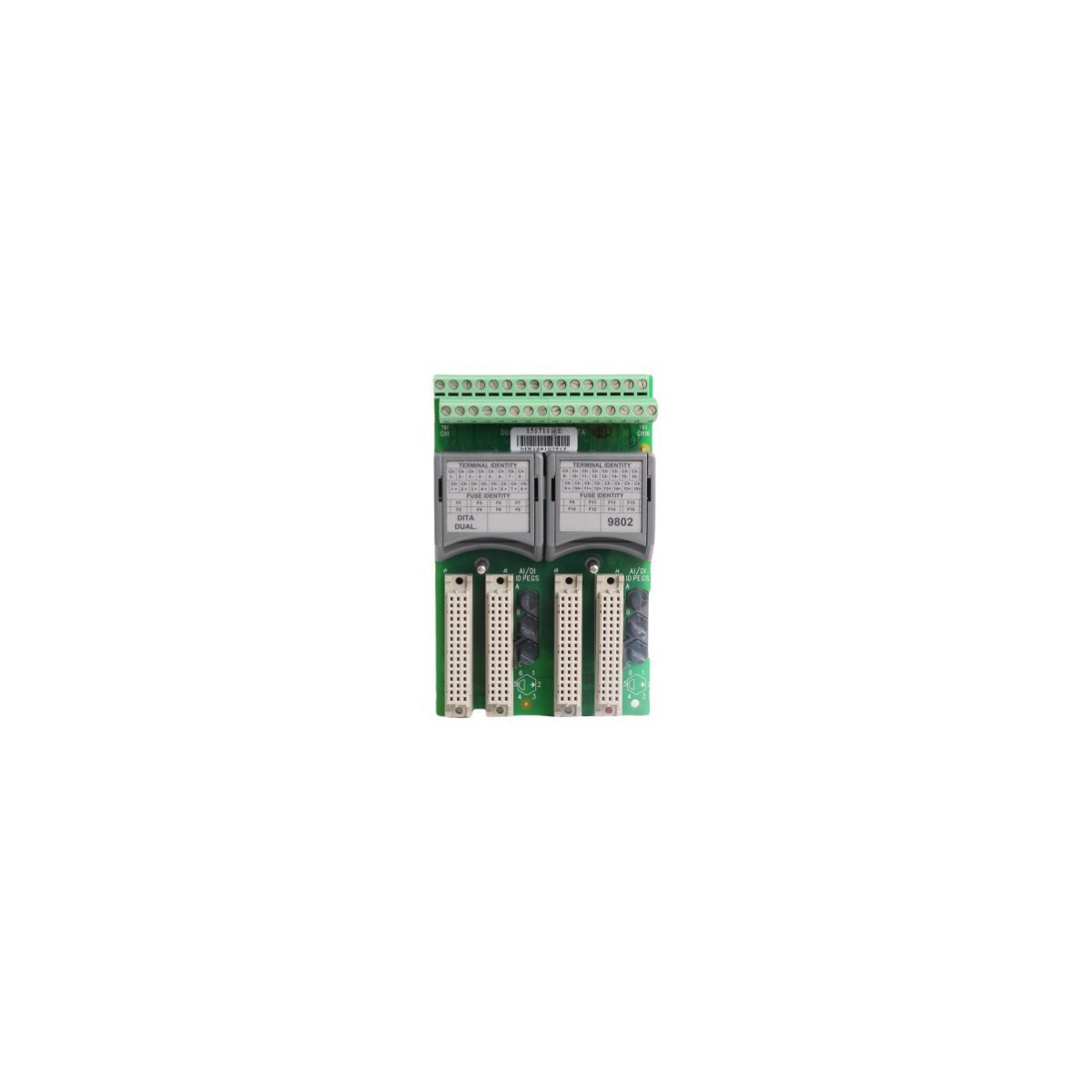

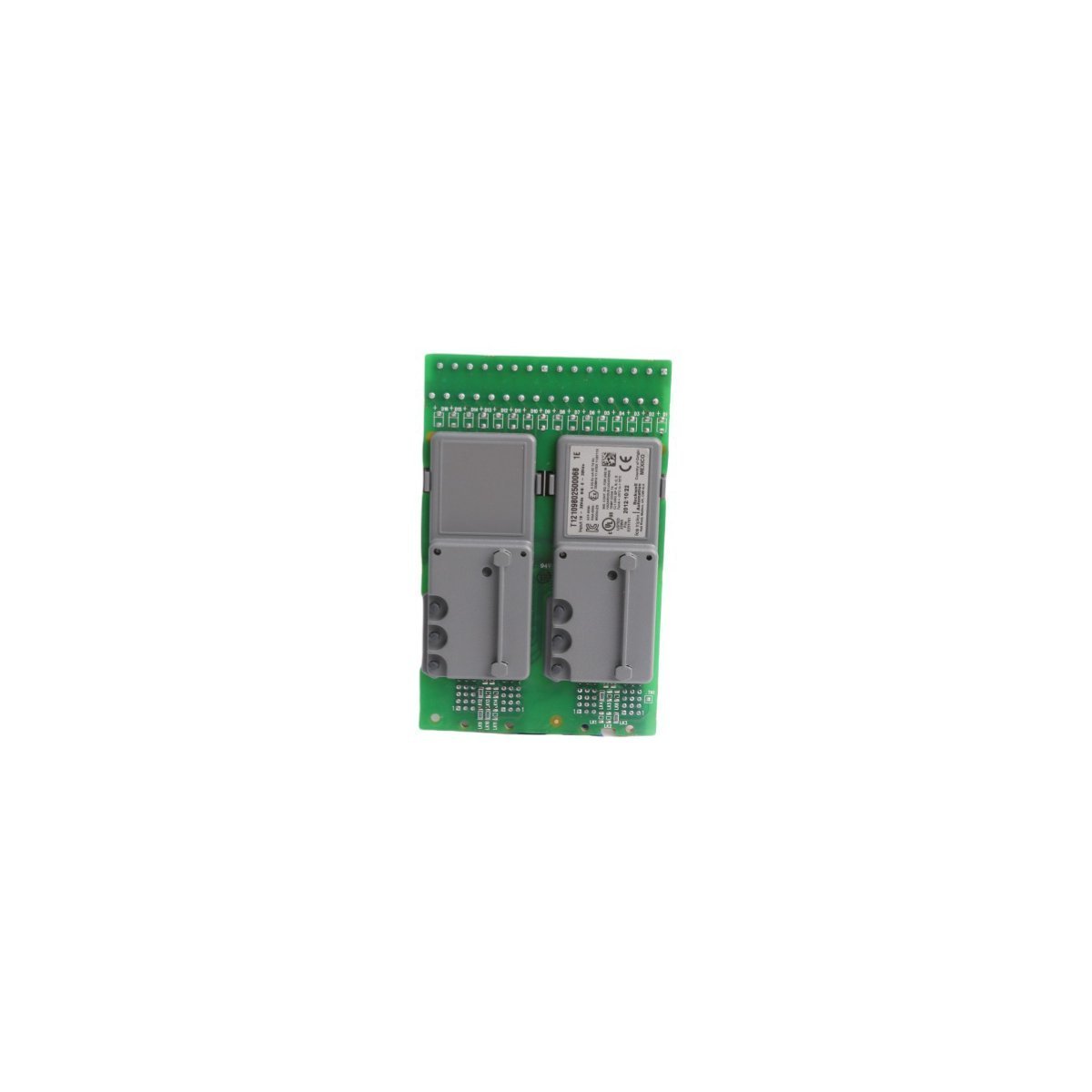

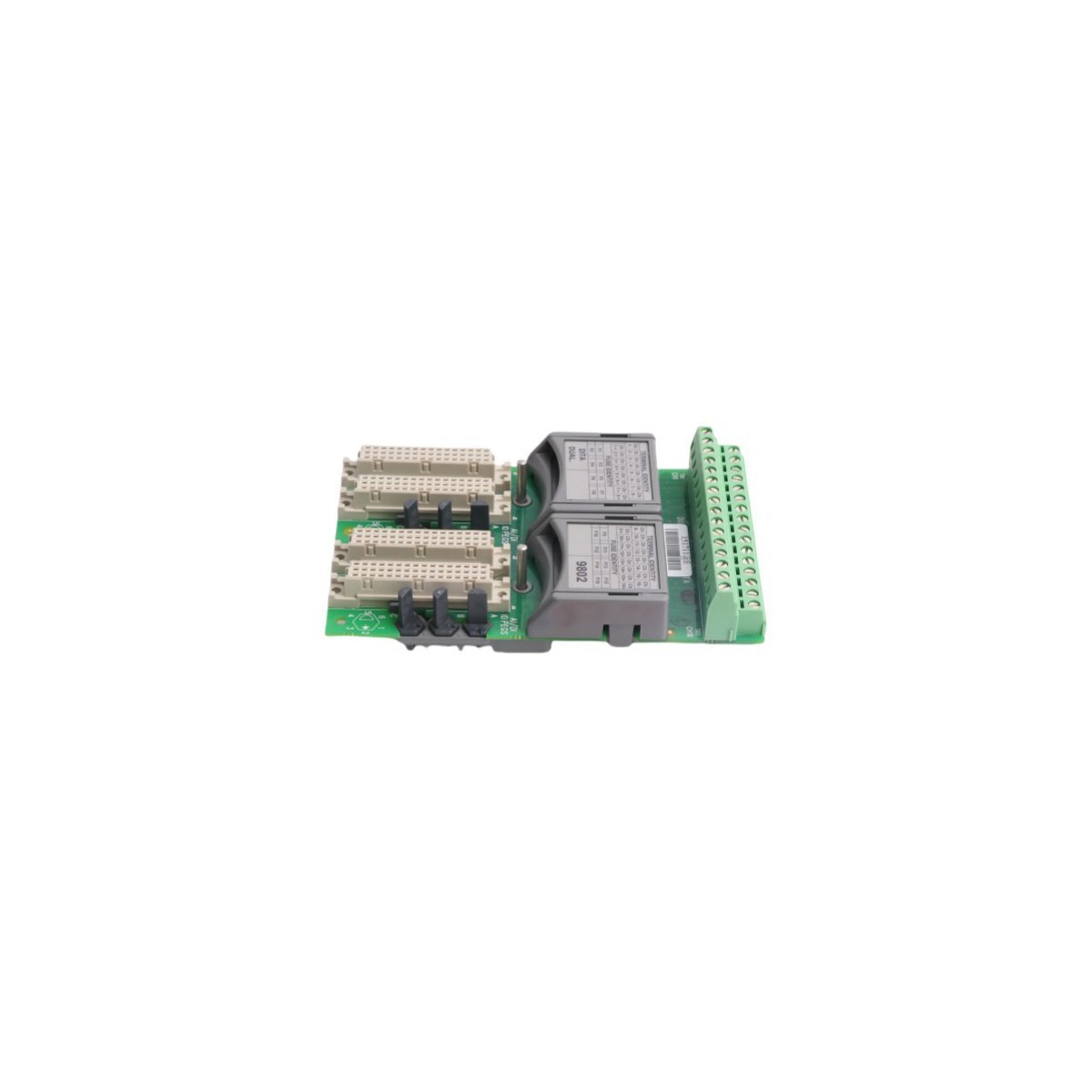

The ICS Triplex T9802 serves as the specialized Digital Input Termination Assembly (TA) for the AADvance® functional safety system. It acts as the physical interface between field sensors and the digital input modules, providing the necessary signal routing and connectivity for distributed control environments. By utilizing this termination assembly, engineers can ensure secure and organized wiring for critical safety loops in high-availability industrial sectors.
Key Technical Characteristics
- Optimized Integration: Specifically engineered for the AADvance system to ensure perfect mechanical and electrical alignment with input modules.
- Dual Channel Support: Facilitates organized connection points for up to 16 digital inputs per assembly.
- MODBUS RTU Compatibility: Supports standard industrial communication protocols for seamless network data exchange.
- Simplified Maintenance: The lightweight, modular design allows for rapid installation and troubleshooting, minimizing operational downtime.
- Reliable Isolation: Provides the necessary electrical separation to protect sensitive control logic from field-side electrical surges.
Technical Specifications Summary
| Feature | Specification Details |
| Brand | ICS Triplex (Rockwell Automation) |
| Model Number | T9802 |
| System Compatibility | AADvance Functional Safety System |
| Module Type | Digital Input Termination Assembly |
| Weight | 0.14 kg (Approx. 140g) |
| Dimensions | 13.1 x 8.4 x 3.5 cm |
| Voltage Range | 12 VDC to 24 VDC |
| Ingress Protection | IP20 |
| Country of Origin | USA |
