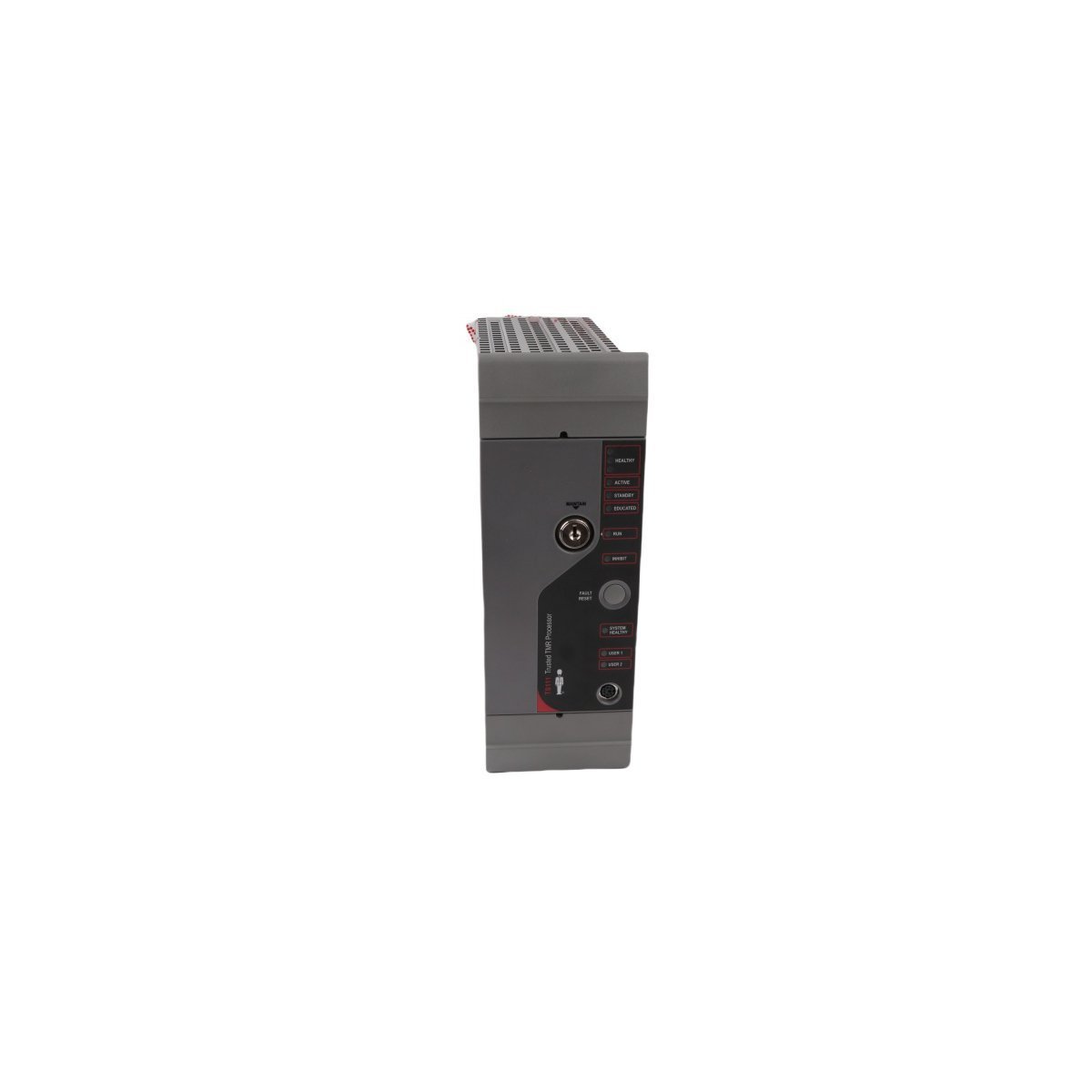

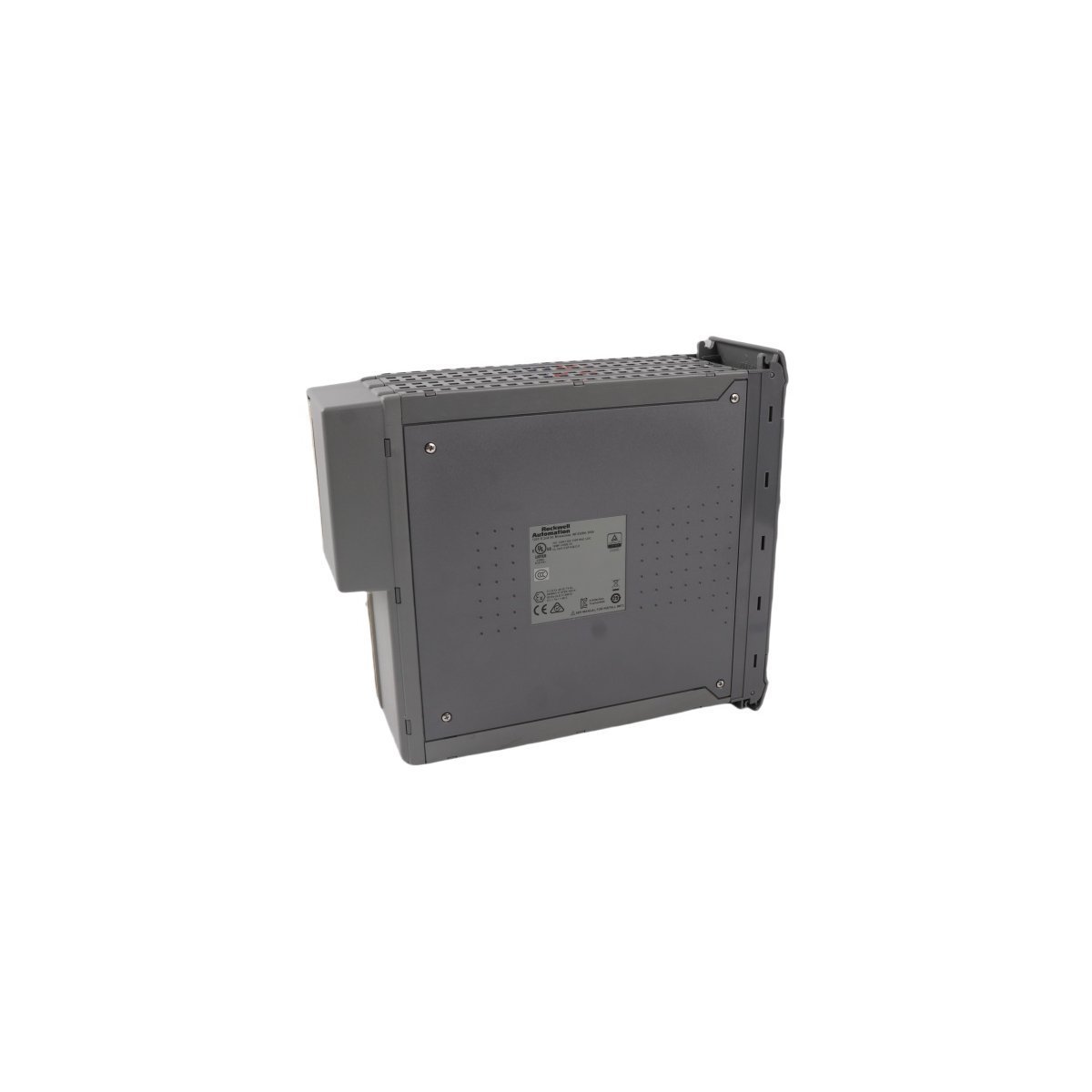

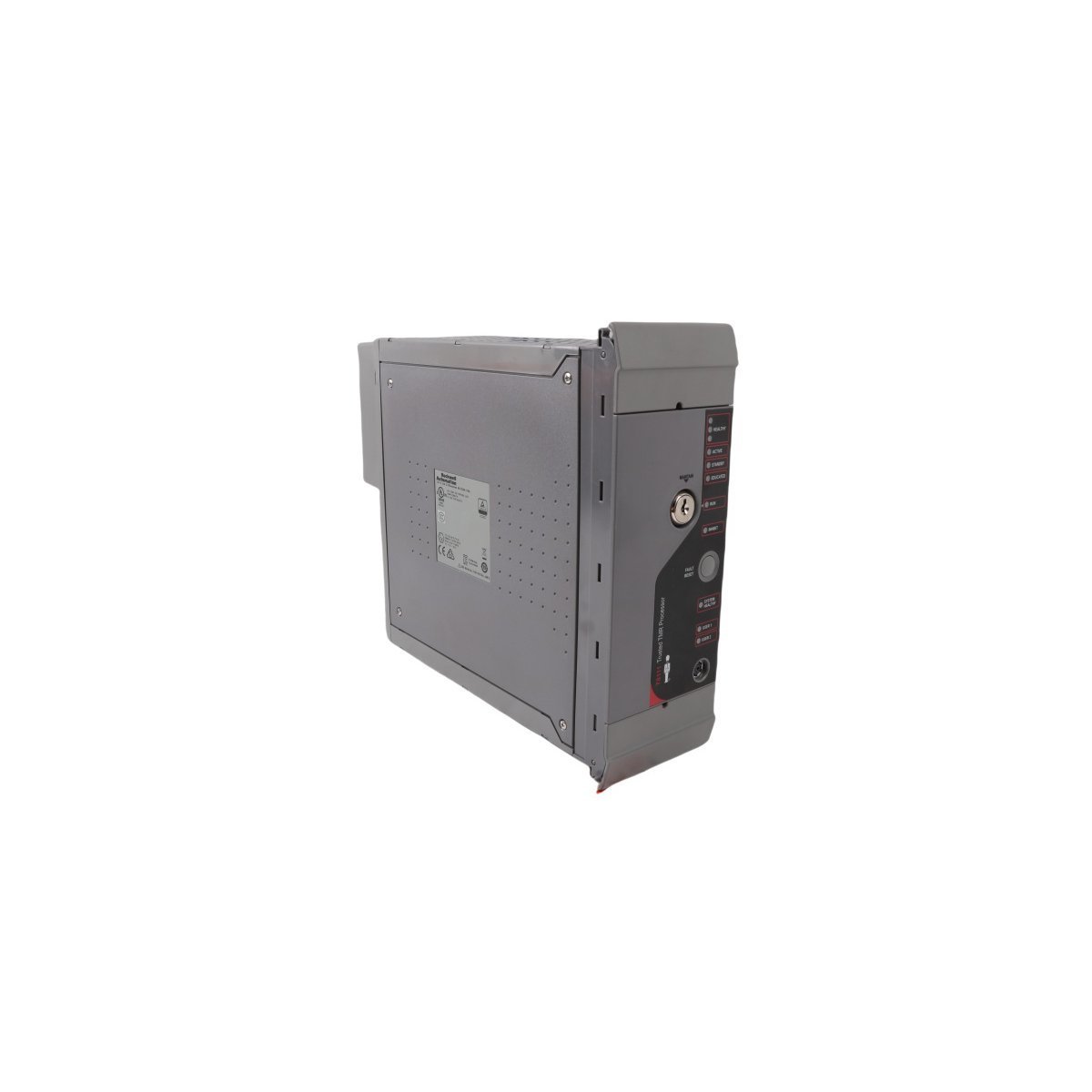

ICS Triplex T8111C Trusted TMR Processor

The ICS Triplex T8111C serves as the primary processing intelligence for the Trusted safety system. This module utilizes a Triple Modular Redundant (TMR) architecture to achieve high availability and fault tolerance. It integrates three separate processing paths to execute control logic and monitor system health simultaneously. Consequently, the T8111C ensures that industrial processes remain safe and operational even during hardware malfunctions.

Technical Specifications

Core Functional Characteristics

The T8111C employs a two-out-of-three (2oo3) voting mechanism to validate all processing results. This hardware-based voting eliminates single points of failure within the control loop. Furthermore, the module provides extensive diagnostic coverage for internal memory and communication backplanes. It handles complex safety algorithms with high speed and precision. The processor also manages synchronization between the triplicated processing slices automatically.

Industrial Applications and Resilience

Engineers typically deploy the T8111C in mission-critical Safety Instrumented Systems (SIS). It is ideal for Emergency Shutdown (ESD) and Fire and Gas (F&G) protection units. The module features a robust design that resists extreme electrical noise and heavy vibrations. It performs reliably in the high-temperature environments of oil refineries and offshore platforms. Additionally, the unit supports hot-standby configurations to maximize facility uptime during maintenance cycles.

Connectivity and Integration

The T8111C integrates effortlessly with other Trusted series I/O and communication modules. It supports high-speed data exchange through the system backplane to ensure rapid response times. The processor also facilitates remote diagnostics via Ethernet-based industrial protocols. Operators can monitor channel status and internal health metrics in real time. This visibility allows for proactive maintenance and reduces the risk of unplanned shutdowns.
