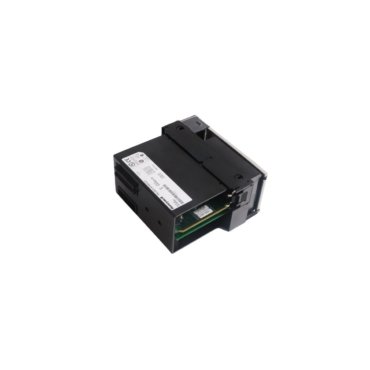

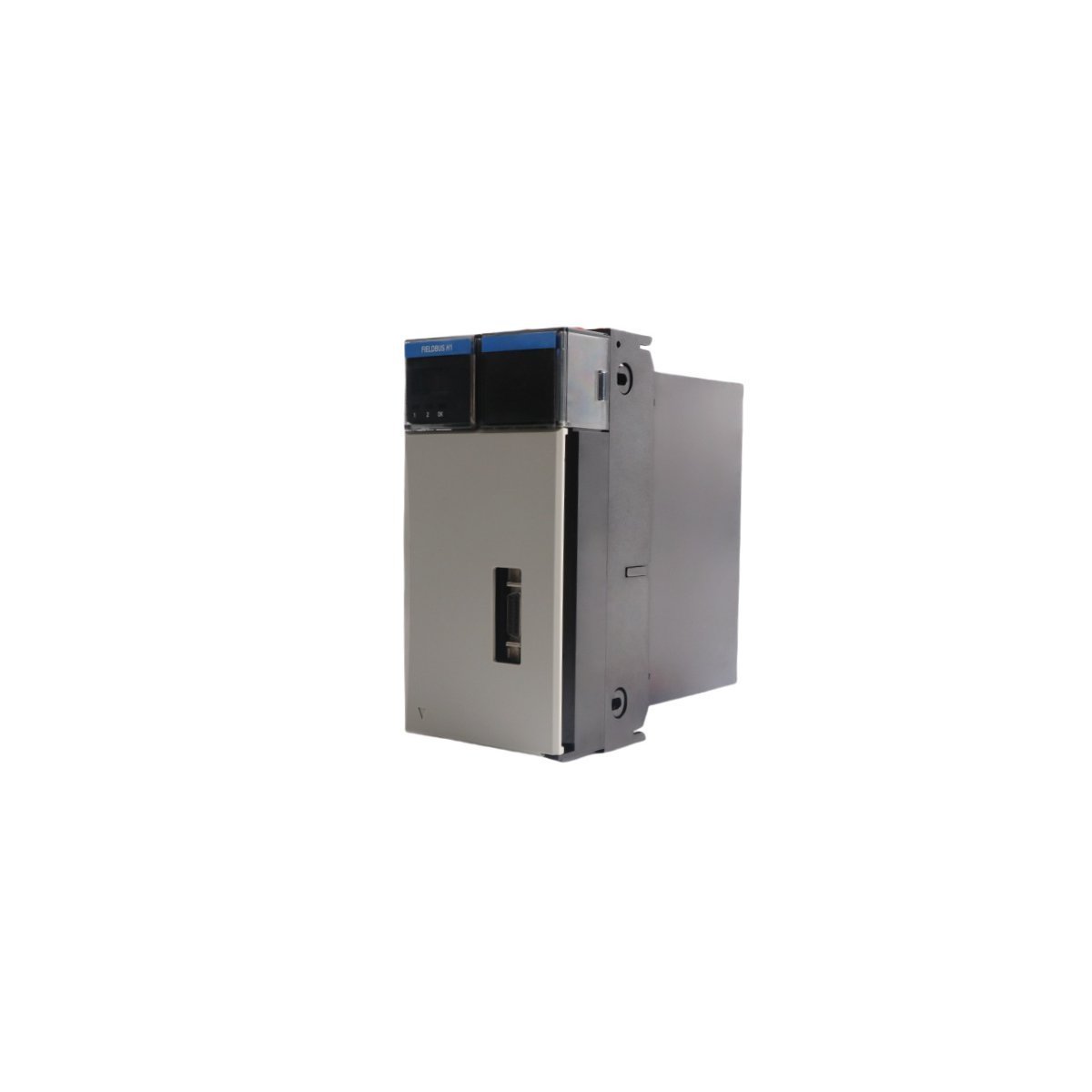

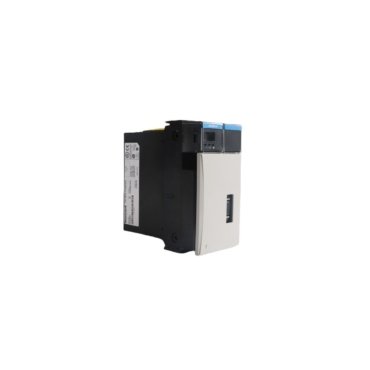

Honeywell TK-FFIF01 51403420-275 Fieldbus Interface Module

The Honeywell TK-FFIF01 (part number 51403420-275) serves as a high-performance bridge within the Experion LS Distributed Control System. This Fieldbus Interface Module (FIM) facilitates reliable digital communication between specialized field instrumentation and the primary controller. By utilizing the FOUNDATION Fieldbus protocol, this unit integrates sensors and actuators into a centralized management framework.

Technical Specifications

Functional Characteristics and Benefits

The TK-FFIF01 module optimizes industrial data exchange by converting field-level signals into actionable system data. It eliminates the need for extensive point-to-point wiring through a digital bus architecture. This design significantly lowers installation costs while improving signal integrity across long distances.

This interface supports advanced diagnostic functions to ensure continuous process uptime. It monitors the health of connected H1 segments and identifies device faults in real time. Maintenance teams use these insights to perform proactive repairs before system failures occur.

The robust hardware construction allows the module to thrive in harsh industrial environments. It handles high-density data traffic without compromising processing speed or accuracy. Furthermore, the module supports hot-swapping to allow for hardware replacements without shutting down the entire control loop.

Application and System Integration

Engineers typically deploy the TK-FFIF01 in complex process industries such as oil refining and chemical processing. The module integrates seamlessly into the Experion LS architecture via specialized I/O links. It manages multiple fieldbus segments, providing power and communication synchronization to all downstream devices.

The 51403420-275 variant ensures compatibility with modern Ethernet-based control backplanes. It acts as an intelligent router to direct traffic between the control network and field instruments. This connectivity enables remote configuration and calibration of smart transmitters directly from the operator station.
