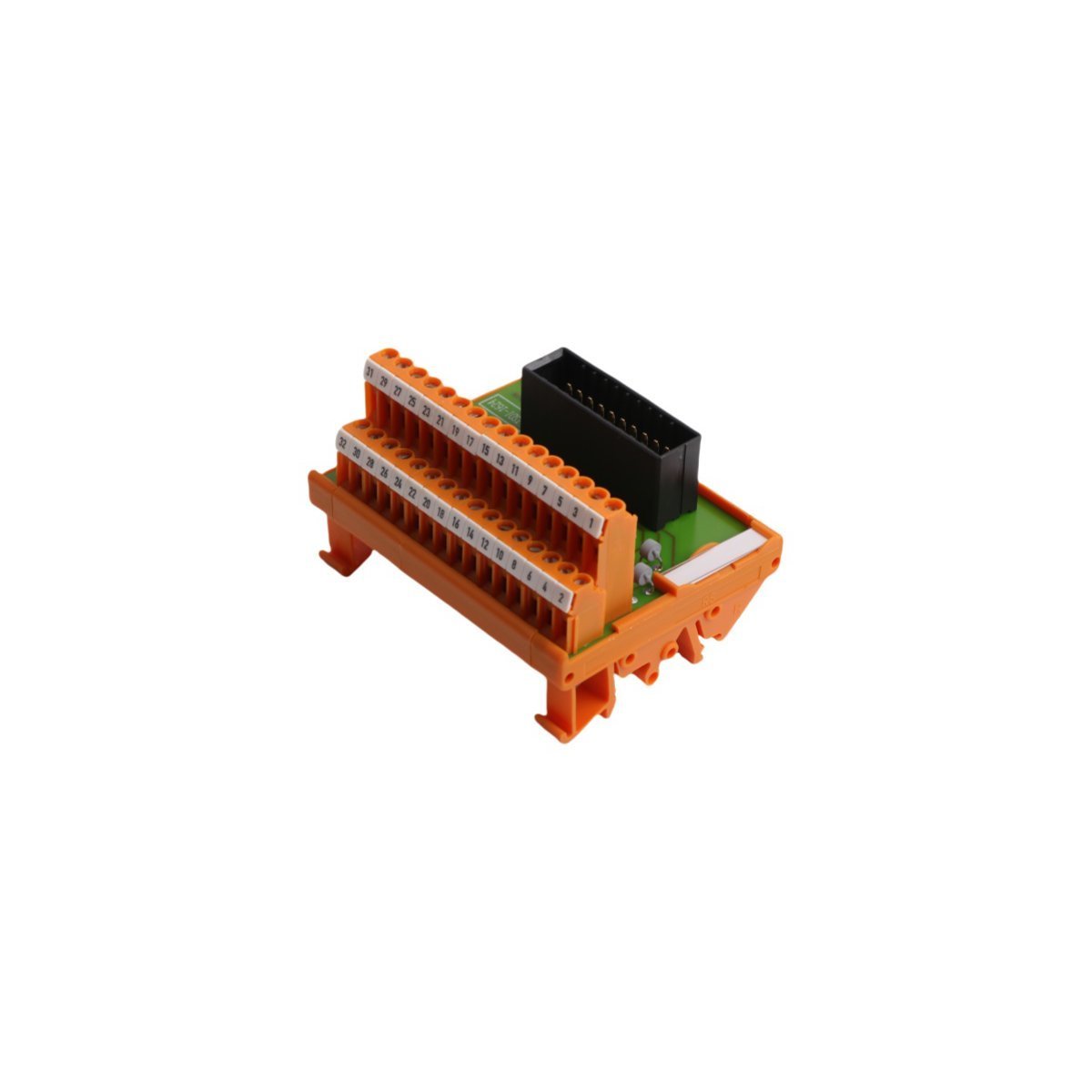

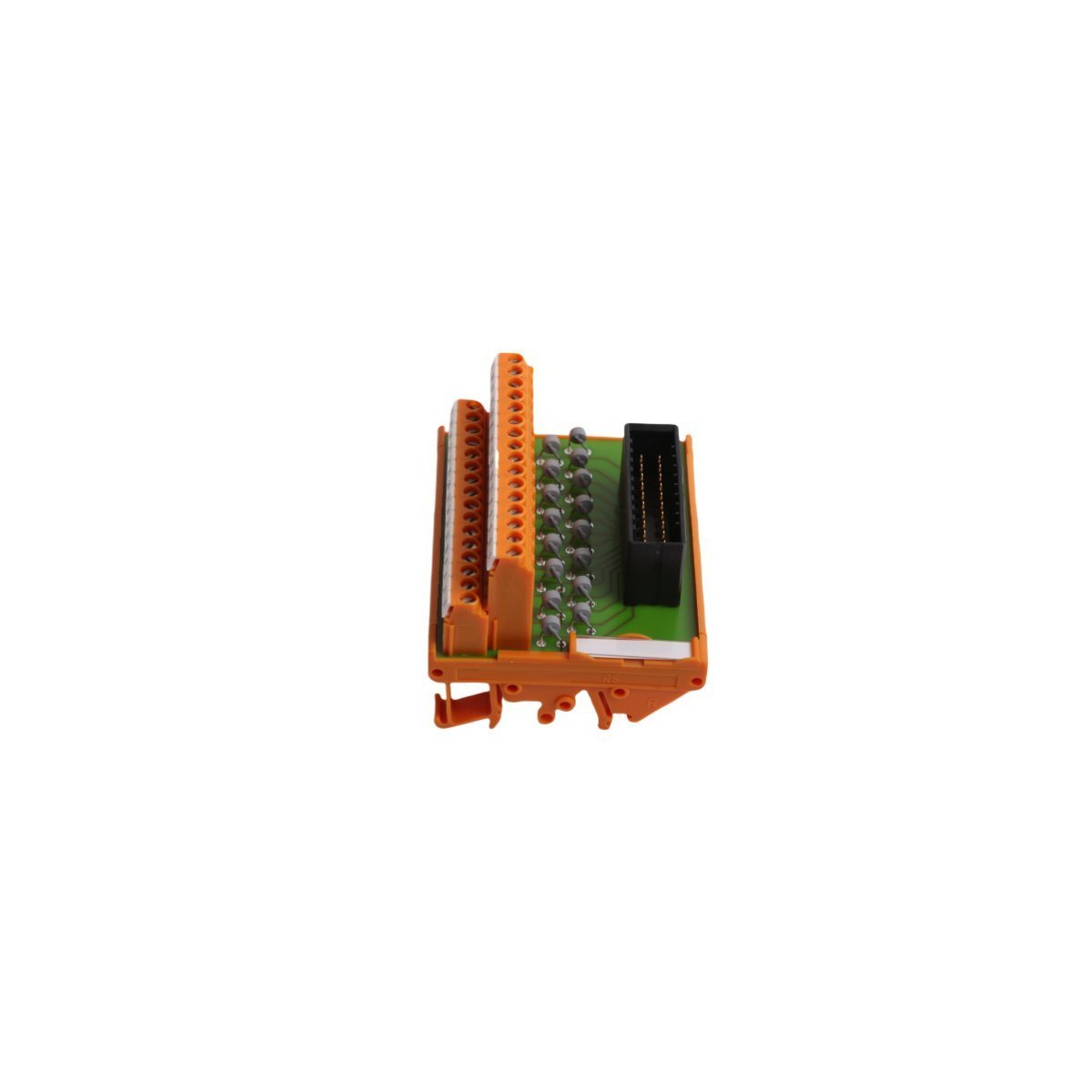

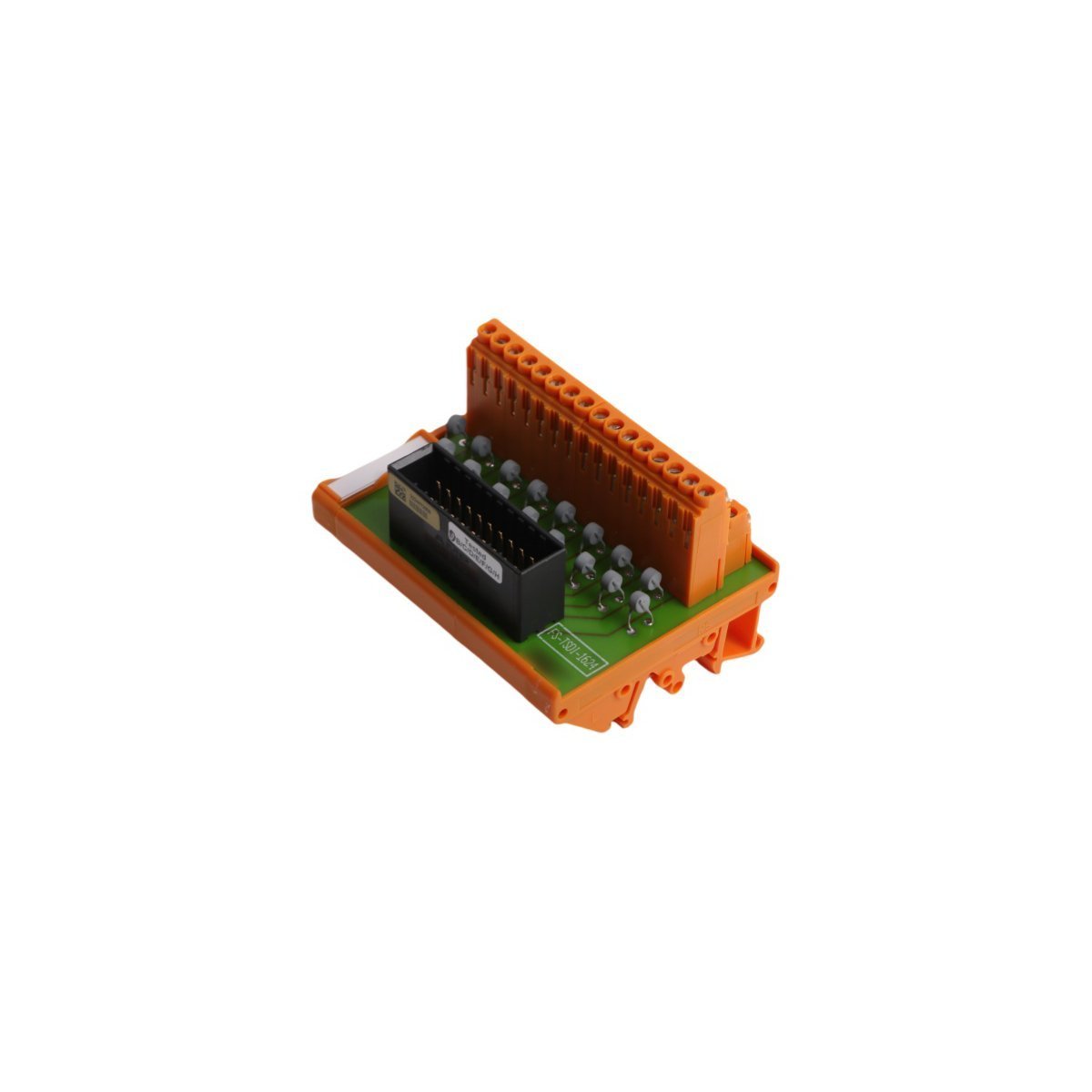

Honeywell FS-TSDI-1624 Safe Digital Input FTA

The Honeywell FS-TSDI-1624 serves as a dedicated Field Termination Assembly (FTA) for high-integrity safety systems. This component interfaces field-level digital sensors with the Safety Manager or Safety Manager SC controllers. It supports sixteen independent channels for monitoring critical safety parameters. The hardware ensures that binary signals from emergency stops or limit switches reach the controller without interference.

Integrating this FTA into a safety instrumented system (SIS) enhances overall loop reliability. The module converts field wiring into a manageable format for system interconnection cables. Because it focuses on SIL-rated environments, the design prioritizes signal transparency and hardware fault tolerance. This makes the FS-TSDI-1624 a standard choice for process industries requiring rigorous safety certifications.

Technical Specifications and Environmental Data

Hardware Functionality and Signal Integrity

The FS-TSDI-1624 handles discrete signals through a rugged terminal block interface. Each channel manages 24V DC logic levels to detect switch states or sensor outputs. The module features integrated circuitry to protect against reverse polarity and overvoltage events. These protective measures prevent field-side electrical faults from damaging the central safety processor.

Signal quality remains consistent due to the optimized impedance matching on each circuit. The module minimizes electromagnetic interference during the transition from field cables to system connectors. Furthermore, the compact panel-mount footprint allows for high-density installation in standard control cabinets. This efficiency reduces the required space for safety system marshaling.

Application in Critical Safety Loops

Facilities in the petrochemical and power sectors utilize this FTA for emergency shutdown (ESD) logic. It plays a primary role in fire and gas (F&G) detection systems. The wide operating temperature allows for installation in various climate-controlled or remote enclosures. Consequently, this module maintains peak performance in geographically diverse industrial sites.

Maintenance teams benefit from the straightforward mechanical design of the FS-TSDI-1624. The clear labeling of terminal points simplifies troubleshooting and routine signal testing. By meeting CE and UL standards, this hardware guarantees compliance with international safety regulations. It provides a stable, long-term solution for managing critical digital input data.
