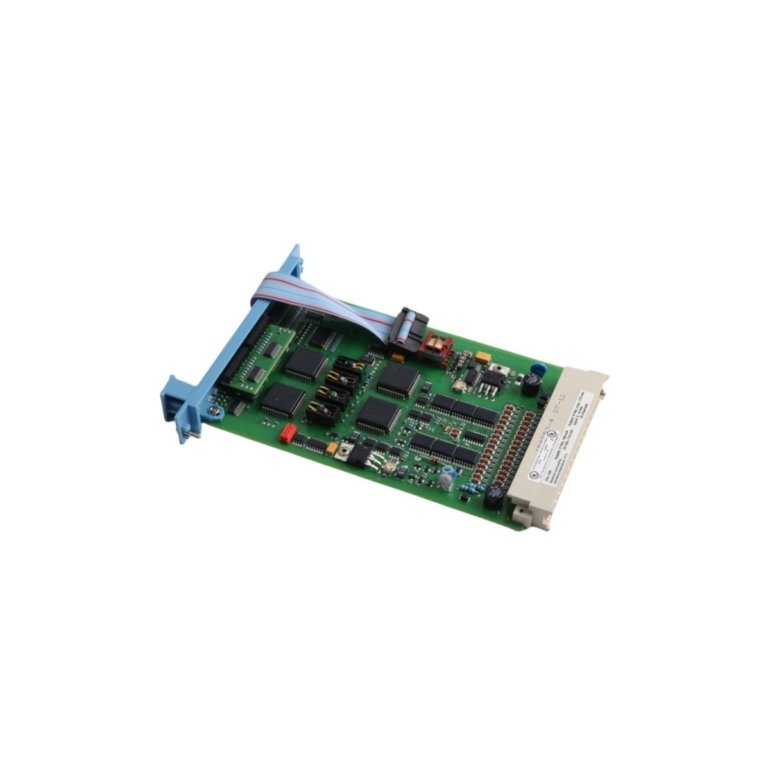

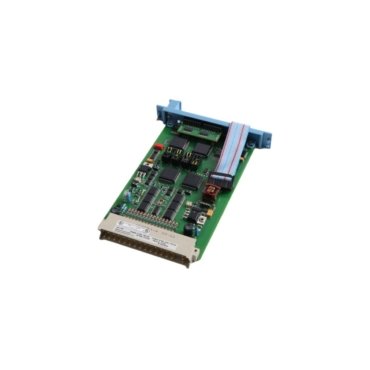

Honeywell FC-SDIL-1608 V1.3 Digital Input Module

The FC-SDIL-1608 V1.3 hardware functions as a high-integrity interface for the Honeywell Safety Manager system. This module captures discrete signals from field safety devices with absolute precision. Because it features a 16-channel architecture, the unit supports multiple safety loops simultaneously. Each input point monitors for specific fault conditions like open circuits or shorted lines. Consequently, the controller receives verified data regarding the state of emergency switches and sensors. This capability ensures the safety system maintains total process oversight at all times.

Robust Hardware Design for Critical Environments

Honeywell engineered the FC-SDIL-1608 V1.3 to perform in high-demand industrial sectors. The module utilizes isolated 24VDC inputs to prevent electrical interference between channels. Furthermore, the compact 0.16kg frame allows for high-density placement in controller chassis. Since the unit features a rugged DIN-rail mounting design, installation remains straightforward and secure. The hardware also includes dedicated LED indicators for each channel to provide instant visual status. Therefore, technicians can verify signal activity without specialized diagnostic tools during routine inspections.

Seamless Safety Manager System Integration

This version 1.3 module integrates perfectly with redundant Safety Manager cabinet configurations. It communicates directly with Quadruple Processor Packs (QPPs) to deliver fail-safe performance. Moreover, the hardware aligns with Honeywell power distribution rails for consistent 24VDC operation. Because the module supports advanced firmware diagnostics, it identifies internal hardware issues automatically. This integration helps maintain the overall Safety Integrity Level (SIL) of the entire plant. Thus, the unit serves as a vital building block for comprehensive safety instrumented systems.

Technical Specifications
