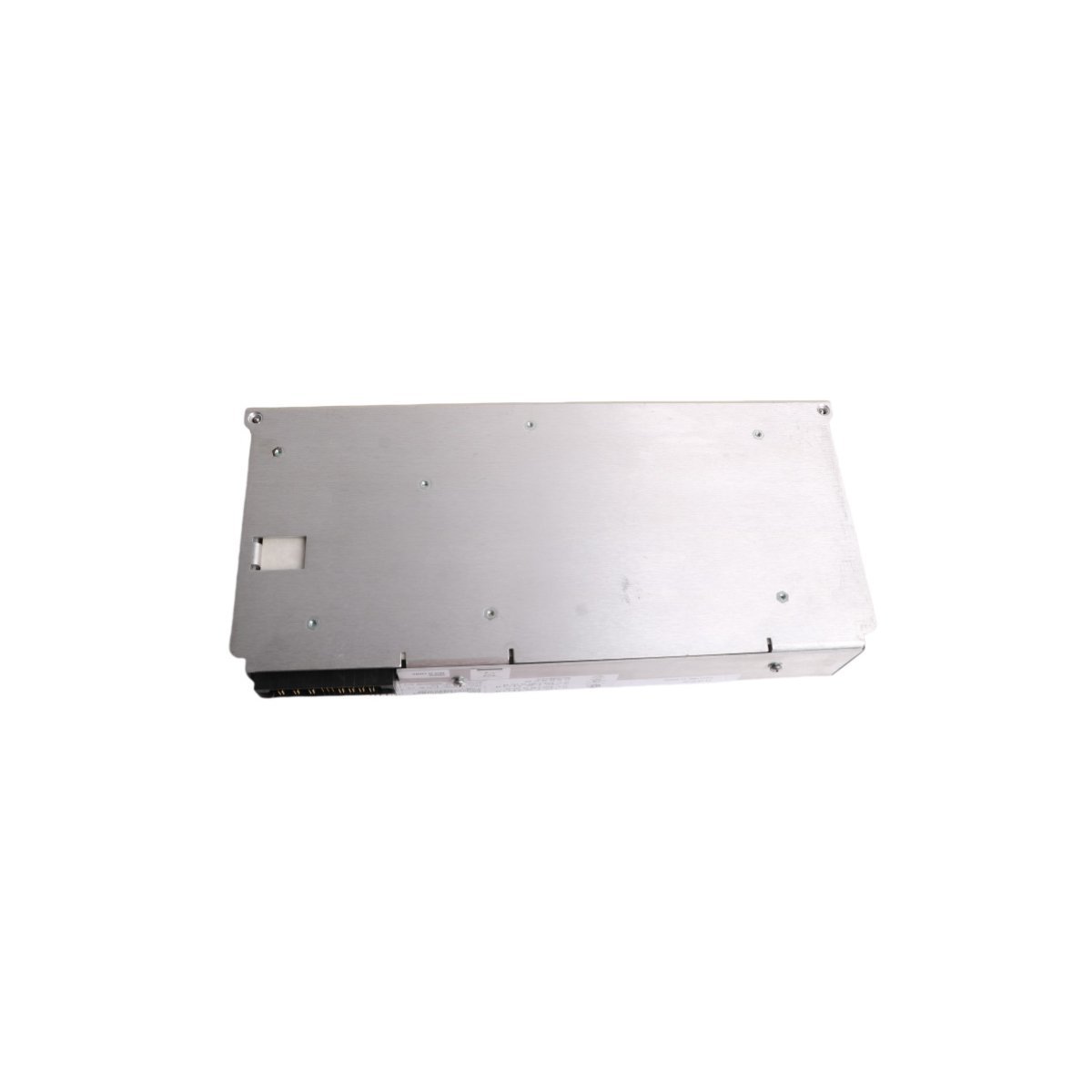

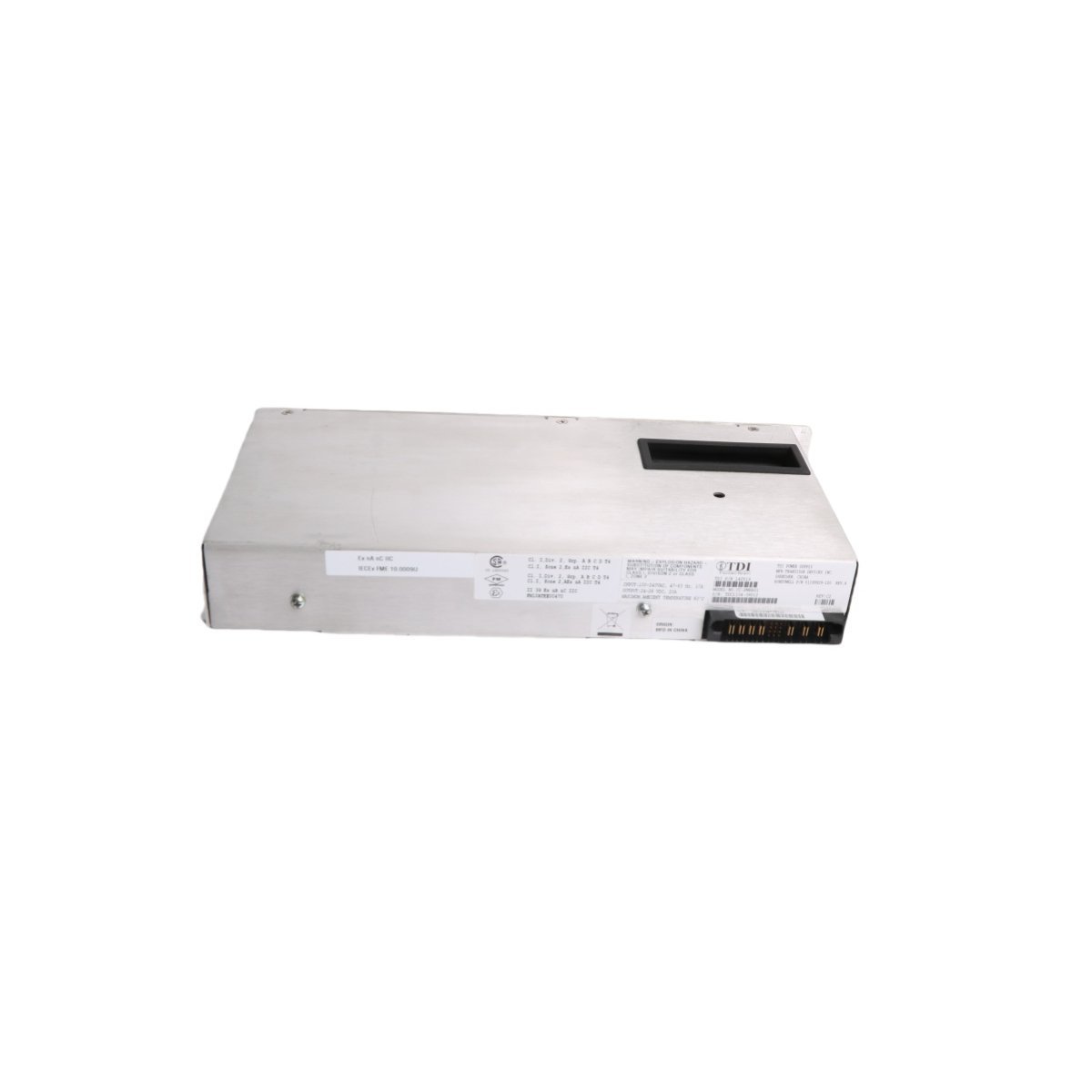

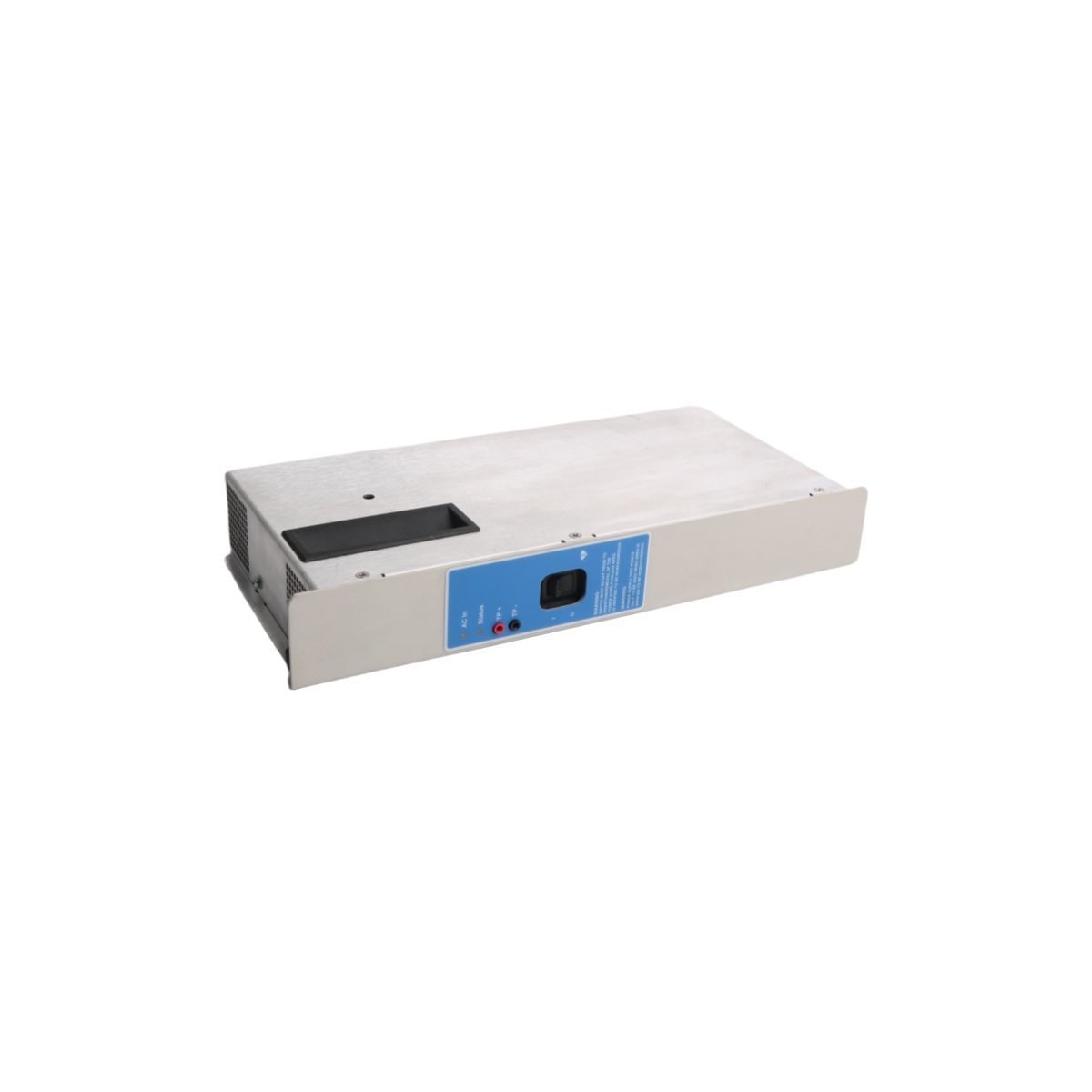

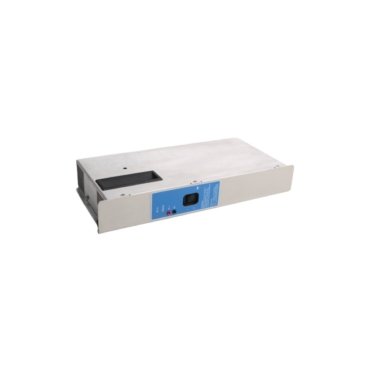

Honeywell CC-PWRN01 Redundant Power Supply

The Honeywell CC-PWRN01 serves as a foundational power component for the Experion Process Knowledge System (PKS) C300 controller platform. This module delivers regulated DC power to critical system hardware while maintaining high availability through redundant configurations. It effectively manages voltage distribution across the DCS architecture to prevent process interruptions.

Industrial environments demand continuous uptime for automation assets. The CC-PWRN01 addresses this by offering seamless power transitions and robust electrical isolation. It integrates directly into the standard Experion mounting base, which simplifies installation and reduces wiring complexity in control cabinets.

Technical Specifications and Overview

Key Operational Characteristics

This power module utilizes advanced circuitry to stabilize output under varying load conditions. It protects downstream I/O modules and controllers from surges or thermal overload events. The compact design allows for high-density placement within enclosures without compromising heat dissipation.

Honeywell engineered this unit specifically for mission-critical sectors like chemical processing and power generation. The CC-PWRN01 supports hot-swappable replacement strategies when paired with a secondary module. This capability ensures that maintenance teams can replace faulty hardware without shutting down the entire control loop.

Application and System Integration

The CC-PWRN01 functions primarily within the C300 controller rack or Series C I/O assemblies. It communicates status data back to the system to provide real-time health monitoring. This proactive diagnostic approach helps operators identify power issues before they lead to hardware failure.

The module complies with global industrial standards for electromagnetic compatibility and vibration resistance. This ensures stable performance in harsh environments where electrical noise is prevalent. Users can trust this component to maintain the integrity of their distributed control system.
