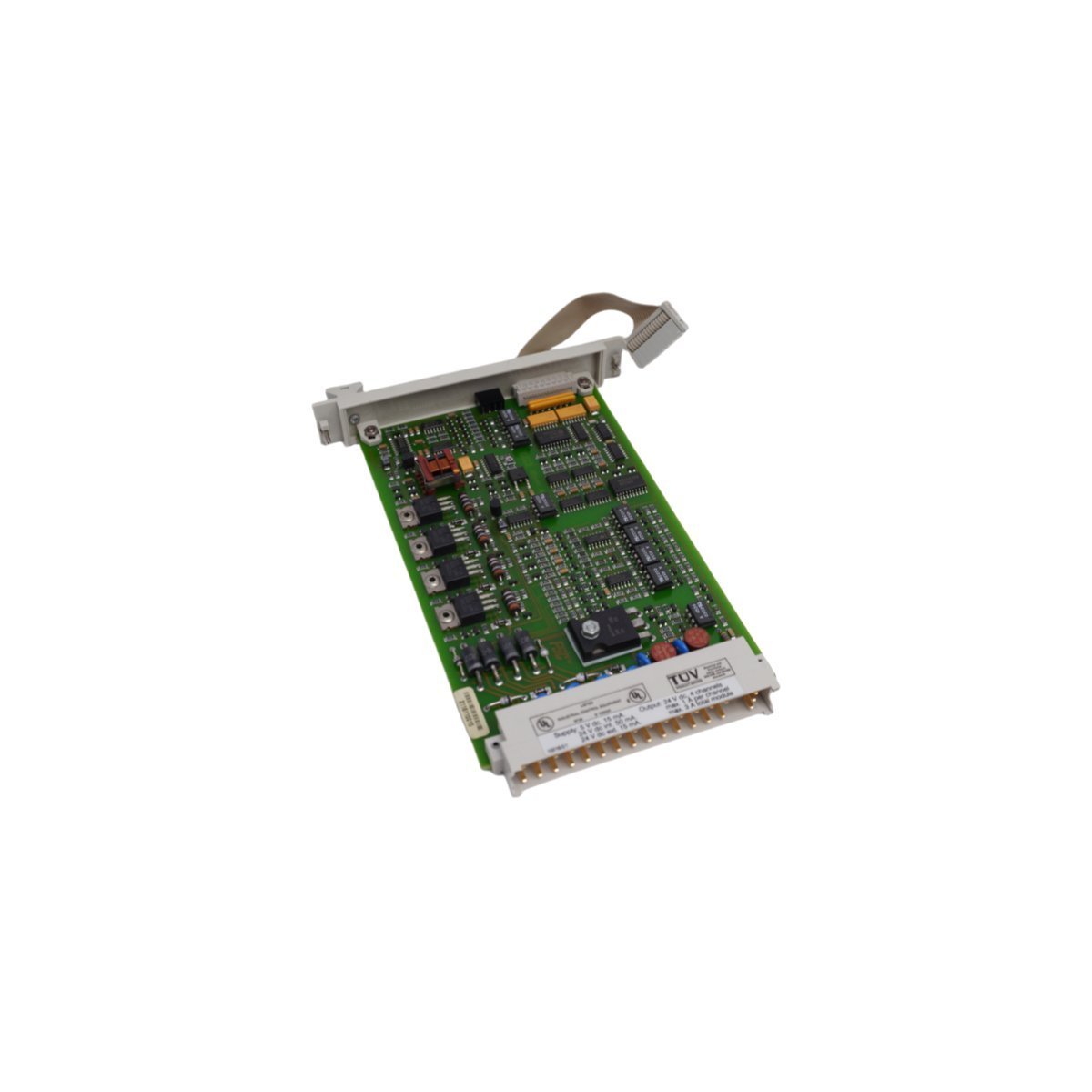

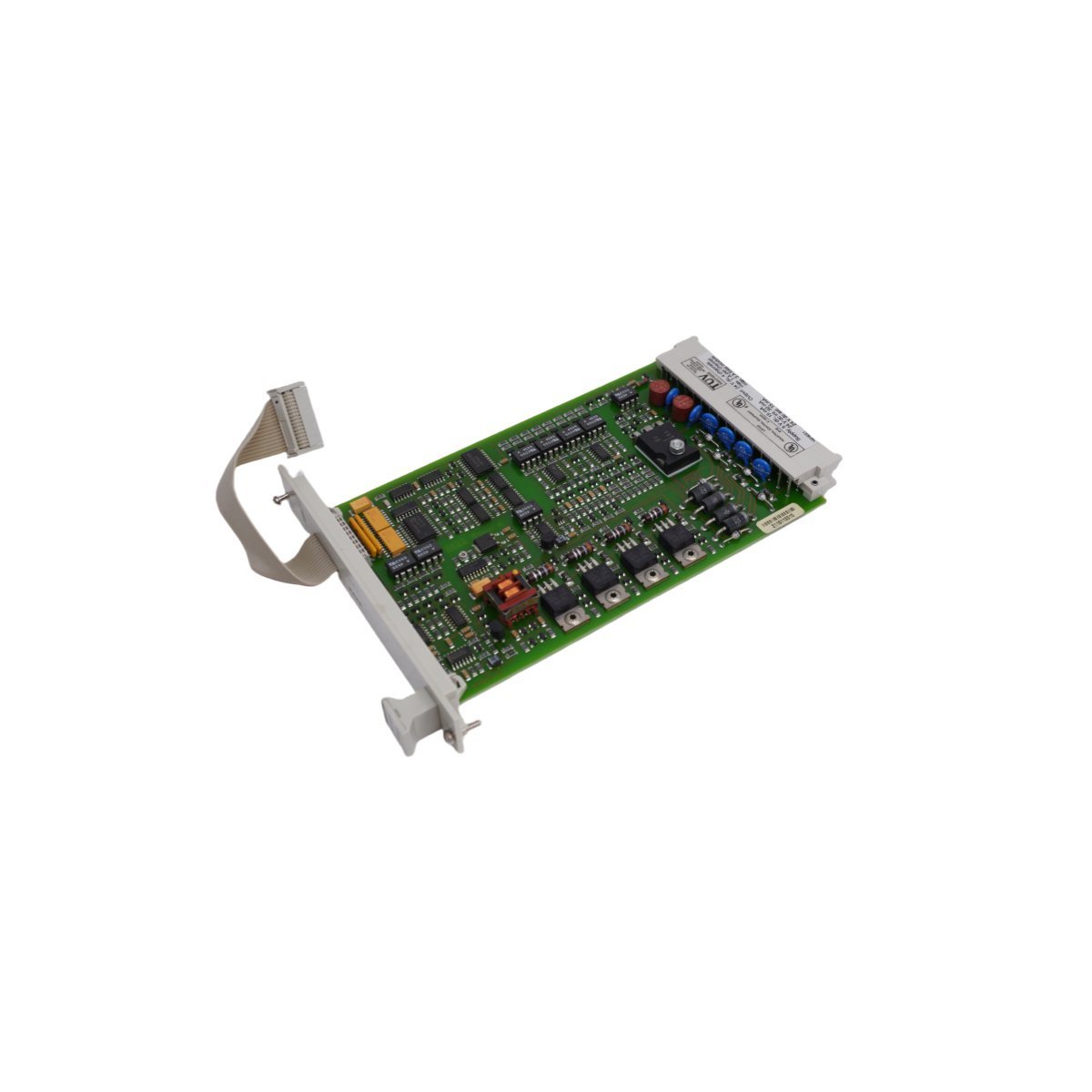

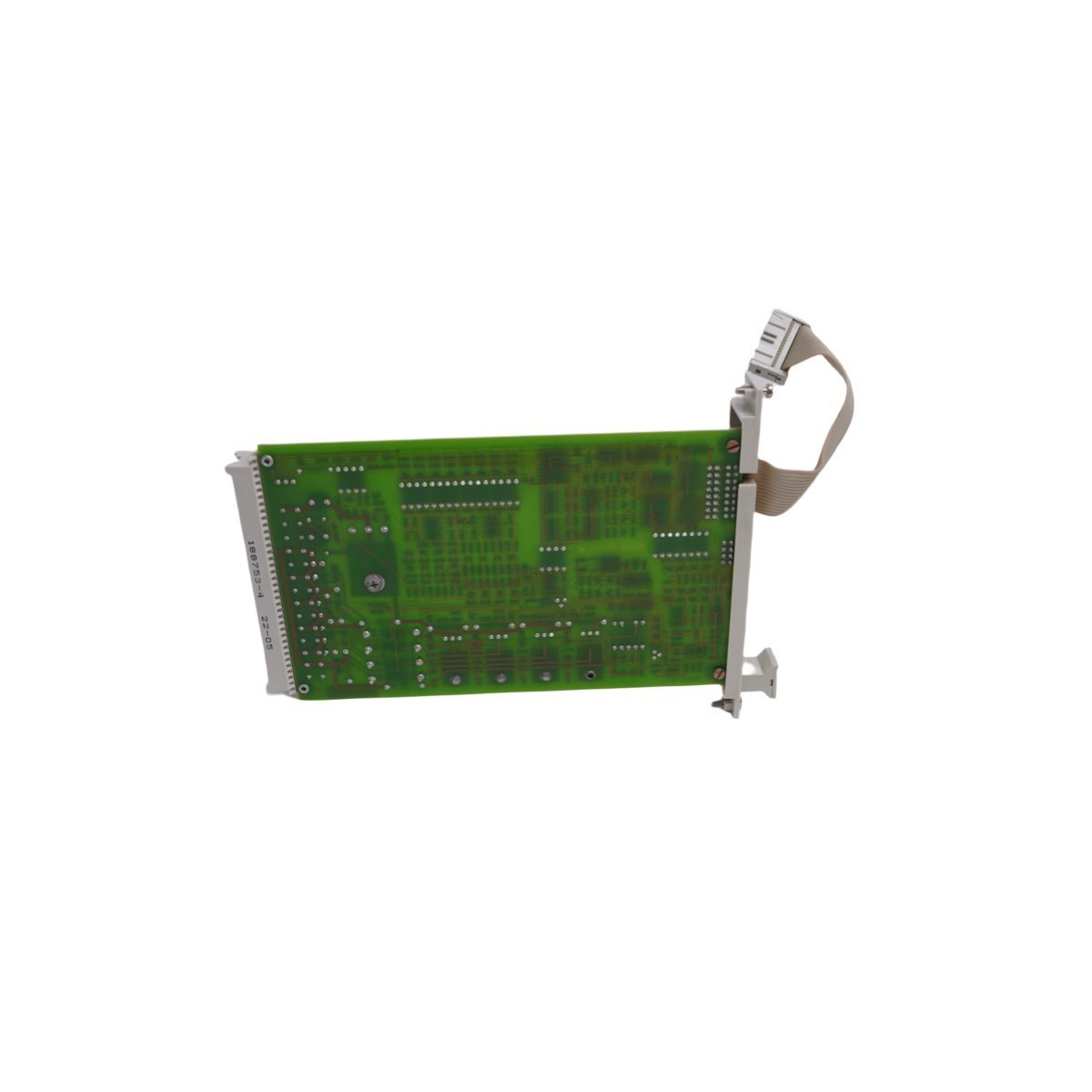

Honeywell 10216/2/1 Fail Safe Digital Output Module

The Honeywell 10216/2/1 serves as a high-integrity discrete control interface within the Fail-Safe Control (FSC) system. This module provides supervised current to field actuators while maintaining strict safety certifications. Because it utilizes a quad-processor architecture, the hardware executes logic with extreme diagnostic coverage. Consequently, the unit ensures that every command reaches its target without compromising plant safety. The module specifically targets emergency shutdown (ESD) and fire and gas (F&G) applications. Its design guarantees that failures transition the process to a predefined safe state.

Integrated Loop Monitoring and Fault Detection

A core feature of the 10216/2/1 involves its advanced 0.5 A loop-monitored output channels. These channels continuously verify the electrical integrity of the connected field wiring. Furthermore, the module identifies open or short-circuit conditions in real-time. This proactive monitoring allows maintenance teams to fix cabling issues before they cause process interruptions. The unit also protects the internal system bus from external electrical surges. Therefore, it provides a robust barrier between sensitive control logic and harsh field conditions.

Technical Performance Specifications

The following table details the physical and operational parameters for the 10216/2/1 safety module.
