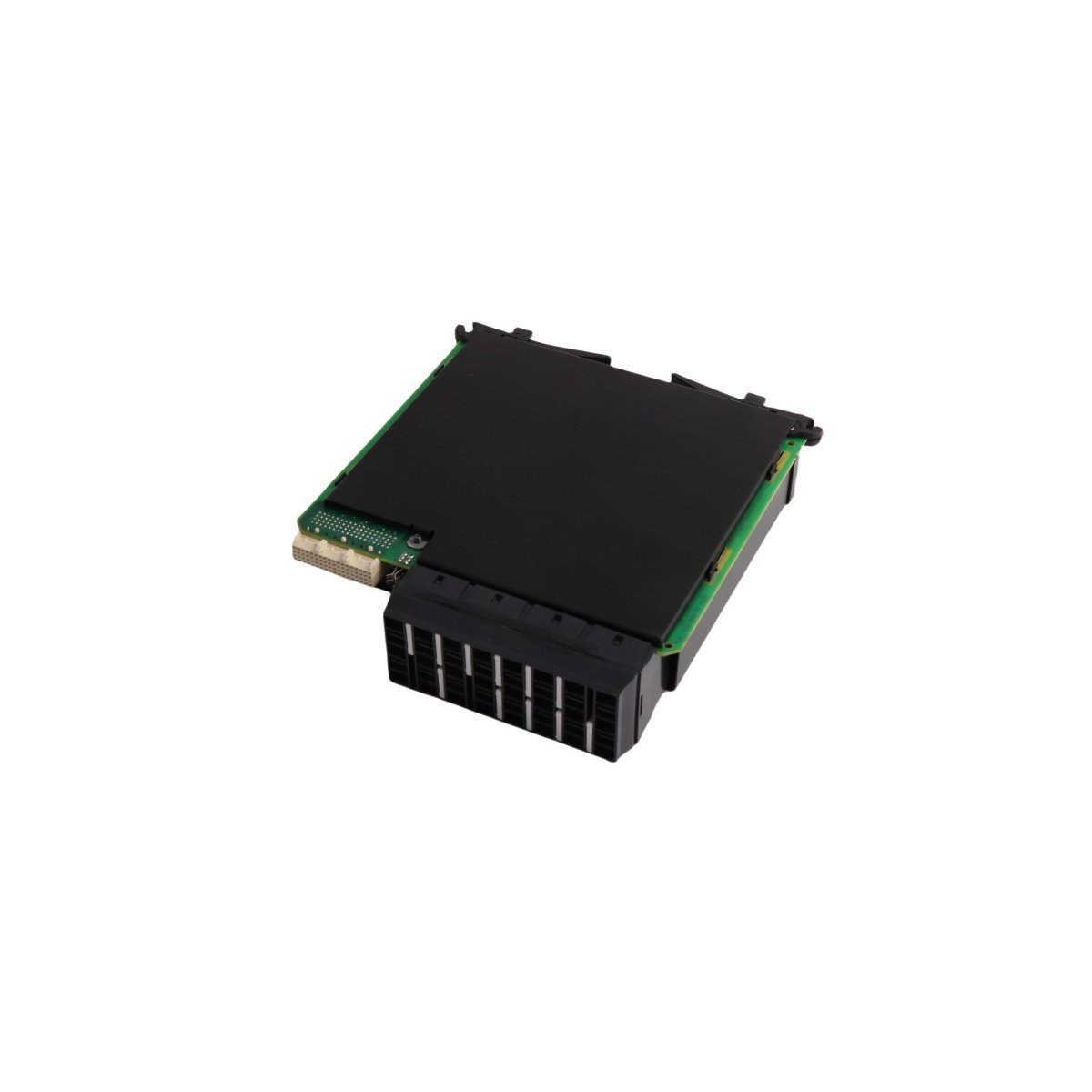

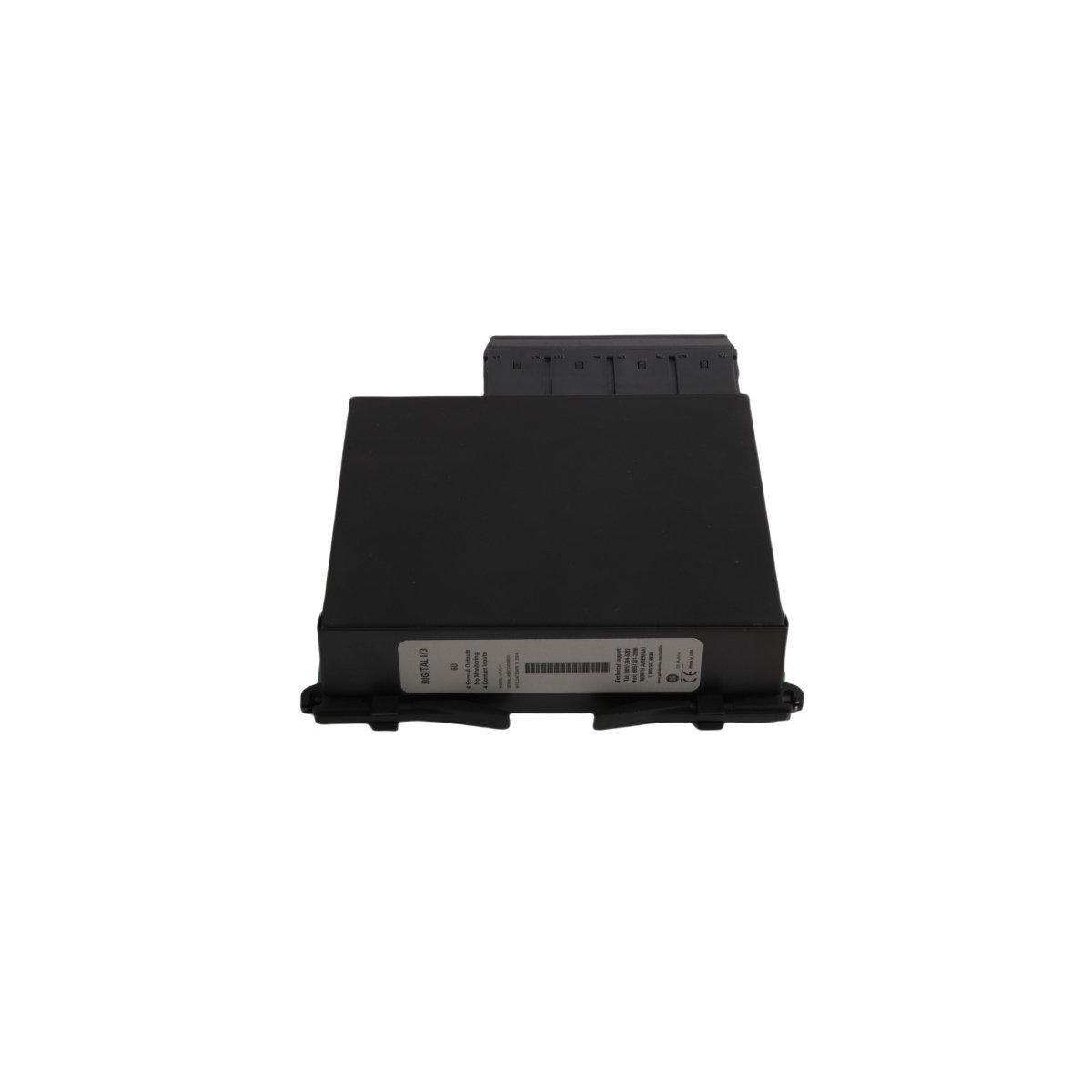

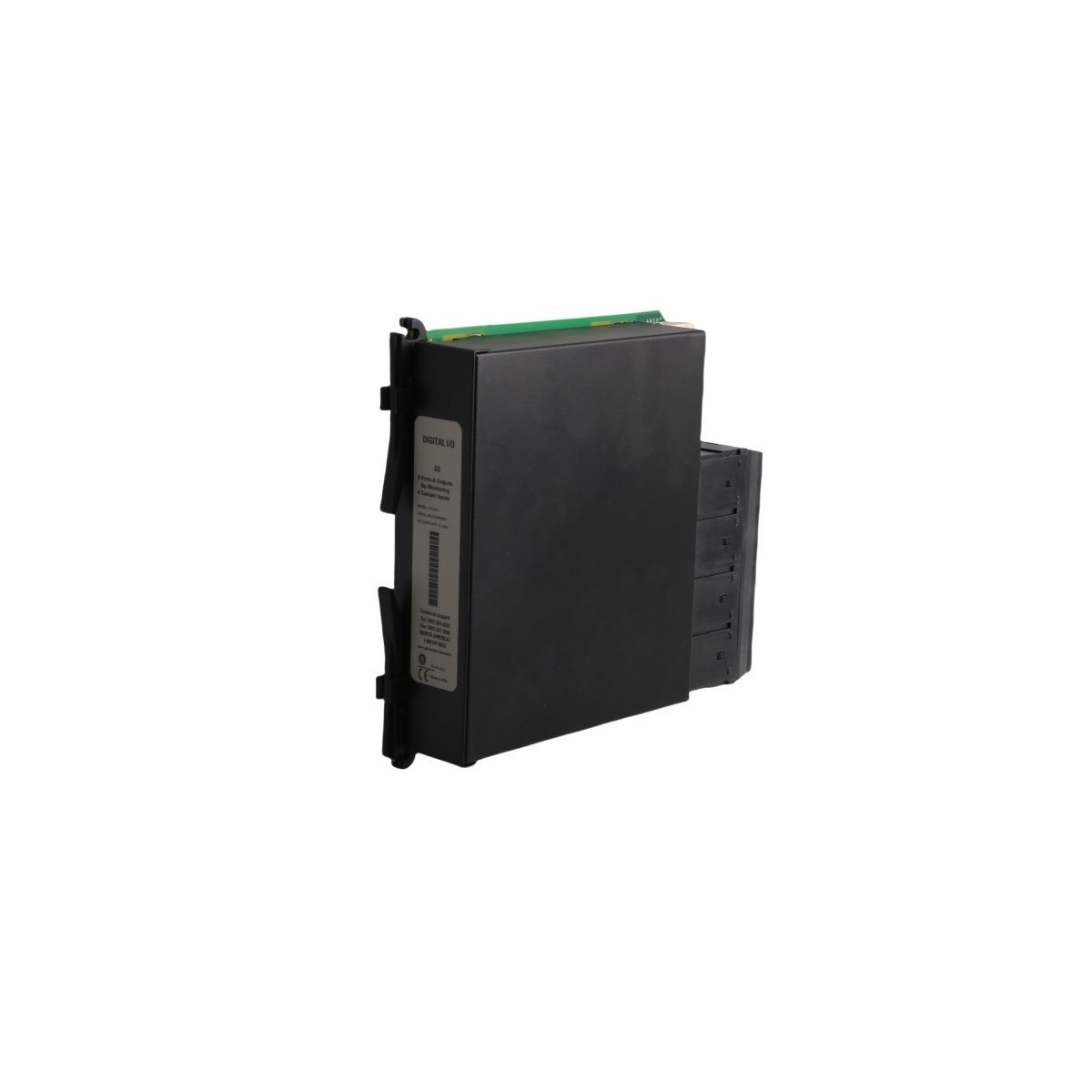

General Electric UR6UH Multilin Processor Unit

The GE Multilin UR6UH functions as a high-density digital input/output module for the Universal Relay (UR) platform. This unit expands the monitoring capacity of substation automation systems. It facilitates precise control of auxiliary power equipment through integrated signal processing. Furthermore, the module bridges field sensors and the primary protection relay. Its design supports demanding power system environments by minimizing signal latency.

Technical Characteristics and Performance

The UR6UH provides a robust interface for critical industrial applications. It features six Form-A output contacts and four dedicated digital inputs. This configuration allows for flexible logic schemes within the relay platform. Engineers can easily deploy the module due to its hot-swappable, modular architecture. Moreover, the unit reduces electromagnetic noise by digitizing signals at the source. This architecture ensures high operational reliability during fault conditions.

Technical Specifications

Configuration and System Maintenance

Operators can configure the UR6UH module using the EnerVista UR software suite. This platform enables rapid setup and system optimization. Alternatively, technicians may adjust settings via the relay’s front-panel keypad and LCD screen. These options simplify the maintenance workflow for field engineers. The module maintains compatibility across the Multilin UR relay family. By standardizing these I/O components, facilities effectively streamline their spare parts inventory. These capabilities ensure consistent performance in critical power protection deployments.
