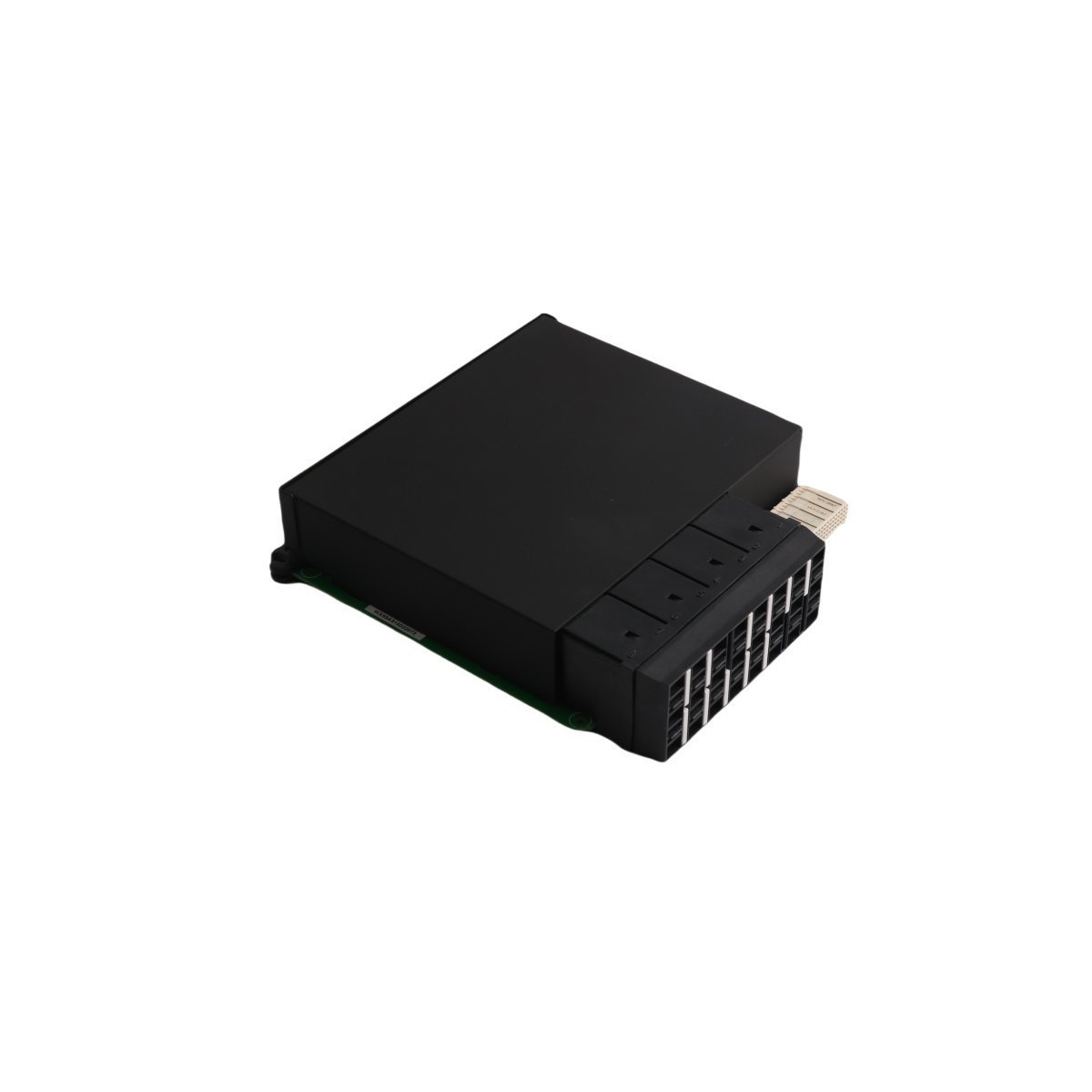

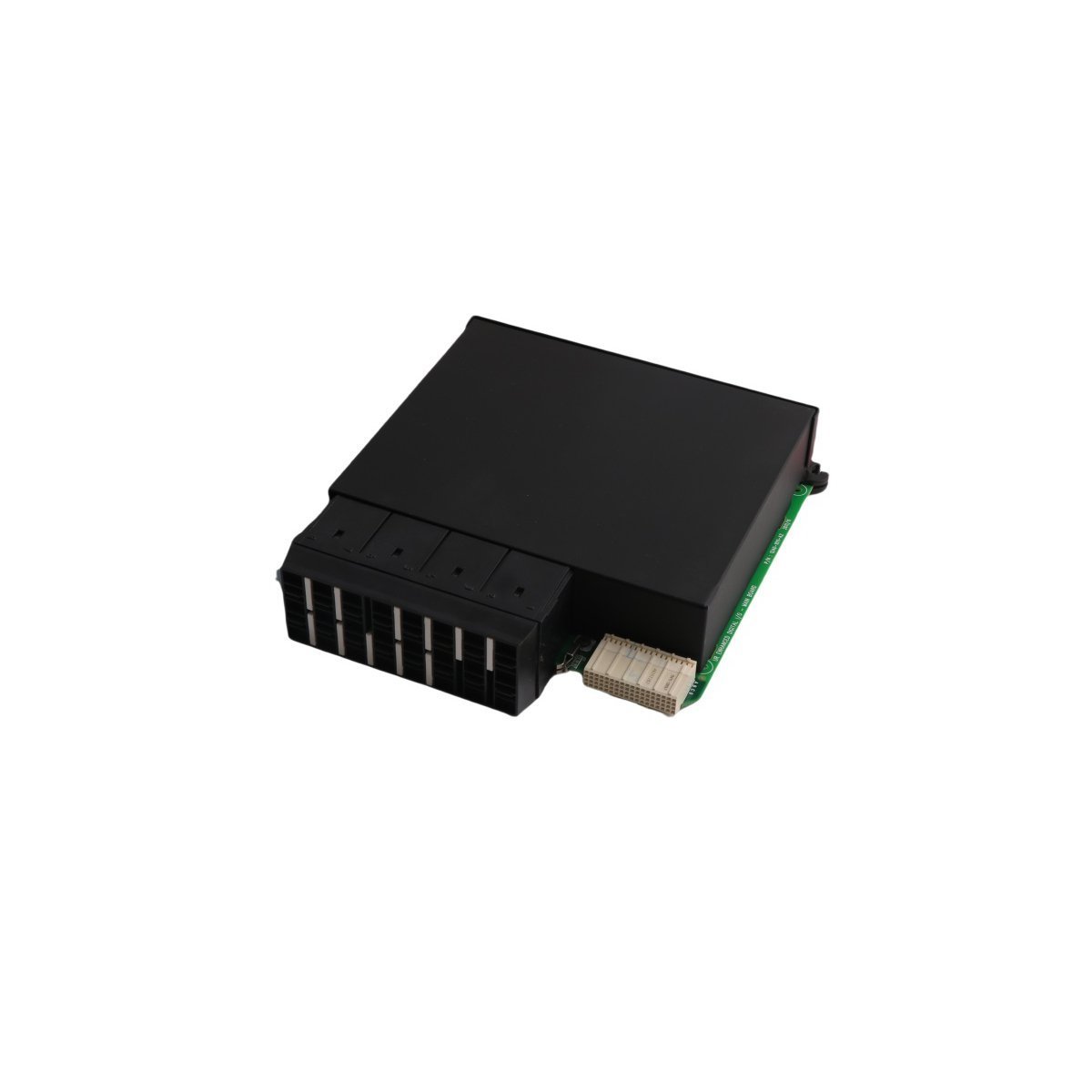

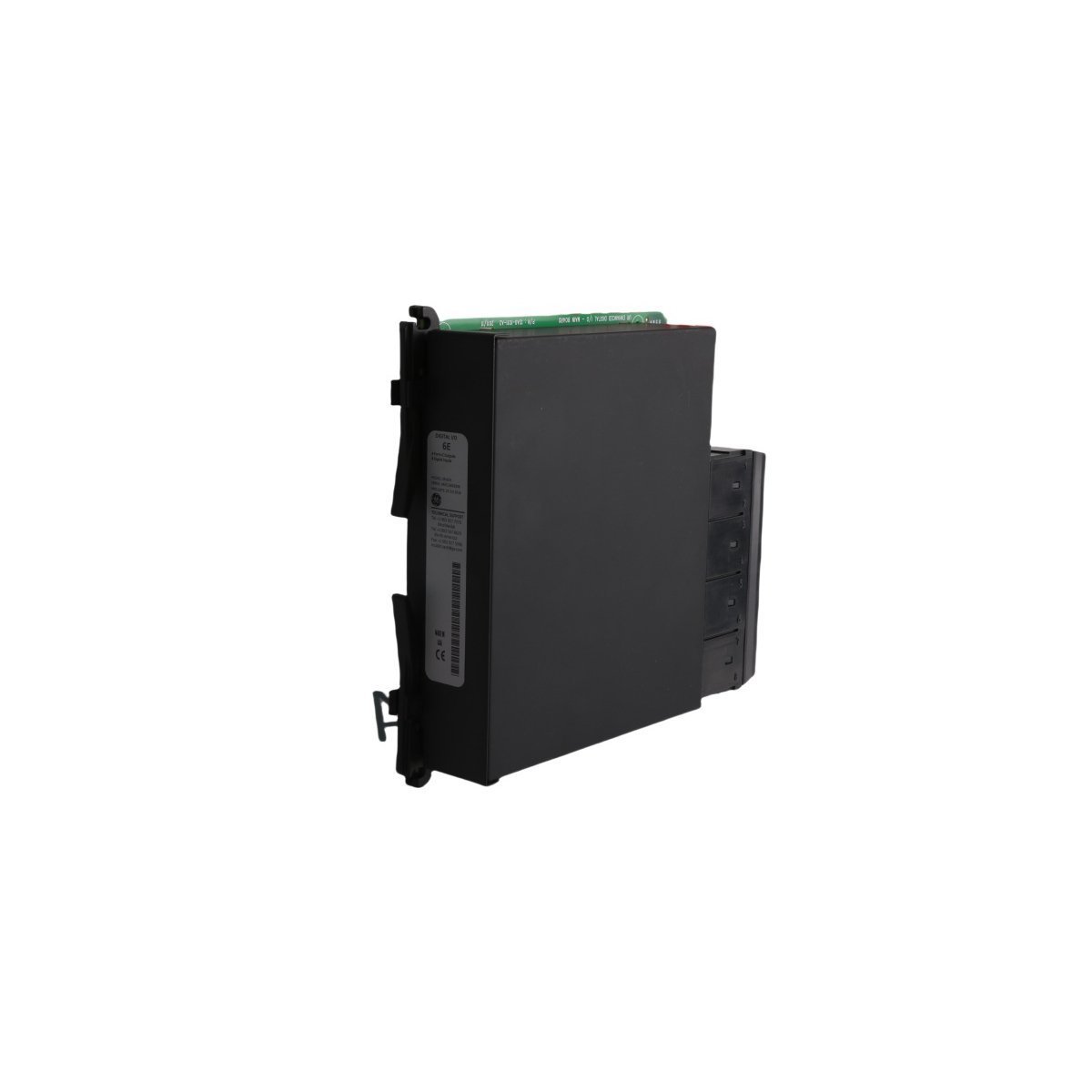

General Electric UR6EH Multilin Digital I/O Module

The UR6EH serves as a specialized expansion component for the General Electric Multilin Universal Relay series. This high-performance module facilitates advanced interfacing between protective relays and primary power system equipment. By integrating both input and output channels, it streamlines automation tasks within complex electrical networks.

Core Functional Characteristics

This module features eight discrete digital inputs to track real-time status signals from external field devices. Furthermore, four Form-C relay outputs provide flexible Single Pole-Double Throw (SPDT) switching capabilities. These outputs allow the system to toggle between normally open and normally closed states effectively.

The hardware utilizes a modular design to ensure rapid installation into standard UR chassis slots. Advanced circuitry protects the logic components from electromagnetic interference common in high-voltage environments. Consequently, the UR6EH maintains signal integrity during critical fault conditions and switching transients.

Primary Industrial Applications

Substation automation systems rely on the UR6EH for monitoring circuit breaker positions and auxiliary contacts. Moreover, industrial power plants utilize these modules to manage interlocking logic and alarm signaling. The unit functions reliably within harsh environments including utility grids and heavy manufacturing facilities.

Integrating this module into a GE Multilin system enhances overall diagnostic coverage. Users can configure specific logic via the EnerVista software suite for tailored protection schemes. Proper wiring and calibration ensure the module meets rigorous utility-grade reliability standards.

Product Selection and Maintenance

The UR6EH is currently an active product in GE’s protection and control portfolio. Its compact form factor optimizes space within the relay enclosure. Regular firmware updates through the main processor unit help maintain peak operational performance.
