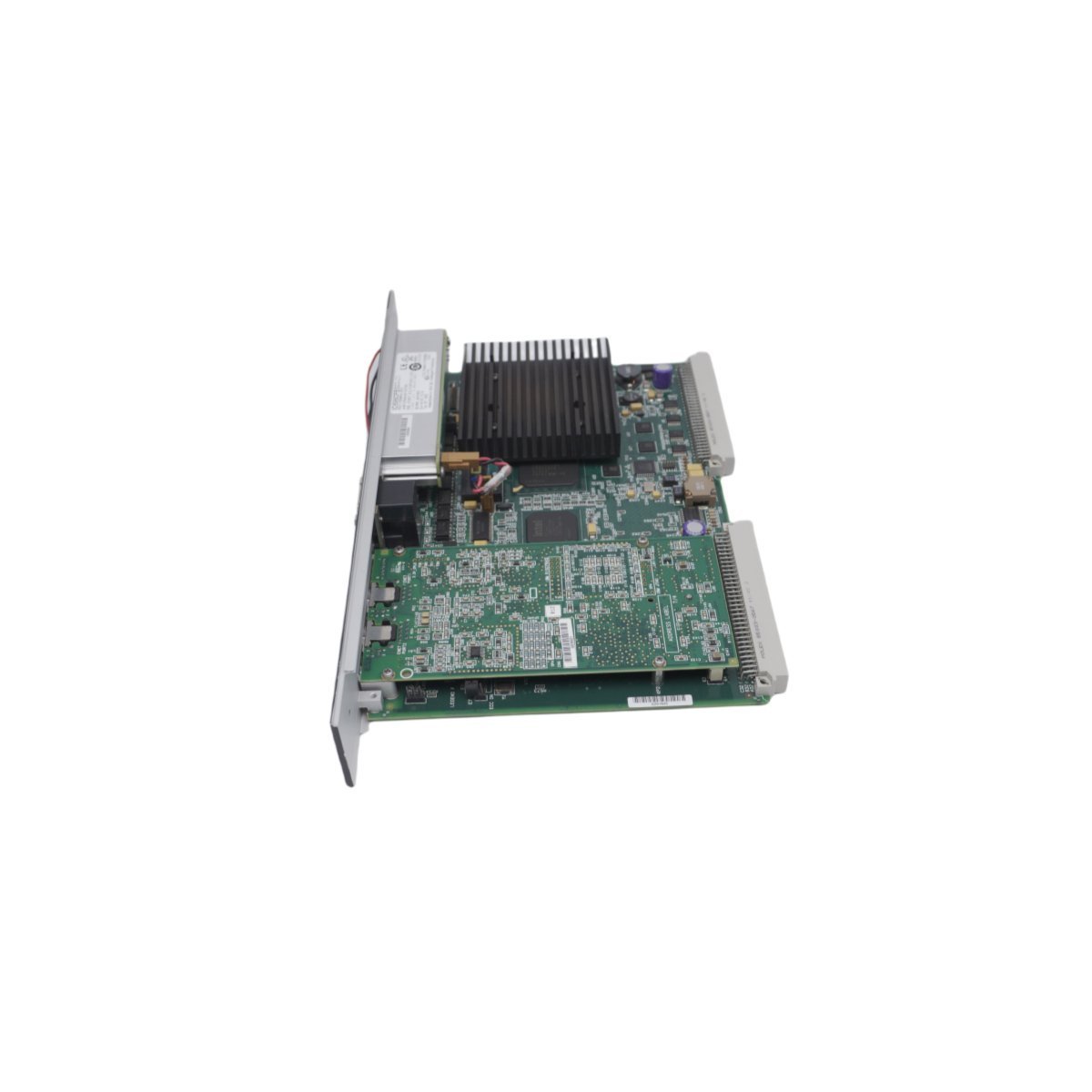

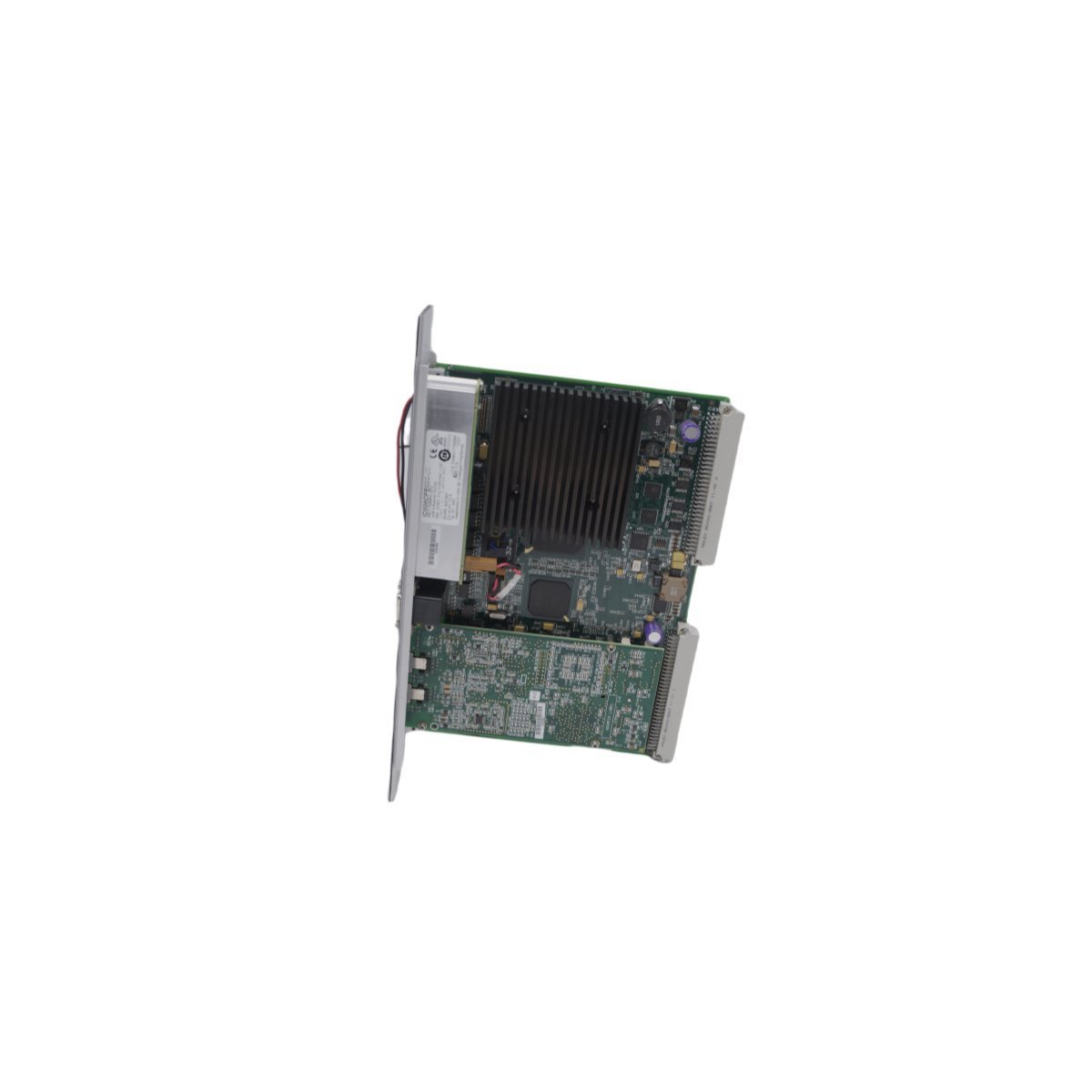

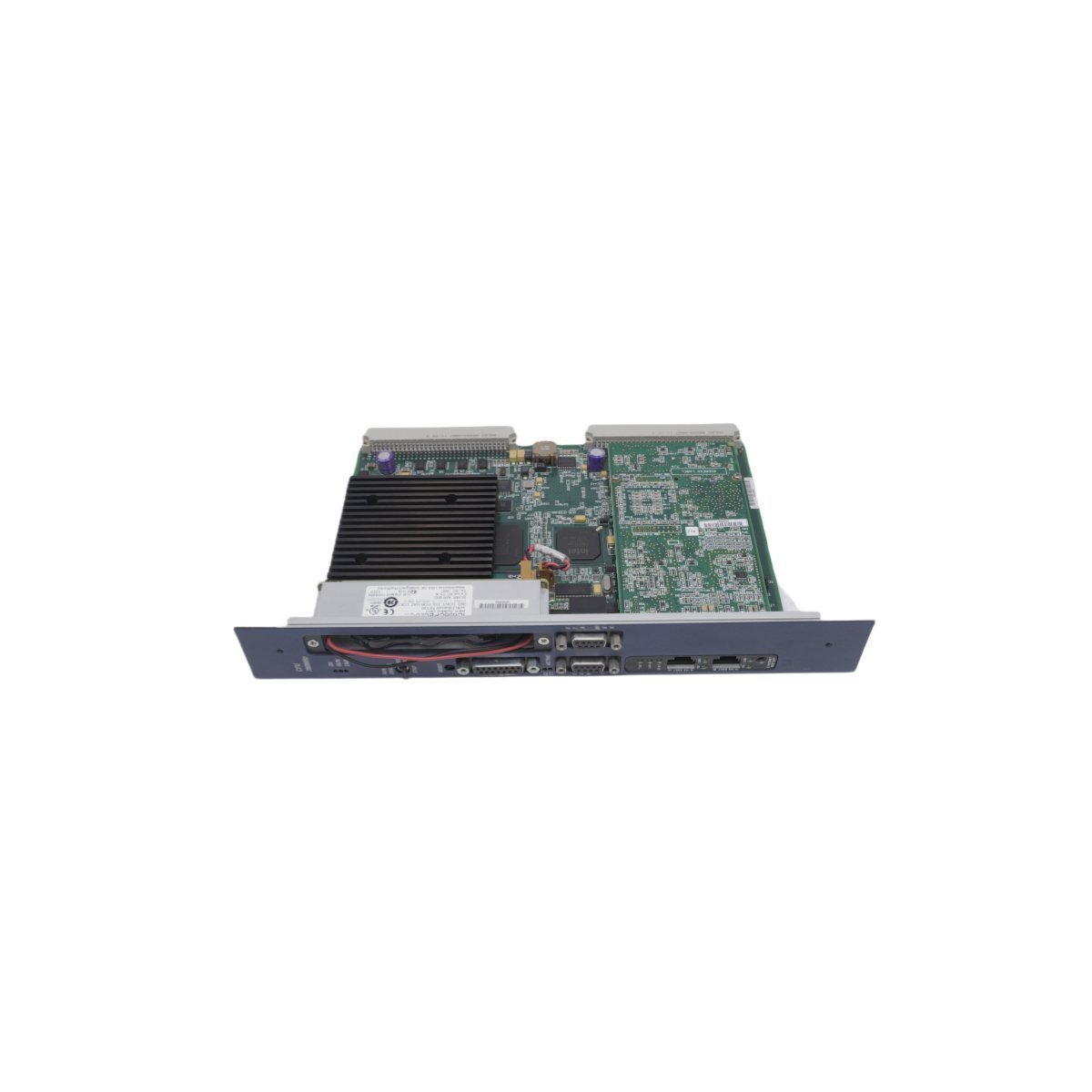

General Electric IC698CPE020-JX RX7i CPU

The GE IC698CPE020-JX represents the high-performance core of the PACSystems RX7i controller family. This module manages complex automation tasks with significant speed and precision. It utilizes a unified control engine to bridge the gap between traditional PLCs and open-architecture computing. Consequently, industrial plants achieve better data throughput and more reliable process execution. This CPU serves as a robust solution for large-scale integration within modern manufacturing environments.

Advanced Processing and Performance

The module features a high-speed Intel Celeron processor to handle intensive logic calculations. This hardware provides the necessary power for demanding motion control and data processing applications. Furthermore, the 10 MB user memory accommodates large program blocks and extensive tag databases. Because it uses a high-bandwidth VME64 backplane, data transfers between the CPU and I/O remain extremely fast.

Integrated Connectivity and Communication

Multiple communication options come standard on the IC698CPE020-JX faceplate. Two built-in Ethernet ports allow for simultaneous HMI connection and peer-to-peer networking. Additionally, three serial ports support legacy device integration through standard industrial protocols. These interfaces enable the controller to function as a central data hub. Therefore, users can monitor system health and process variables in real time from remote locations.

Industrial Durability and Maintenance

GE designed the RX7i series specifically for rigorous 24/7 industrial service. The module maintains peak performance even in environments with high electromagnetic interference. It includes a front-access battery to protect volatile memory during power interruptions. Technicians can perform firmware updates easily through the dedicated serial ports or Ethernet links. This modular design ensures that the system stays current with evolving automation standards.

Scalable Automation Logic

This CPU supports several programming languages including Ladder Diagram and Structured Text. This flexibility allows engineers to choose the best logic format for their specific process. Moreover, the PACSystems architecture ensures that code remains portable across different GE controller platforms. This compatibility reduces engineering time during future system expansions or hardware migrations.

Technical Specifications
