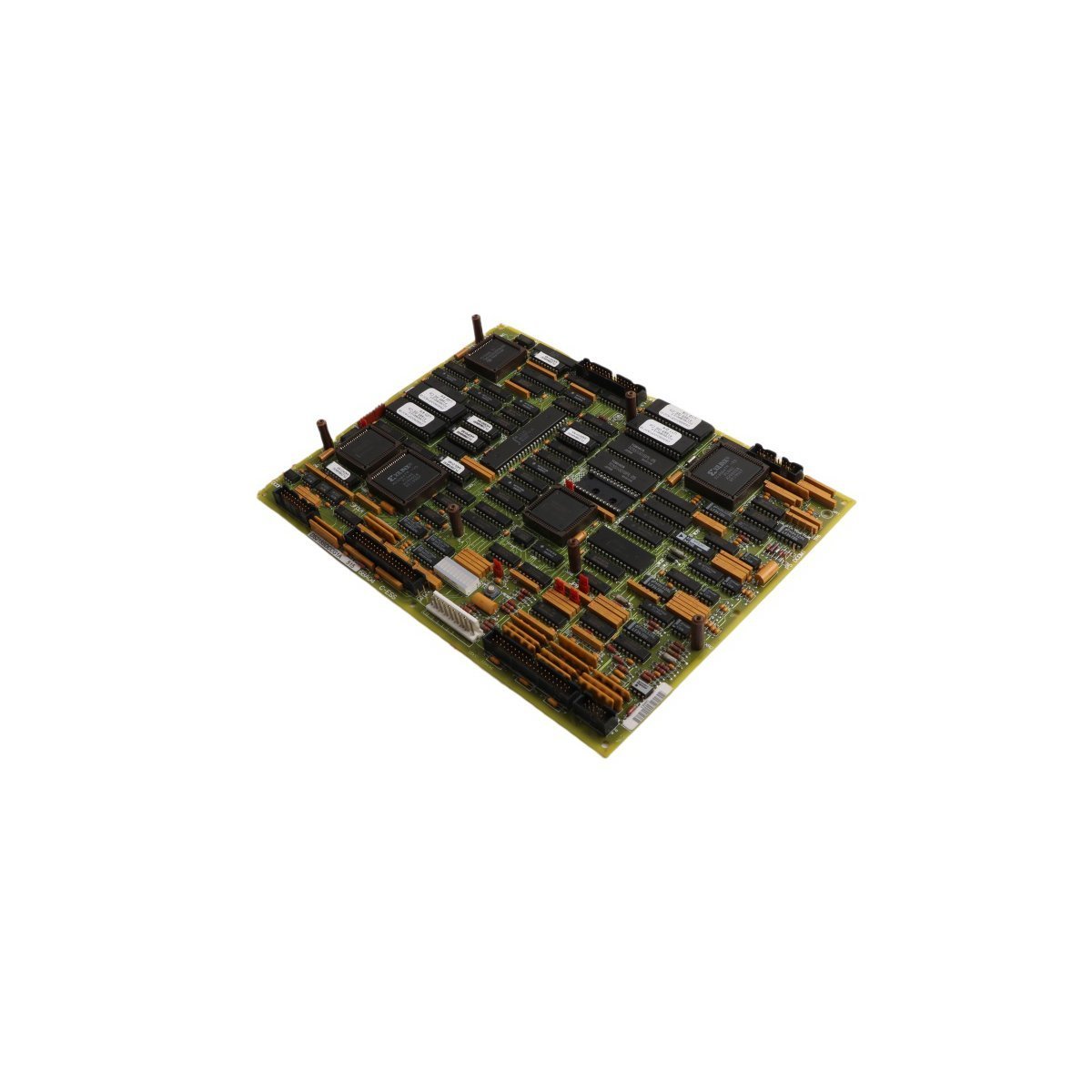

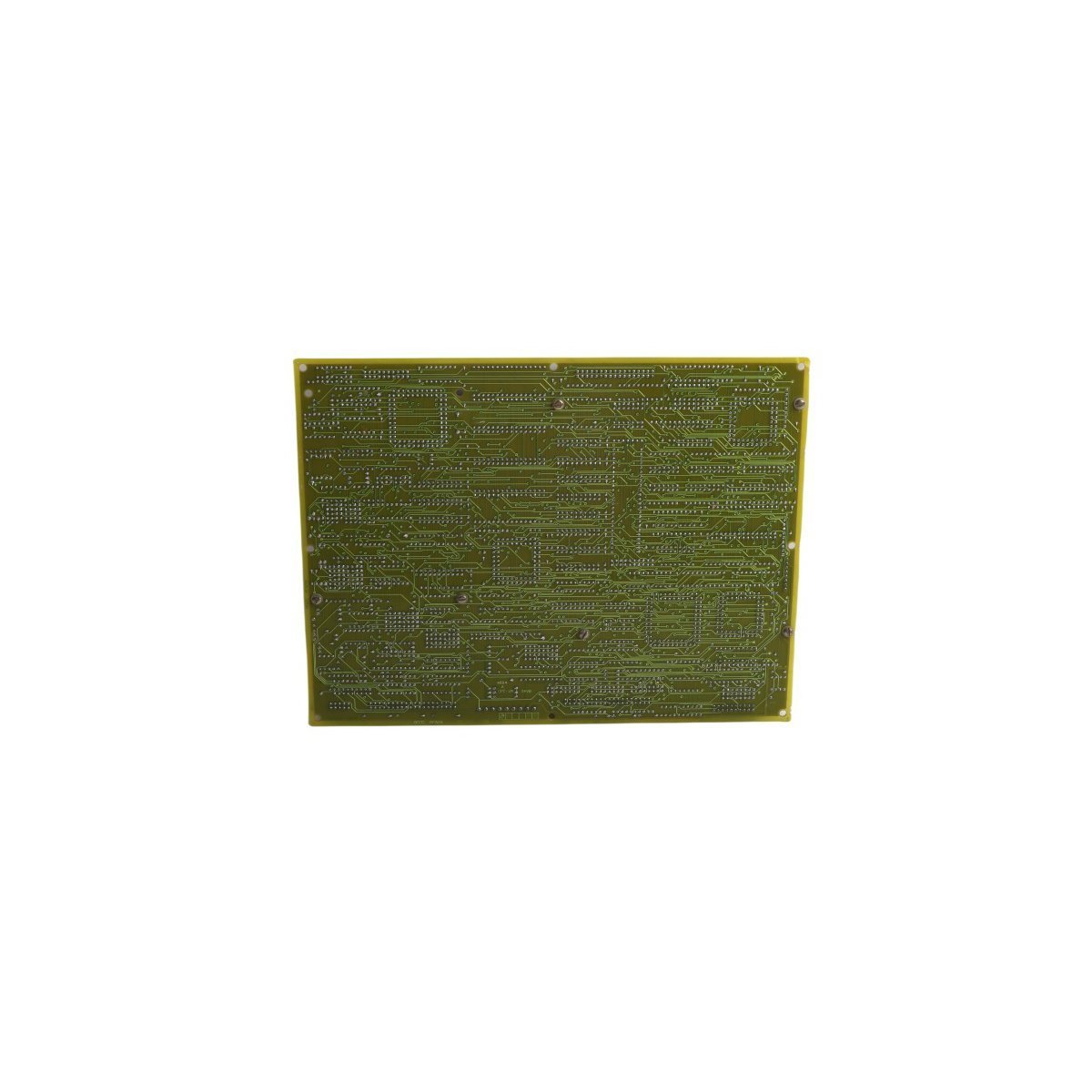

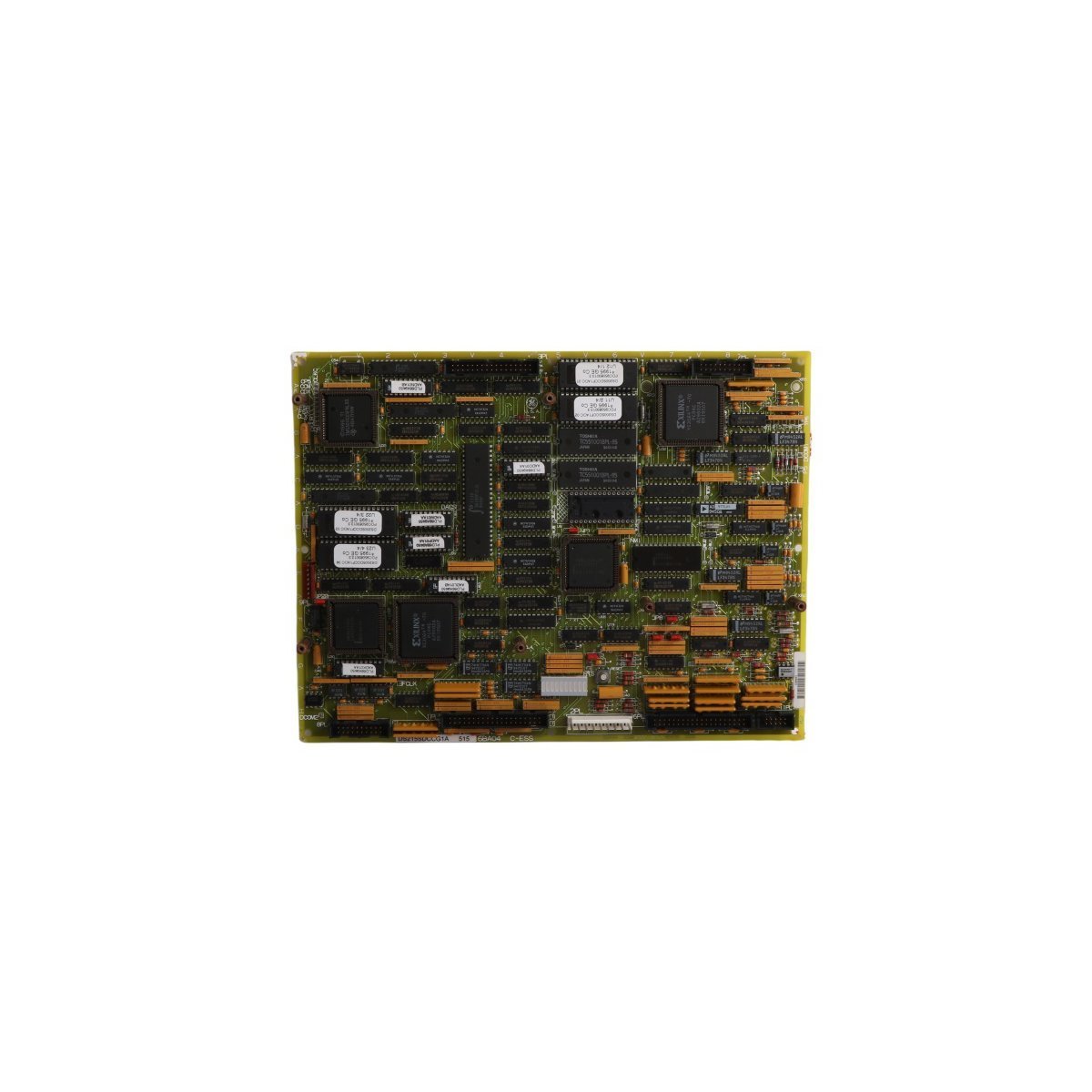

General electric DS215SDCCG1A Drive Control Card

Technical Specification Table

The GE DS215SDCCG1A serves as the primary processing hub for various high-power motor drive systems, including the AC2000, DC2000, and EX2000 series. This drive control card integrates advanced computational logic with real-time software execution to manage complex motor regulations. By coordinating signal traffic between the processor and the drive terminal boards, the unit ensures stable industrial performance. This hardware remains a critical component within the Mark V control architecture, facilitating precise speed and torque management in heavy-duty applications.

Triple Microprocessor Processing Architecture

The core of the DS215SDCCG1A board utilizes three distinct microprocessors to distribute the operational workload efficiently. The Drive Control Processor (DCP) manages external I/O communications and peripheral interface tasks. Meanwhile, the Motor Control Processor (MCP) dedicatedly executes the high-speed algorithms required for actual motor regulation. For systems requiring enhanced mathematical throughput, the Co-motor Processor (CMP) handles specialized computations. This multi-processor design prevents bottlenecks and allows the system to respond instantly to changing load conditions.

Advanced Memory and Diagnostic Capabilities

For reliable data management, the DS215SDCCG1A board incorporates several memory architectures. Four factory-programmed EPROMs (designated as U11, U12, U22, and U23) contain the primary operating firmware and system instructions. In addition to these, a user-accessible EEPROM (U9) stores field-specific configuration parameters and site settings. Operators can monitor the health of the card through an integrated LED panel. This display provides fault codes in binary or BCD formats, which significantly accelerates the troubleshooting process during unexpected maintenance events.
