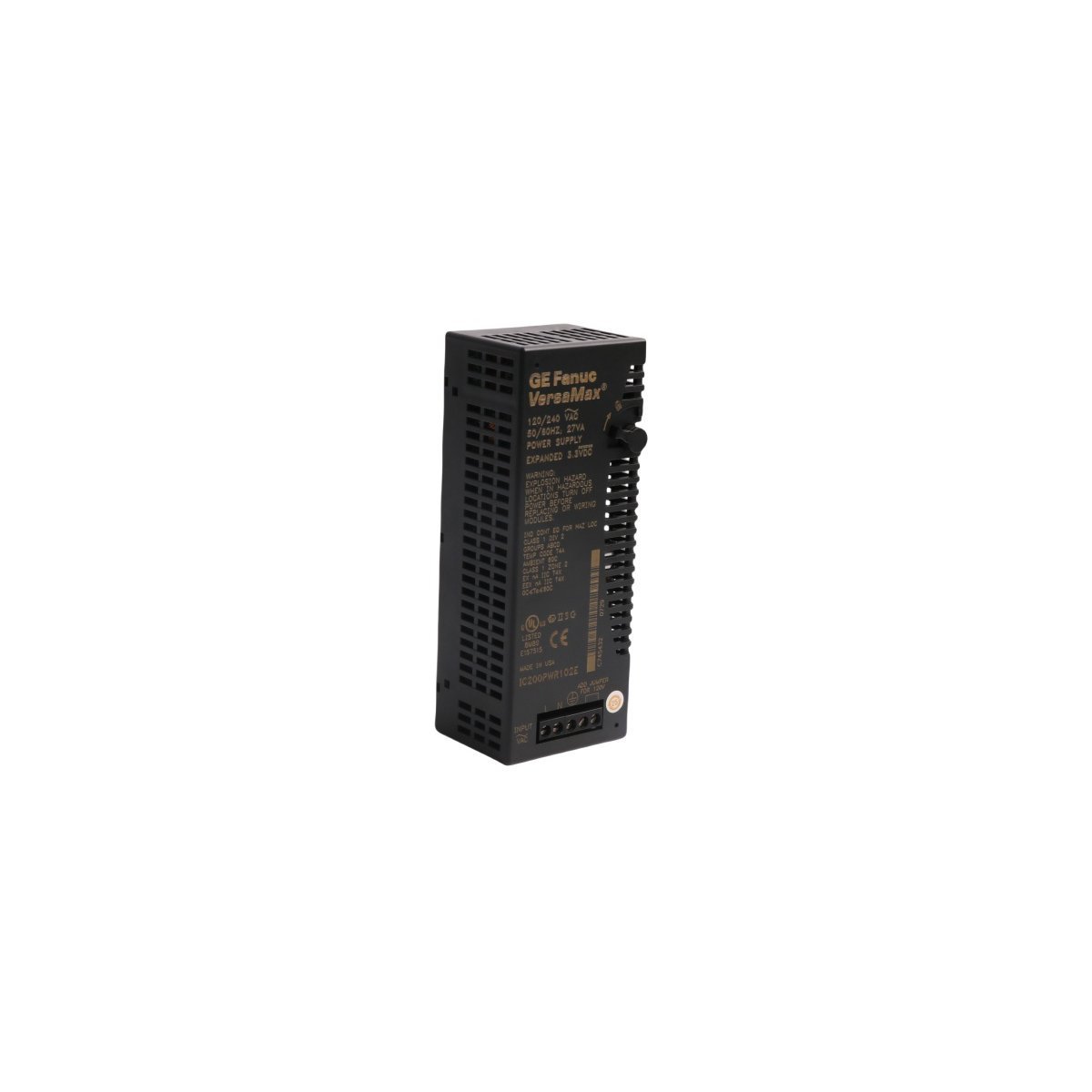

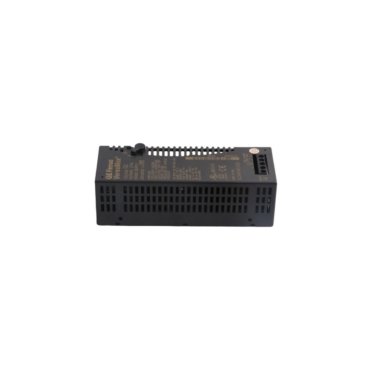

GE Fanuc IC200PWR102 Expanded 3.3V Power Supply

The GE Fanuc IC200PWR102 module provides essential power distribution for the VersaMax I/O and PLC product lines. This expanded power supply generates the necessary voltages for the backplane. It supports the operation of CPUs and Network Interface Units (NIUs). Furthermore, it energizes various input/output and intelligent modules within the system rack.

This unit serves as a versatile power source for industrial automation. It functions as a primary supply when mounted on a standard carrier. Alternatively, users can install it on a booster carrier to supplement power in larger configurations. This flexibility ensures the VersaMax system maintains stable performance during high-demand operations.

Electrical and Input Specifications

The module accommodates various AC power sources through a configurable input design. Users must manage a manual jumper to set the nominal voltage correctly.

• Input Voltage Range (120V): 85 to 132V AC nominal with jumper installed
• Input Voltage Range (240V): 176 to 264V AC nominal without jumper
• Input Frequency: 47 to 63 Hz
• Power Consumption: 27VA maximum
• Holdup Time: 20 milliseconds to maintain output during brief power interruptions

Output Performance and Protection

Operational Safety and Configuration

Correct installation remains vital for the longevity of the GE IC200PWR102. Users must verify the jumper settings before applying voltage. Applying 240V AC while the 120V jumper is active will cause permanent hardware damage. The module features a compact form factor for efficient cabinet space management. Its lightweight design simplifies mounting on standard VersaMax carriers.
