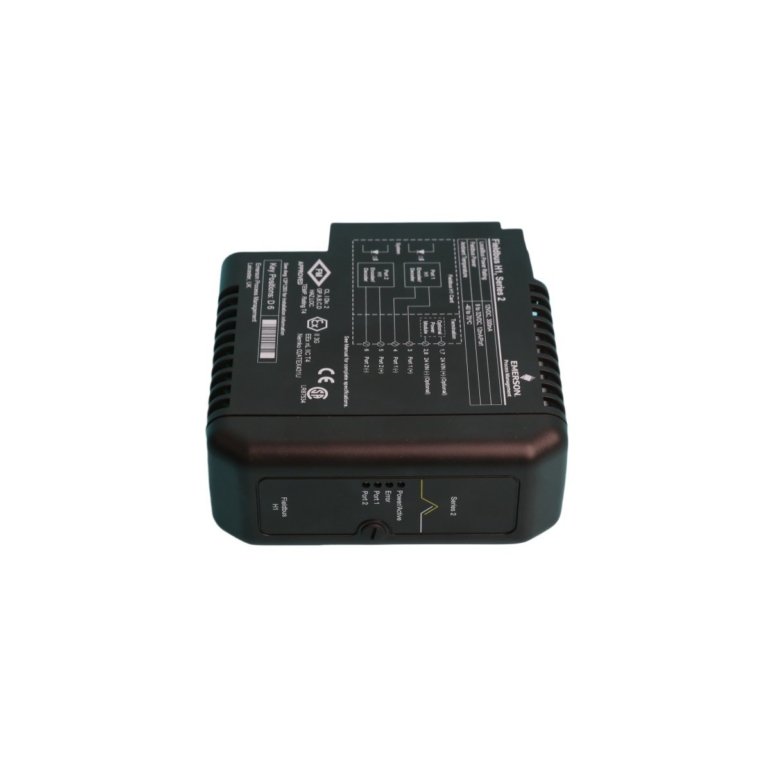

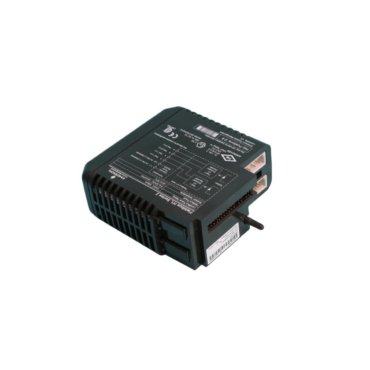

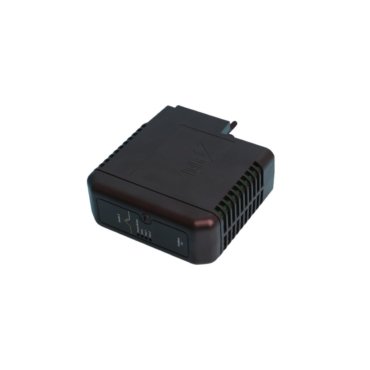

Emerson KJ3242X1-BA1 12P2471X052 Fieldbus H1 Card

The Emerson KJ3242X1-BA1 serves as a high-reliability interface for Foundation Fieldbus H1 networks. This module belongs to the DeltaV M-series I/O subsystem family. It primarily manages data exchange between field instruments and the central controller. Furthermore, the 12P2471X052 revision provides enhanced stability for critical process automation. This card enables digital communication while simultaneously providing power to field devices. Consequently, it simplifies site wiring and reduces overall installation costs.

Technical Performance and Power Management

This H1 card utilizes 12VDC local bus power with a 300mA consumption rate. It effectively delivers fieldbus power between 9VDC and 32VDC to connected nodes. Each port supplies a regulated 12mA current for field instruments. Moreover, the module supports a wide variety of segment configurations. This flexibility allows for seamless integration of pressure, temperature, and flow transmitters. The internal electronics ensure high signal integrity even during peak network traffic.

Industrial Durability and Environmental Protection

Emerson designed the KJ3242X1-BA1 for deployment in the most demanding industrial settings. The unit functions perfectly in extreme temperatures from -40°C to +70°C. In addition, it carries an IP20 rating to protect against solid particle ingress. The card withstands 10g shock pulses and significant mechanical vibrations. It also complies with ISA-S71.04-1985 Class G3 standards for corrosive airborne contaminants. Therefore, it remains a preferred choice for offshore platforms and chemical plants.

Installation and Site Safety

The card features a mechanical rotary keying system at position D6 for safety. This design prevents technicians from inserting the module into an incompatible terminal block. Moreover, the 12P2471X052 revision supports various terminal block models like KJ3242X1-EA1. Users must de-energize all non-sparking circuits before performing any maintenance. In addition, the module operates reliably in non-condensing humidity up to 95%. These safeguards ensure maximum uptime in high-risk process control environments.

Strategic Application Solutions

The KJ3242X1-BA1 excels in oil, gas, and petrochemical refinery operations. It provides the necessary backbone for high-speed digital fieldbus networks. Because of its redundant capabilities, the card ensures continuous operation for mission-critical tasks. Plant operators trust this module for its proven track record in hazardous area applications. It remains a vital component for modernizing legacy automation infrastructure.

Essential Product Specifications
