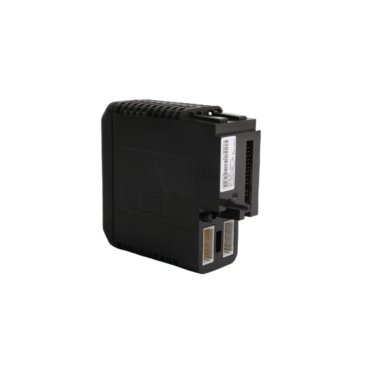

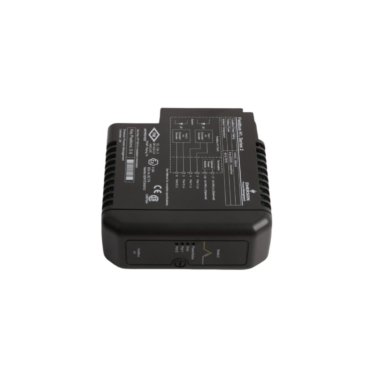

The Emerson KJ3242X1-BA1 serves as a high-performance Fieldbus H1 interface for the DeltaV M-series I/O subsystem. This module facilitates seamless data exchange between the controller and field devices. It belongs to the specialized VE4017P0 Series 2 hardware family. Consequently, the card supports critical process control tasks in modern industrial environments. It efficiently manages fieldbus power requirements while maintaining high signal integrity.
Technical Power and Signal Specifications
This H1 card operates using 12VDC local bus power with a 300mA current draw. Furthermore, it delivers fieldbus power between 9VDC and 32VDC to connected devices. Each port provides a consistent 12mA current supply for field instruments. Therefore, the module supports multiple nodes within a standard H1 segment. Integrated safety protocols ensure that the system remains stable during heavy data traffic periods.
Environmental Durability and Safety Standards
Emerson engineered the 12P2471X042 to withstand extreme industrial conditions without failure. The card operates reliably in temperatures ranging from -40°C to +70°C. In addition, it features an IP20 rating for protection against solid contaminants. The unit resists significant mechanical stress, including 10g shock pulses and high-frequency vibrations. It also meets ISA-S71.04-1985 Class G3 standards for corrosive airborne environments.
Technical Parameters
| Category | Specification |
| Brand | Emerson DeltaV |
| Model Number | KJ3242X1-BA1 |
| Part Number | 12P2471X042 |
| Series | M-series I/O Subsystem |
| Communication Protocol | FOUNDATION Fieldbus H1 |
| Local Bus Power | 12 VDC at 300 mA |
| Operating Temperature | -40 to 70 C |
| Physical Dimensions | 4.2 x 12.5 x 10.4 cm |
| Mechanical Protection | IP20 |
