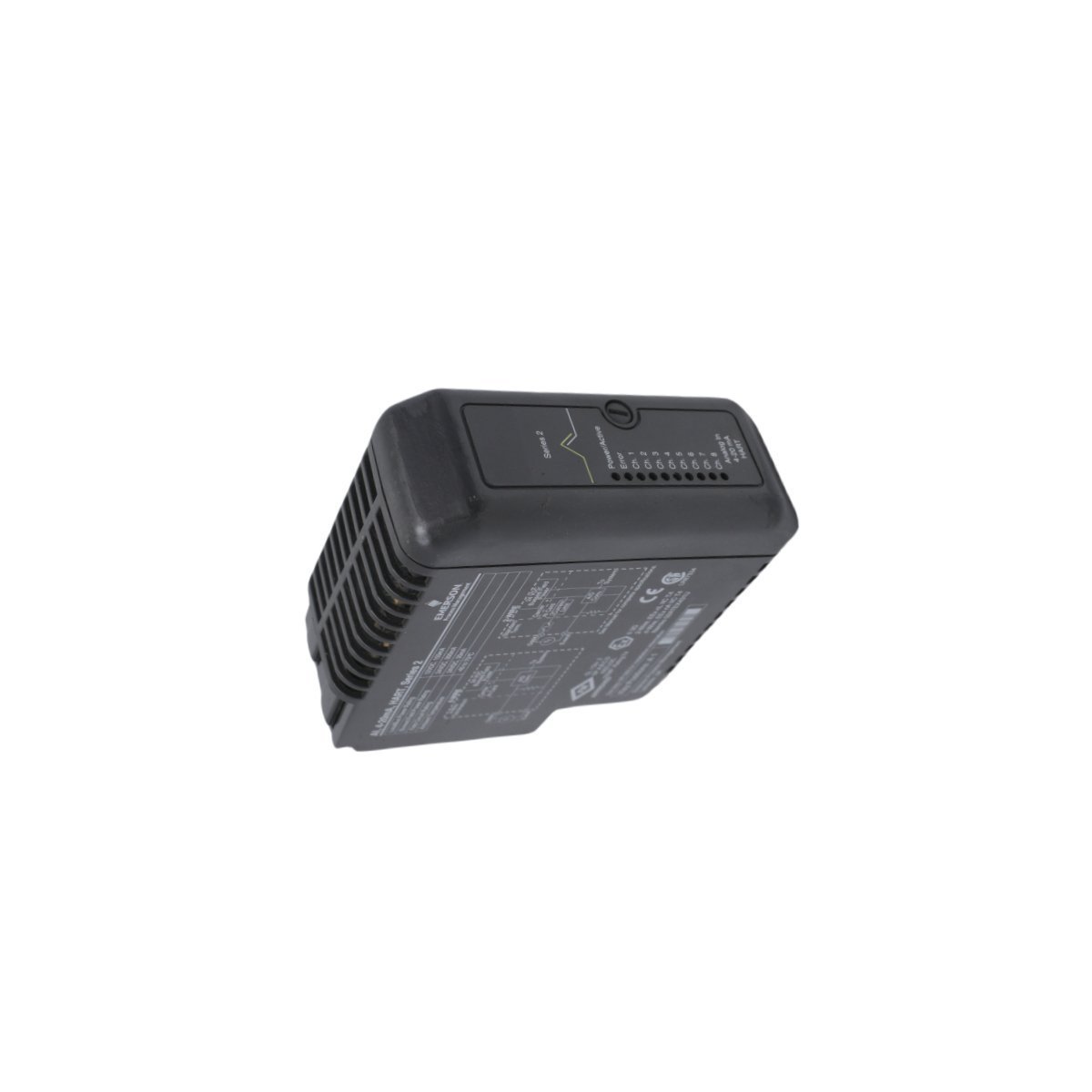

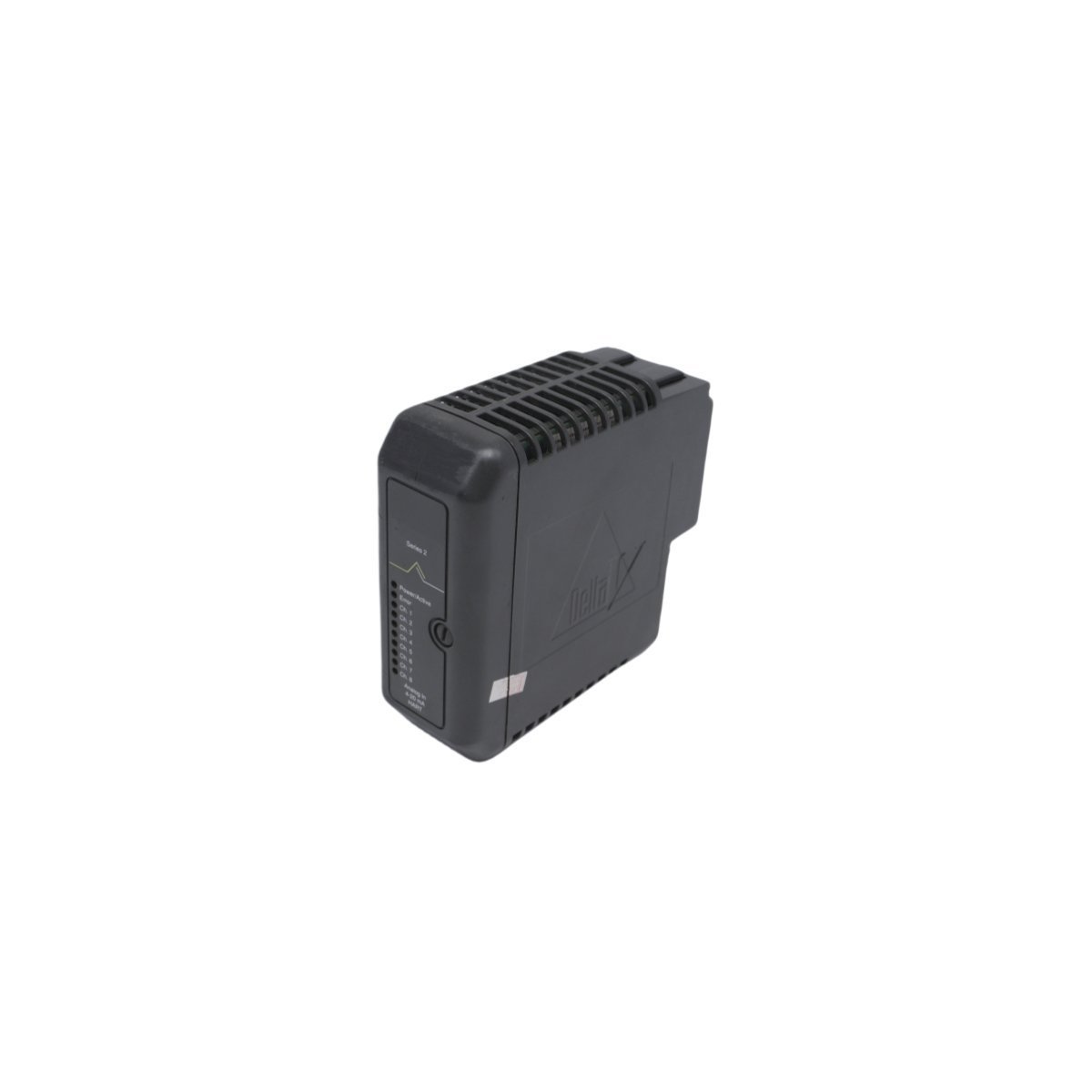

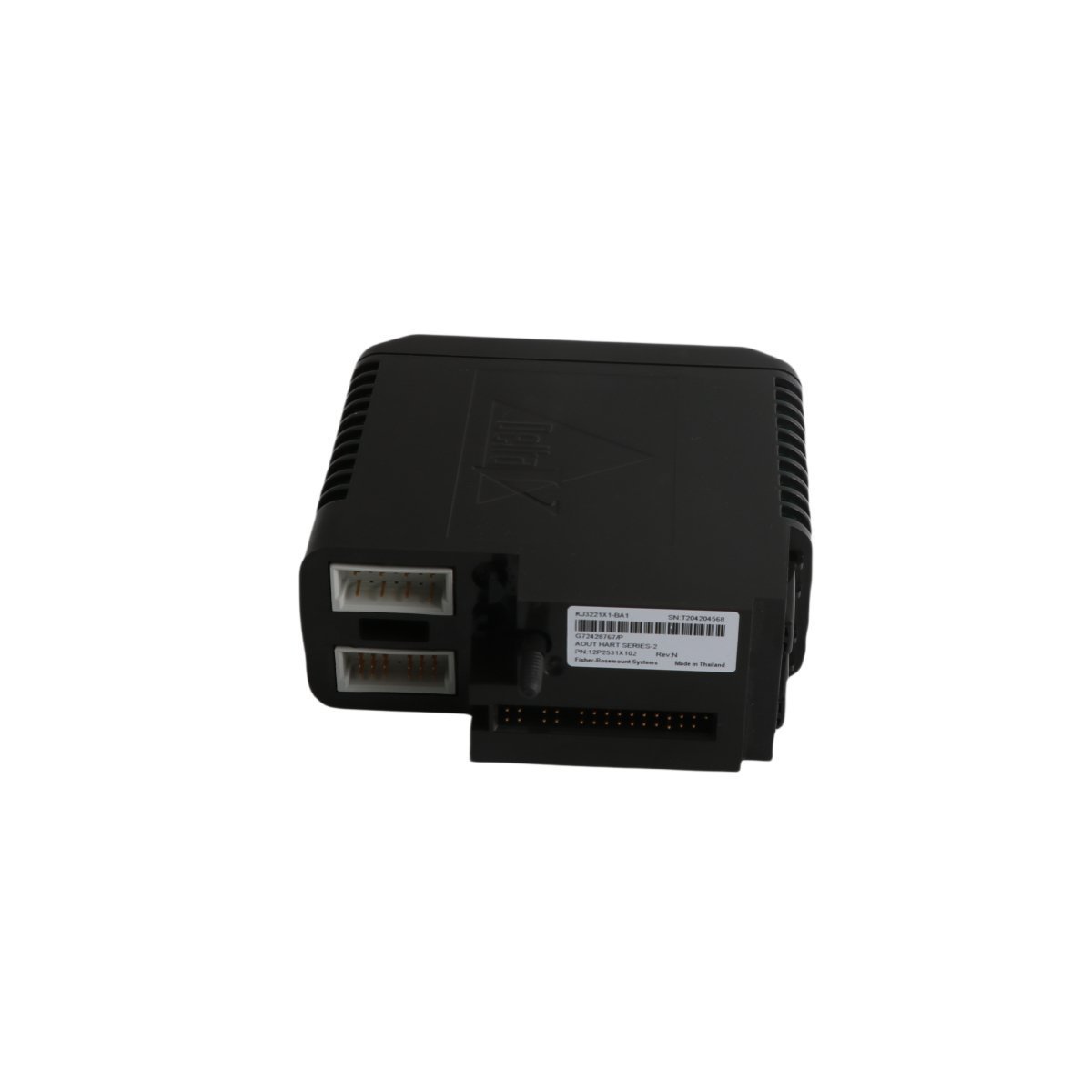

The Emerson KJ3222X1-BA1 operates as a core Analog Input component for the DeltaV™ M-series DCS. This module facilitates precise 8-channel data acquisition from field transmitters. It utilizes the HART protocol to capture secondary variables and device health. Furthermore, the hardware converts real-world analog signals into digital data for the controller. The Series 2 architecture provides superior processing speeds for complex loops. This unit specifically integrates with the VE4003S2B2 fused termination block for safety.
Operational Advantages
Engineers choose this module to enhance process visibility and diagnostic depth. The integrated HART communication reduces the need for manual field instrument checks. Additionally, the fused termination block protects the system from external electrical surges. This module supports redundant installation to ensure maximum process availability. Its compact footprint allows for high-density I/O configurations in control cabinets. The DeltaV software platform enables rapid configuration and auto-recognition of the card.
Technical Specifications
- Brand: Emerson (DeltaV)
- Model Code: KJ3222X1-BA1
- Part Number: 12P2532X122
- Termination Component: VE4003S2B2 Fused Block
- Input Type: 8-Channel Analog Input (4-20mA)
- Communication: HART Protocol (Series 2)
- Dimensions: 10.2 x 5.1 x 19.1 cm
- Operating Weight: 0.2 kg
- Country of Origin: USA
- System Support: DeltaV M-series Distributed Control System
Industrial Applications
This Analog Input module serves critical sectors requiring stable process monitoring. It manages pressure and flow transmitters in chemical refineries. Power generation plants use it for monitoring boiler feed systems. Similarly, the oil and gas industry utilizes the module for remote wellhead monitoring. The robust design ensures stability in high-vibration manufacturing environments. It remains a reliable solution for maintaining legacy industrial automation infrastructure.
