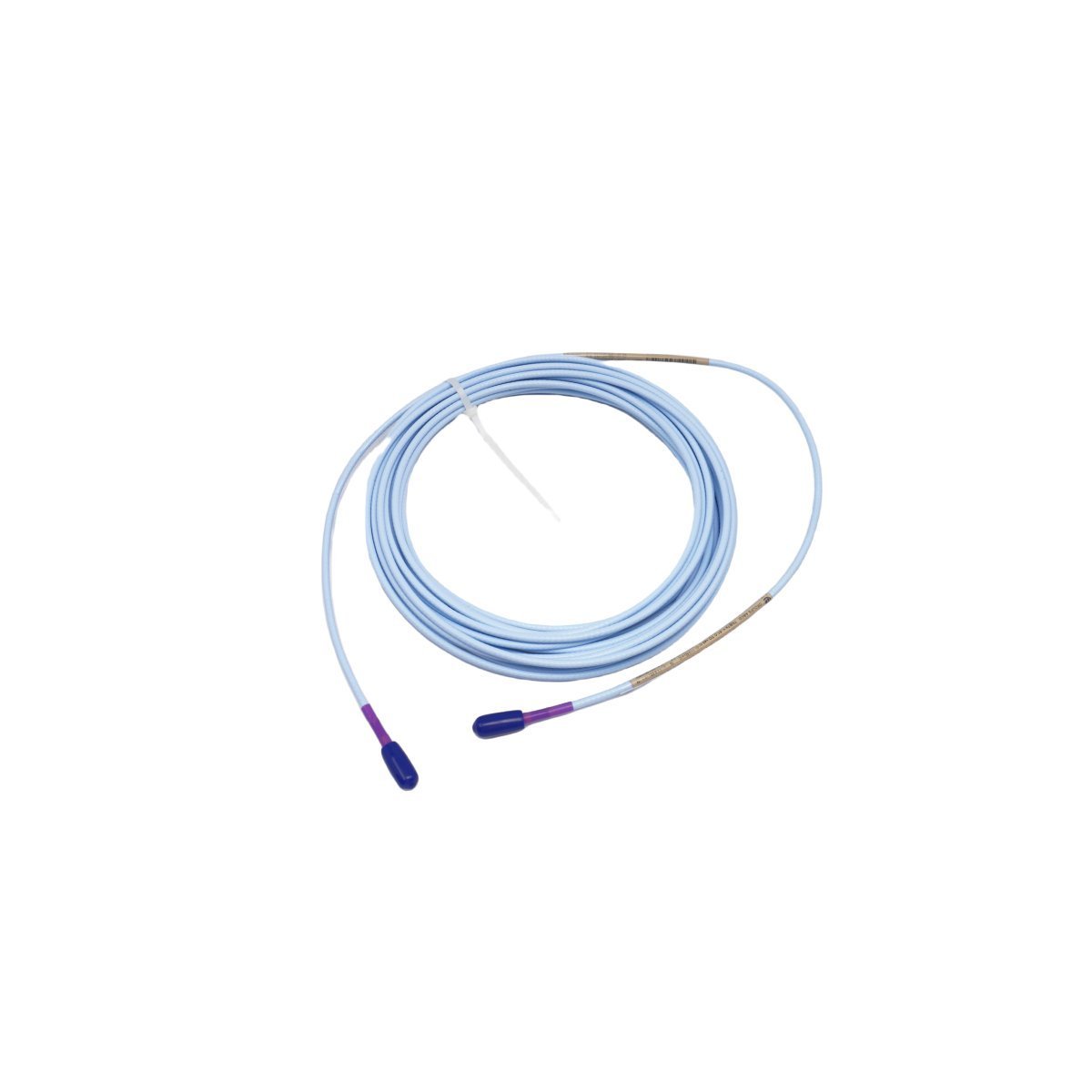

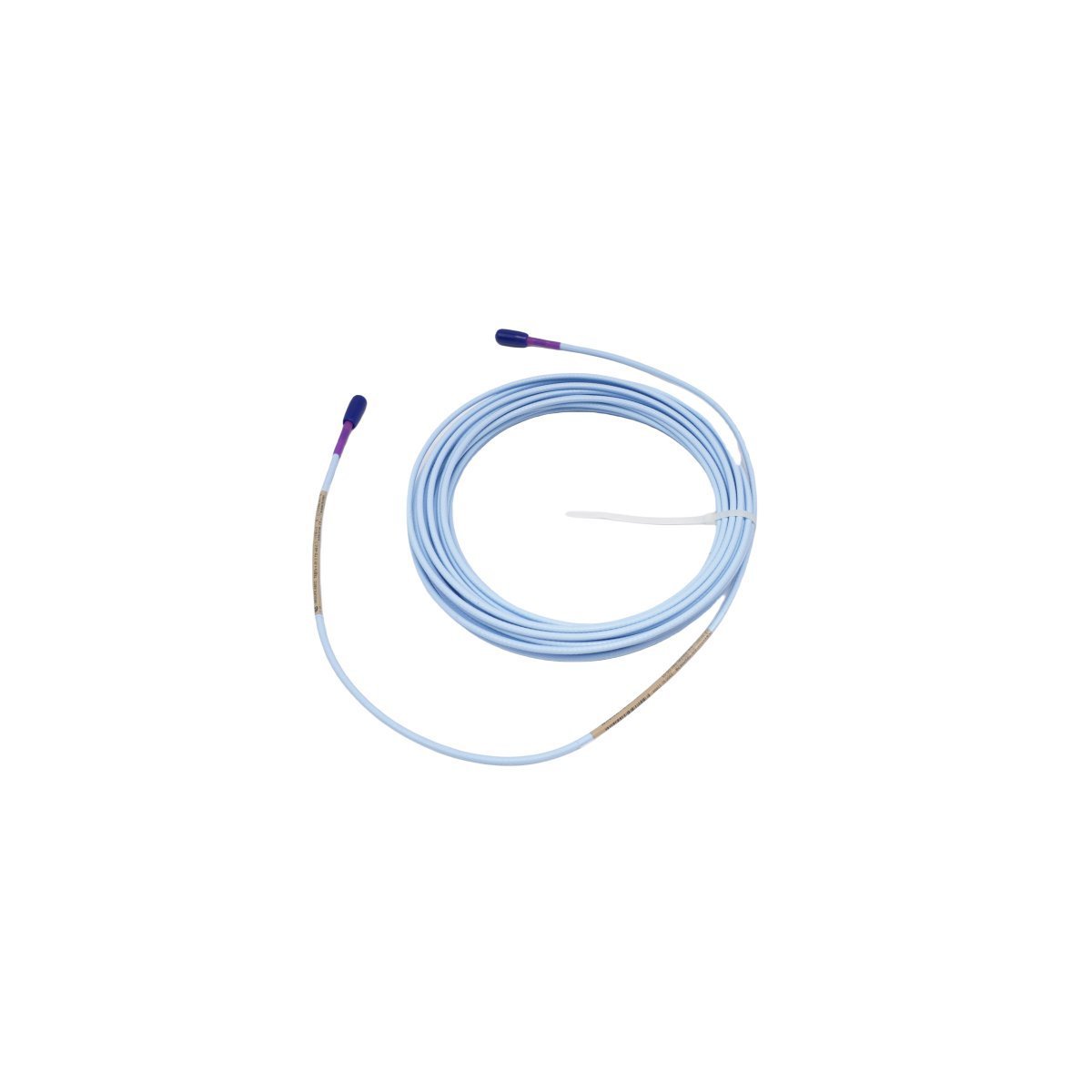

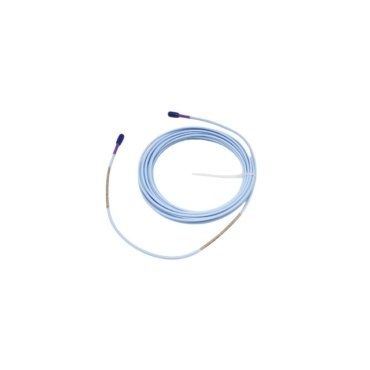

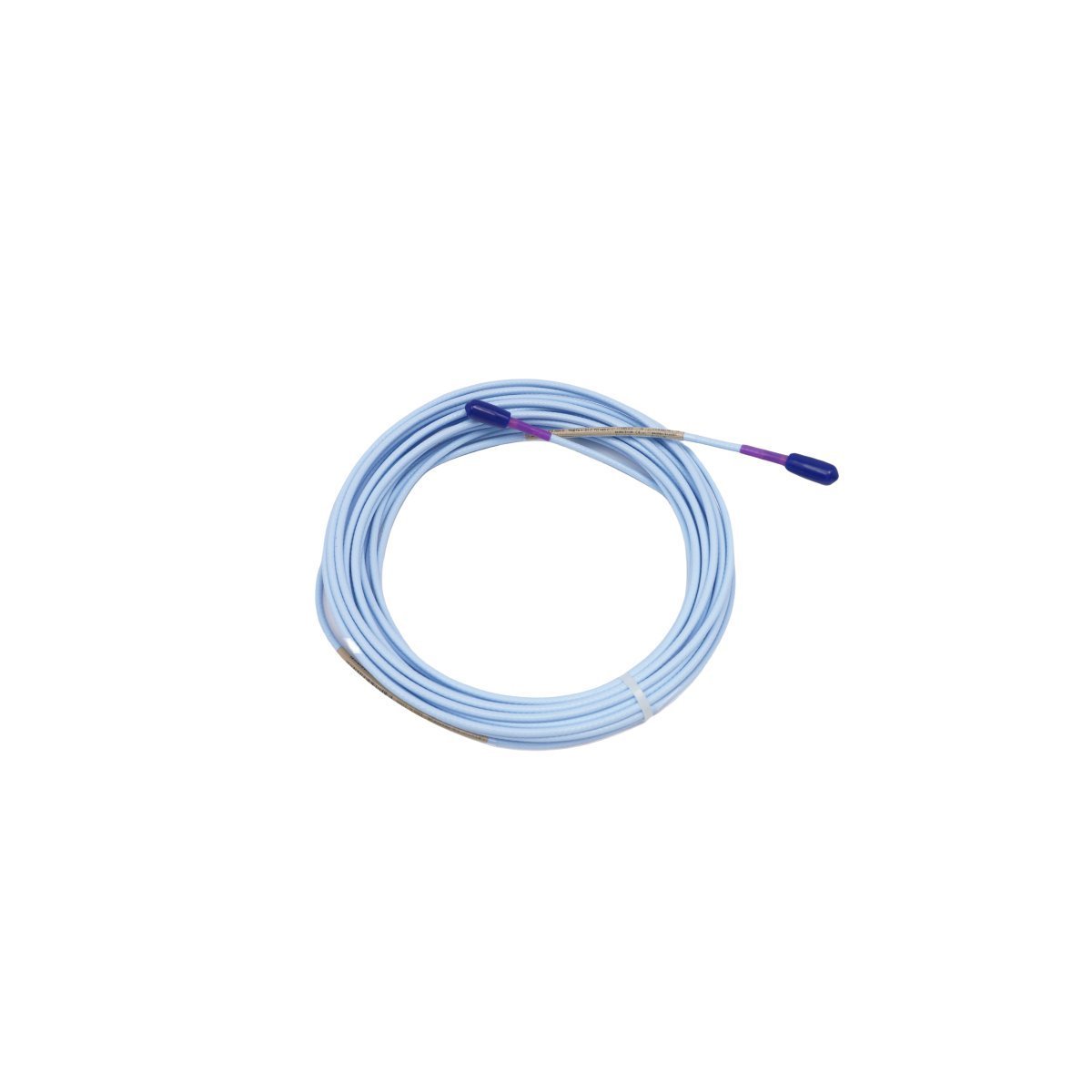

Bently Nevada 330730-080-00-05 Extension Cable

The Bently Nevada 330730-080-00-05 is a high-performance extension cable specifically engineered for the 3300 XL 11mm Proximity Transducer System. This component serves as the critical signal link between the proximity probe and the Proximitor sensor. Because it is part of a calibrated eddy current measurement chain, it ensures the precise transmission of vibration and displacement data. Consequently, this cable is vital for monitoring large-scale rotating machinery where standard 8mm systems lack the required linear range.

Signal Integrity and 11mm System Optimization

Technically, the 11mm transducer system is designed for applications requiring a wider linear range than standard sensors. First, the 330730-080-00-05 cable is manufactured to match the specific electrical impedance of the 3300 XL series. Furthermore, the cable construction minimizes capacitive losses over its 8-meter length. Because the signal remains stable across varying frequencies, the monitoring system can accurately track shaft centerline motion. This level of precision allows for the early detection of mechanical anomalies in large steam turbines and generators.

Detailed Technical Specifications

The 330730-080-00-05 model follows a specific industrial configuration:

• System Compatibility: 3300 XL 11mm Proximity Transducer System
• Cable Length: 8.0 Meters (approximately 26.2 feet)
• Armor Option: Standard coaxial cable without stainless steel armor (Option 00)
• Agency Approval: Multiple worldwide approvals, including ATEX and CSA (Option 05)
• Connector Type: Gold-plated ClickLoc miniature coaxial connectors
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)
• Jacket Material: High-dielectric Fluorinated Ethylene Propylene (FEP)

Durable Construction for Industrial Service

Because power generation and oil refineries present harsh operating conditions, this cable features a robust FEP outer jacket. For instance, the material provides excellent resistance to corrosive chemical exposure and high-pressure steam. Additionally, the patented ClickLoc connectors prevent signal interruption caused by mechanical vibration. This secure connection is essential for maintaining the safety interlocks of 3500 series machinery protection racks. Thus, the cable ensures reliable data transmission for predictive maintenance strategies.

Reliability in Large-Scale Automation

Regarding long-term operation, the 330730-080-00-05 is built to exceed standard industrial expectations. Specifically, the gold-plated contacts eliminate the risk of electrical drift caused by connector oxidation. Moreover, the 8-meter length provides sufficient reach for routing cables through large bearing housings to remote junction boxes. In short, this extension cable provides the durability and signal accuracy required to protect critical heavy-duty industrial assets.
