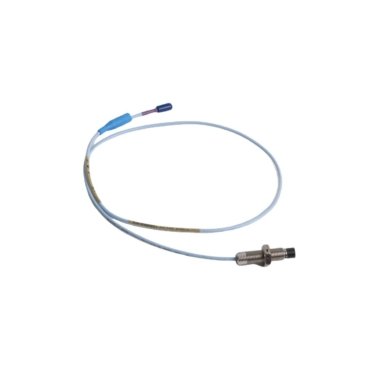

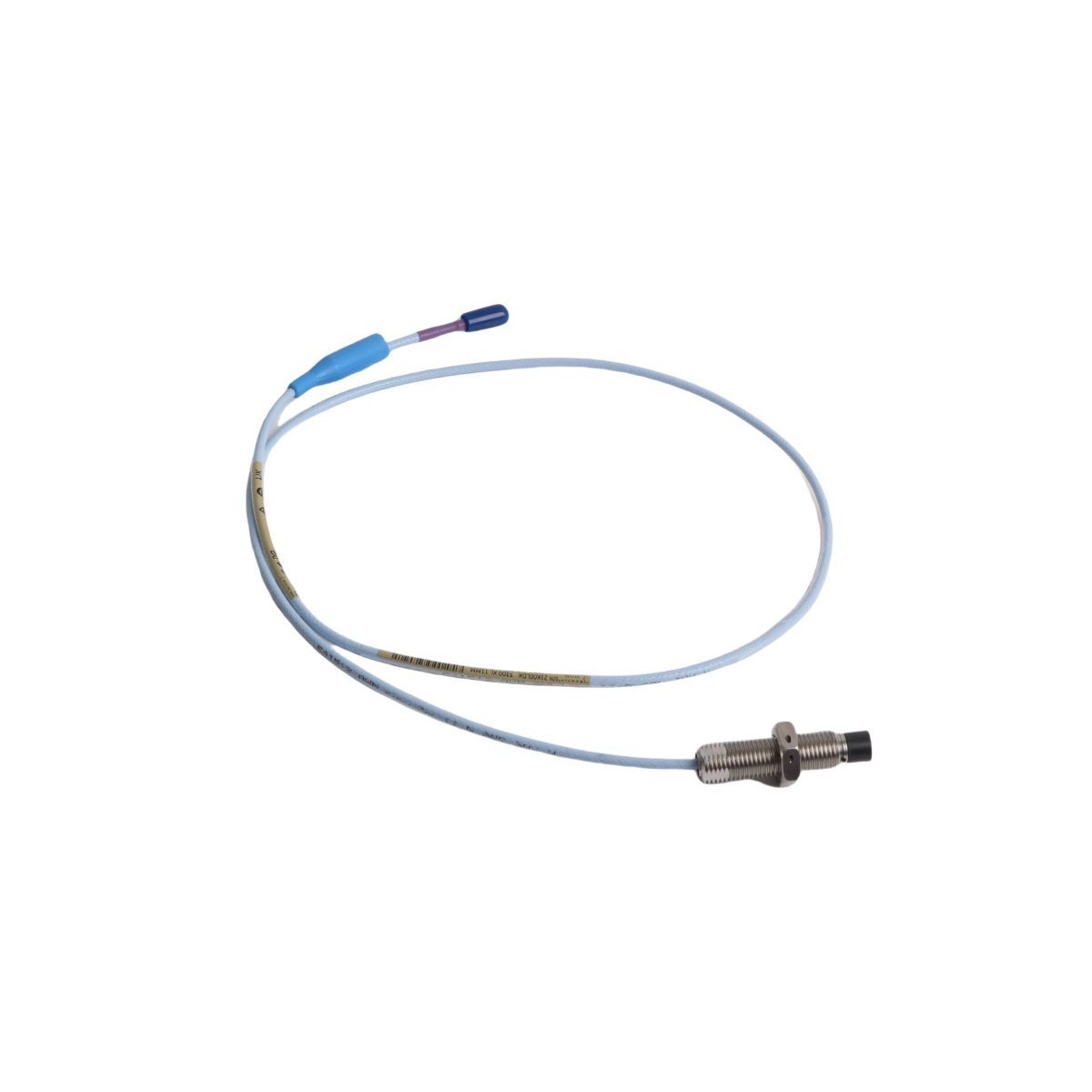

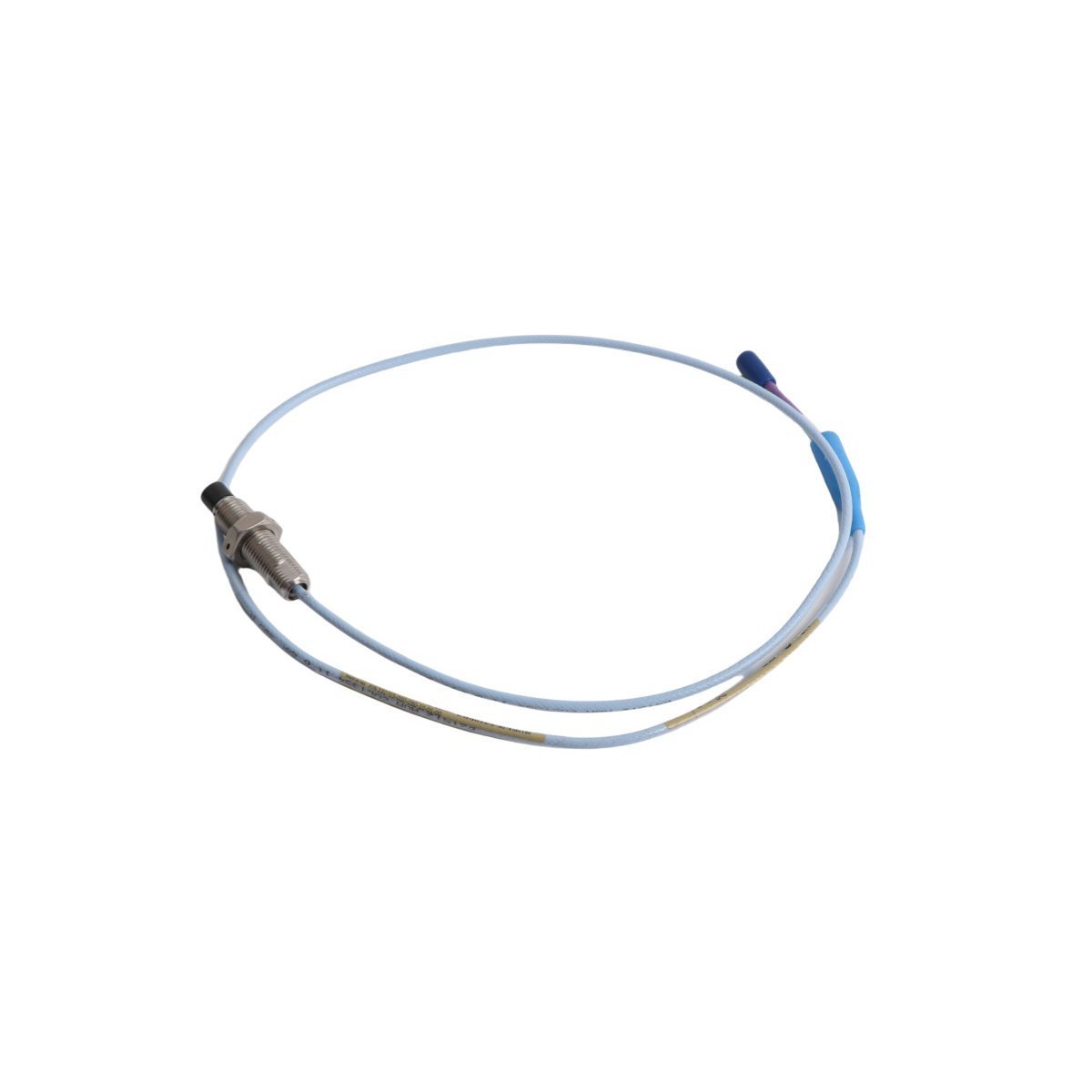

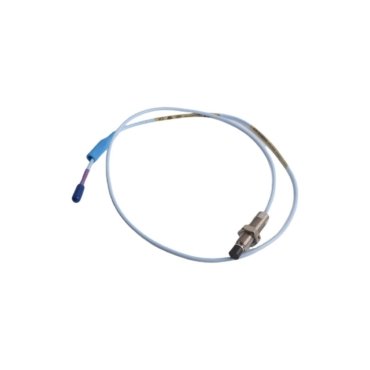

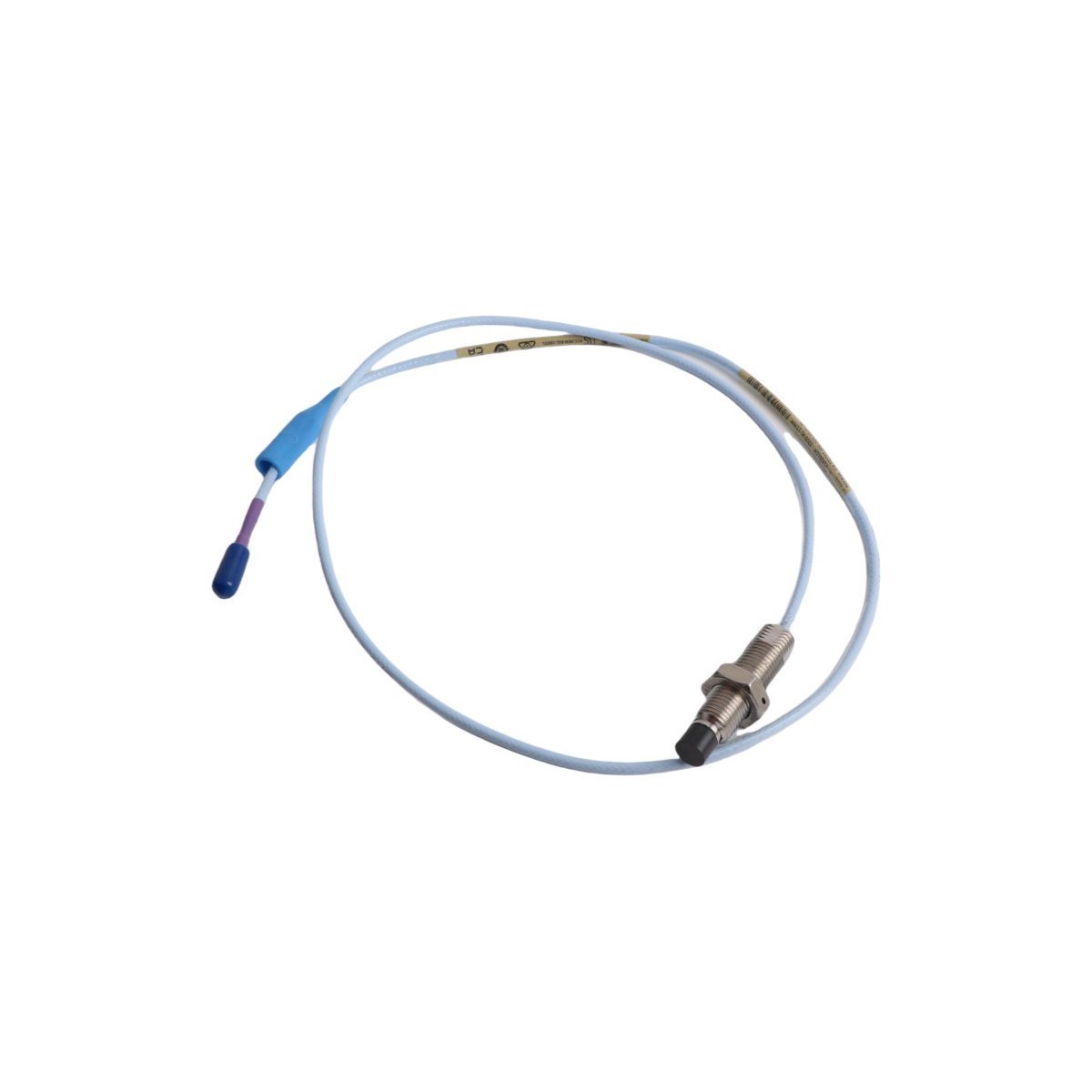

The Bently Nevada 330703-000-050-10-02-05 is an 11 mm proximity probe from the 3300 XL series. It features a permanently attached 5-meter armored cable and delivers precise, non-contact measurement of shaft displacement, vibration, or position in rotating machinery. This probe must be used with a compatible 3300 XL 11 mm Proximitor® (e.g., 3300/11-XX-XX) to form a complete transducer system.
With its larger active tip diameter, the 11 mm probe provides an extended linear range compared to smaller probes. As a result, it is ideal for large turbomachinery such as steam turbines, generators, and centrifugal compressors. The probe’s robust construction ensures stable performance even under high-vibration or high-temperature conditions.
Key Technical Specifications
- Model Number: 330703-000-050-10-02-05
- Product Type: 3300 XL 11 mm Proximity Probe with 5 m integrated armored cable
- Manufacturer: Bently Nevada (a Baker Hughes company)
- Active Tip Diameter: 11 mm
- Thread Size: M14 × 1.5 (standard)
- Sensitivity: 3.94 V/mm (100 mV/mil)
- Linear Range: 0–4.0 mm (0–160 mils)
- Cable Length: 5.0 meters, armored, permanently attached
- Connector: Gold-plated brass ClickLoc® with positive lock
- Tip Technology: TipLoc® for secure tip-to-body bond
- Cable Retention: CableLoc® design rated for 330 N (75 lbf) pull strength
- Operating Temperature: –51°C to +177°C (probe tip); –40°C to +85°C (cable)
- Approvals: CSA, ATEX, IECEx (when installed in certified system configurations)
- Compliance: API 670 compliant for machinery protection
- Weight: 0.16 kg
- Packaged Dimensions: Approx. 200 × 220 × 33 mm (corrected estimate)
- Country of Origin: USA
- Status: Active product
- Minimum Order Quantity: 1
- HS Code: 8537101190
Typical Applications
This probe is commonly deployed in power generation, oil & gas, and heavy industrial facilities. It supports continuous monitoring of journal bearing clearance, rotor runout, and axial thrust position. Optional FluidLoc® cable variants prevent oil wicking in lubricated environments, while connector protectors enhance reliability in humid or corrosive settings.
