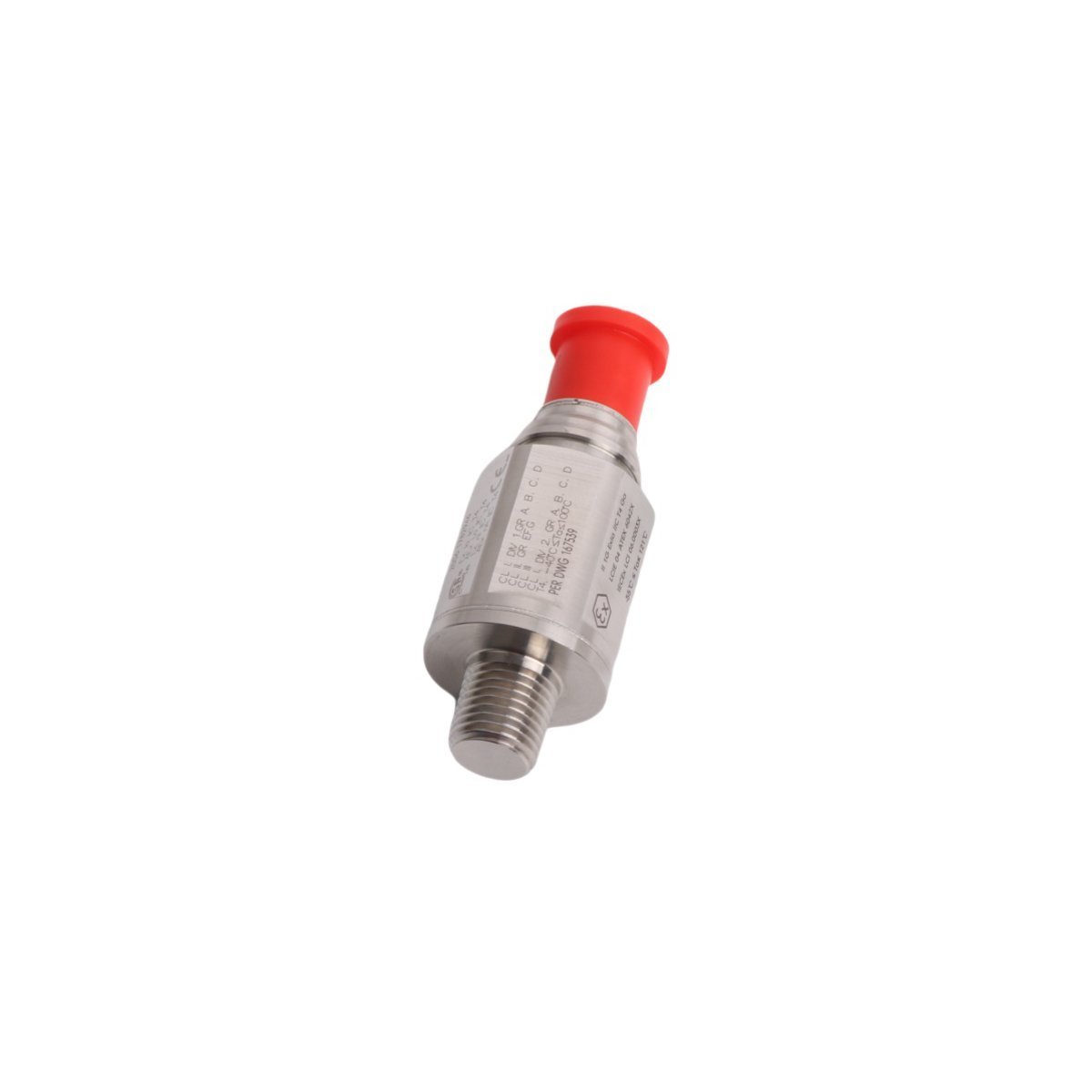

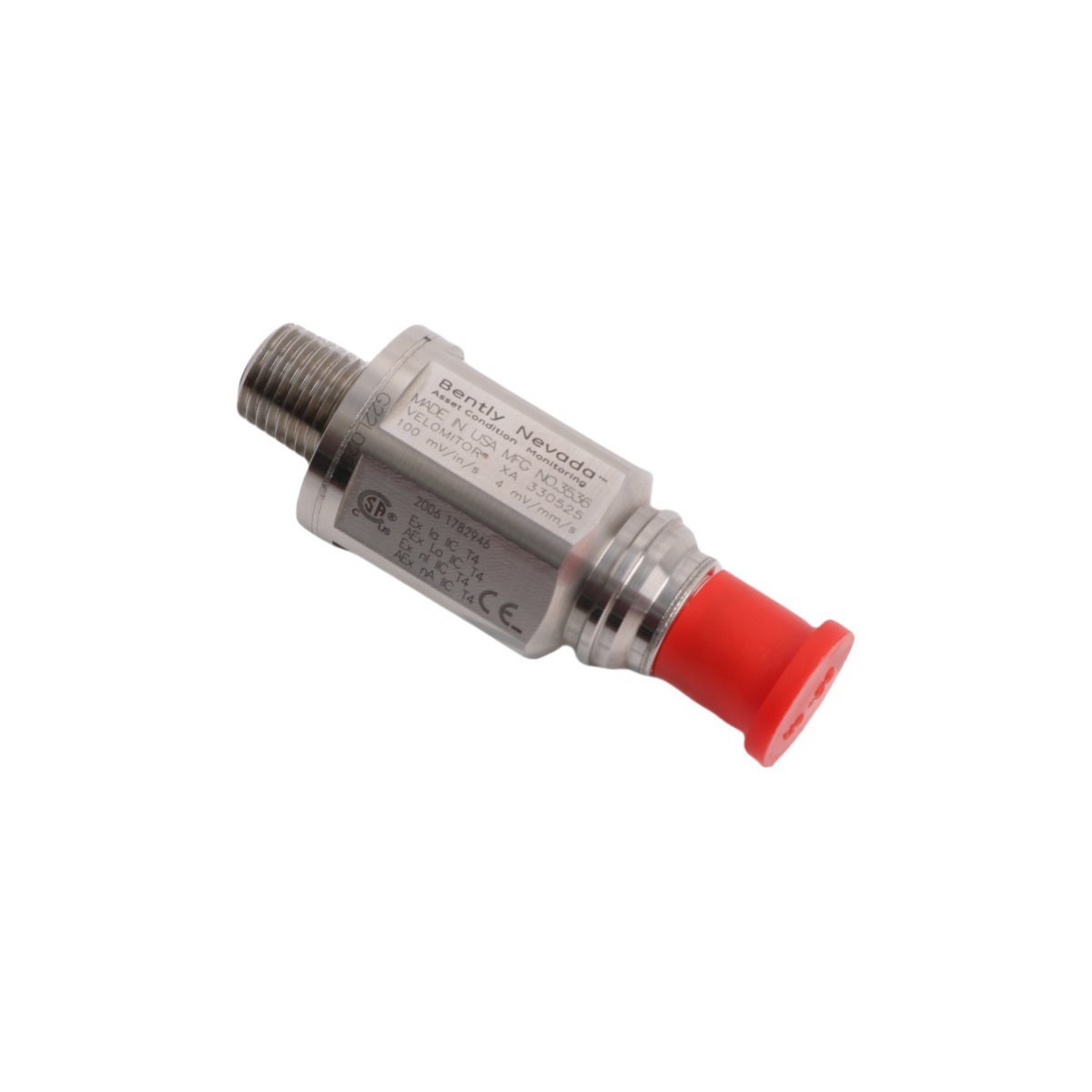

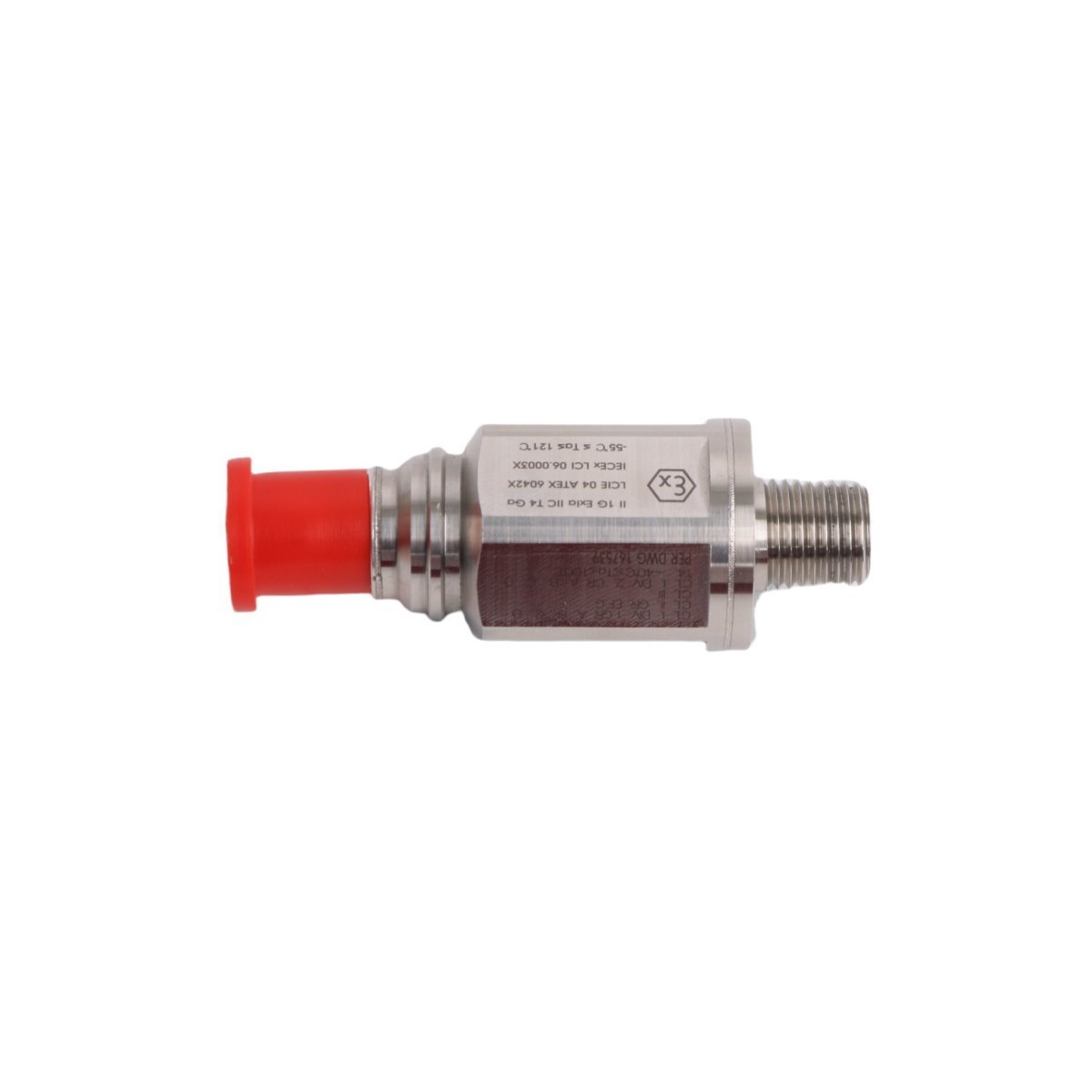

Name: Bently Nevada 330525-00 Velomitor XA Piezo-Velocity Sensor
Brand: Bently Nevada
SKU: 330525-00
Availability: InStock

Bently Nevada 330525-00 Velomitor XA Piezo-Velocity Sensor

Sale!

Rugged 330525-00 piezo-velocity sensor with 316L stainless steel housing, IP65/NEMA 4X rating, and integrated weatherproof cable for industrial vibration monitoring.

99 in stock

The Bently Nevada 330525-00 is a high-performance piezoelectric velocity sensor engineered for demanding industrial environments. As part of the Velomitor XA series, it delivers reliable vibration monitoring in harsh conditions where durability, corrosion resistance, and environmental protection are critical. This sensor integrates seamlessly into the 3300 Proximity Transducer System and supports continuous machinery health assessment in sectors such as power generation, oil and gas, and heavy manufacturing.

Key Technical Specifications

Parameter	Value
Model Number	330525-00
Product Type	Velomitor XA Piezo-Velocity Sensor
Manufacturer	Bently Nevada (a Baker Hughes Company)
Housing Material	316L Stainless Steel
Environmental Rating	IP65 / NEMA 4X (with mating extension cable)
Output Signal	Velocity-proportional AC voltage
Frequency Range	10 Hz to 1,000 Hz (±3 dB)
Sensitivity	Approximately 20 mV/(mm/s) RMS (typical)
Operating Temperature	-40°C to +120°C
Cable Assembly	Integrated, shielded, weather-resistant
Weight	0.12 kg
Dimensions	76 mm × 30 mm × 30 mm
Origin	USA
Status	Active (not discontinued)
Minimum Order Quantity (MOQ)	1 unit
HS Code	8537101190
