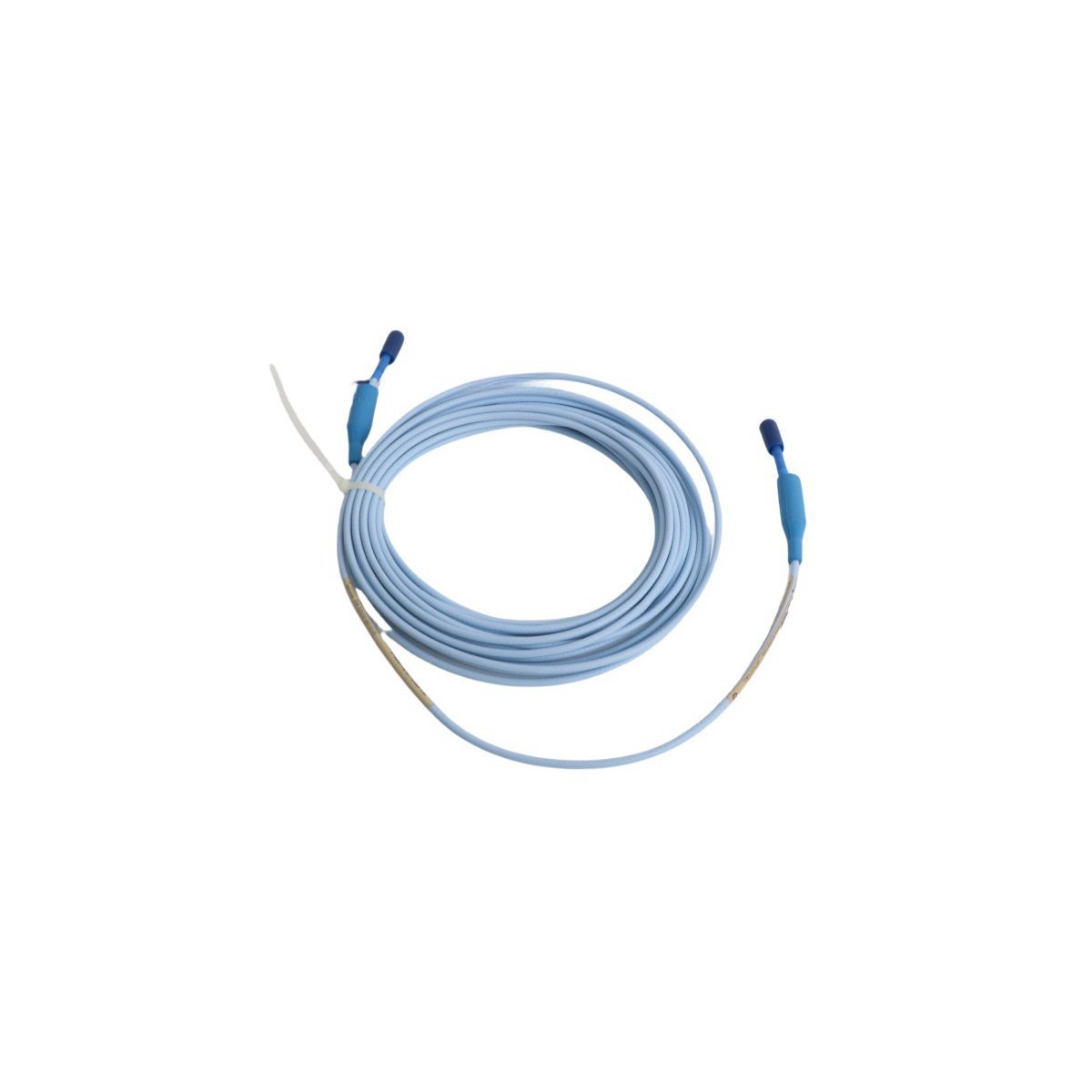

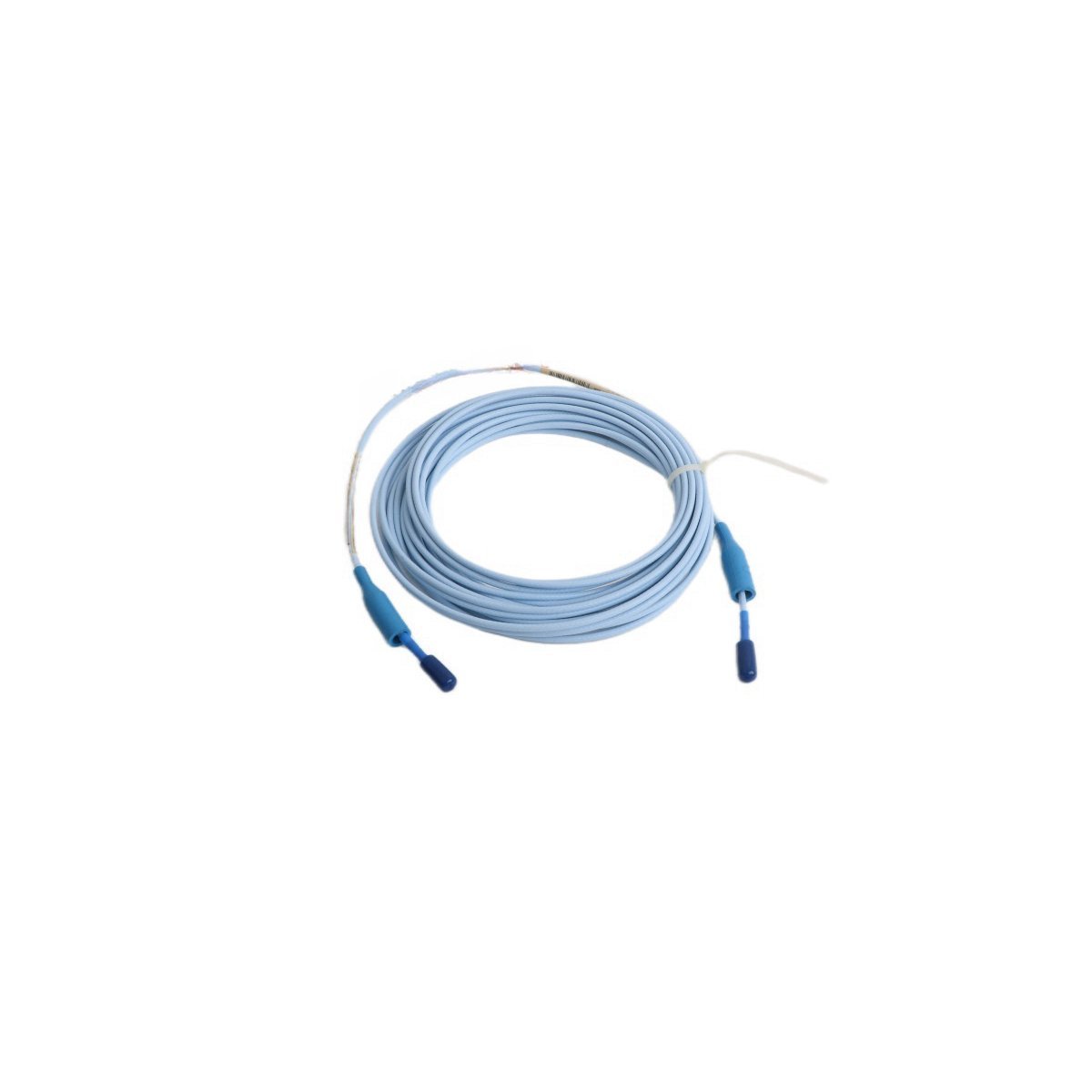

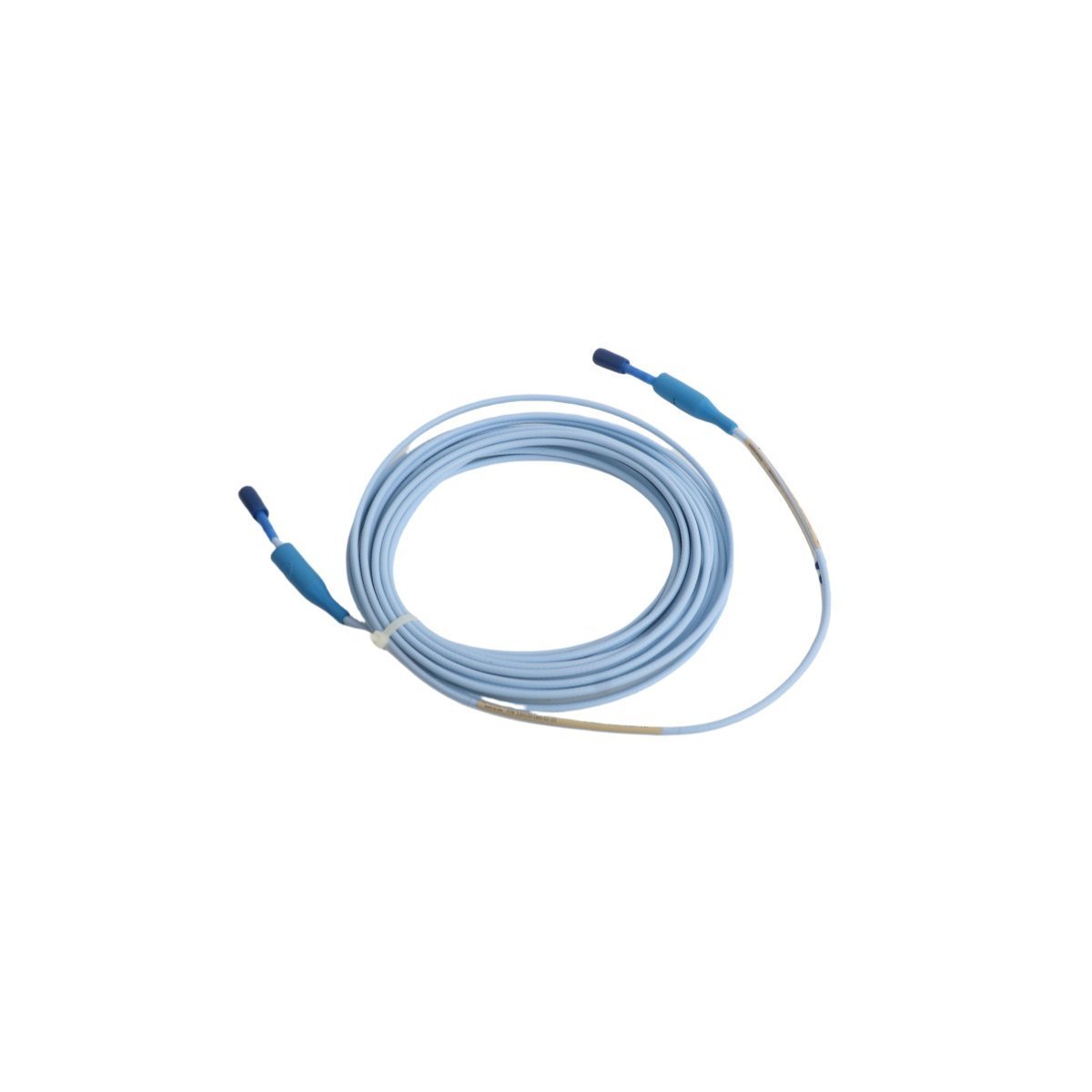

The Bently Nevada 330130-080-02-05 is a high-integrity extension cable designed for the 3300 XL 8mm Proximity Transducer System. This critical link facilitates the transmission of eddy current signals from the proximity probe to the Proximitor sensor. By maintaining a constant impedance, the cable ensures that the monitoring system accurately captures machinery vibration and position data. This specific configuration supports long-distance signal routing while preserving the linear measurement range required for industrial asset protection.
Signal Integrity and Advanced Construction
Engineering of the 330130-080-02-05 focuses on signal stability in electromagnetically noisy environments. The cable features a high-density shield that prevents external electrical interference from distorting low-level transducer signals. Furthermore, the use of high-grade copper conductors minimizes signal attenuation. This ensures that the Proximitor sensor receives an authentic representation of the target’s displacement, which is essential for precise diagnostic analysis of rotating machinery.
Technical Performance Characteristics
This 3300 XL extension cable meets the demanding physical and electrical requirements of API 670 machinery protection standards. It provides reliable performance across a broad temperature spectrum and resists environmental degradation.
- Model Number: 330130-080-02-05
- Total Length: 8.0 meters (26.2 feet)
- Cable Type: 75 ohm coaxial with high-performance insulation
- Connector Type: Gold-plated brass ClickLoc connectors
- Armor Option: 05 (Stainless steel flexible conduit for mechanical protection)
- Operating Temperature Range: -51°C to +177°C (-60°F to +350°F)
- Material Resistance: Oil, chemical, and moisture resistant
- Weight: 0.28 kg (base weight without specialized armor)
