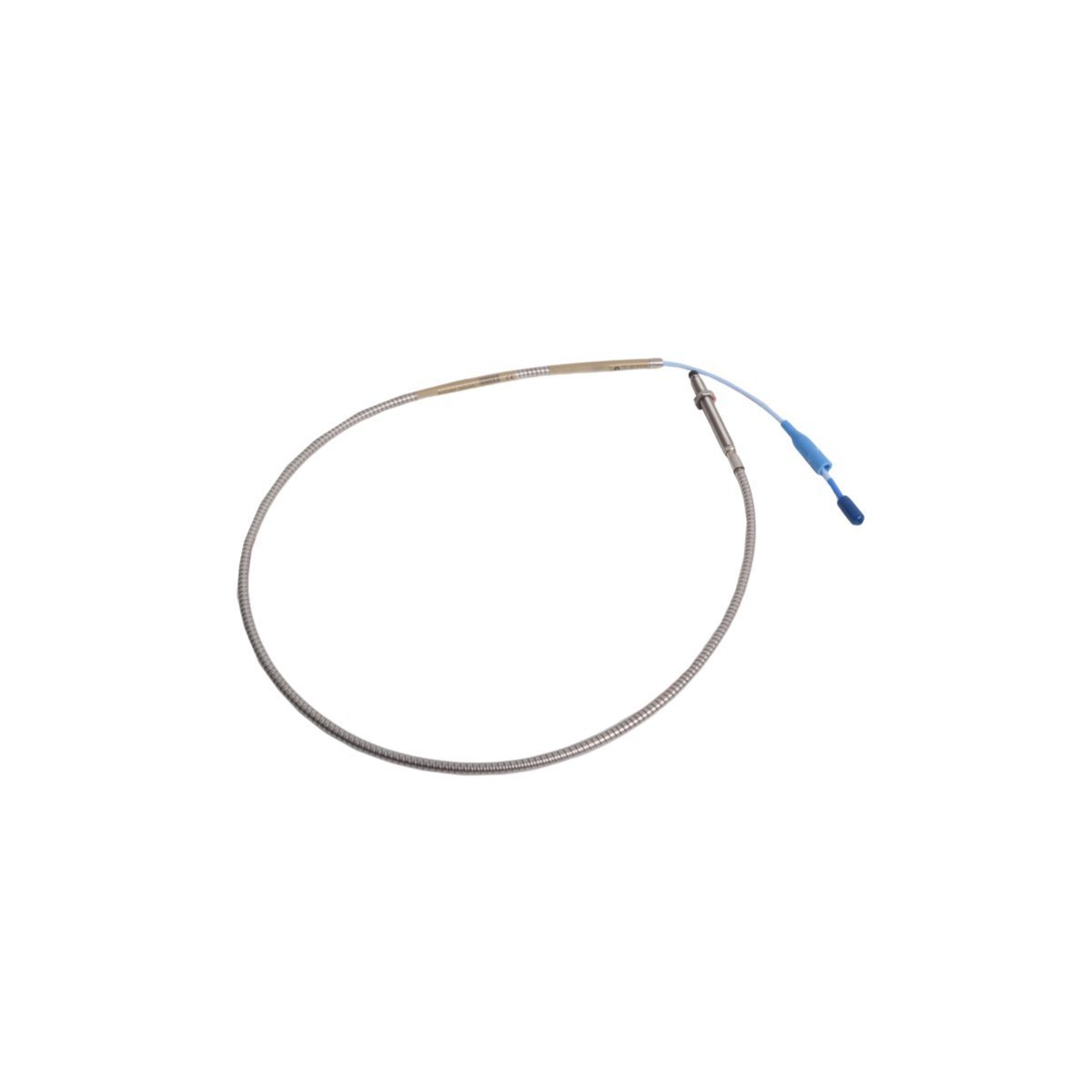

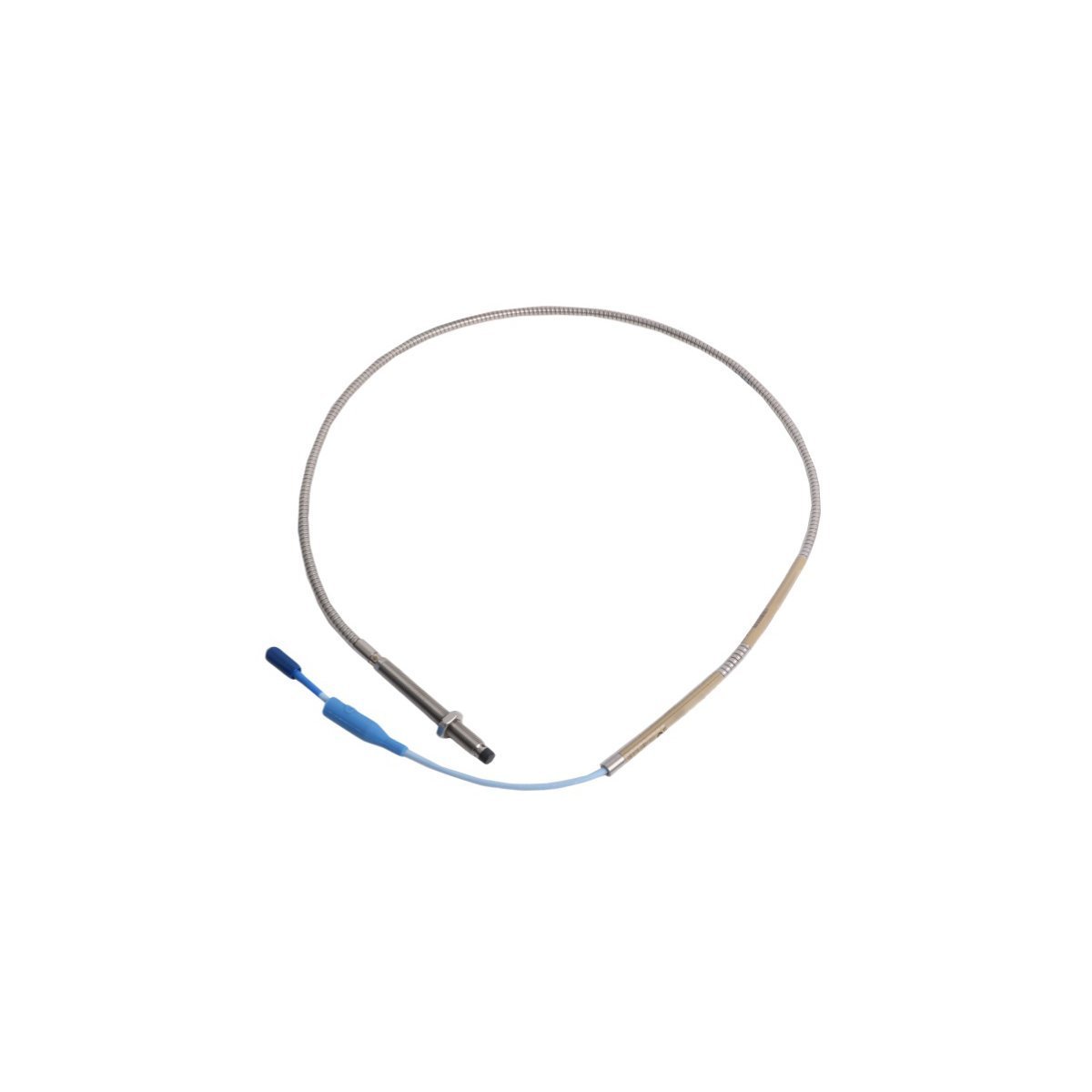

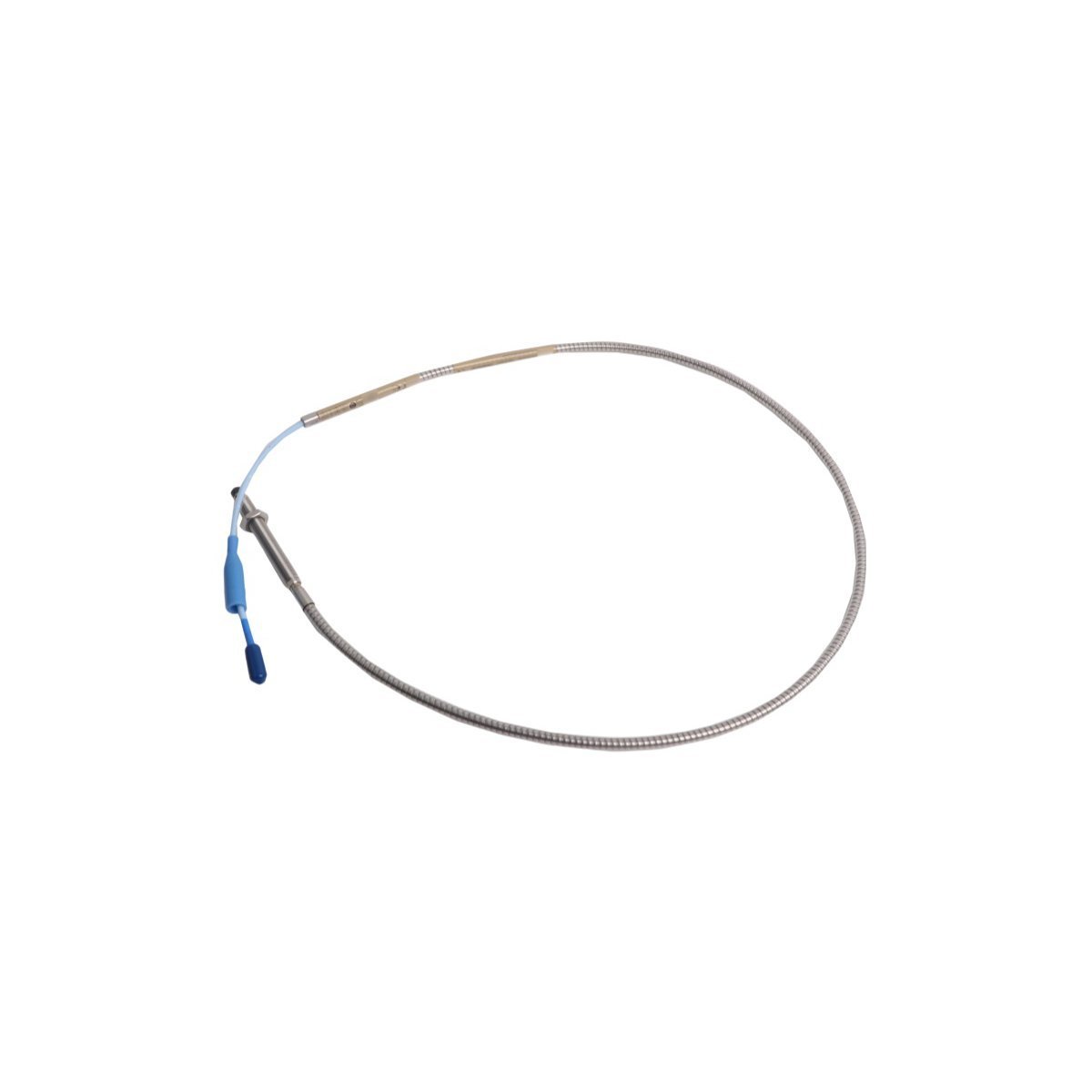

Bently Nevada 330104-00-08-50-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-08-50-01-05 is an 8 mm proximity probe from the 3300 XL series. It features a permanently attached 5-meter armored cable and is designed for non-contact measurement of vibration, position, or speed in rotating machinery. This probe forms one part of a complete transducer system that includes a compatible Proximitor® sensor.

Despite its compact size, the 8 mm probe delivers high accuracy with a standard sensitivity of 7.87 V/mm (200 mV/mil). Its small diameter allows installation in tight spaces where larger probes cannot fit—such as between bearing housings or on small-diameter shafts. Therefore, it is especially useful in high-speed turbomachinery and space-constrained industrial equipment.

Key Technical Specifications

• Model Number: 330104-00-08-50-01-05
• Product Type: 3300 XL 8 mm Proximity Probe with integrated 5 m cable
• Manufacturer: Bently Nevada (a Baker Hughes company)
• Active Tip Diameter: 8 mm
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Linear Range: 0–2.0 mm (0–80 mils)
• Cable Length: 5.0 meters (permanently attached, armored)
• Thread Size: M10 × 1.0 (standard for 8 mm probes)
• Connector Type: ClickLoc® (protected, twist-lock design)
• Operating Temperature: –51°C to +177°C (probe tip); –40°C to +85°C (cable)
• System Compatibility: Requires 3300 XL 8 mm Proximitor (e.g., 3300/05-XX-XX)
• Approvals: CSA, ATEX, IECEx (when used in certified system configurations)
• Compliance: Meets API 670 for machinery protection systems
• Weight: 0.16 kg
• Packaged Dimensions: 205 × 224 × 33 mm
• Country of Origin: USA
• Status: Active product, not discontinued
• Minimum Order Quantity: 1 unit
• HS Code: 8537101190

Typical Applications

This probe is widely used in compressors, small steam turbines, gearboxes, and pumps. It supports machinery protection, condition monitoring, and Keyphasor® reference signal generation. Because of its hazardous area certifications, it is also deployed in oil & gas, chemical processing, and power plants where explosion-proof operation is required.
