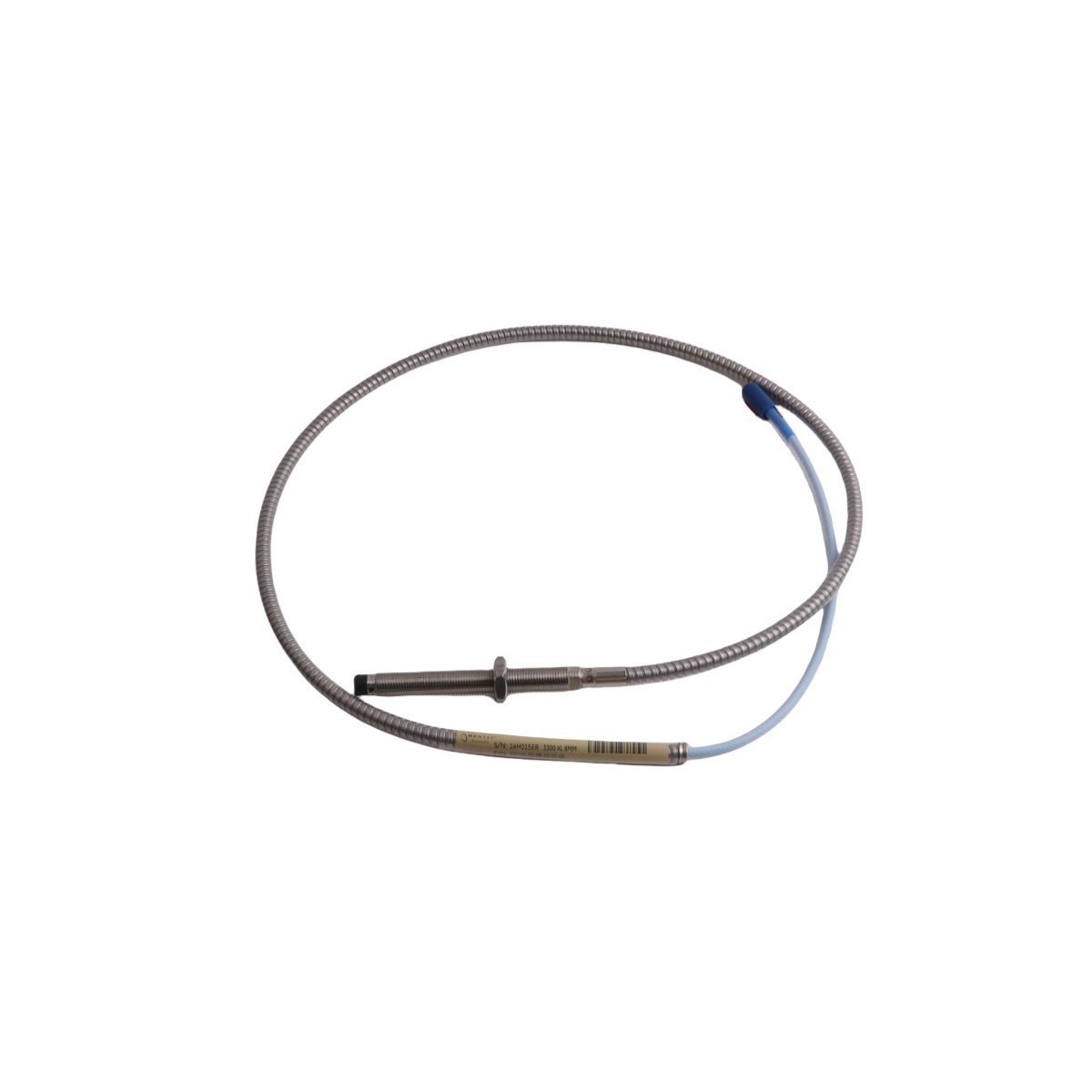

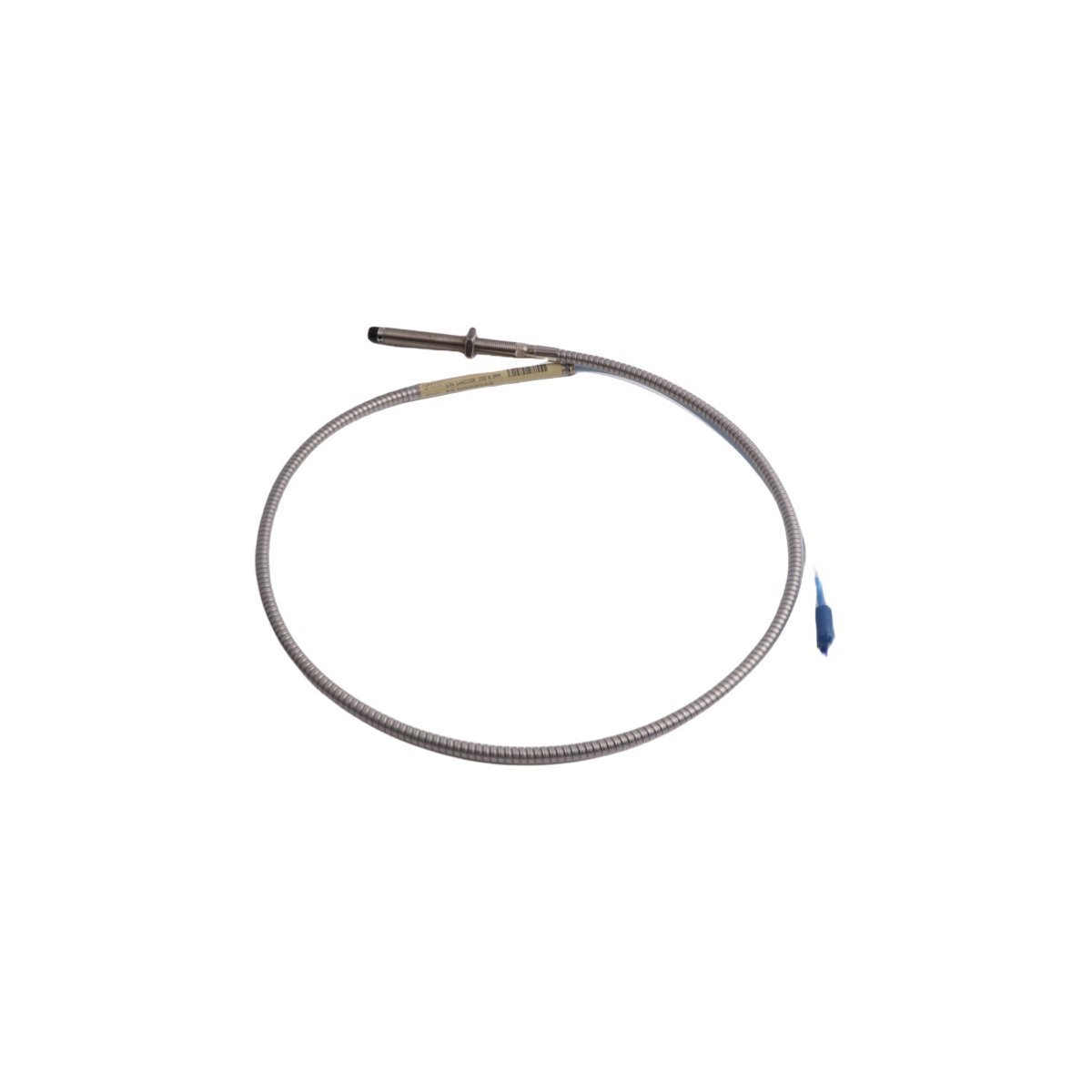

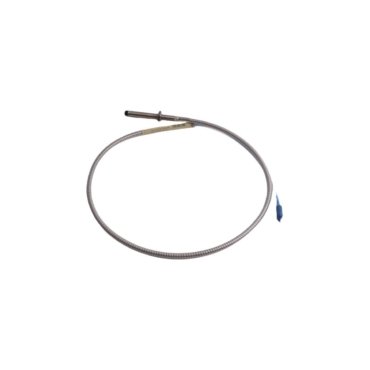

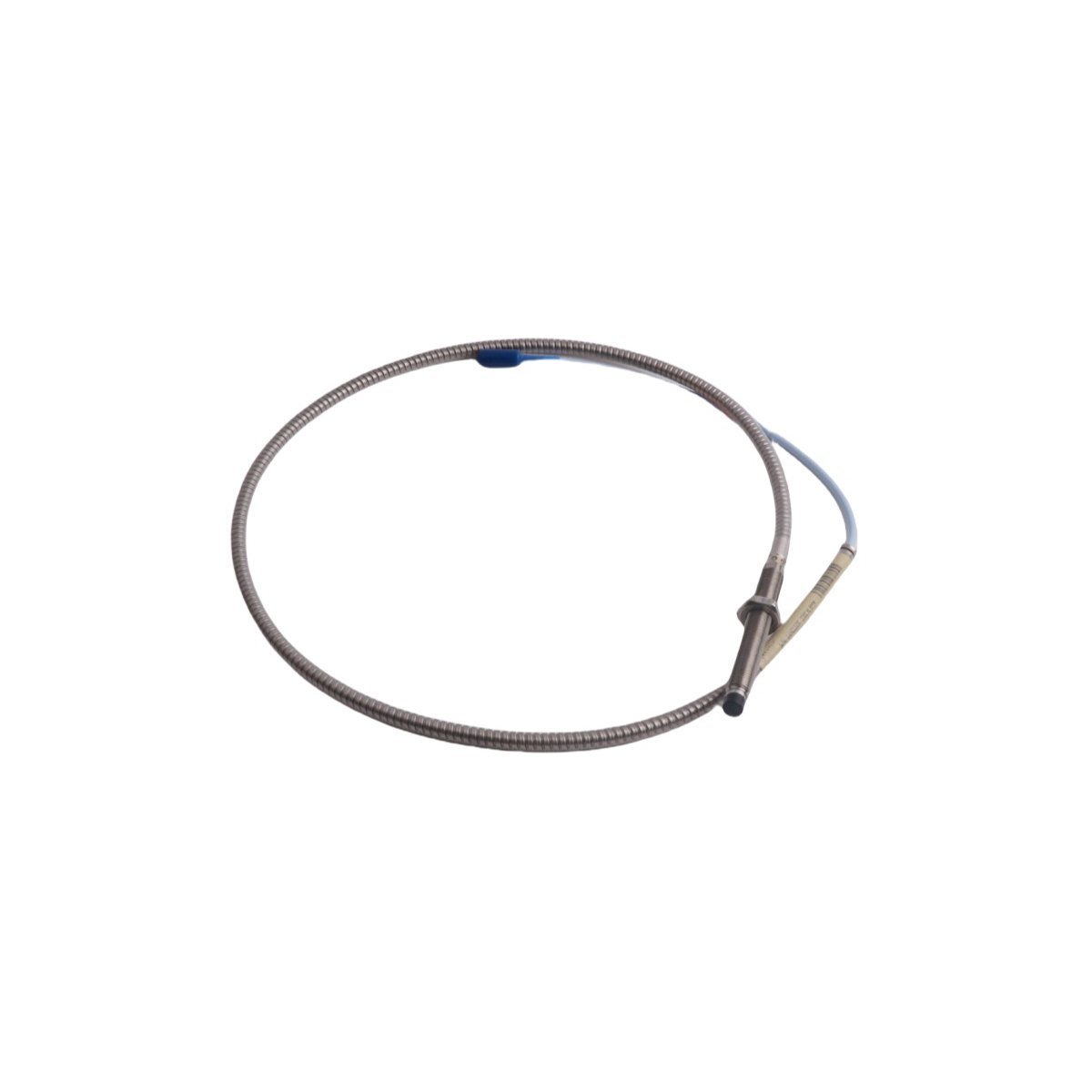

The 330104-00-08-10-02-00 serves as a primary displacement sensor for industrial machinery protection. This 8mm proximity probe measures shaft vibration and position relative to the bearing housing. It operates on the eddy current principle to provide non-contact measurements. Consequently, the sensor delivers precise data without affecting machine operation. This model excels in identifying shaft runout and rotor instabilities before they cause damage.
Industrial Implementation
This transducer integrates perfectly with the Bently Nevada 3500 Monitoring System. It specifically supports heavy-duty assets like power plant turbines and industrial centrifugal pumps. Operators rely on this sensor for critical Thrust Position monitoring and radial vibration analysis. Because it handles high-velocity rotation effectively, it remains a standard choice for oil and gas refineries. The system ensures continuous feedback to prevent catastrophic mechanical failure.
Design and Environmental Resistance
Reliability defines the construction of this 3300 XL series component. The probe features a 3/8-24 UNF thread housing for standard mounting configurations. Furthermore, the specialized Tip Material resists moisture and oil penetration during long-term submersion. The 330104-00-08-10-02-00 maintains high signal linearity across a wide temperature range. This stability allows for accurate monitoring in both cold starts and peak thermal loads.
Technical Data and Configuration
- Manufacturer: Bently Nevada
- Model Number: 330104-00-08-10-02-00
- Product Series: 3300 XL 8mm
- Unthreaded Length: 0.0 inches
- Overall Case Length: 0.8 inches
- Total Cable Length: 1.0 meter (3.3 feet)
- Connector Type: Miniature coaxial ClickLoc
- Approval Rating: Standard worldwide certifications
- Thread Type: 3/8-24 UNF reverse mount
- Unit Weight: 0.18 kg
- Country of Origin: USA
