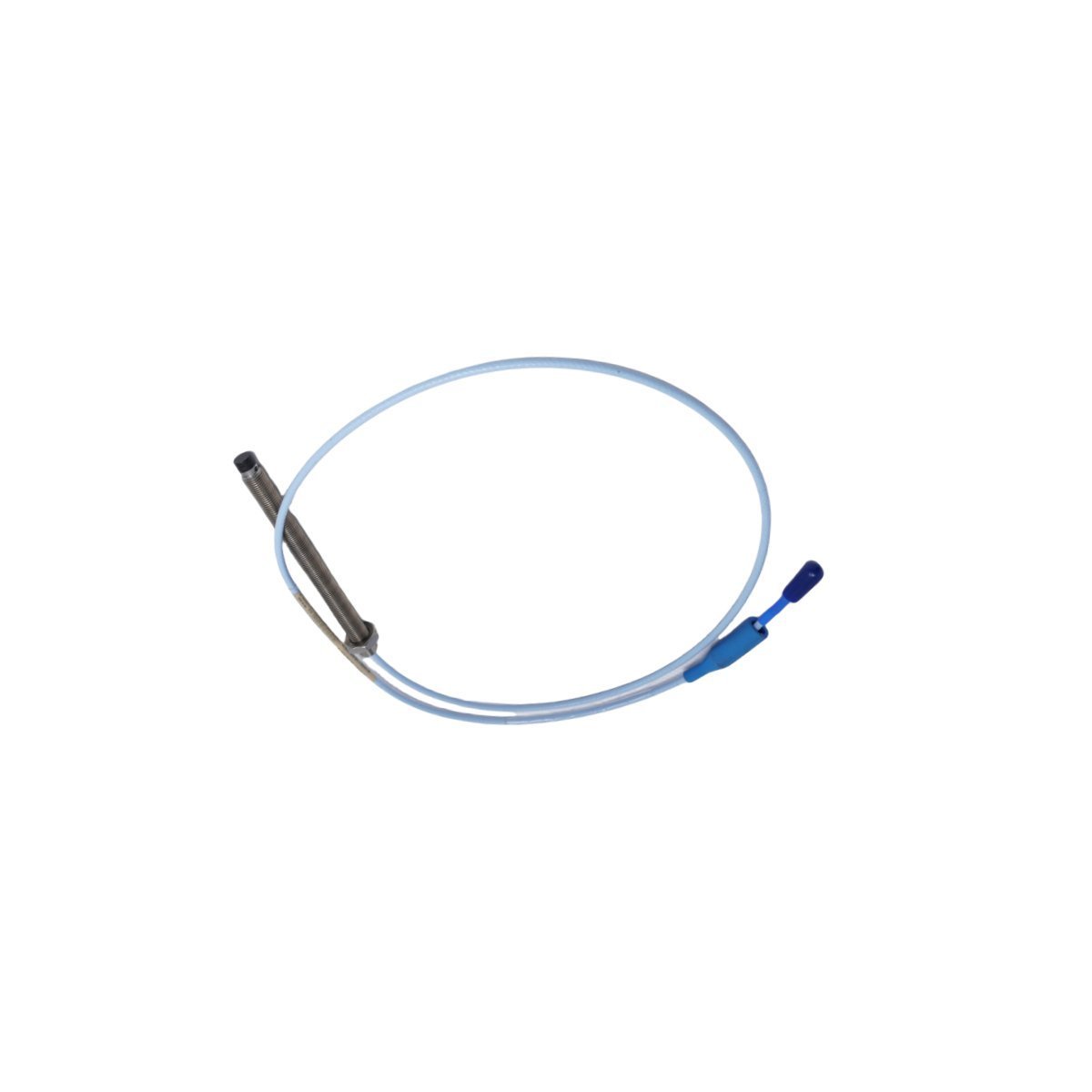

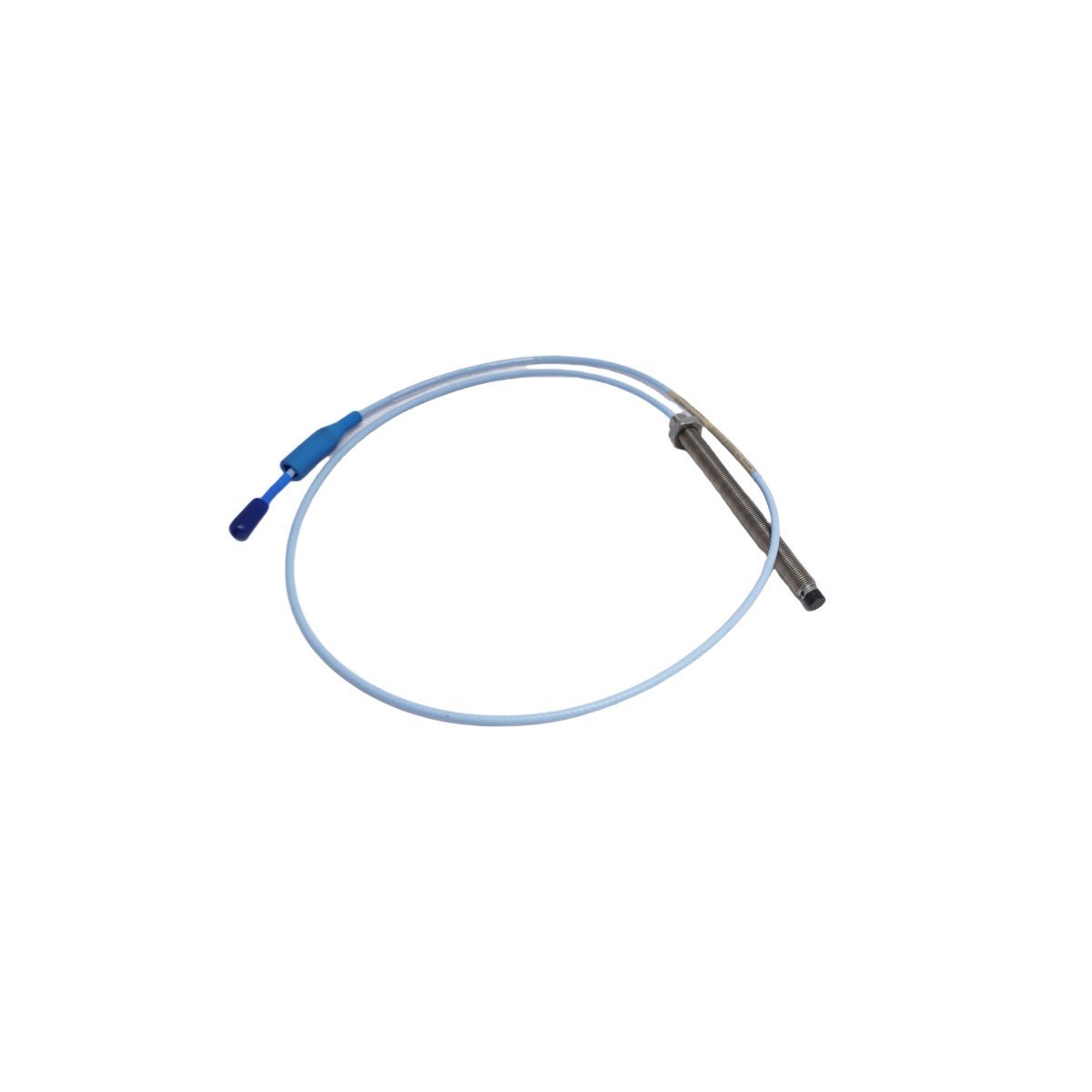

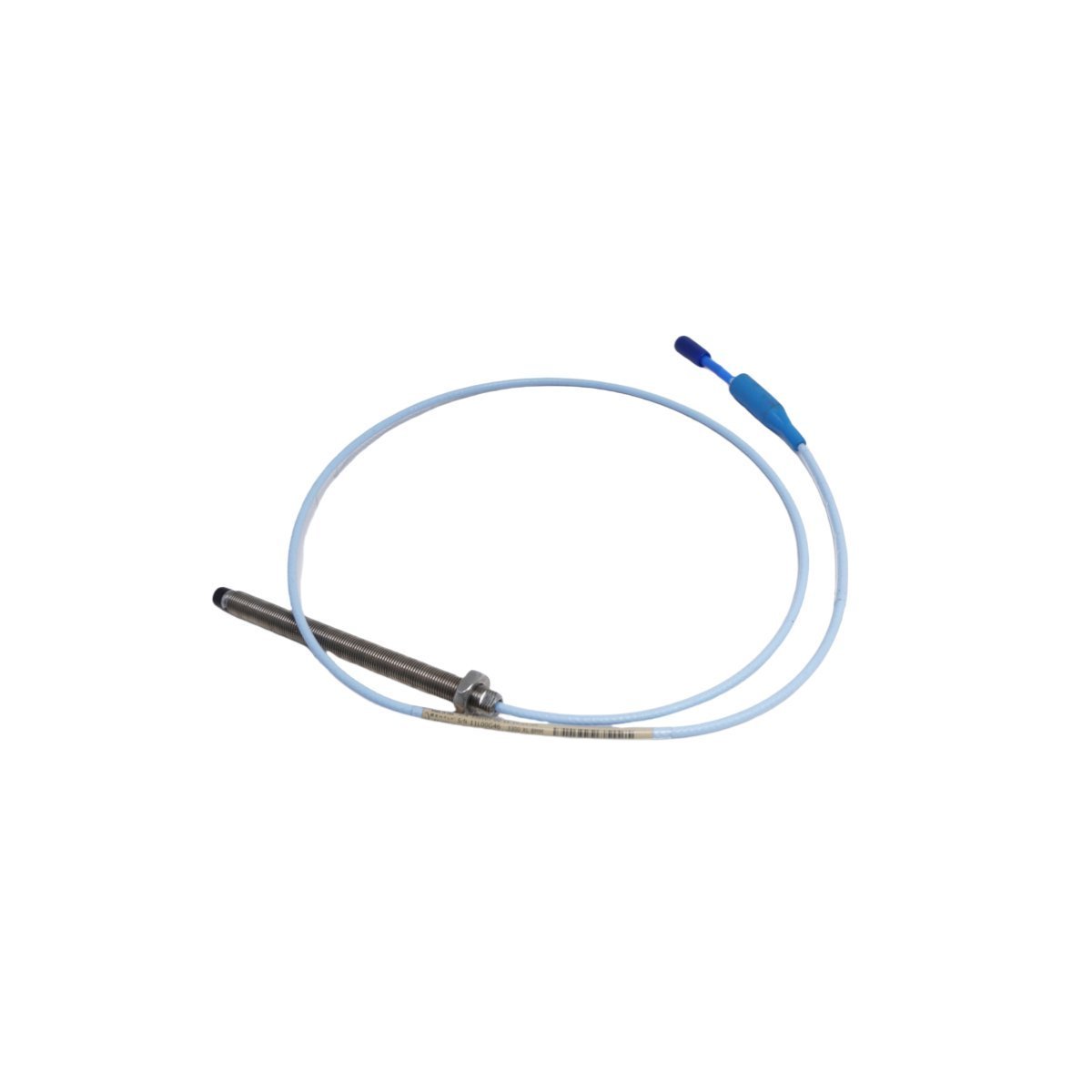

The Bently Nevada 330103-00-12-10-12-00 is an 8 mm proximity probe from the 3300 XL series. It features a permanently attached 1.0-meter FluidLoc® cable and an M10 × 1.0 thread. This probe delivers accurate, non-contact measurement of shaft displacement or vibration in rotating equipment.
It must be paired with a compatible 3300 XL 8 mm Proximitor® (e.g., 3300/05-XX-XX) to form a complete transducer system. The 8 mm probe offers a standard linear range of 2.0 mm (80 mils), making it suitable for general-purpose machinery monitoring where space is limited.
Key Technical Specifications
- Model Number: 330103-00-12-10-12-00
- Product Type: 3300 XL 8 mm Proximity Probe with 1.0 m FluidLoc® cable
- Manufacturer: Bently Nevada (a Baker Hughes company)
- Active Tip Diameter: 8 mm
- Thread Size: M10 × 1.0 (standard for this model)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0–2.0 mm (0–80 mils)
- Cable Type: FluidLoc® (oil-resistant, prevents fluid migration)
- Cable Length: 1.0 meter, unarmored, integrated
- Connector: Gold-plated brass ClickLoc® with positive lock
- Case Length: Minimum 120 mm
- Operating Temperature: –51°C to +177°C (probe tip); –40°C to +85°C (cable)
- EMI/RFI Immunity: High—compatible with fiberglass enclosures
- Compliance: CE, CSA, ATEX, IECEx (in certified system configurations)
- API Compliance: Meets API 670 for machinery protection
- Weight: 0.06 kg
- Packaged Dimensions: Approx. 115 × 20 × 15 mm
- Country of Origin: USA
- Status: Active product
- Minimum Order Quantity: 1
- HS Code: 8537101190
Typical Applications
This probe is widely used in pumps, motors, gearboxes, and small turbines. Its compact size allows installation in tight spaces. The FluidLoc® cable enhances reliability in lubricated or humid environments by preventing oil wicking into connectors.
Because of its strong noise immunity, the probe supports simplified installation in non-metallic junction boxes. This reduces material and labor costs without compromising signal integrity.
