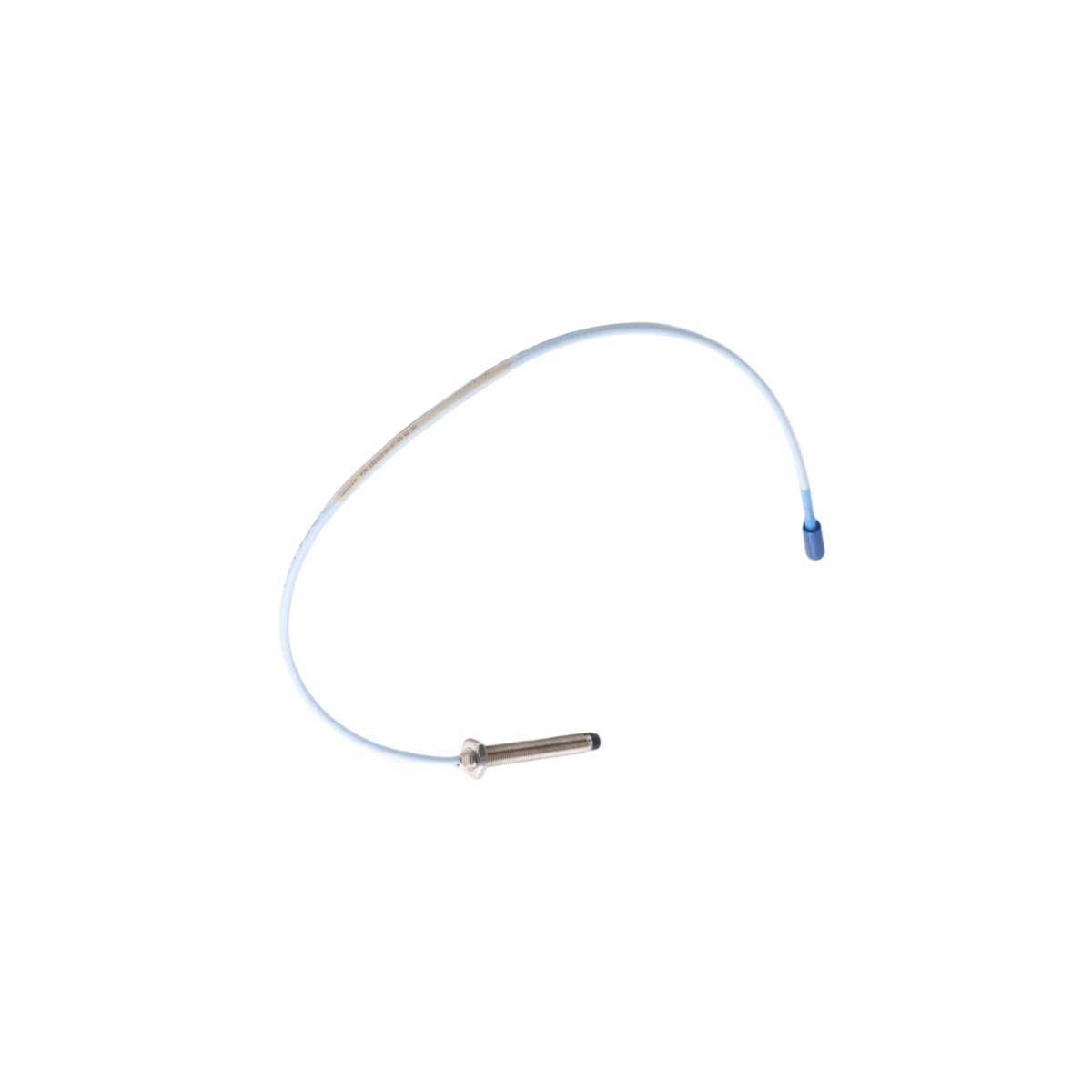

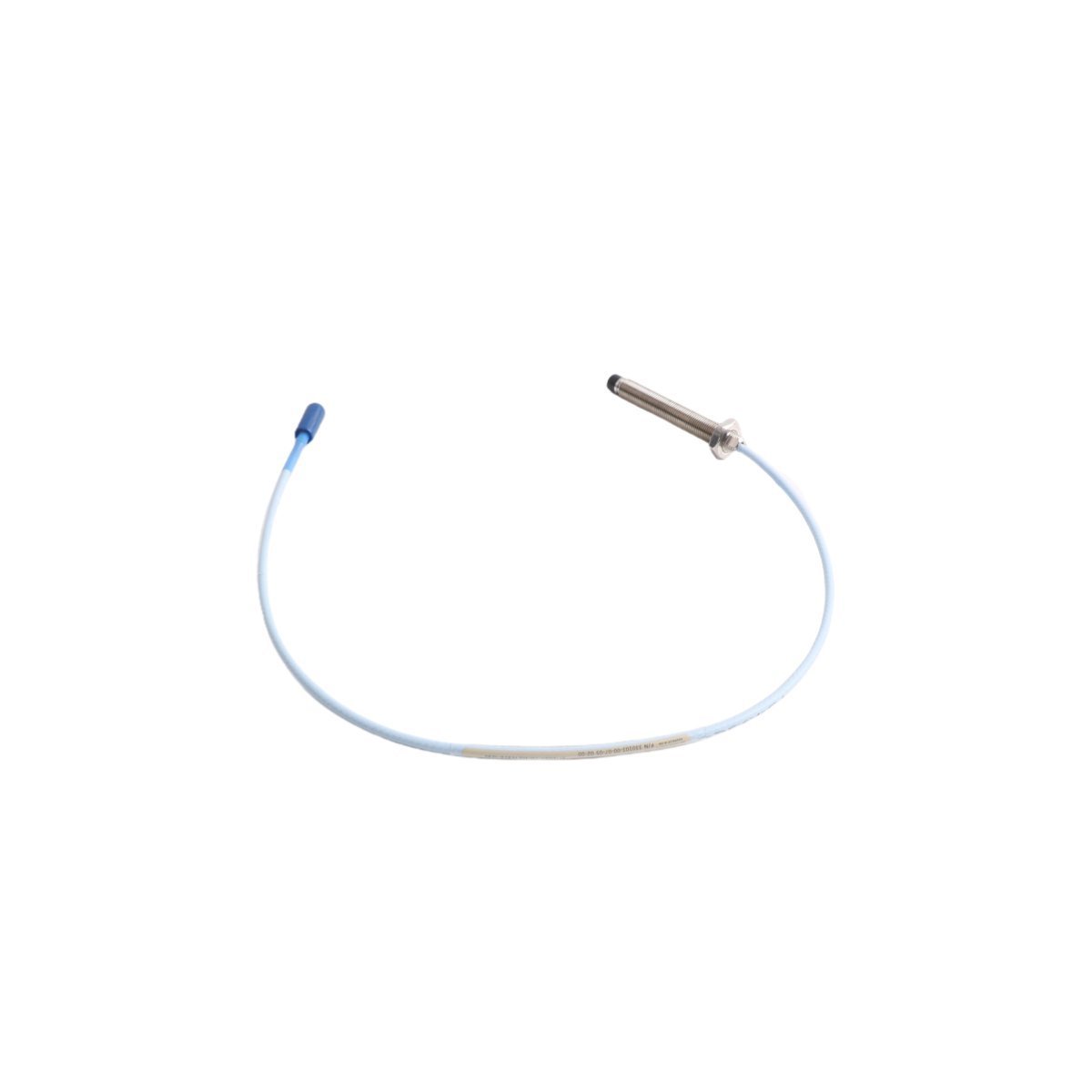

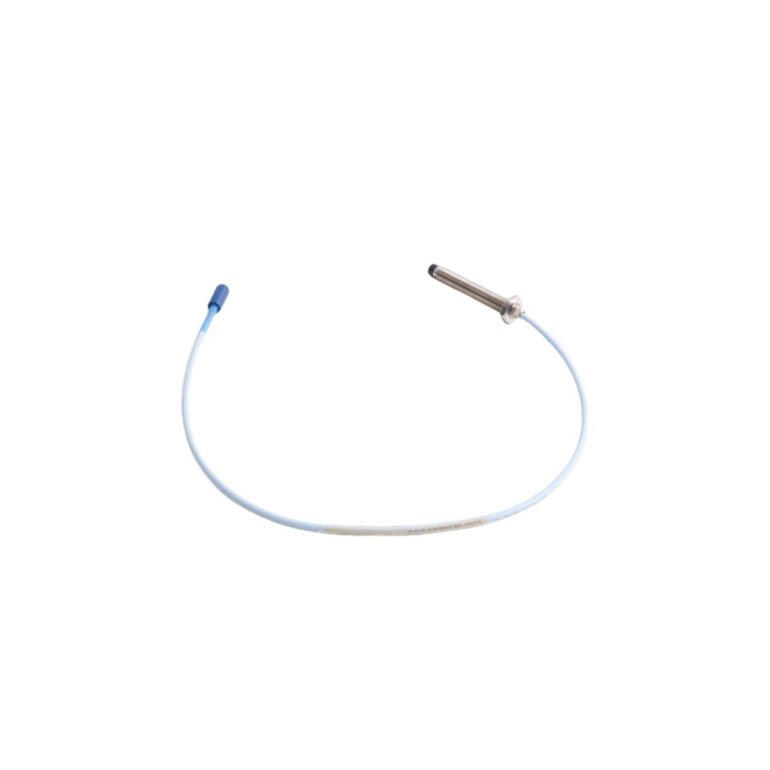

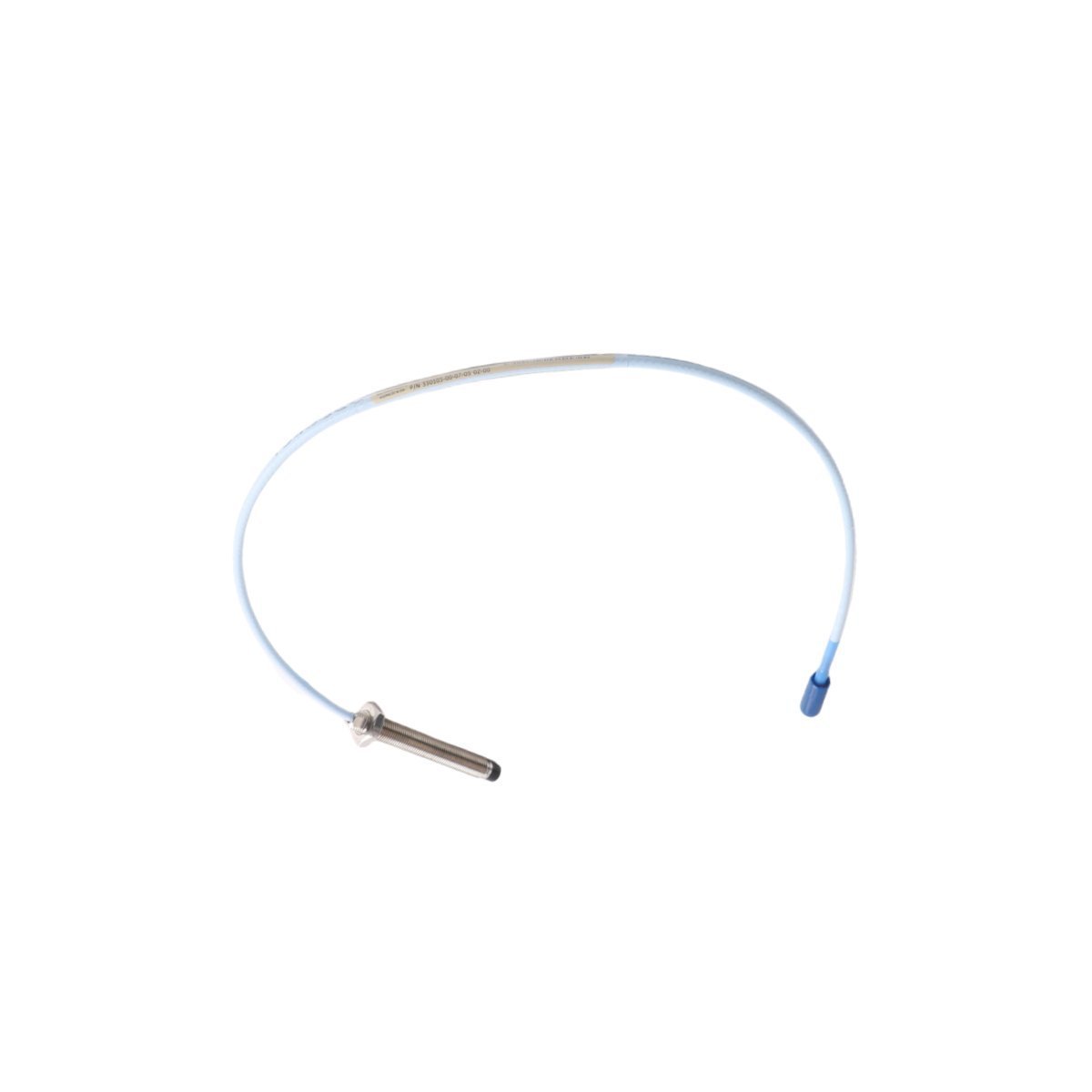

The Bently Nevada 330103-00-07-05-02-00 is a high-performance eddy current sensor belonging to the 3300 XL 8mm series. Primarily, this proximity probe facilitates non-contacting measurements of shaft vibration and axial position in critical rotating machinery. By providing high-resolution displacement data, it serves as a fundamental component for machinery protection and condition monitoring systems. Consequently, it is a standard choice for ensuring the operational safety of large-scale industrial assets.
Technical Precision and Signal Integrity
Technically, this probe is engineered to deliver exceptional linearity and thermal stability. First, the 8mm tip diameter provides a standard linear range suitable for most turbine and compressor applications. Additionally, the system effectively minimizes the impact of moisture and oil contamination on signal accuracy. Because the probe follows strict calibration standards, it provides a consistent voltage output proportional to the distance from the target. This reliability allows operators to detect subtle mechanical changes before they develop into catastrophic failures.
Detailed Configuration and Specifications
The 330103-00-07-05-02-00 model is defined by the following mechanical and electrical parameters:
- Probe Tip Diameter: 8mm
- Thread Type: M10 x 1 (Metric thread)
- Unthreaded Length: 0 mm (Option 00)
- Overall Case Length: 70 mm (Option 07)
- Total Cable Length: 0.5 meters / 1.6 feet (Option 05)
- Connector Option: Miniature coaxial ClickLoc connector with connector protector (Option 02)
- Agency Approval: Standard industrial certifications (Option 00)
- Frequency Response: 0 Hz to 10 kHz
Industrial Durability and Asset Protection
Because industrial environments are notoriously harsh, the 330103-00-07-05-02-00 features a ruggedized construction. For instance, the probe body is sealed against high-pressure fluids and steam. Furthermore, the integration with the Bently Nevada 3500 monitoring system enables real-time alarming and emergency machine tripping. This proactive monitoring capability protects turbines, pumps, and motors from excessive wear or rotor-to-stator contact. Thus, the system effectively extends the lifespan of critical production equipment.
