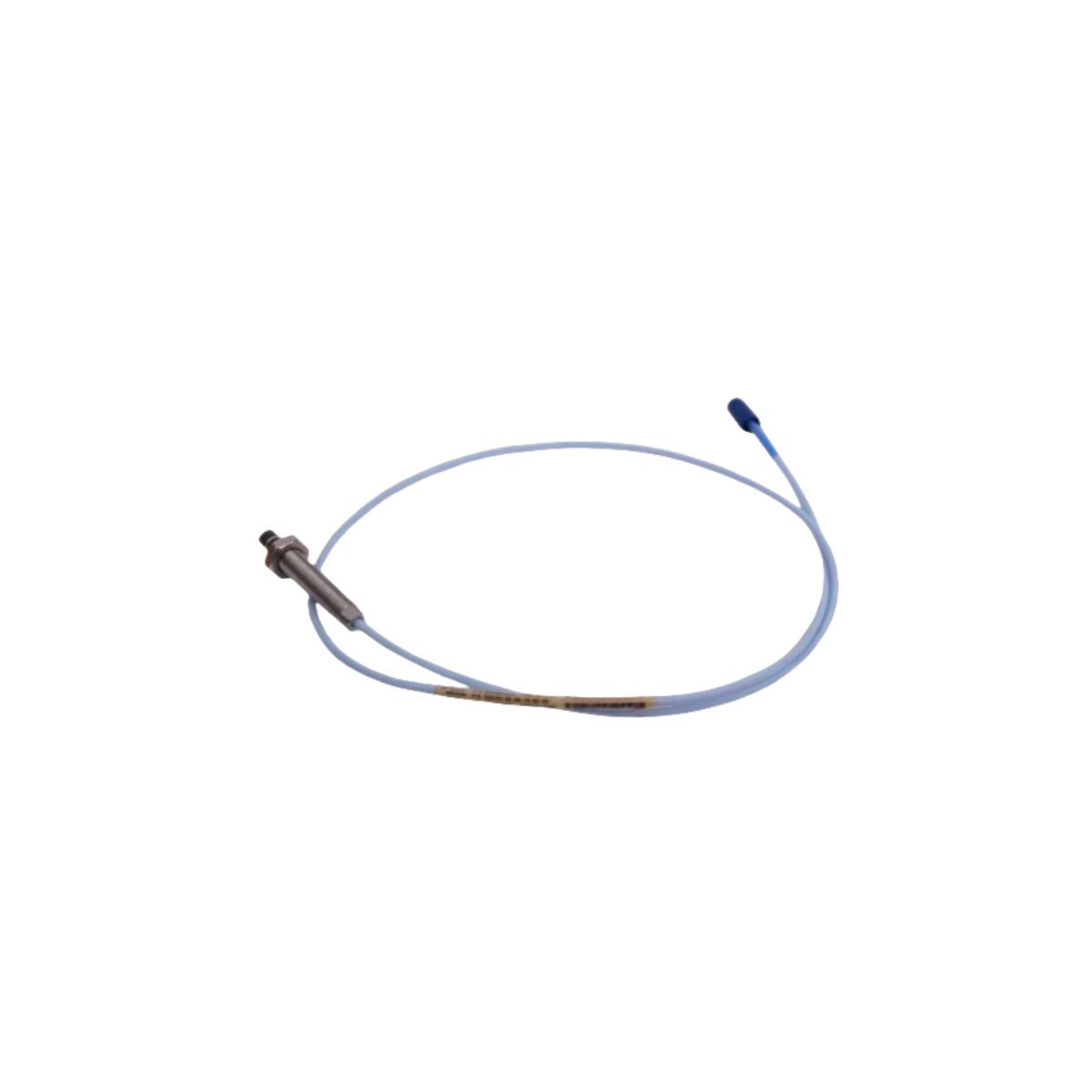

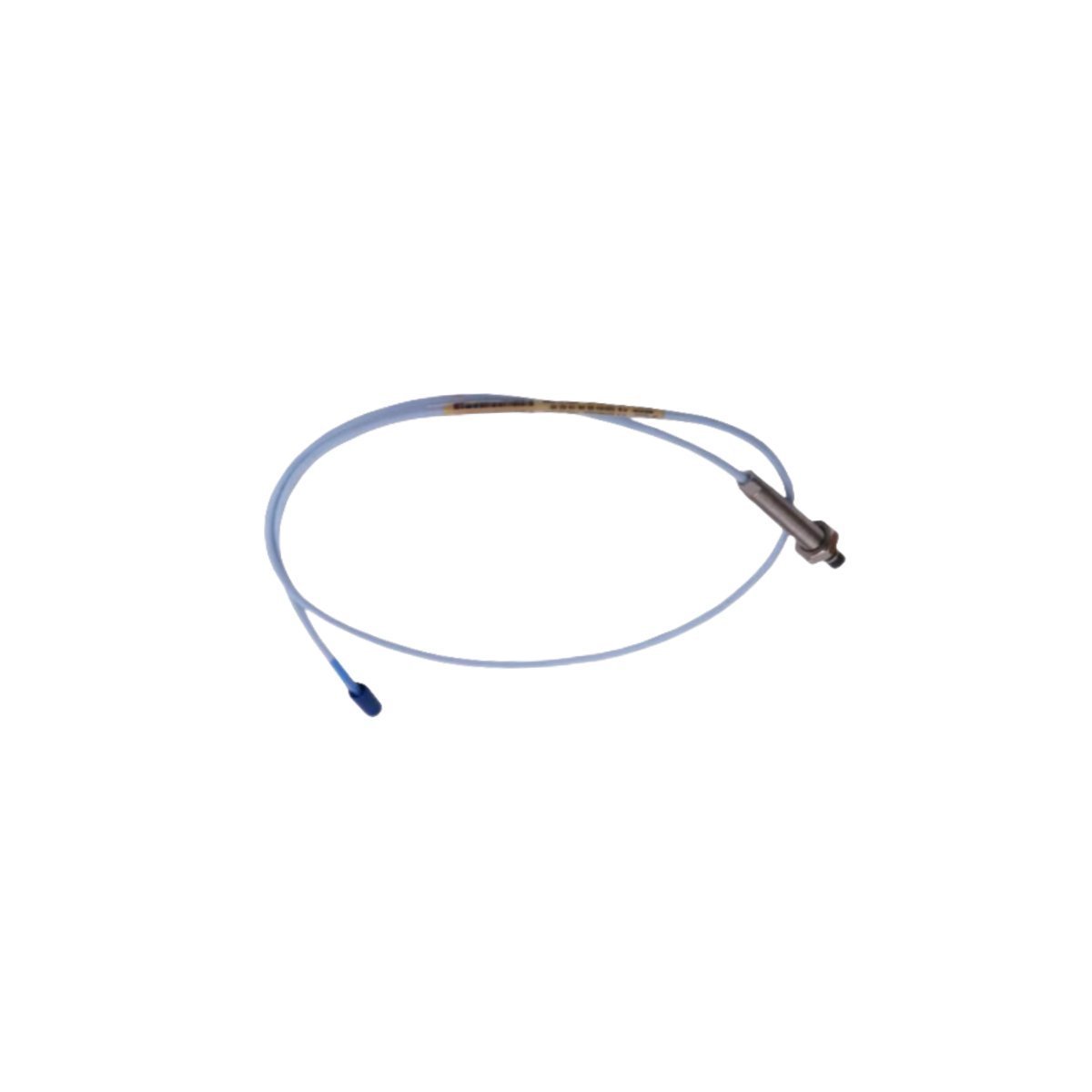

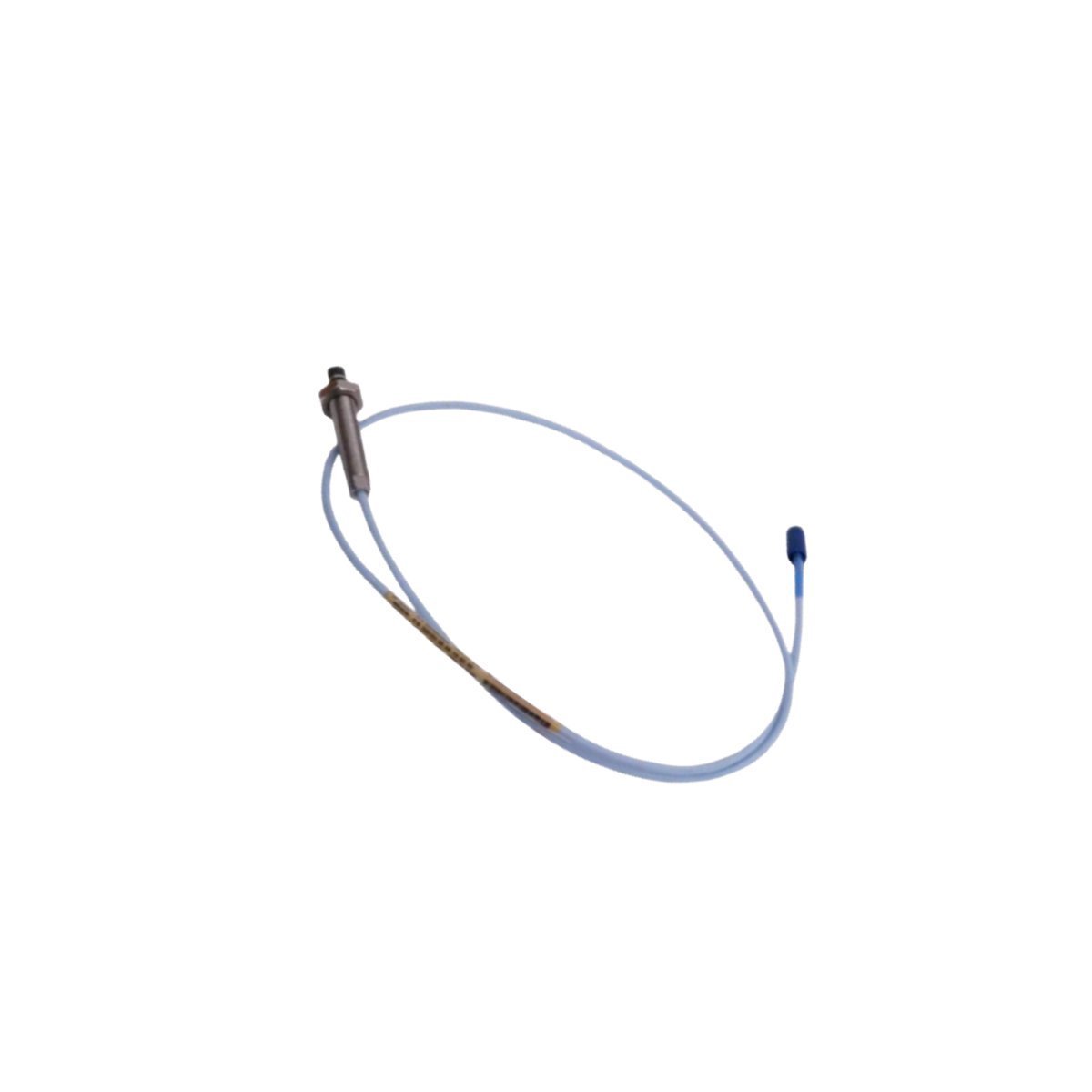

The Bently Nevada 330103-00-04-15-02-CN serves as a critical sensing element within the 3300 XL 8mm Proximity Transducer System. This eddy current sensor measures the physical distance between the probe tip and a conductive target material, typically a machine shaft. By providing a continuous voltage signal proportional to this distance, the transducer allows for the precise monitoring of radial vibration and axial position. The inclusion of the CN suffix indicates compliance with specific regional standards, ensuring the unit meets necessary regulatory requirements for industrial deployment.
Technical Architecture and Durability
The engineering of the 330103-00-04-15-02-CN focuses on long-term stability and signal integrity. The probe utilizes a specialized polyphenylene sulfide (PPS) tip that is molded over the internal sensing coil, creating a hermetic seal against fluid ingress. Consequently, the sensor performs reliably when submerged in lubrication oil or exposed to high-pressure environments. Furthermore, the gold-plated ClickLoc connectors provide a secure, vibration-resistant link to the extension cable, which prevents signal attenuation and ensures consistent data transmission to the monitoring rack.
Product Specifications
- Manufacturer: Bently Nevada
- Model Number: 330103-00-04-15-02-CN
- System Series: 3300 XL 8mm
- Thread Type: M10 x 1 Metric Thread
- Unthreaded Length: 0 mm
- Case Length: 40 mm
- Total Length: 1.5 meters (4.9 feet)
- Connector Type: Miniature coaxial ClickLoc with connector protector
- Compliance: CN (Certified for specific regional standards)
- Hazardous Area Approvals: Multiple options available depending on system configuration
