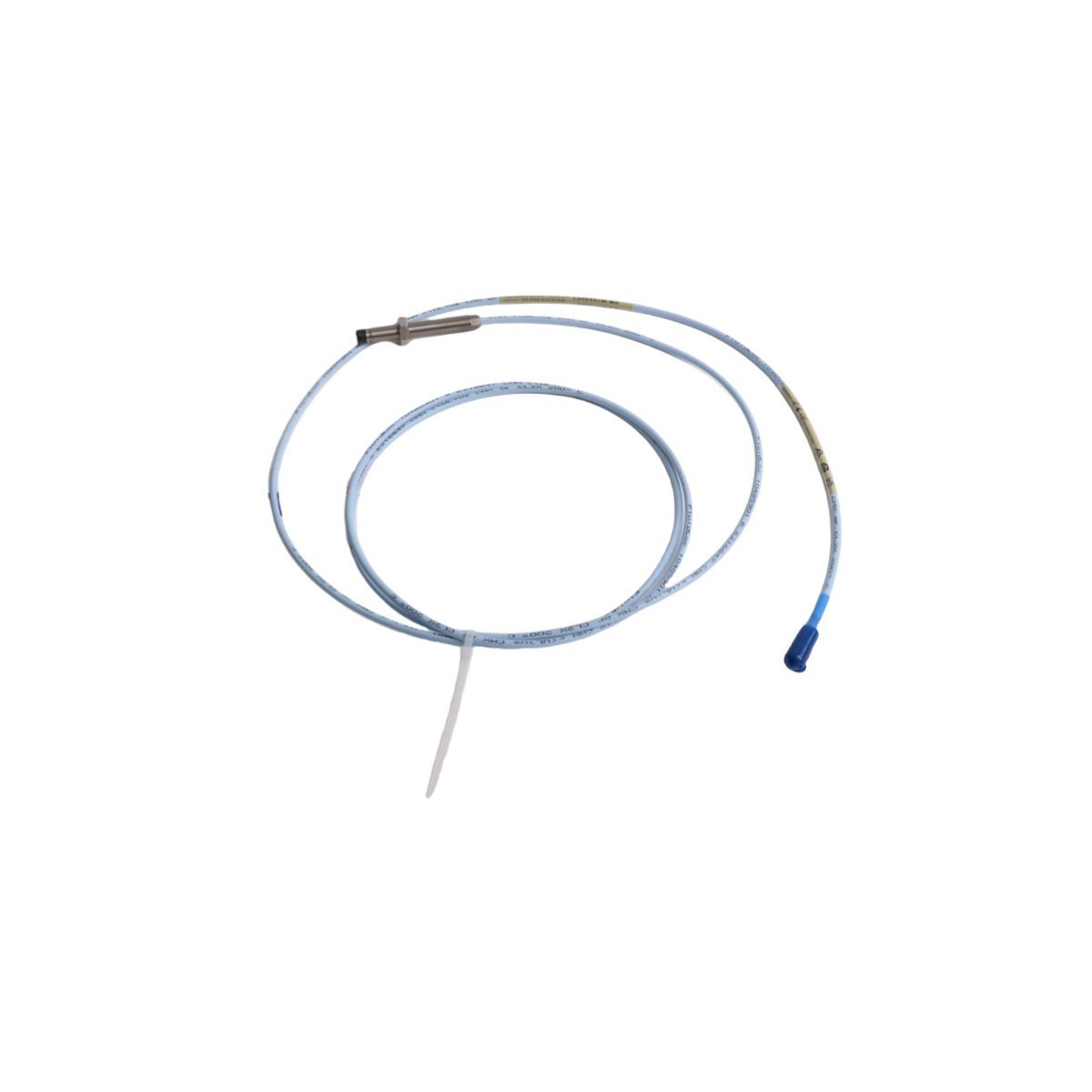

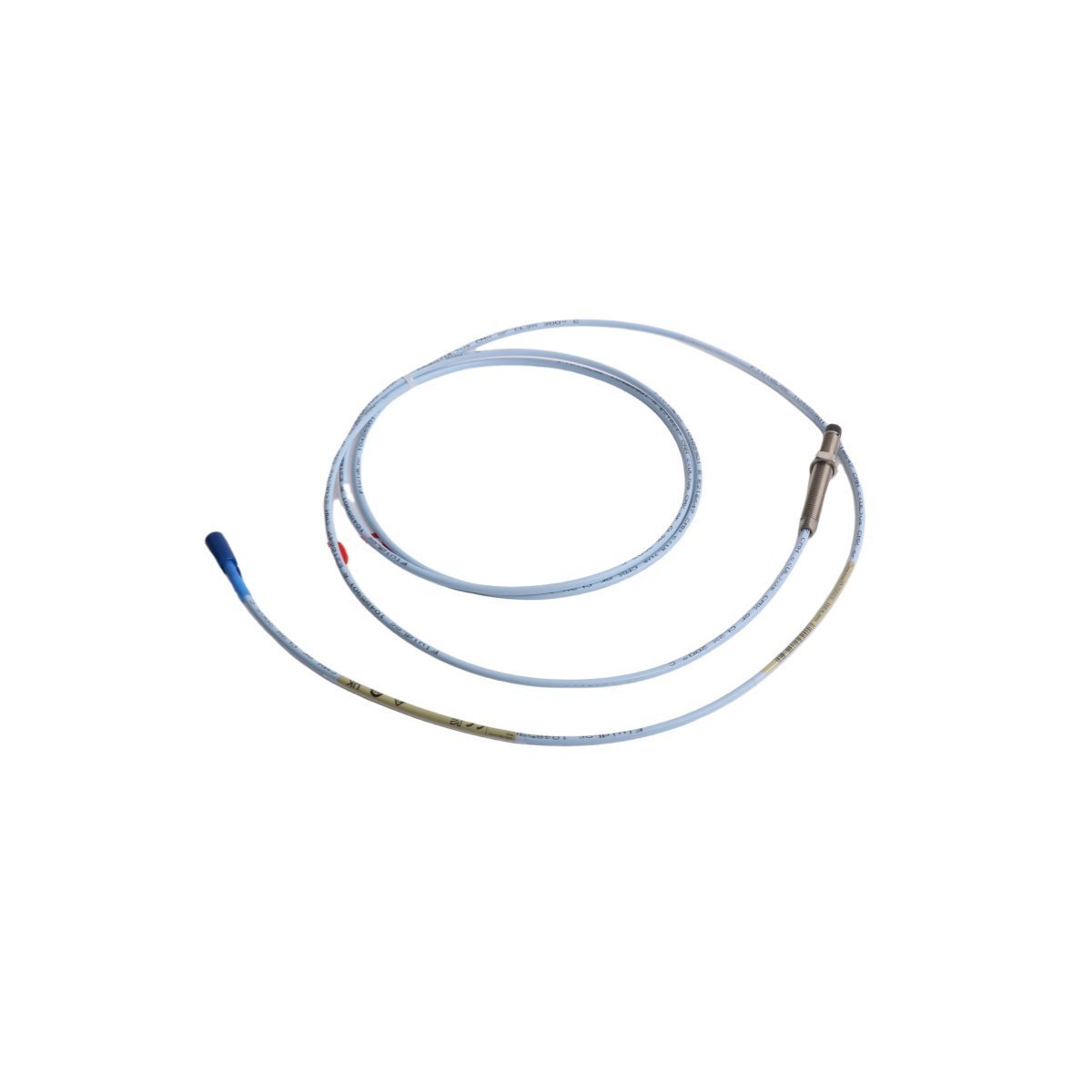

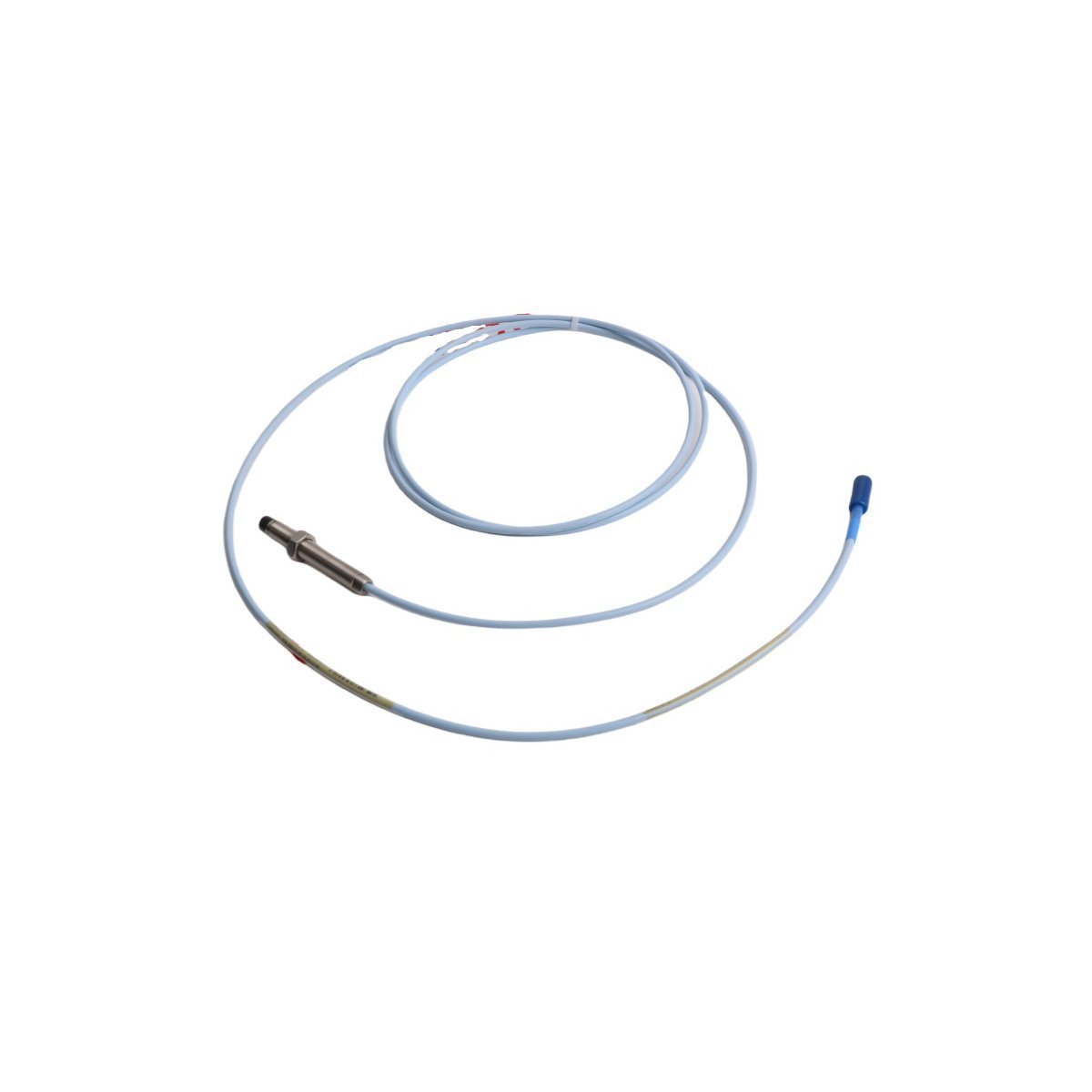

The Bently Nevada 330101-00-24-15-02-05 belongs to the advanced 3300 XL series. This 8 mm eddy current proximity probe enables non-contact displacement monitoring. It primarily tracks radial vibration and axial shaft position in rotating machinery. The sensor provides a linear voltage output proportional to the gap distance. This data allows operators to detect mechanical wear before catastrophic failures occur.
Technical Configuration Details
- Part Number 330101-00-24-15-02-05
- Thread Type 3/8-24 UNF standard threads
- Unthreaded Length 0.0 inches (fully threaded)
- Overall Case Length 2.4 inches
- Total Length 1.5 meters (4.9 feet)
- Connector Option Miniature coaxial ClickLoc connector
- Agency Approval Multiple certifications (ATEX, IECEx, CSA)
Core Functional Characteristics
This probe offers exceptional thermal stability across varying industrial temperatures. The 3300 XL system minimizes measurement drift during long-term operation. Furthermore, the 3/8-24 UNF housing ensures a rugged physical installation. The integrated ClickLoc connector prevents accidental disconnects in high-vibration zones. Additionally, the probe remains compatible with 3300 XL Proximitor sensors and extension cables.
Hardware Compatibility and Standards
Engineers designed this system to meet API 670 requirements for machinery protection. Consequently, it integrates seamlessly into Bently Nevada 3500 monitoring racks. The sensor supports diverse mounting options for DIN-rail or panel configurations. Moreover, the probe tip features polyphenylene sulfide (PPS) for chemical resistance. This material protects the internal coil from harsh industrial lubricants.
