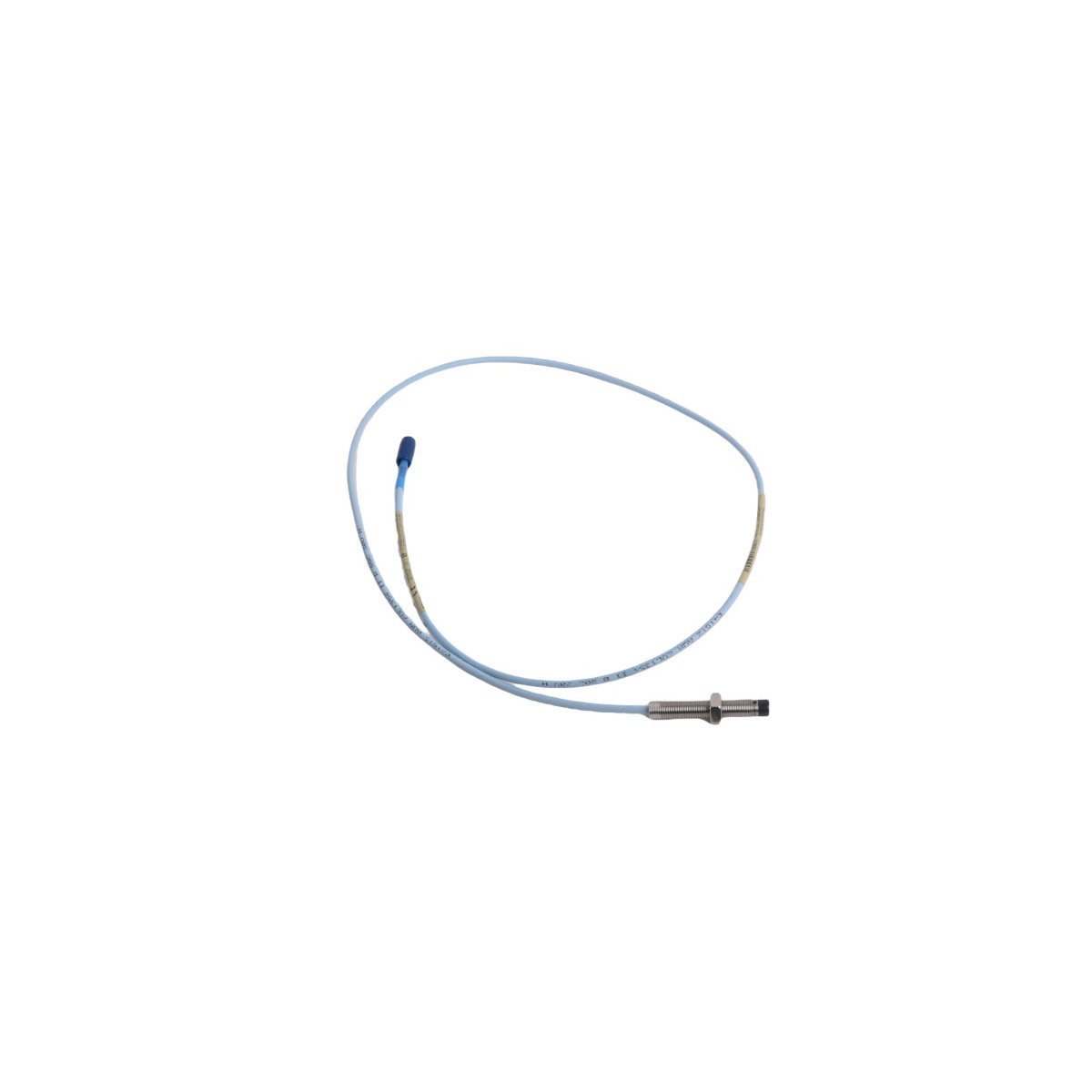

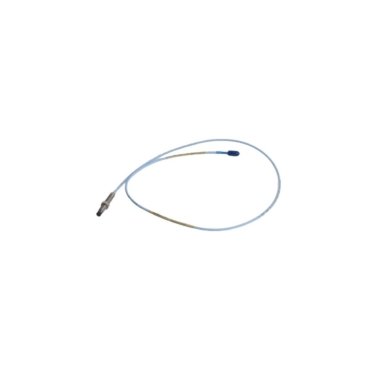

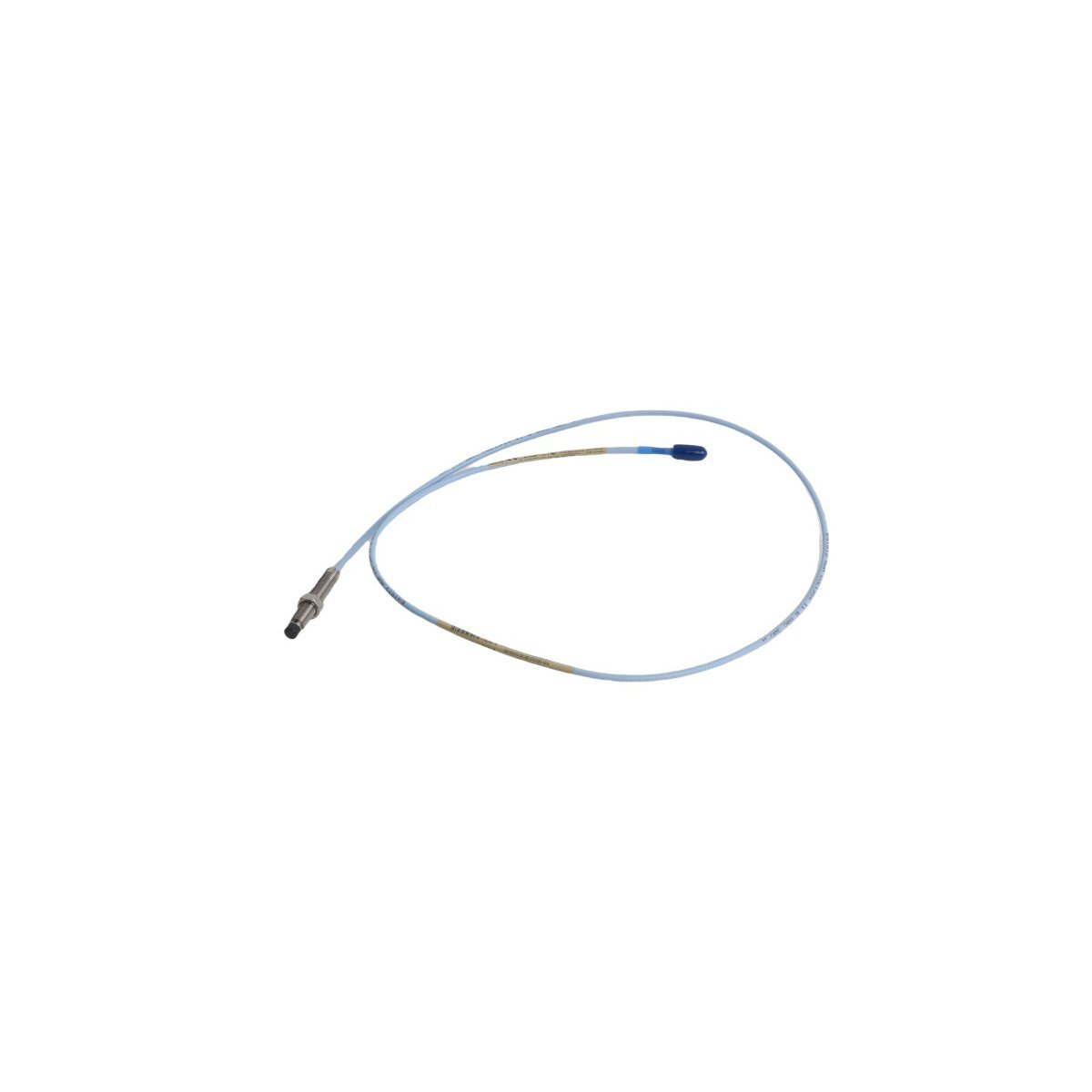

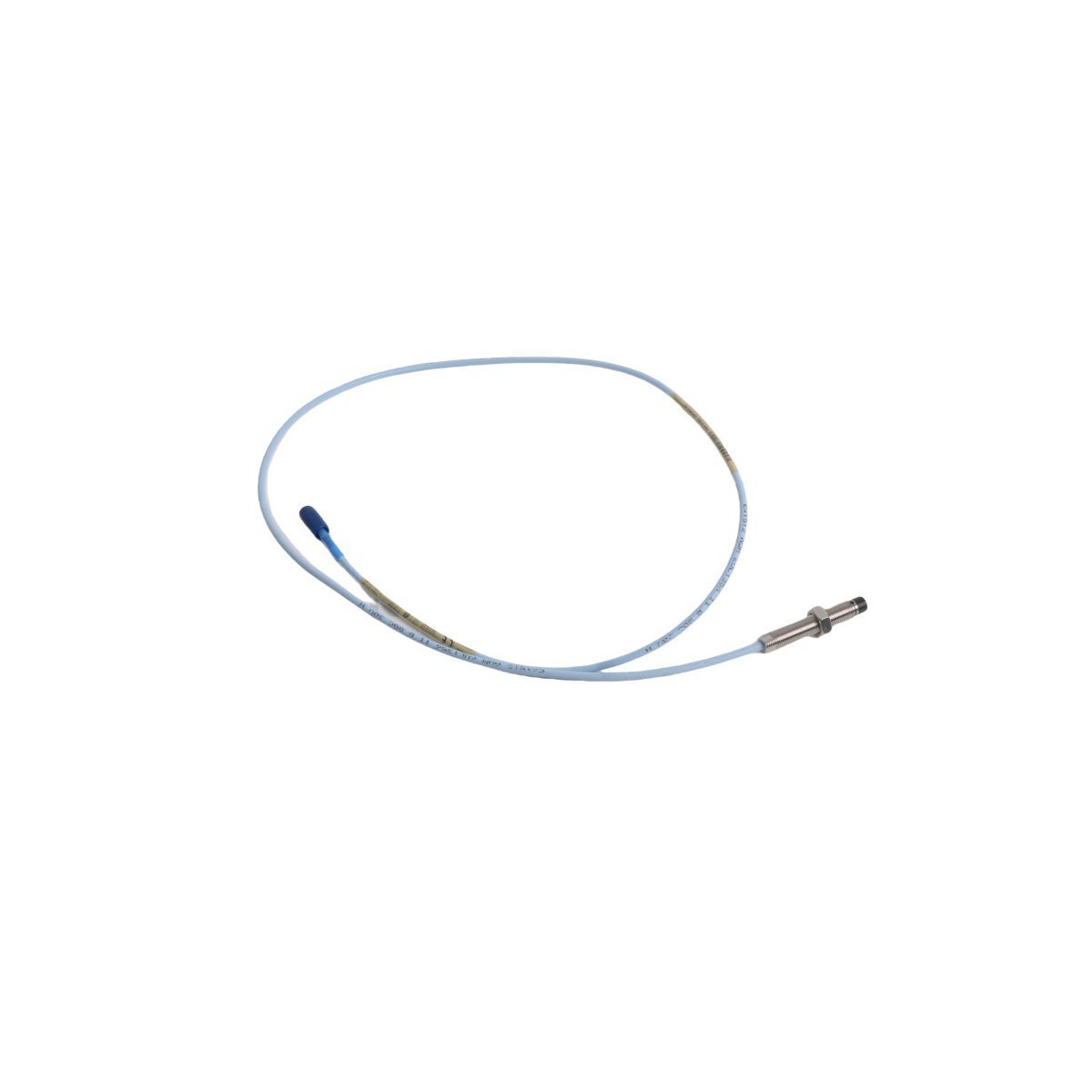

Bently Nevada 330101-00-20-10-02-05 Proximity Probe

The Bently Nevada 330101-00-20-10-02-05 is a high-precision eddy current sensor engineered for the 3300 XL monitoring series. Primarily, this proximity probe facilitates non-contacting displacement measurements between the sensor tip and a target shaft. By providing accurate data on vibration and axial position, it serves as a critical component in machinery protection systems. Consequently, this transducer is essential for maintaining the mechanical integrity of high-speed rotating assets.

Advanced Sensing and Signal Stability

Technically, this 8mm probe is designed to deliver superior linearity and thermal stability across diverse operating ranges. First, the sensor captures dynamic motion with high sensitivity. Furthermore, the 3300 XL technology minimizes the impact of environmental noise on signal quality. Because the probe is built for industrial resilience, it maintains accuracy even in presence of lubricating oils and high-pressure fluids. This reliability allows maintenance teams to detect early signs of bearing wear or rotor imbalance.

Configuration and Technical Parameters

The 330101-00-20-10-02-05 model follows a specific mechanical configuration:

• Probe Tip Diameter: 8mm
• Thread Type: 3/8-24 UNF (standard imperial)
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 2.0 inches (Option 20)
• Total Cable Length: 1.0 meter / 3.3 feet (Option 10)
• Connector Option: Miniature coaxial ClickLoc connector with connector protector (Option 02)
• Agency Approval: Multiple approvals including ATEX, IECEx, and CSA (Option 05)
• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

Industrial Utility and Asset Protection

Because durability is a priority in the energy and manufacturing sectors, this probe features a PPS (polyphenylene sulfide) tip. For instance, it is a standard choice for monitoring steam turbines, centrifugal compressors, and industrial pumps. Moreover, the integration of the ClickLoc connector system prevents accidental signal interruption due to mechanical vibration. This secure coupling ensures that the 3500 series monitoring rack receives a steady signal for real-time safety interlocks.

Reliability in Harsh Environments

Regarding long-term service, the 330101-00-20-10-02-05 is built to exceed standard industrial specifications. Specifically, the gold-plated contacts within the connector housing eliminate electrical drift. Furthermore, the 2.0-inch case length provides a compact footprint for installation in congested bearing housings. In short, this proximity probe provides the precision and environmental resistance required to optimize plant-wide machinery health and reduce unplanned downtime.
