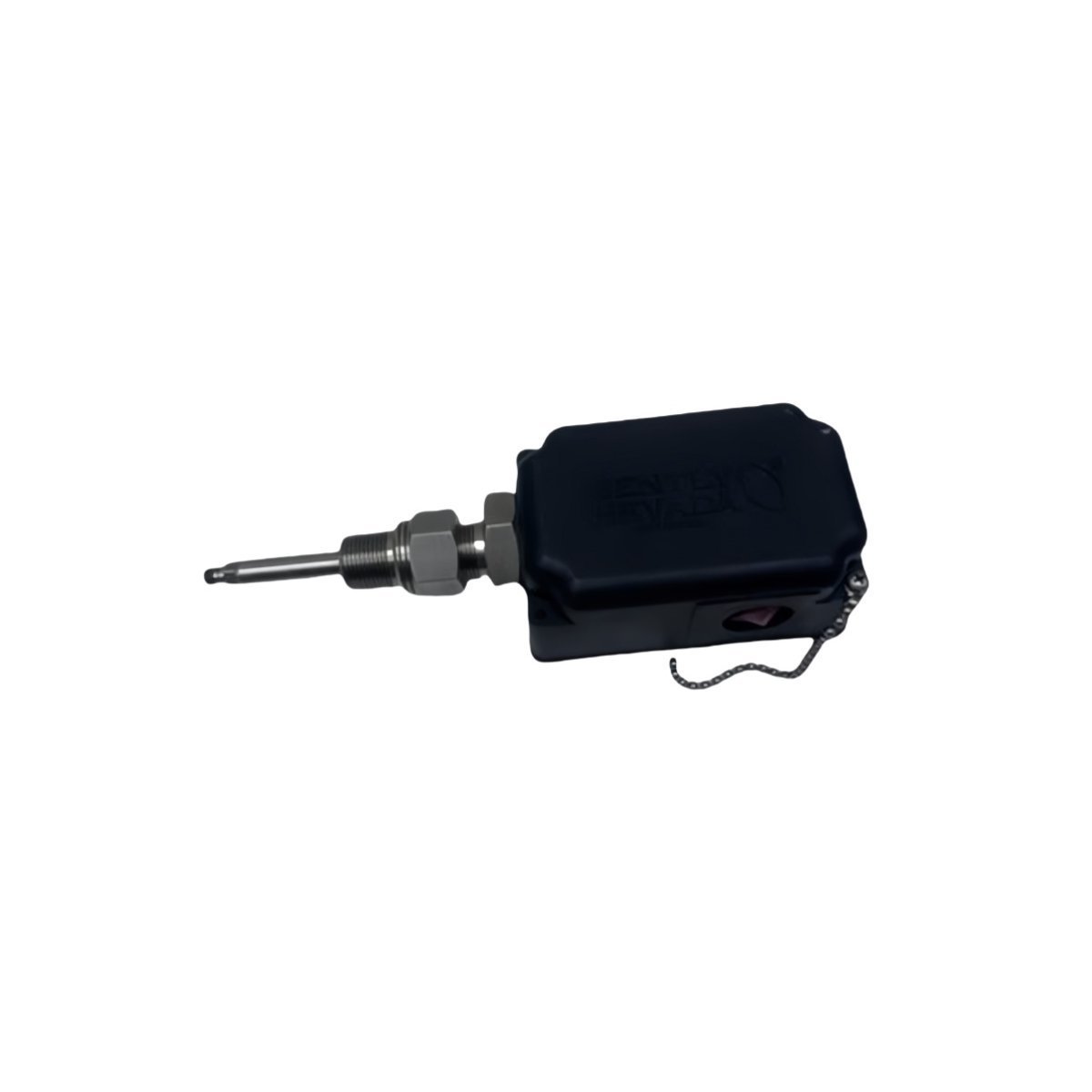

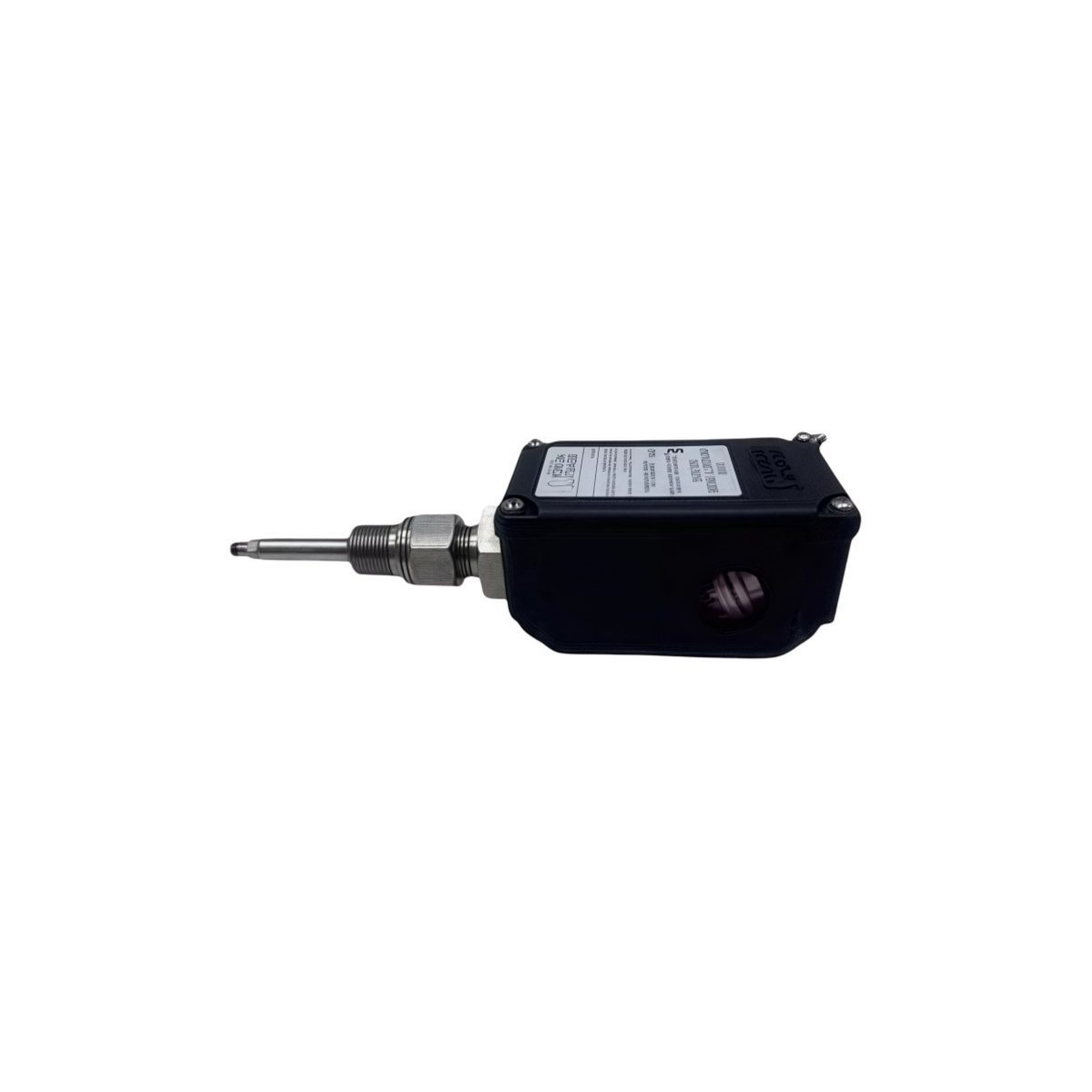

Bently Nevada 32000-29-05-10-075-07-02 Proximity Probe Housing

Overview

The 32000-29-05-10-075-07-02 is a high-performance Stainless Steel Proximity Probe Housing from Bently Nevada’s 32000 series. While the 21000 and 31000 series are typically aluminum, the 32000 series is engineered from 303 or 316 stainless steel to provide maximum corrosion resistance in highly aggressive environments, such as offshore platforms, chemical plants, and coastal cooling towers. This housing allows for the external adjustment of 5mm and 8mm proximity probes (e.g., 3300 XL) while maintaining a certified explosion-proof seal, ensuring critical vibration data is captured without compromising site safety.

Detailed Specifications (Parsed Code)

The configuration for part number 32000-29-05-10-075-07-02 is as follows:

Operational Capabilities

The 32000-29-05-10-075-07-02 provides an IP66/NEMA 4X rated enclosure that is impervious to saltwater spray and most industrial chemicals. The 7.5-inch total length provides a compact yet sufficient reach for standard bearing pedestals. By utilizing the stainless steel construction, this housing prevents the “galling” or oxidation issues sometimes found with aluminum in high-humidity or high-sulfur environments. It features a specialized sleeve that allows maintenance personnel to precisely set the probe gap (voltage standoff) using a voltmeter at the Proximitor® sensor while the housing remains securely mounted.

Technical FAQ

Why choose the 32000 series over the 31000 series?

The primary reason is Material Durability. If your application is in a highly corrosive environment (offshore, salt air, or acidic processing), the 32000 series (Stainless Steel) will significantly outlast the 31000 series (Aluminum), which can corrode or pit over time.

Is this housing compatible with the 3300 XL 8mm probe?

Yes. The -29 option indicates a 3/8-24 UNF thread, which is the standard mounting thread for Bently Nevada 8mm and 5mm proximity probes.
