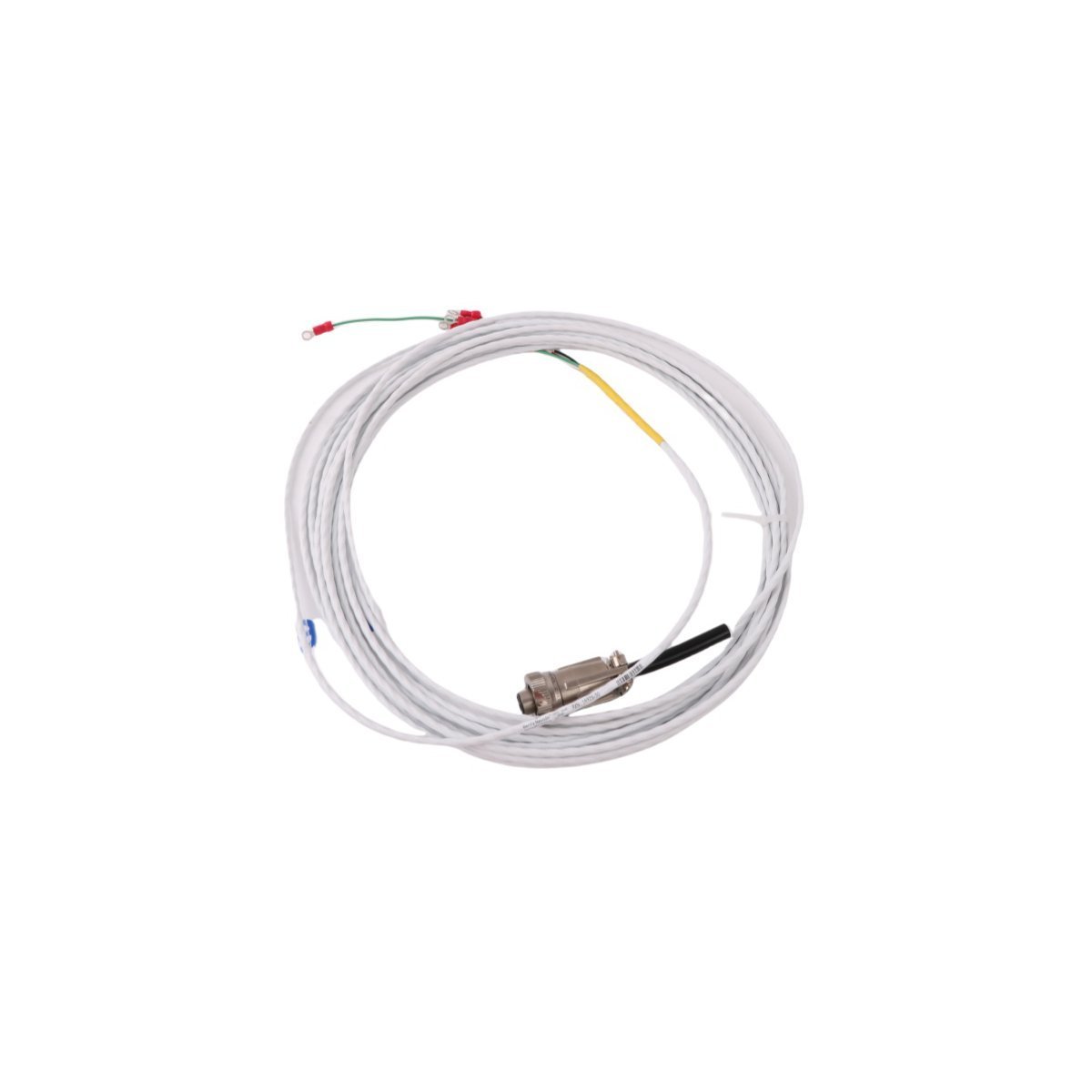

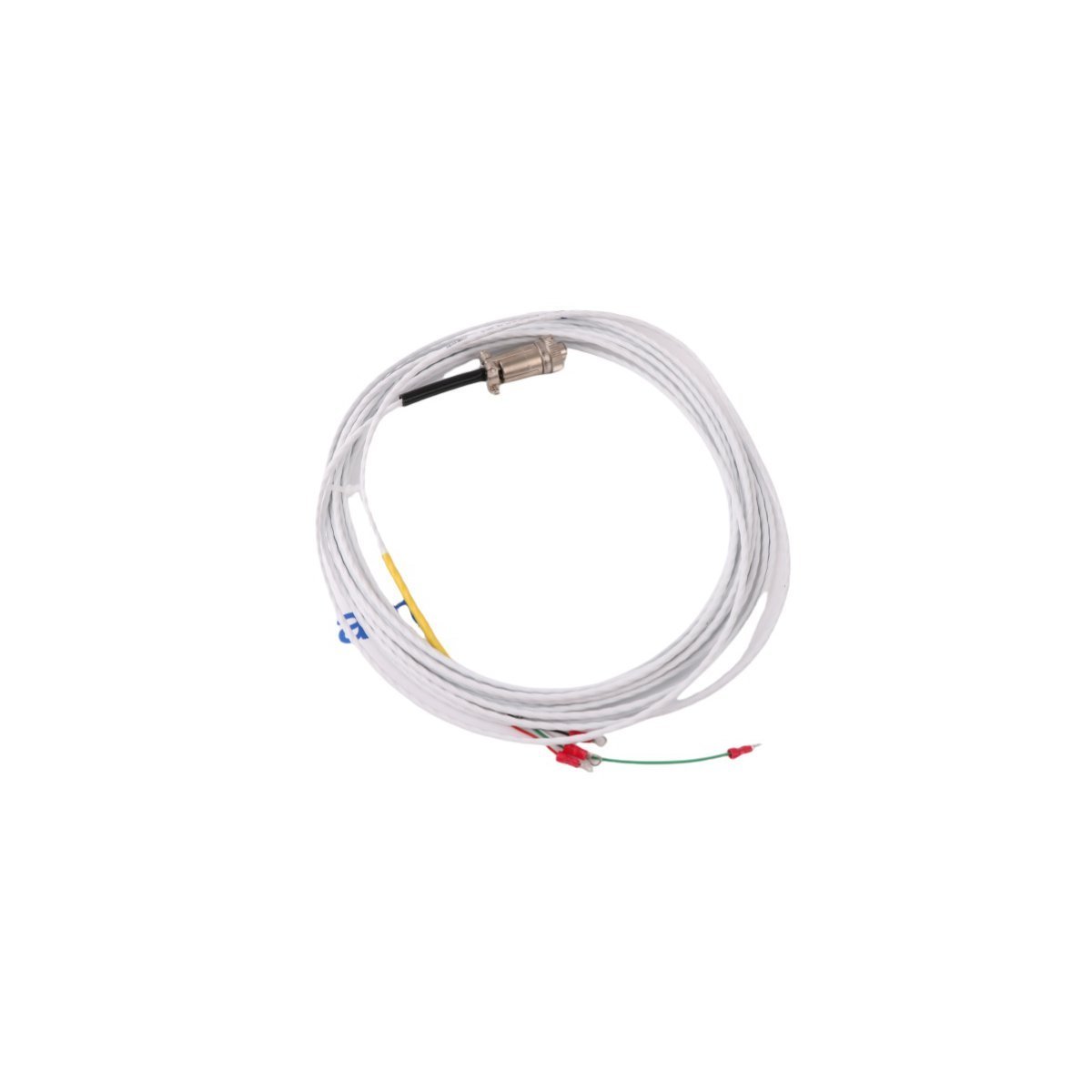

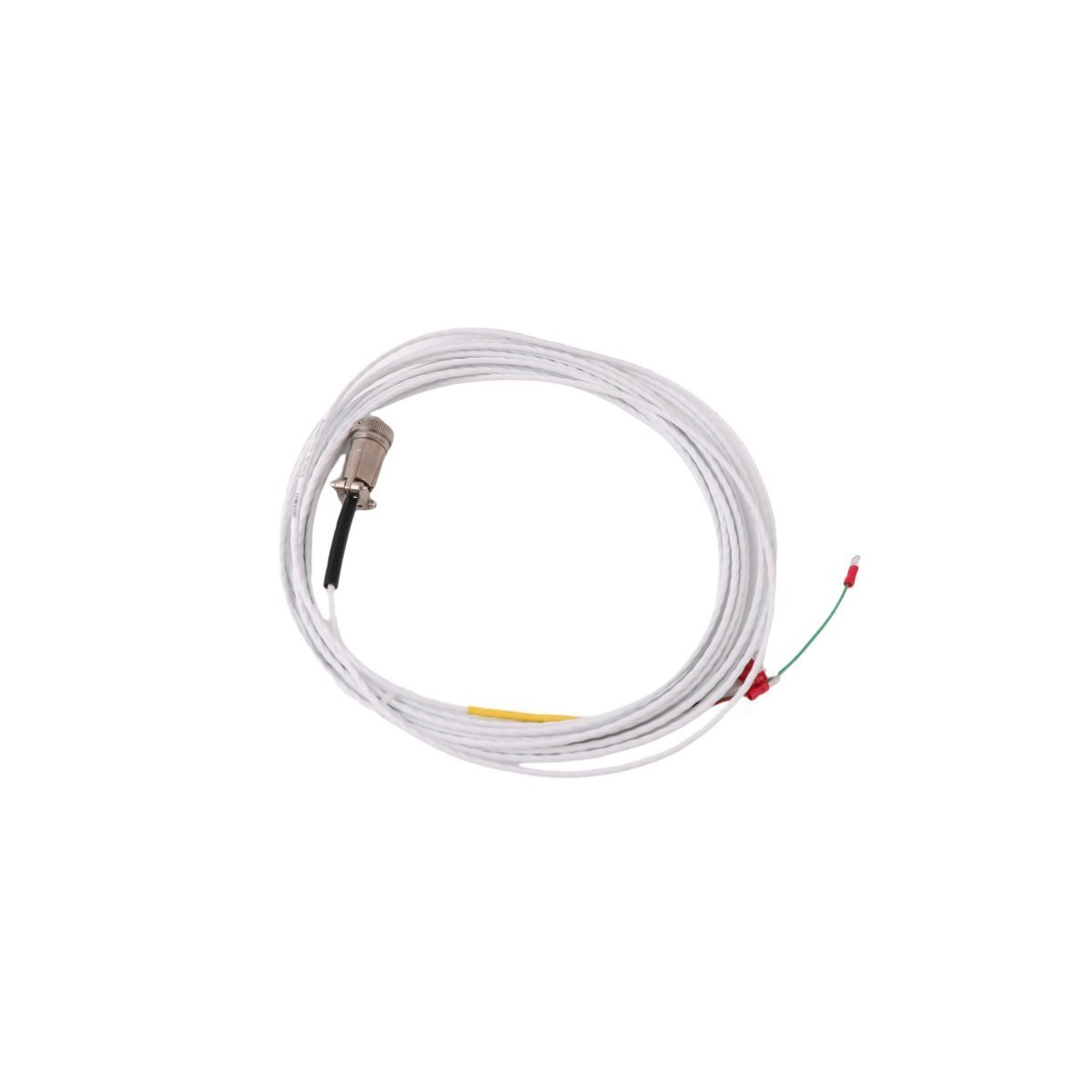

The Bently Nevada 16925-35 is a factory-original interconnect cable used to link the 3500/60 or 3500/62 Tachometer Input modules with their respective front-panel terminal blocks in the 3500 rack system. This cable ensures reliable signal transmission between the module and external speed sensors or keyphasor inputs.
It is not a standalone monitoring system, as incorrectly stated in the source text. Instead, it functions as a critical internal wiring component within Bently Nevada’s 3500 machinery protection system. The cable features a keyed connector design to prevent mis-mating and supports secure, low-noise analog signal routing.
Key Technical Specifications
- Model Number: 16925-35
- Product Type: Interconnect Cable (Module-to-Terminal Block)
- Compatible Modules: 3500/60 (Tachometer Input), 3500/62 (Dual Tachometer Input)
- Manufacturer: Bently Nevada (a Baker Hughes company)
- Cable Length: Approximately 35 cm (standard for rack-mounted interconnects)
- Connector Type: Dual-row, gold-plated, polarized headers
- Wire Gauge: Typically 24–26 AWG, shielded twisted pairs
- Shielding: Foil + braid for EMI/RFI immunity
- Operating Temperature: –40°C to +85°C
- Weight: 0.2 kg
- Packaged Dimensions: ～112 × 15 × 12 mm
- Country of Origin: USA
- Status: Active product
- Minimum Order Quantity: 1
- HS Code: 8537101190
Typical Applications
This interconnect cable is used exclusively inside Bently Nevada 3500 racks. It connects tachometer input modules to their dedicated terminal blocks (e.g., 3500/15 or 3500/25). Technicians install it during initial rack assembly or module replacement. Its robust construction ensures long-term signal integrity in electrically noisy industrial environments such as power generation, oil & gas, and heavy manufacturing.
