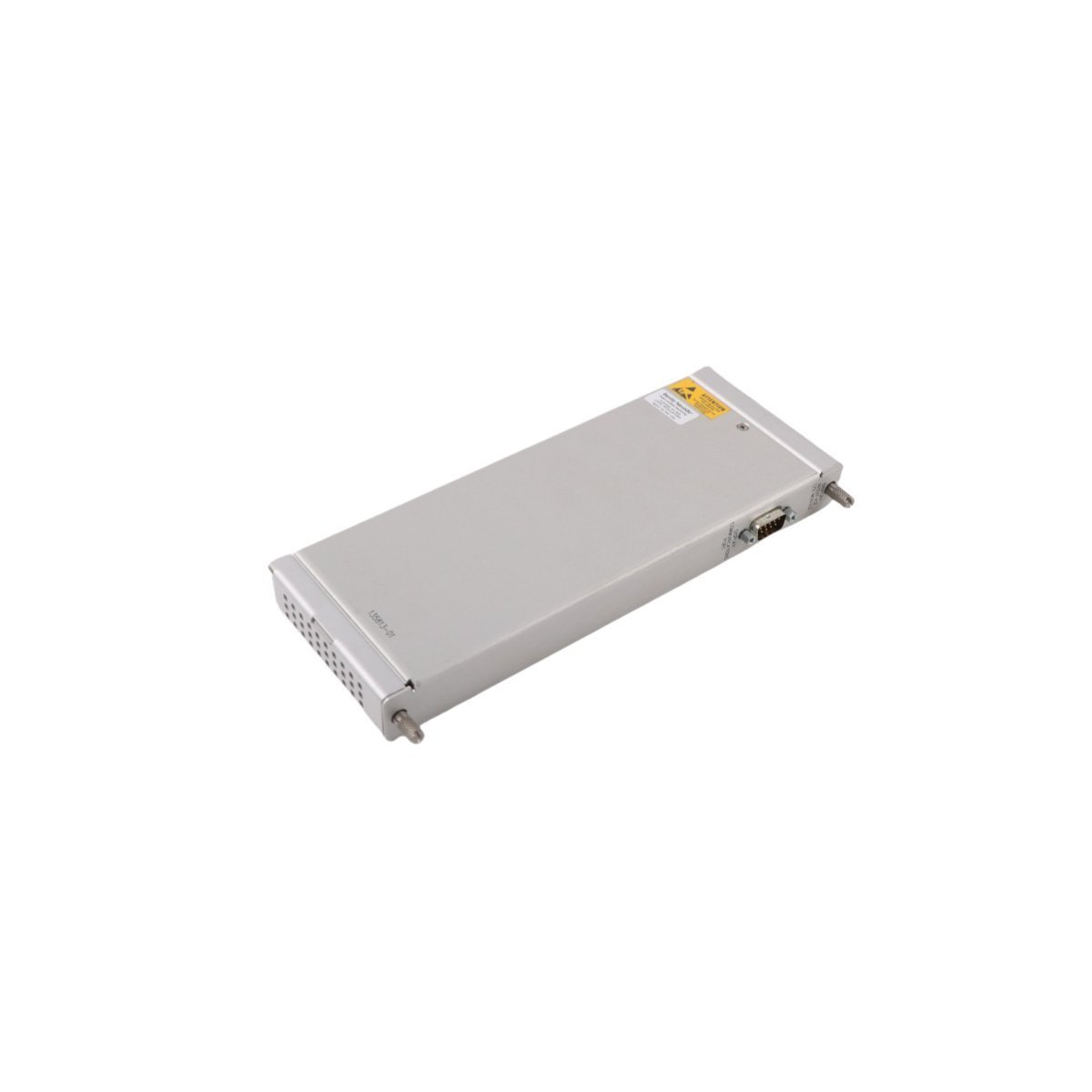

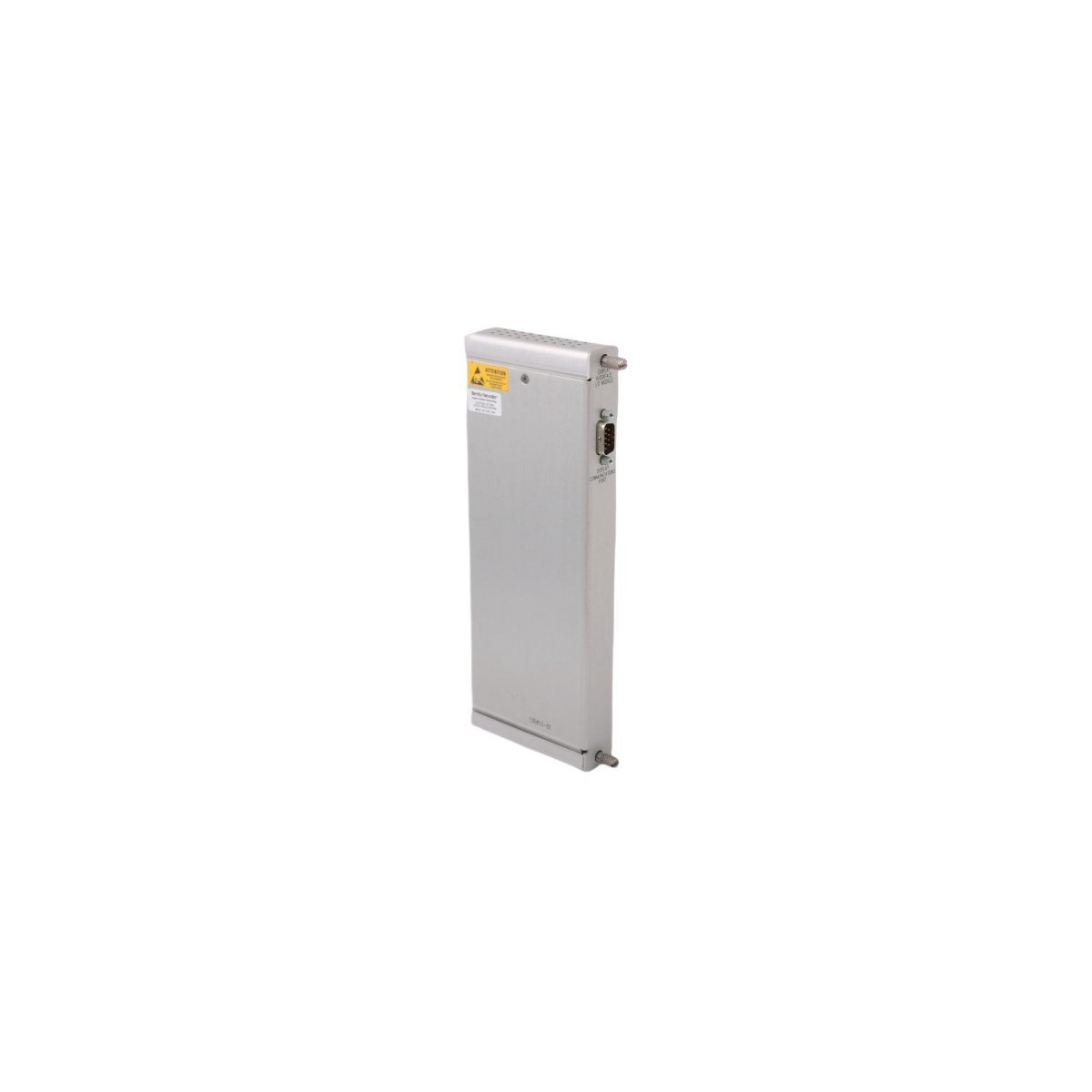

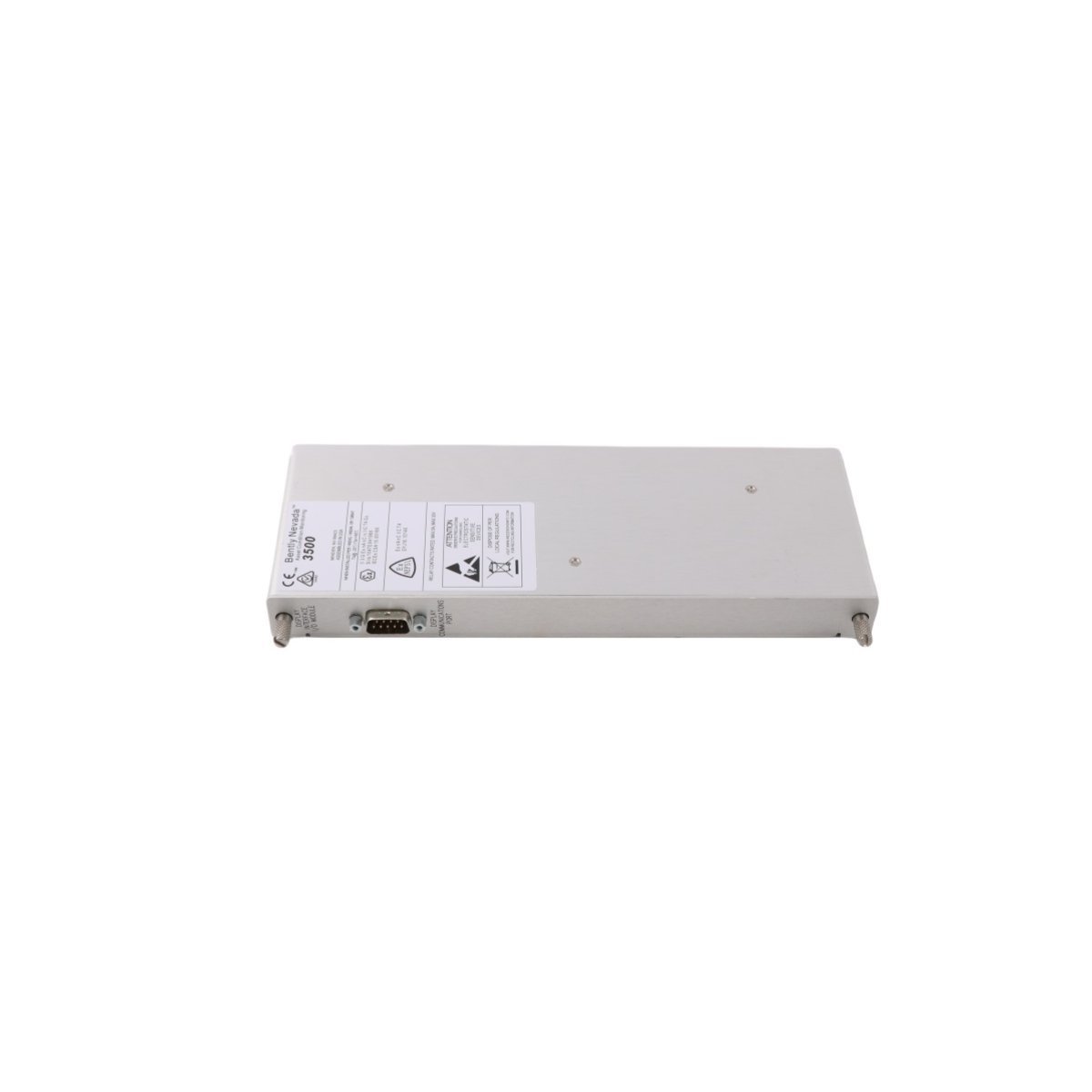

Bently Nevada 135813-01 Display Interface I/O Module

The Bently Nevada 135813-01 is a dedicated Display Interface I/O module designed for the 3500 Machinery Protection System. This component serves as the essential communication bridge between the 3500 monitoring rack and external display units. By providing a stable physical connection point at the rear of the rack, the 135813-01 ensures that critical vibration and status data reach local operators. This interface allows for real-time visualization of machinery health, which is vital for onsite decision-making and safety monitoring.

Technical Specifications

Industrial Durability and System Reliability

Reliability is the hallmark of the 135813-01 framework interface. Bently Nevada subjects this module to rigorous environmental testing to ensure it meets stringent industry standards for vibration and thermal resistance. Because it is part of the 3500 series ecosystem, the module supports hot-swappable replacement, allowing technicians to perform maintenance without de-energizing the entire protection system. This feature minimizes potential downtime and ensures that machinery protection remain active during interface upgrades or repairs.

Key Operational Advantages

Implementing the 135813-01 interface provides several benefits for automation and maintenance teams:

• High-Speed Transmission: RS422 protocol supports rapid data flow for precise real-time feedback.
• Compact Footprint: The slim module design optimizes space in crowded industrial control setups.
• Ruggedized Performance: Validated for long-term use in harsh manufacturing and processing conditions.
• Seamless Integration: Direct compatibility with standard 3500 display software and hardware components.
