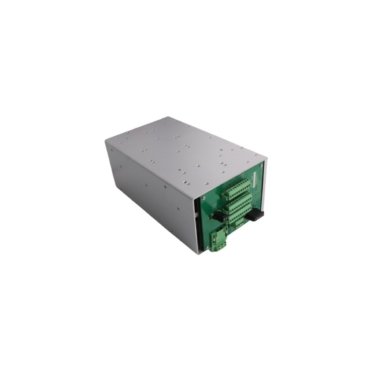

The Allen-Bradley MOX12-P3509B provides a specialized power solution for sophisticated industrial automation systems. This switching power supply delivers several critical voltage rails from a single unit. It specifically outputs +5V, ±15V, +12V, and ±24V DC. Consequently, a single module can power processors, sensors, and communication interfaces simultaneously. This consolidated approach simplifies cabinet wiring and reduces the need for multiple independent power sources.

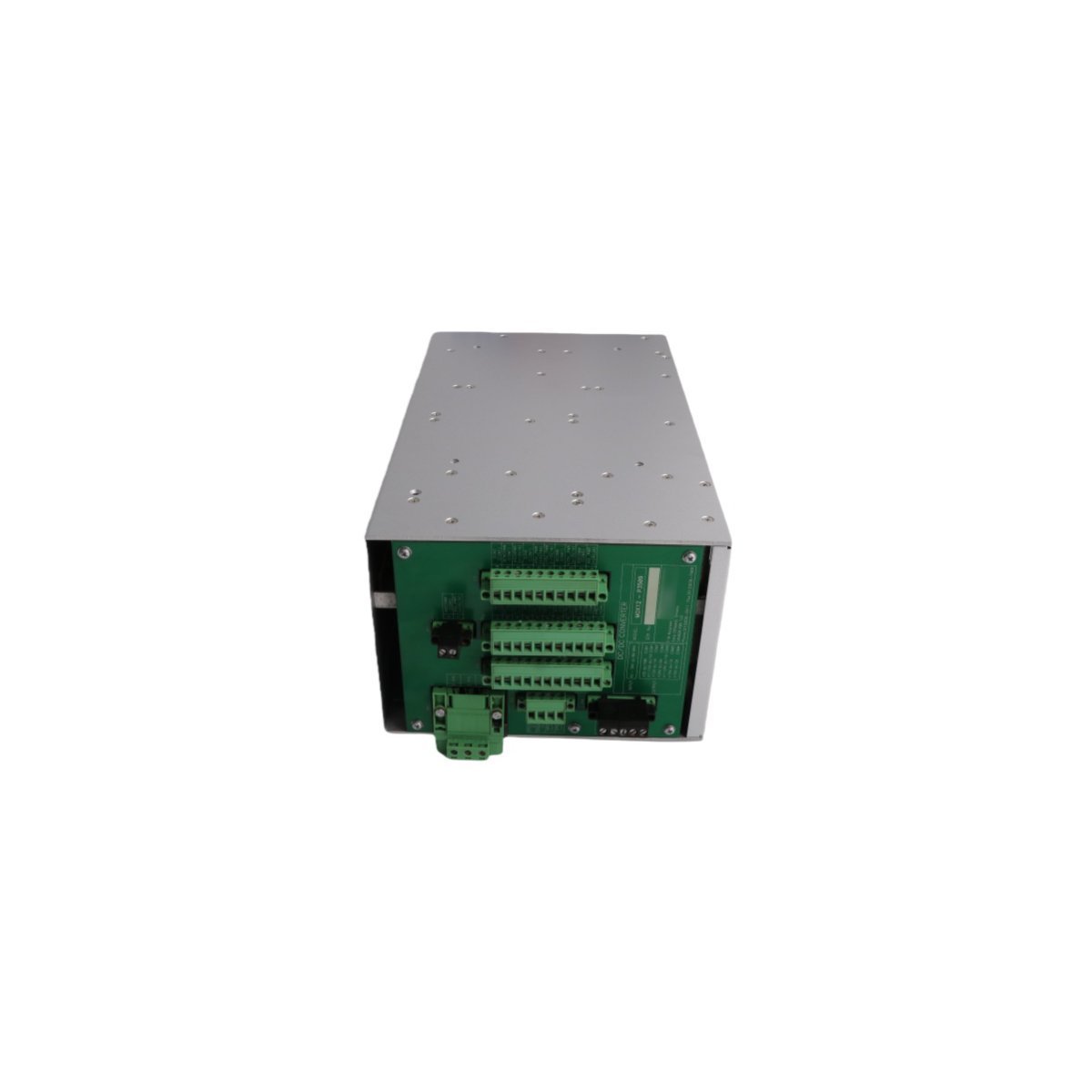

The unit features a robust metal housing for maximum durability. This enclosure provides excellent protection against mechanical stress and electromagnetic interference. Furthermore, the MOX12-P3509B 80026-173-23 maintains stable operation within complex control environments. It serves as a reliable energy hub for machinery requiring high-precision voltage regulation.
Essential Technical Specifications
- Manufacturer: Allen-Bradley / Rockwell Automation
- Model Number: MOX12-P3509B
- Order Number: 80026-173-23
- Product Type: Multi-Output Switching Power Supply
- Input Voltage: 100–240V AC (Auto-Ranging)
- DC Output Rails: +5V, +12V, ±15V, ±24V
- Conversion Efficiency: Exceeds 90% at standard loads
- Operating Temperature: -25°C to +70°C
- Enclosure Material: Industrial Grade Metal
- Product Weight: 5.9 kg (Shipping Weight)
- Dimensions: 12.5 x 25 x 27.5 cm
- Manufacturing Origin: USA
Thermal Resilience and Efficiency
The MOX12-P3509B utilizes advanced cooling technologies to manage heat during continuous operation. It operates reliably in temperatures ranging from -25°C to +70°C. Therefore, the power supply performs well in both extreme cold and high-heat factory settings. The engineering team prioritized energy efficiency during the design phase. High conversion rates minimize wasted energy and reduce internal component stress.
This efficiency directly contributes to a longer service life for the hardware. Moreover, it reduces the thermal load within the electrical enclosure. This protects other sensitive electronic components located near the power supply. The unit represents a long-term investment for facilities focused on reducing maintenance downtime.
