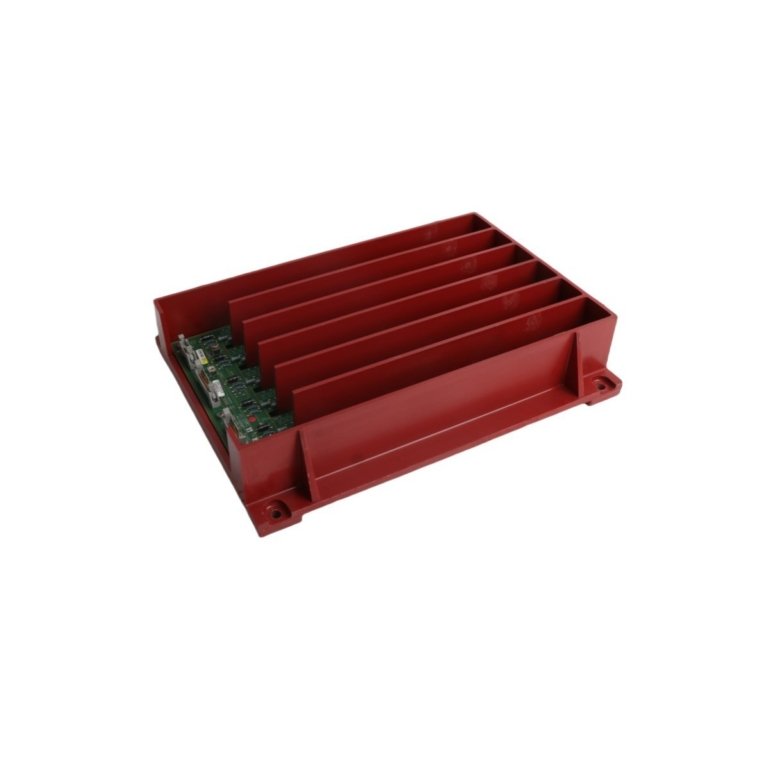

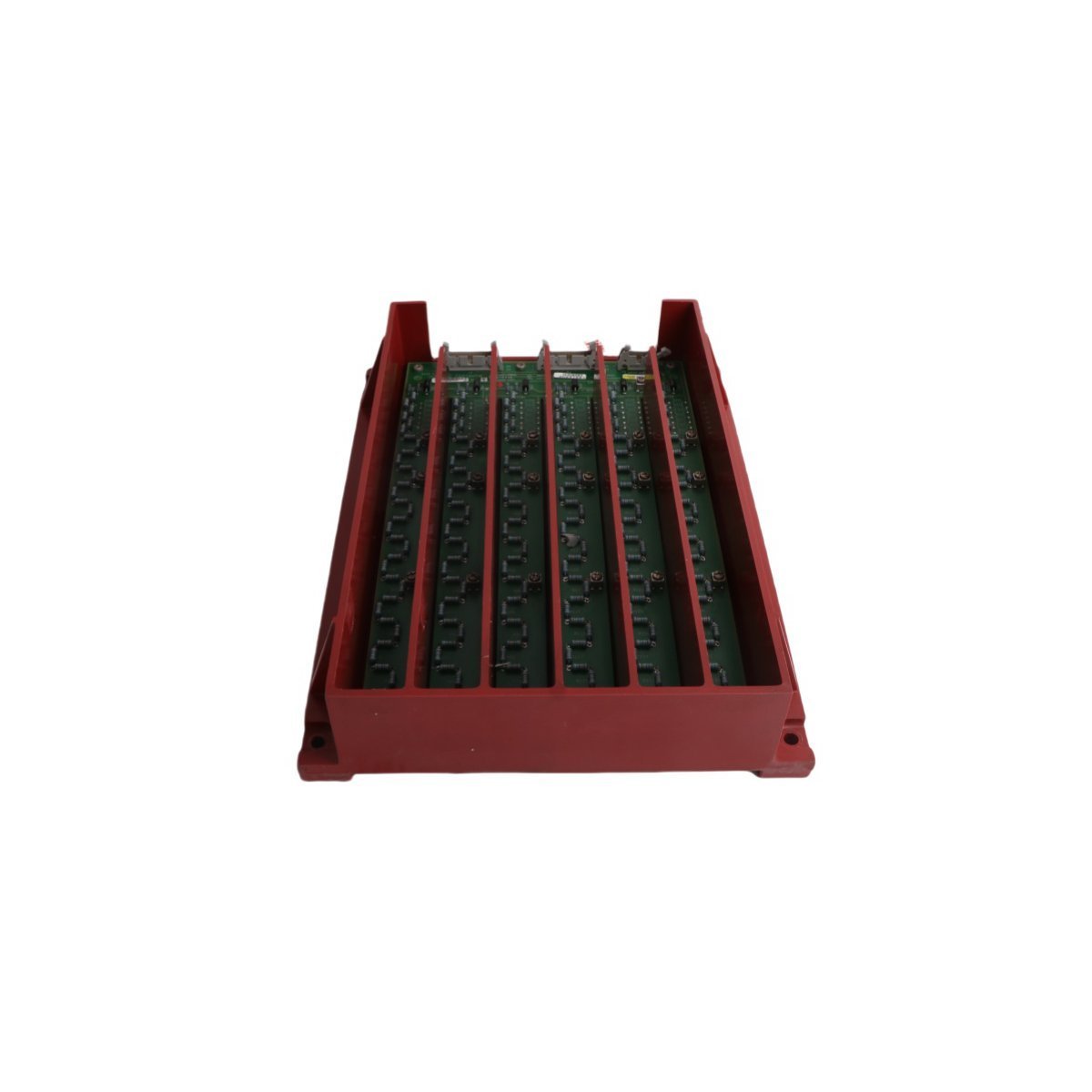

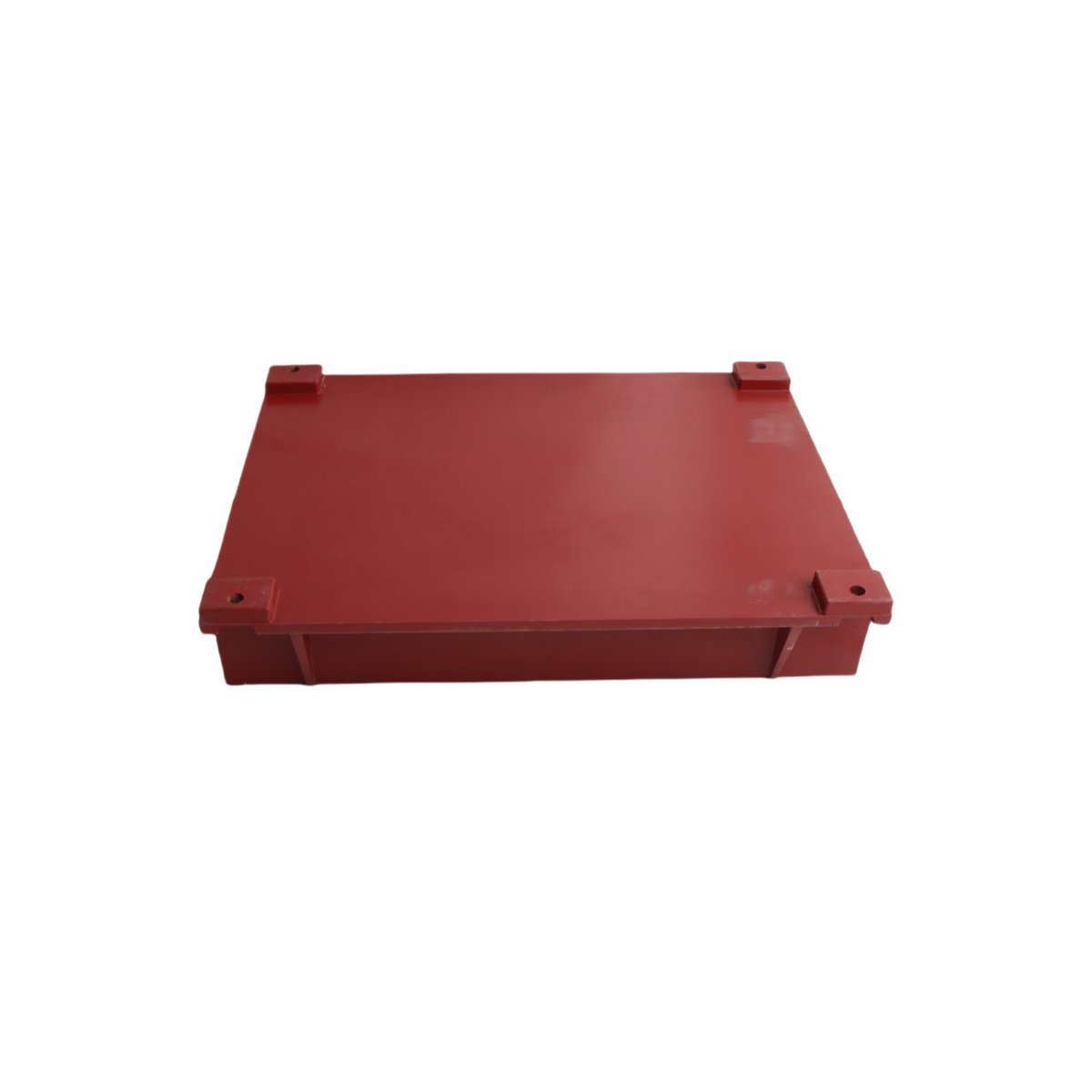

Allen-Bradley 81000-199-53-R PLC System Voltage Sensing Circuit Board

Product Description

The Allen-Bradley 81000-199-53-R functions as a high-integrity voltage feedback interface board engineered for sophisticated signal conditioning within industrial drive and PLC systems. This module captures and processes analog voltage signals with extreme precision, serving as a critical feedback loop component for closed-loop control applications. By maintaining high input impedance and fine resolution, the board ensures that the control system receives a highly accurate representation of real-time electrical conditions.

Technical Specifications

The 81000-199-53-R utilizes premium analog circuitry to achieve high-speed signal transparency and minimal thermal drift.

Engineering Advantages

• High-Fidelity Signal Preservation: The 1 MΩ input impedance prevents the interface board from loading the source circuit. Consequently, the 81000-199-53-R preserves the original signal integrity, which is vital for high-accuracy sensing in laboratory and industrial power environments.
• Superior 16-Bit Resolution: With a resolution of 0.15mV, the module detects even the most minute voltage fluctuations. This level of detail allows the master controller to make fine-tuned adjustments to motor speed or power output, enhancing overall process stability.
• Dynamic High-Speed Response: The 10 kHz bandwidth ensures the board tracks rapidly changing signals without significant phase lag. This makes the module specifically suitable for dynamic motion control and high-frequency power monitoring.
• Efficient Power Profile: Drawing only 50mA from a 24V DC supply, the board generates minimal internal heat. This efficiency allows for high-density mounting in electrical cabinets without compromising the lifespan of adjacent electronic components.
• Robust Industrial Build: Although discontinued by the manufacturer as of June 2016, the 81000-199-53-R remains a benchmark for reliability. Its ruggedized traces and high-quality soldering withstand the constant vibration and electrical noise common in heavy manufacturing.
• 100% Brand New Condition: We supply only original, factory-sealed Allen-Bradley units. Using brand-new hardware eliminates the risks of component fatigue found in used parts, ensuring your mission-critical feedback loops remain operational and accurate.

FAQs

What is the primary application for the 81000-199-53-R?

This board primarily serves as a voltage sensing interface in large-scale drive systems and PLC architectures. It translates high-level voltage signals into buffered analog data that the control logic can process for feedback regulation.

Can this board handle signals higher than ±10V DC?

The native input range is ±10V DC. If your application involves higher voltages, you must use an external potential transformer or voltage divider before the signal reaches the 81000-199-53-R inputs.

Is this module compatible with modern Rockwell Automation systems?

Yes, while it is a legacy component, it integrates seamlessly with systems that accept standard ±10V analog feedback or 0-10V buffered outputs, provided the mechanical rack specifications align.
