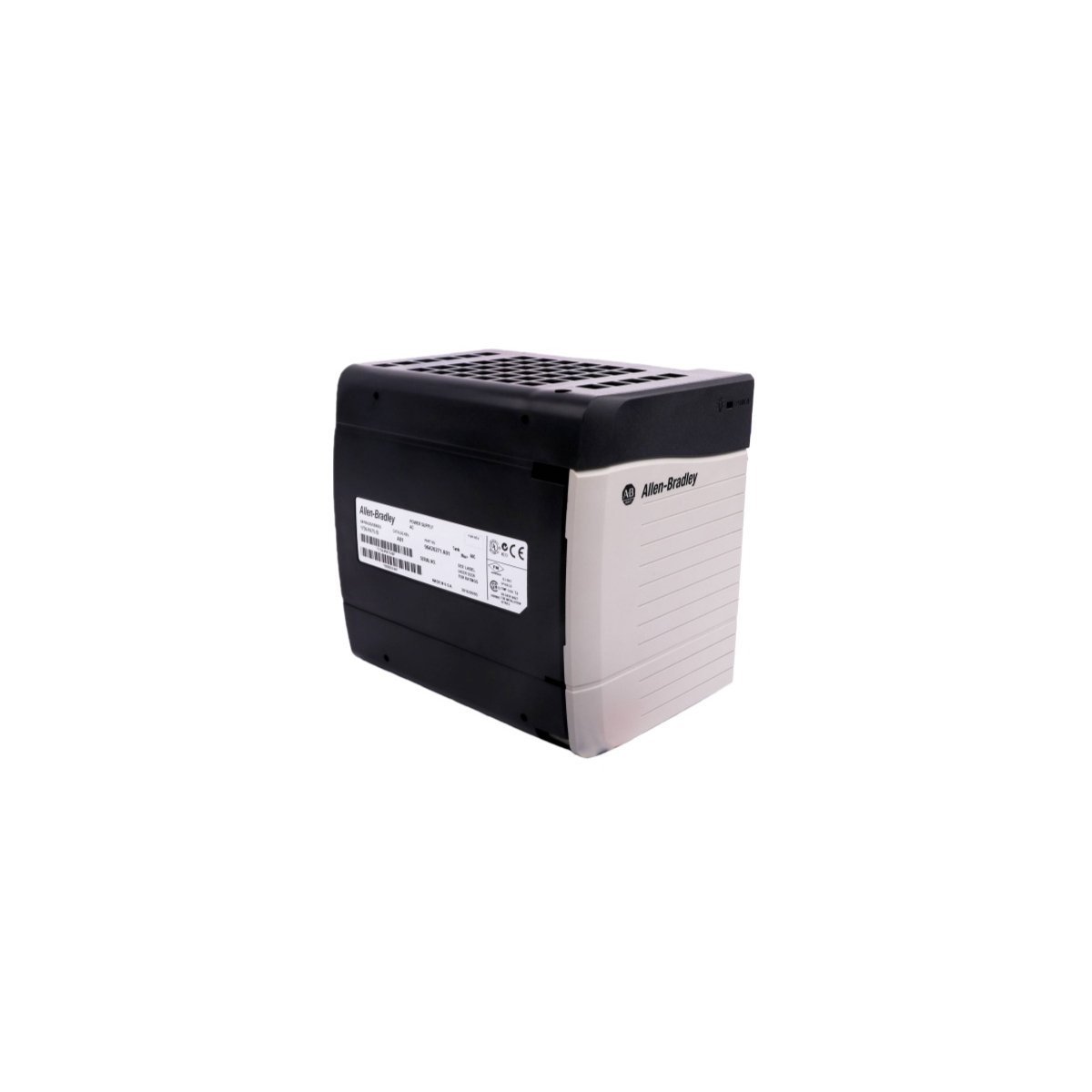

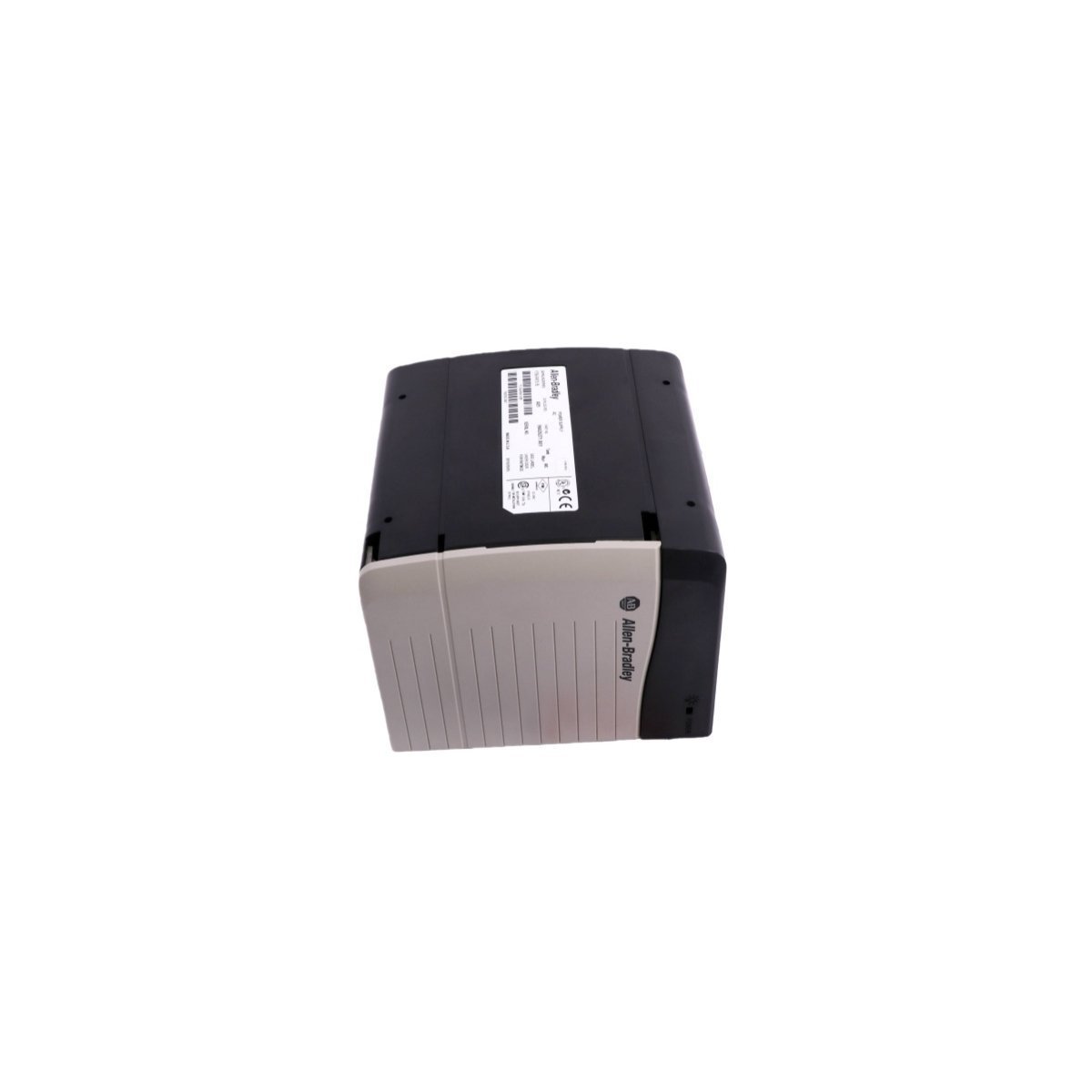

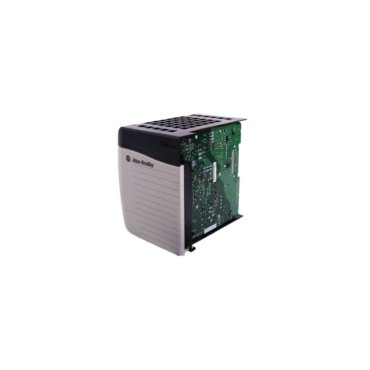

The Allen-Bradley 1756-PA75 provides essential energy to the ControlLogix backplane. This 75-watt module powers every controller and I/O card within the local rack. It installs exclusively into the dedicated slot on the far left of the chassis. This specific placement ensures the hardware receives a stable DC voltage distribution. Consequently, the power supply acts as the reliable foundation for the entire automation assembly.
Technical Performance and Global Compatibility
This unit features a versatile input design to accommodate various international power standards. It accepts a wide range from 85V to 265V AC at 47 to 63 Hz. This flexibility eliminates the need for external transformers in most regions. The internal circuitry converts this input into multiple regulated DC outputs. For instance, it provides a high-current 13A supply at 5.1V DC for backplane operations. Furthermore, the robust architecture maintains peak performance even at 60°C ambient temperatures.
Operational Data and Safety Specifications
- Input Voltage: 85–265V AC (Universal)
- Output Power: 75 Watts Total
- Backplane Current (5.1V): 13 Amperes
- Backplane Current (24V): 2.8 Amperes
- Backplane Current (3.3V): 4 Amperes
- Hold-up Time: Cycle-based protection against power dips
- Isolation Voltage: Reinforced insulation for enhanced safety
- Protection: Integrated non-replaceable fuse against fire hazards
Reliability and System Protection
Advanced safety mechanisms allow this power supply to thrive in Pollution Degree 2 environments. The design includes significant hold-up times to bridge brief interruptions in the AC line. This feature prevents unnecessary system resets during minor electrical fluctuations. Additionally, reinforced electrical isolation protects sensitive logic components from high-voltage transients. The integrated status indicators help technicians quickly verify the health of the power source. These features collectively ensure maximum uptime for critical industrial processes.
