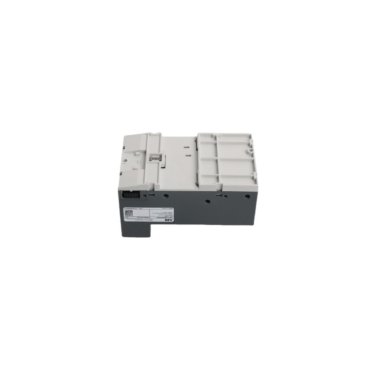

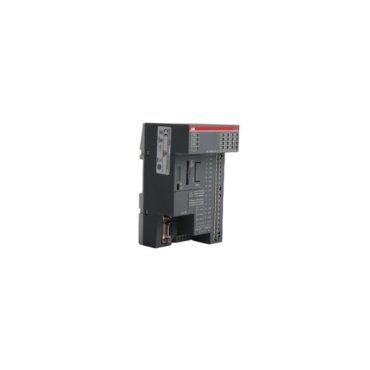

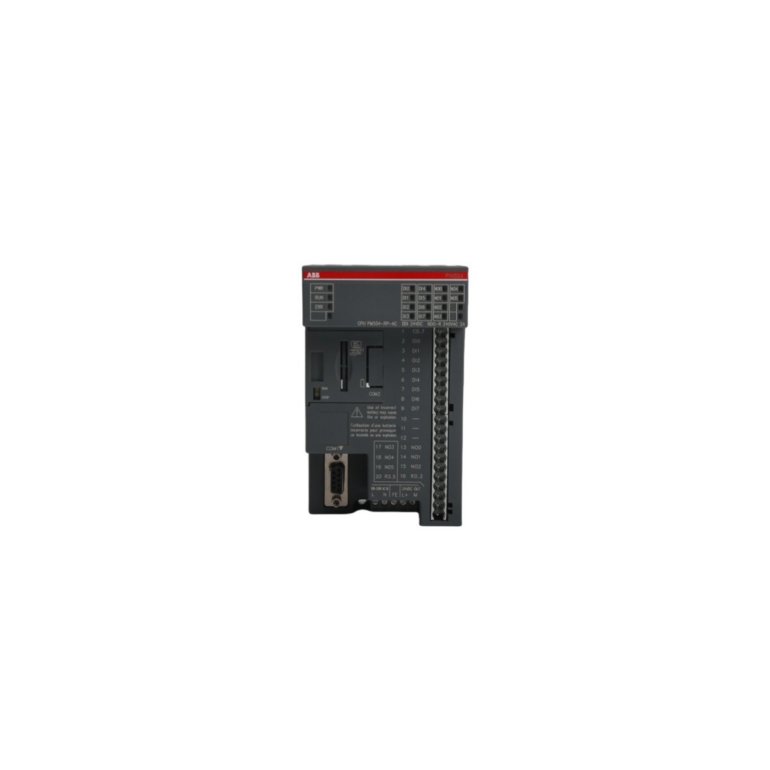

ABB PM554-RP-AC 1SAP120800R0001 Logic Controller

The ABB PM554-RP-AC, part of the 1SAP120800R0001 series, functions as a high-efficiency Central Processing Unit (CPU) within the AC500-eCo product family. This compact logic controller targets small-to-medium automation tasks where space and cost-efficiency remain paramount. By utilizing the standard IEC 61131-3 programming environment, the PM554-RP-AC enables engineers to deploy complex control logic across various industrial sectors. Because this model supports AC power input and features integrated relay outputs, it provides a versatile “all-in-one” solution for machine control and basic process automation.

Technical Configuration and Data

The PM554-RP-AC balances a lightweight footprint with sufficient onboard memory for standard industrial applications. The following table summarizes its core hardware specifications:

Scalable Architecture and Communication

While the PM554-RP-AC operates effectively as a standalone controller, its modular design allows for significant system expansion. Users can attach up to ten S500 or S500-eCo I/O modules to the CPU, which accommodates growing process requirements without needing a full system overhaul. Furthermore, the controller features integrated serial communication ports (RS485), facilitating data exchange with HMI panels, frequency converters, or other PLCs via Modbus RTU protocols. This connectivity ensures that the hardware remains synchronized with the broader factory network while maintaining high processing speeds for local digital and analog signals.
