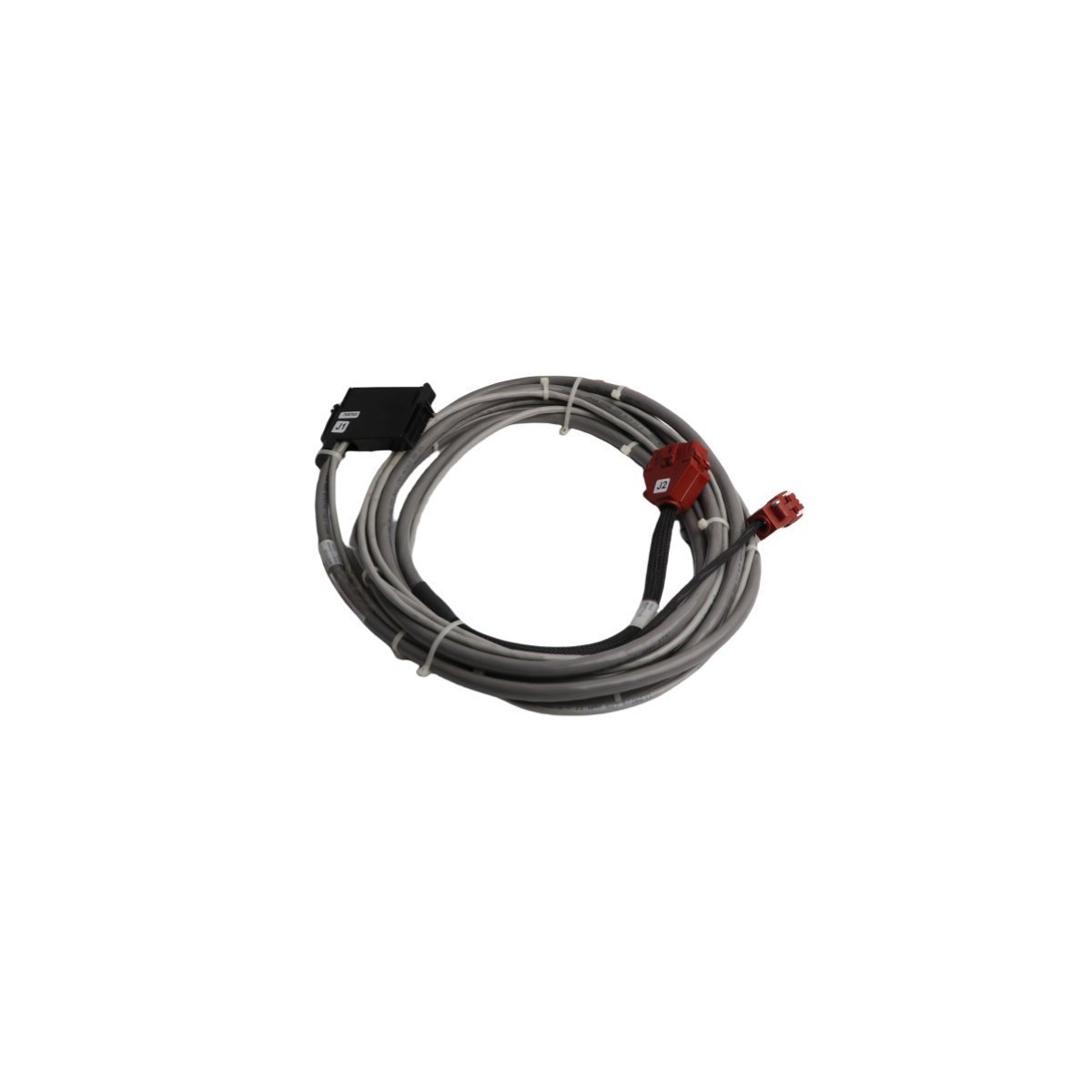

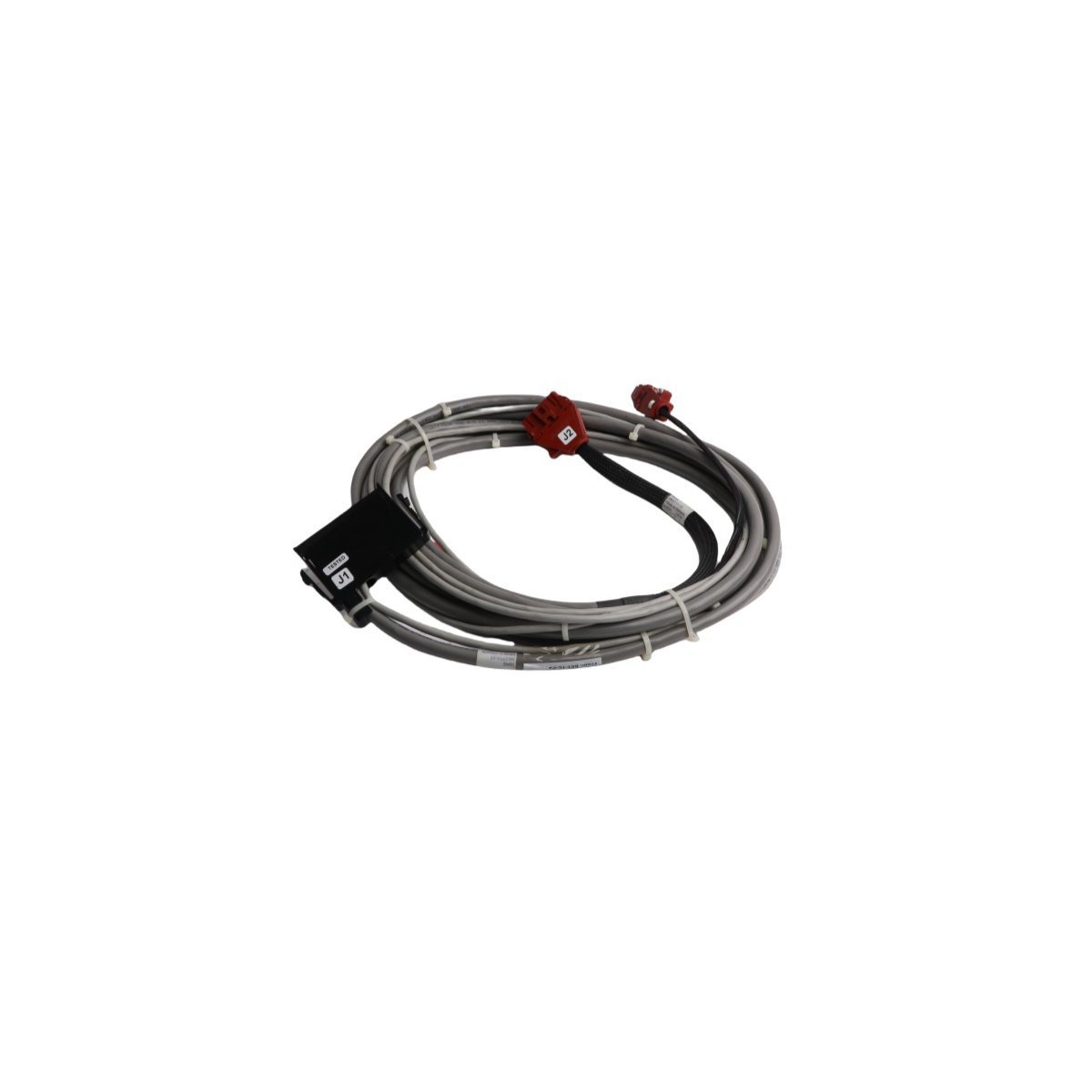

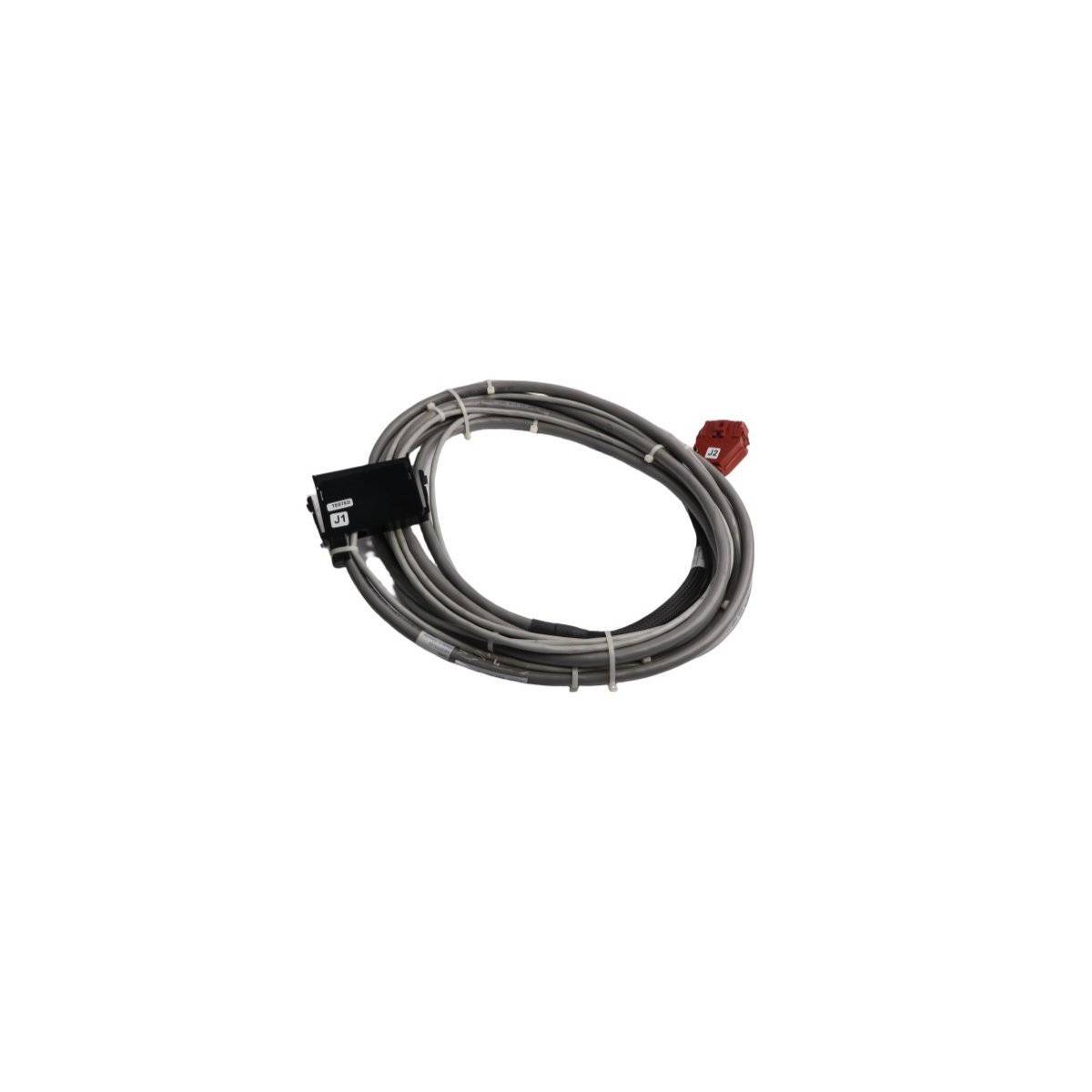

ABB NKST11-15 SOE Time Synch Cable

The ABB NKST11-15 serves as a specialized Sequence of Events (SOE) synchronization link. This cable facilitates precise time-stamping across Bailey Net 90 and Infi 90 distributed control systems. It connects master clock sources to various I/O modules to ensure microsecond-level accuracy. Consequently, the system can reconstruct plant events in the exact order of occurrence. Reliable time synchronization remains critical for post-trip analysis and complex diagnostic troubleshooting in utility and process plants.

Advanced Material Engineering and Insulation

This high-performance cable utilizes premium 22 AWG conductors to minimize signal degradation. The outer jacket consists of high-grade flexible PVC for excellent abrasion resistance. Furthermore, TPE insulation provides superior dielectric strength and electrical isolation between internal pairs. These materials prevent signal cross-talk during high-frequency data transmissions. Because the cable uses a plenum-rated design, it meets strict fire safety standards for industrial cabinet installations.

Environmental Resilience and Protection Standards

ABB designed the NKST11-15 to withstand the most rigorous industrial conditions. The cable maintains full functionality within an extreme thermal range of -40°C to +85°C. Moreover, the assembly carries an IP67 rating to prevent dust ingress and moisture damage. This rugged construction ensures long-term stability in areas prone to wash-downs or high humidity. The hardware effectively resists chemical exposure typical of power generation and manufacturing environments.

Technical Specification Overview

Flexible Integration and Site Safety

The NKST11-15 features a color-coded wiring system to simplify field installation and maintenance. Technicians can quickly identify specific signal pairs during the commissioning phase. Additionally, the cable’s flexible radius allows for easy routing through tight cable trays and conduits. This flexibility reduces mechanical stress on connector terminals during long-term operation. Choosing the correct length minimizes excess clutter while maintaining optimal signal timing across the DCS network.
